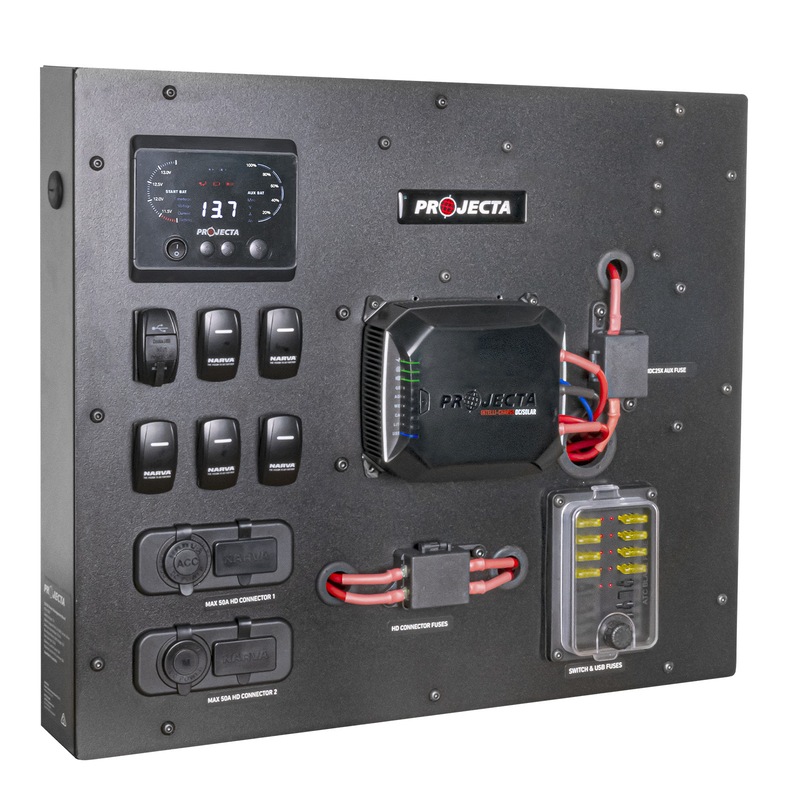

Projecta 12V 25A DC Power Management Board

A premium pre-built all-in-one DC power board, ideal for ute canopies and tray bodies. For ease of fitment, the unit is pre-wired enabling a quick and professional installation.



Features:

  • DC-DC CHARGER (IDC25X): Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications
  • BATTERY MONITOR (BM500-BT): An intelligent and compact battery meter ideal for monitoring SOC% and general status
  • SOCKETS & SWITCH PANEL: Power and charge 12V devices with 3.1A USB sockets, a merit socket and a cigarette lighter socket. 5 switches are included to control all your connections
  • HEAVY DUTY INPUT/OUTPUTBATTERY CONNECTORS: 50A Heavy duty connectors allow connection to appliances and to external
    solar
  • CIRCUIT PROTECTION: 100A Heavy duty circuit breaker with manual reset and 10-way 25A max fuse box. Can be used to isolate the whole board from the battery.



Specification:

DC-DC Charger:

  • Input Voltage: 9-32Vdc
  • Maximum Solar Input: 35Vdc
  • Maximum Panel Size: 360W
  • Batteries Supported: Gel, AGM, Calcium, Lithium

Smart Battery Monitor:

  • Maximum Current: 320A
  • Batteries Capacity Supporte: 5~320Ah
  • Batteries Supported: Wet, Gel, AGM, Calcium

USB Pocket:

  • Output: 5V,3.1A

Meri Socket:

  • Amp Rating: 16A at 12V, 8A at 24V

Cigarette Socket:

  • Amp Rating: 20A at 12V, 10A at 24V

Switches:

  • Amp Rating: 20A at 12V

Heavy Duty Connector:

  • Amp Rating: 50A, suits cable size 8mm2 (8B&S)

Circuit Breaker:

  • Amp Rating: 100A

Fuse Box:

  • Load: 25A per circuit
  • Circuits: 10-way ATS Blade Fuses

Board Dimensions: 435mm x 410mm



GTIN: 9315219003539
