Projecta 12V 25A DC Power Management Board with 1000W Inverter

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Hurry! 2 items left!
$2999

Collect 2999 Everyday Rewards points

Log in to MyDeal to link your card

Is this location right? Update for more accurate shipping cost.

Free Shipping to SYDNEY 2000
Free shipping to select areas

Dispatch in 2 business days

Sold & shipped by Caravan Rv Camping
Secure ways to pay at checkout
Pay in 4 is available on purchases under $2,000. Learn More

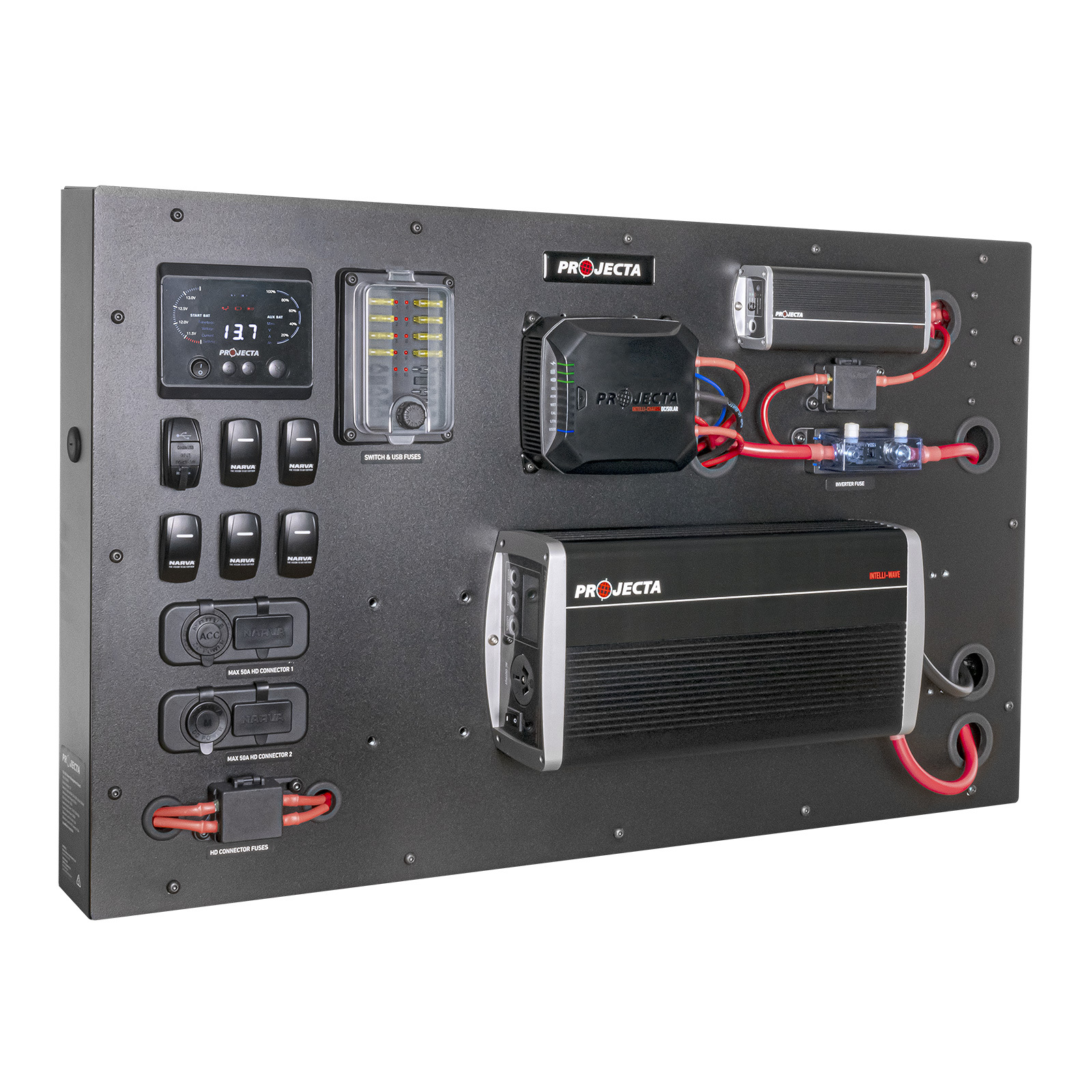

Projecta 12V 25A DC Power Management Board with 1000W Inverter

Utilising the latest premium ‘Intelli’ power management equipment, this board features the multi-chemistry 25Amp DC to DC dual battery charger, 1000W pure sine wave inverter and more.

This sophisticated system is ideal for ute canopies and caravan applications. Pre-built, these all-in-one units enable quick and easy installation.



Features:

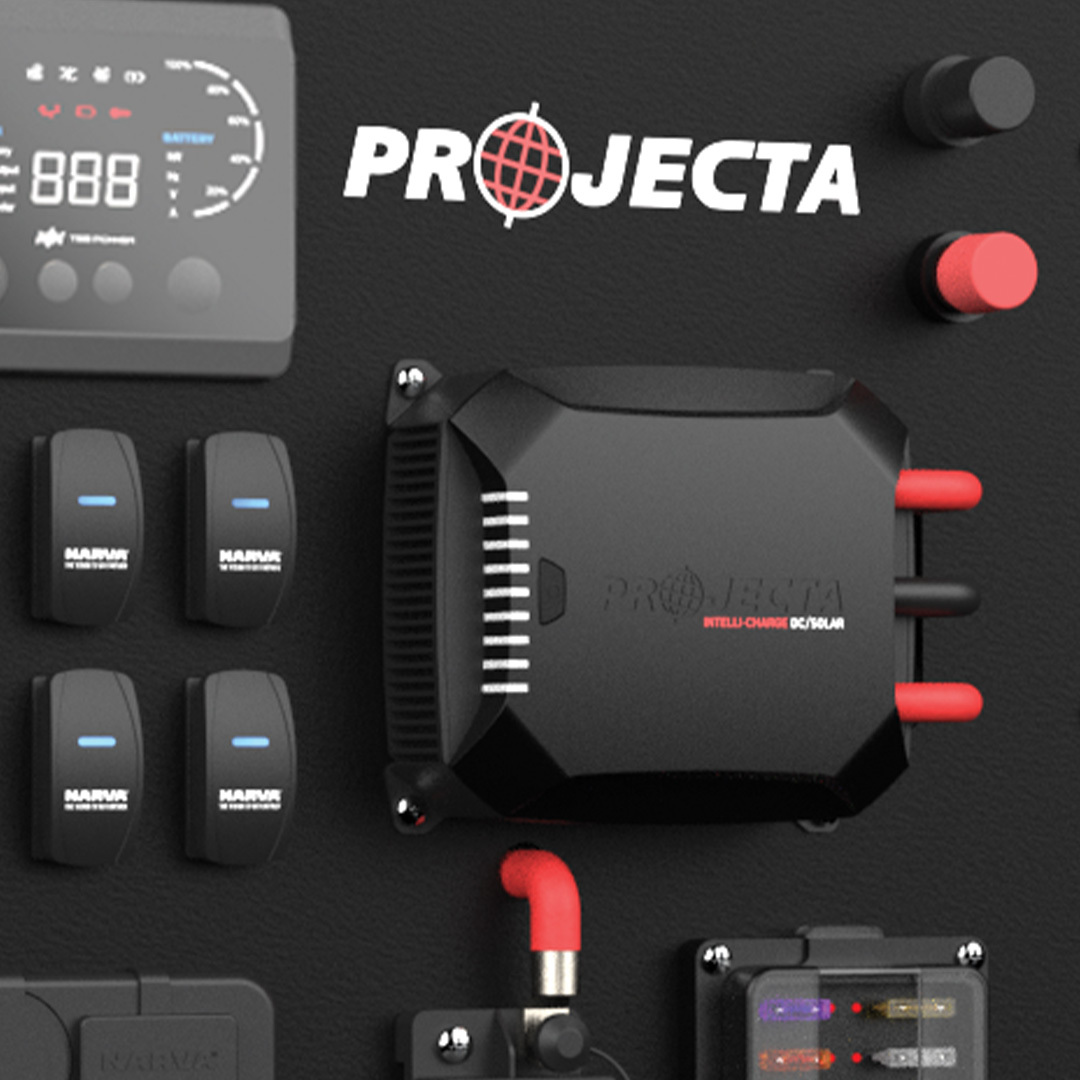

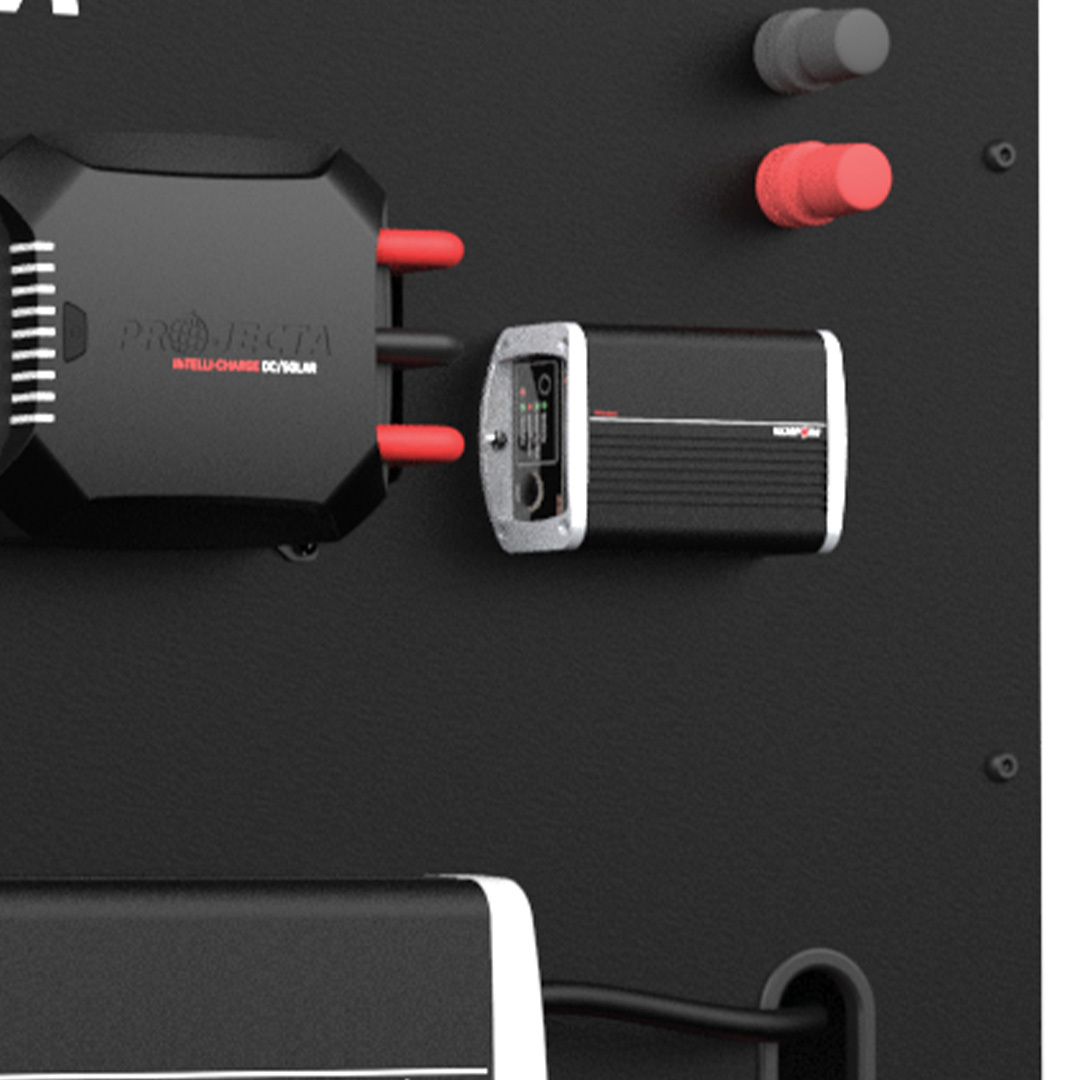

  • DC-DC CHARGER (IDC25X): Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications

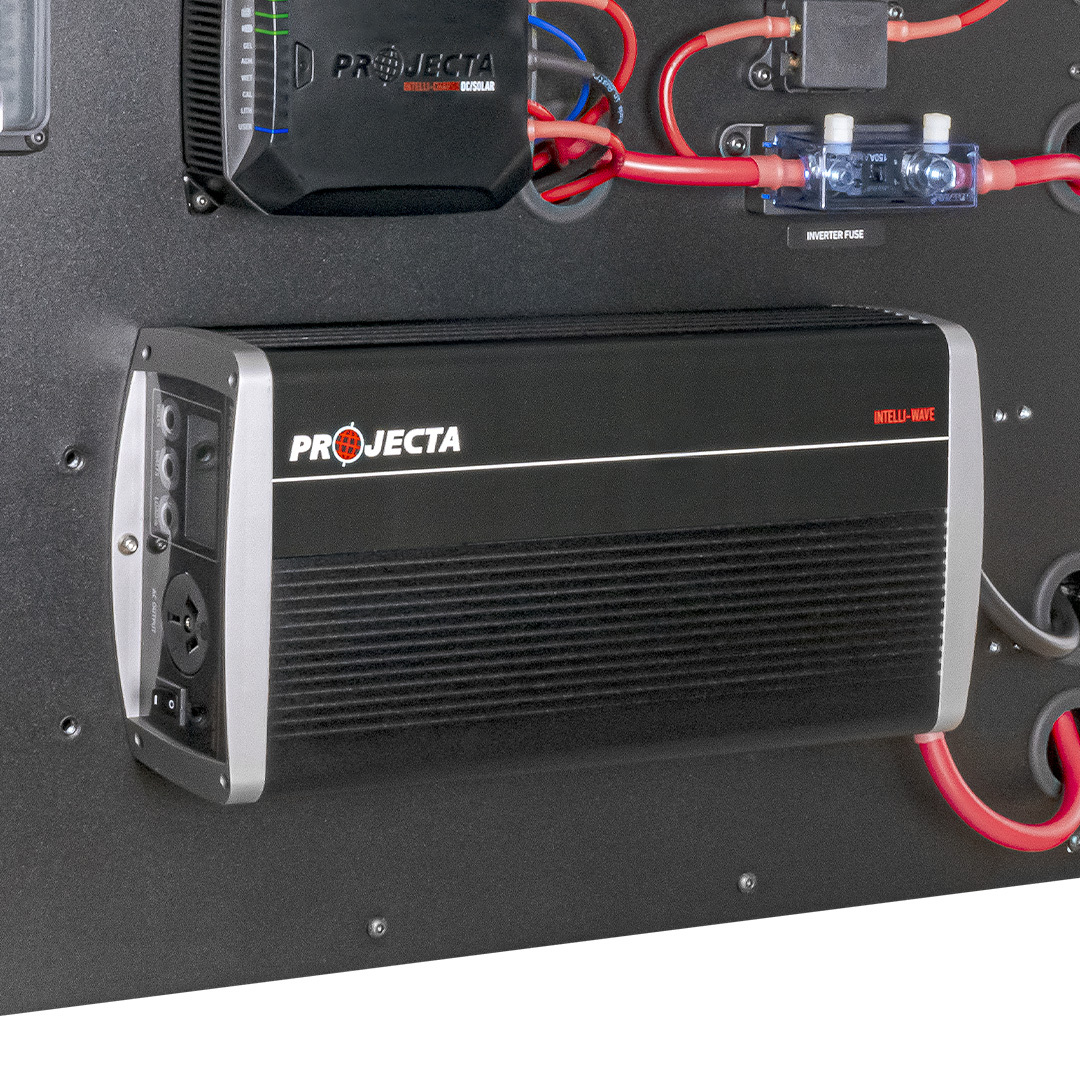

  • 1000W PURE SINE WAVE INVERTER (IP1000)Converts 12V power to 240V to allow the use of devicessuch as laptops and fridges on the go

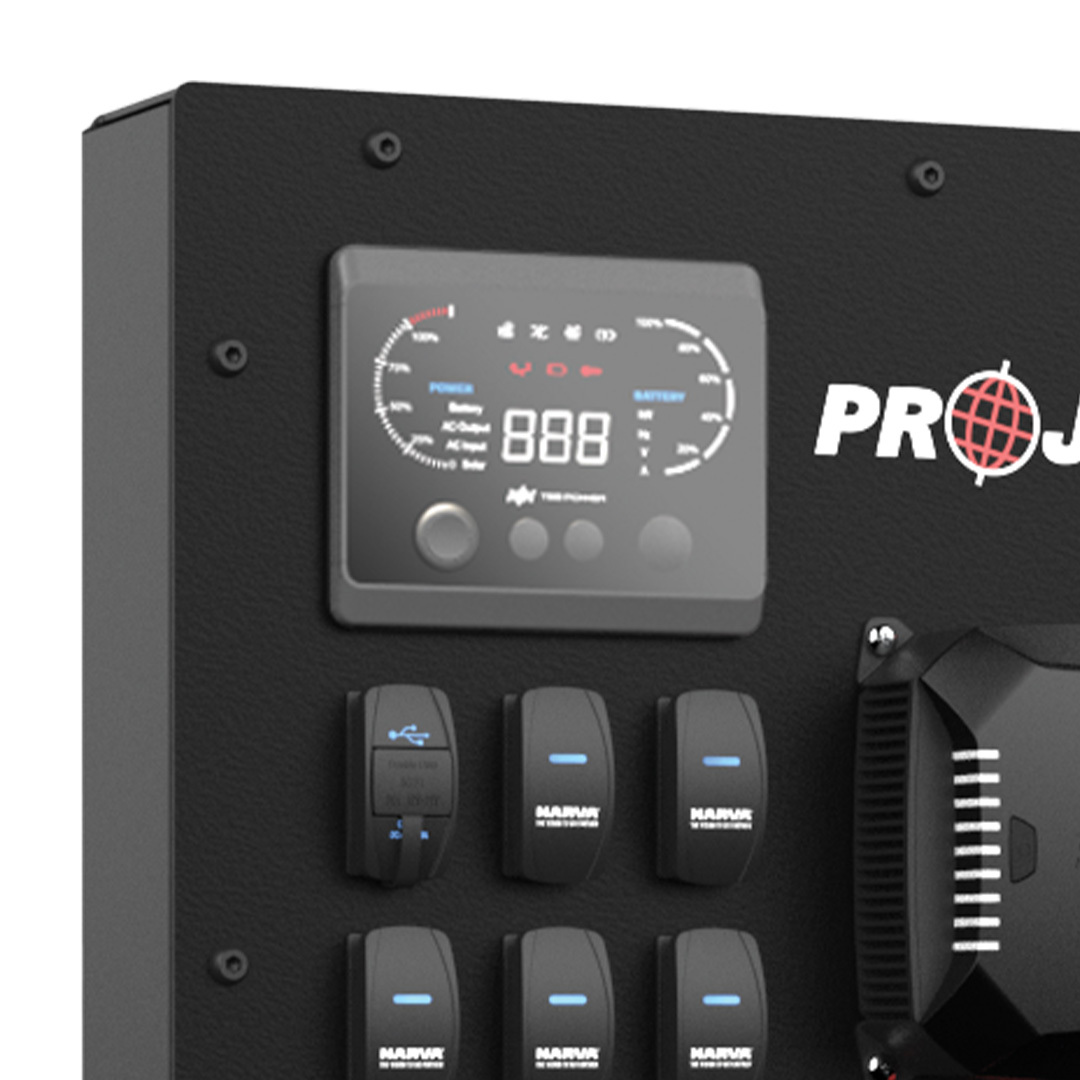

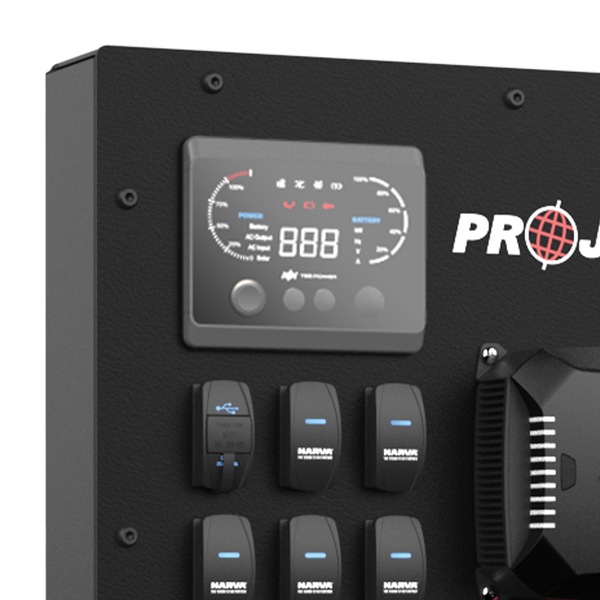

  • BATTERY MONITOR (BM500-BT): An intelligent and compact battery meter ideal for monitoring SOC% and general status

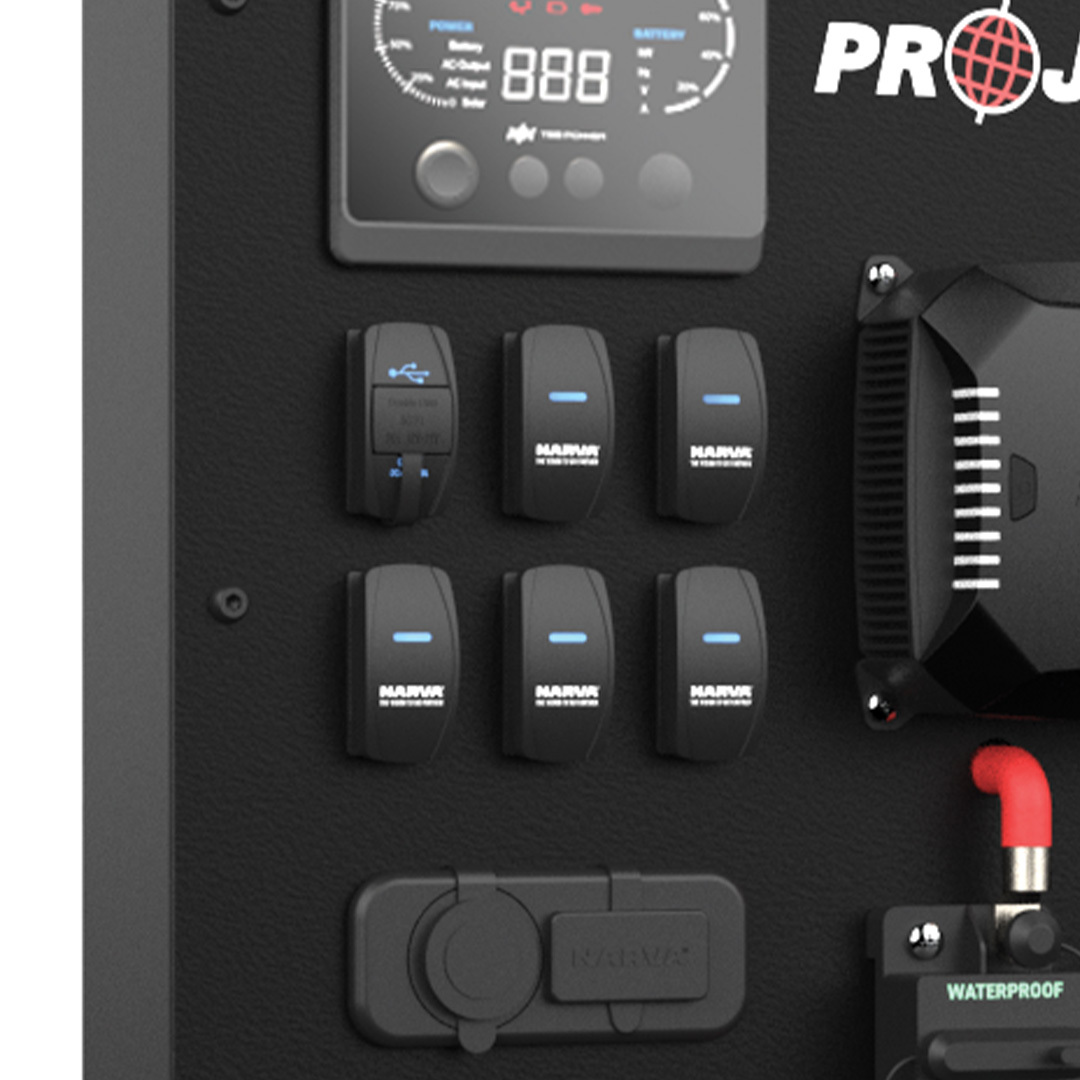

  • SOCKETS & SWITCH PANEL: Power and charge 12V devices with 3.1A USB sockets, a merit socket and a cigarette lighter socket. 5 switches are included to control all your connections
  • LOW VOLTAGE DISCONNECT: A robust and compact unit that protects expensive deep cycle batteries from damadamage caused
    by over-discharge



Specification:

DC-DC Charger:

  • Input Voltage: 9-32Vdc
  • Maximum Solar Input: 35Vdc
  • Maximum Panel Size: 360W
  • Batteries Supported: Gel, AGM, Calcium, Lithium

Smart Battery Monitor:

  • Maximum Current: 320A
  • Batteries Capacity Supporte: 5~320Ah
  • Batteries Supported: Wet, Gel, AGM, Calcium

USB Pocket:

  • Output: 5V,3.1A

Meri Socket:

  • Amp Rating: 16A at 12V, 8A at 24V

Cigarette Socket:

  • Amp Rating: 20A at 12V, 10A at 24V

Switches:

  • Amp Rating: 20A at 12V

Heavy Duty Connector:

  • Amp Rating: 50A, suits cable size 8mm2 (8B&S)

Circuit Breaker:

  • Amp Rating: 100A/150A

Fuse Box:

  • Load: 25A per circuit
  • Circuits: 10-way ATS Blade Fuses

Board Dimensions: 900mm x 550mm

GTIN: 9315219003478
