Projecta 12V 25A DC Power Management Board with 1500W Inverter

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
$3399

Collect 3399 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Caravan Rv Camping
Secure ways to pay at checkout

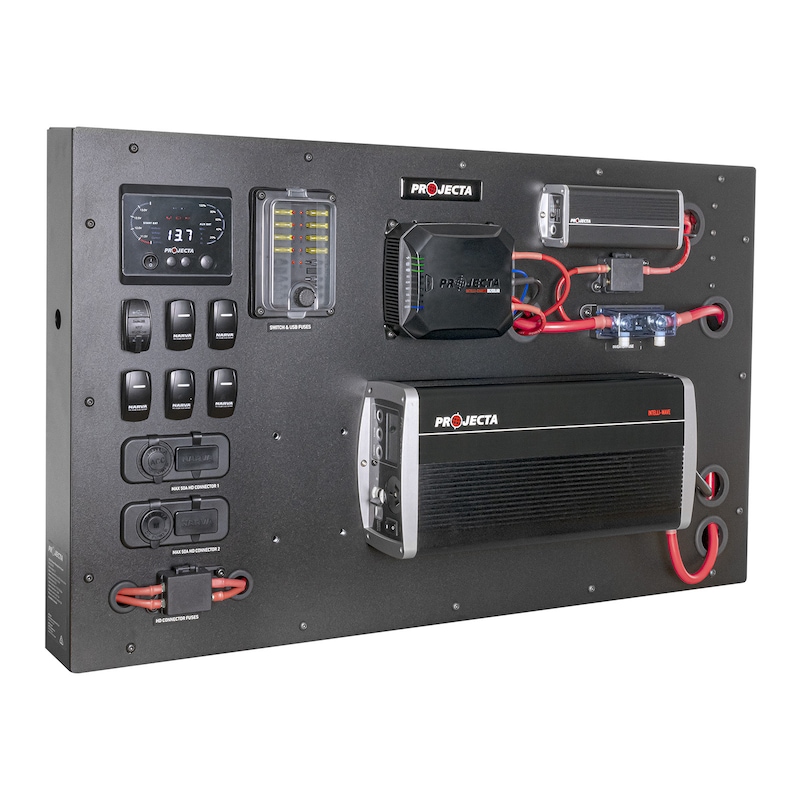

Projecta 12V 25A DC Power Management Board with 1500W Inverter

Utilising the latest premium ‘Intelli’ power management equipment, this board features the multi-chemistry 25Amp DC to DC dual battery charger, 1500W pure sine wave inverter and more.

This sophisticated system is ideal for ute canopies and RV applications. Pre-built, these all-in-one units enable quick and easy installation.



Features:

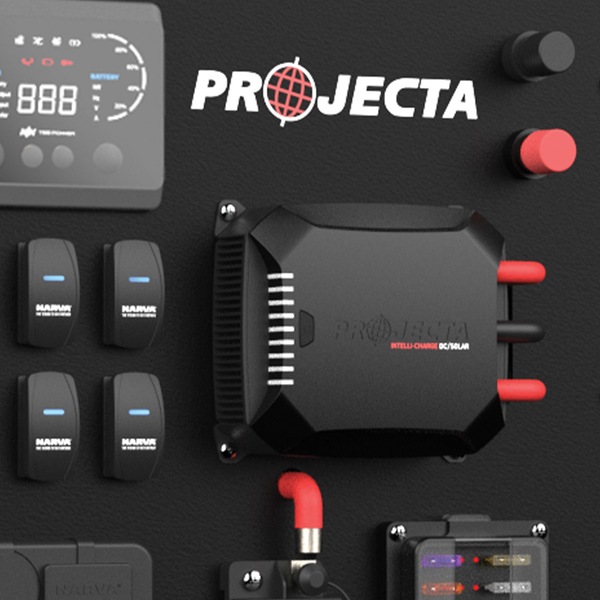

  • DC-DC CHARGER (IDC25X): Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications
  • 1500W PURE SINE WAVE INVERTER (IP1500): Converts 12V power to 240V to allow the use of devices such as laptops through to
    coffee machines whilst off grid
  • BATTERY MONITOR (BM500-BT): An intelligent and compact battery meter ideal for monitoring SOC% and general status

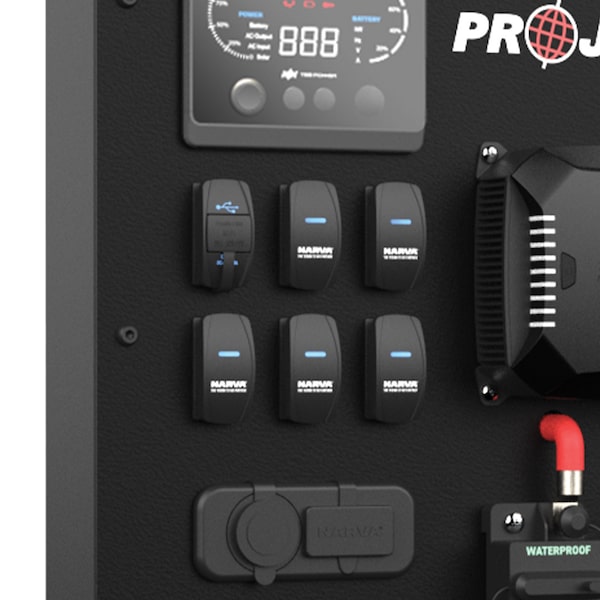

  • SOCKETS & SWITCH PANEL: Power and charge 12V devices with 3.1A USB sockets, a merit socket and a cigarette lighter socket. 5 switches are included to control all your connections

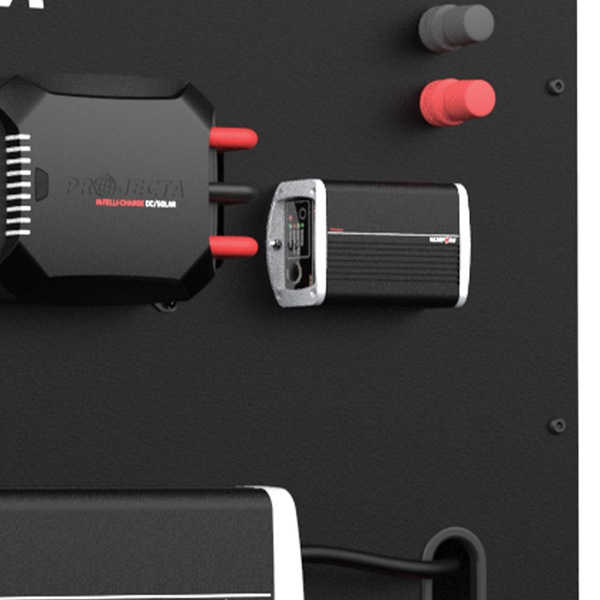

  • LOW VOLTAGE DISCONNECT: A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge



Specification:

DC-DC Charger:

  • Input Voltage: 9-32Vdc
  • Maximum Solar Input: 35Vdc
  • Maximum Panel Size: 360W
  • Batteries Supported: Gel, AGM, Calcium, Lithium

Smart Battery Monitor:

  • Maximum Current: 320A
  • Batteries Capacity Supporte: 5~320Ah
  • Batteries Supported: Wet, Gel, AGM, Calcium

USB Pocket:

  • Output: 5V,3.1A

Meri Socket:

  • Amp Rating: 16A at 12V, 8A at 24V

Cigarette Socket:

  • Amp Rating: 20A at 12V, 10A at 24V

Switches:

  • Amp Rating: 20A at 12V

Heavy Duty Connector:

  • Amp Rating: 50A, suits cable size 8mm2 (8B&S)

Circuit Breaker:

  • Amp Rating: 100A/150A

Fuse Box:

  • Load: 25A per circuit
  • Circuits: 10-way ATS Blade Fuses

Board Dimensions: 900mm x 550mm

GTIN: 9315219003485
