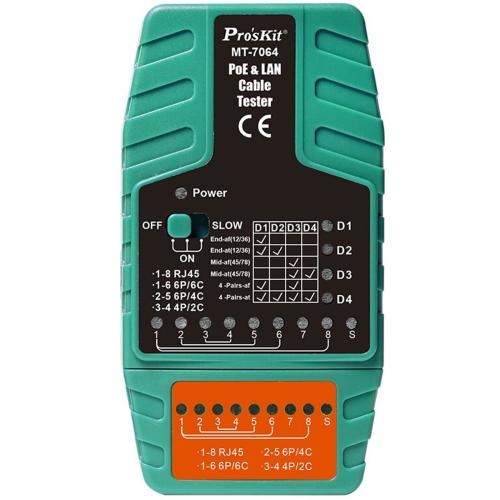

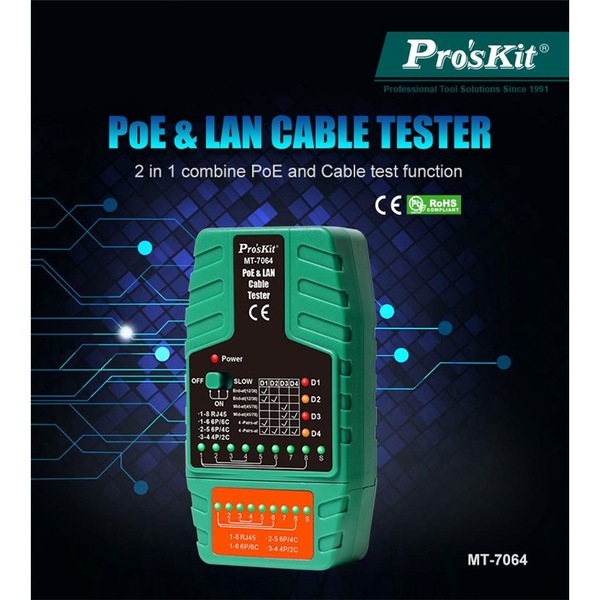

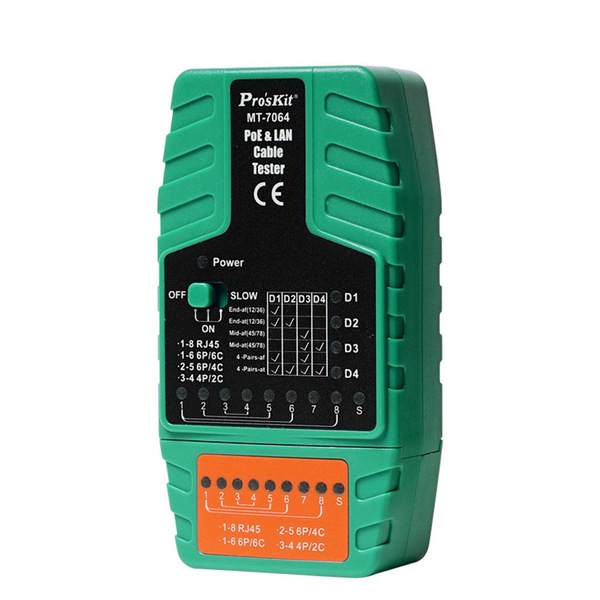

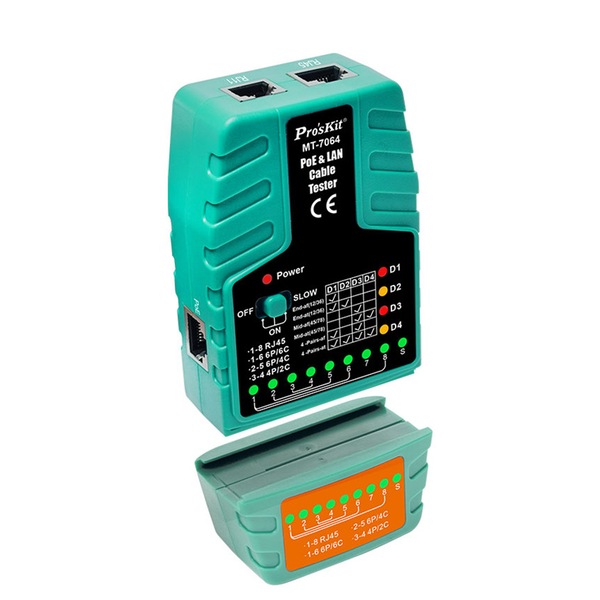

ProsKit MT-7064 PoE & LAN Cable Tester








PoE Tester
- Easily tests Ethernet network for power over Ethernet existence
- Quickly detects the type of the Power Sourcing Equipment (either Endspan or Midspan)
- MT-7063 is a economy type only for detecting Midspan/Endspan.
- MT-7064 is an advanced type which can easily identify IEEE 802.3 af/at PoE standard and Midspan/Endspan
Cable Tester:
- Check the RJ11/RJ12/RJ45 pin to pin cable map
- Automatically runs all tests and checks for continuity, open, short and crossover wire pairs
- Cable mapping up to 300M

Max. distance of cable map
300m
Compatible connectors
RJ45(8 Pin) & RJ11(6P/6C/4C/2C) & RJ12 & POE
Cable types tested
RJ45 Lan cable cat 5, 5e, 6(UTP/STP)
RJ11/12 Telepnone cable cat 3 (6P/2C/4C/6C)
Cable map indication
8 LED, Fast/Slow dual speed
Shielded indication
Yes
POE indication(Master)
802.3 af/at POE standard and Midspan/Endspan
Live telecommunication equipment test and router test
Yes
Dimension (LxWxD)
Master : 103x66x27 mm, Remote : 103x35x27 mm
Battery type
DC 9.0V
Weight
130g (Not including battery)
- MPN: MT-7064-SH

GTIN: 4711552159301

Reference ID: 4954328
