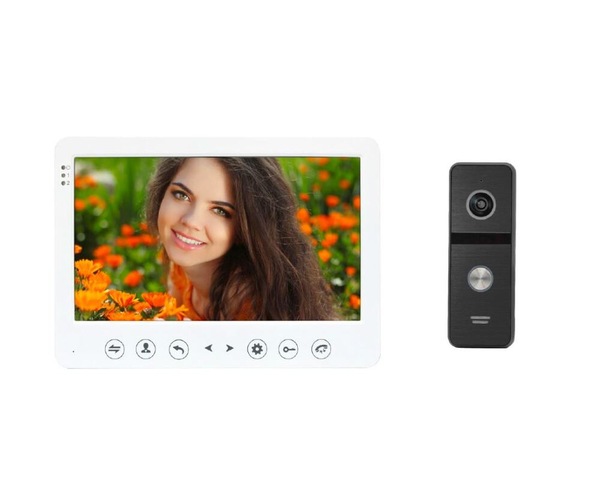

The PAN920SKHD video intercom is a cost effective door entry solution providing HD colour resolution and modern monitor design with touch button controls. The metal IP65 rated door camera and recording function (when optional microSD card fitted) will provide the added door entry security required for all families.

Kit Components:

• 1 x 7” LCD HD Monitor with power supply
• 1 x 1.3MP Door Station (IP65) with angle bracket
• User & Installation Manual
• Screws & cable connectors

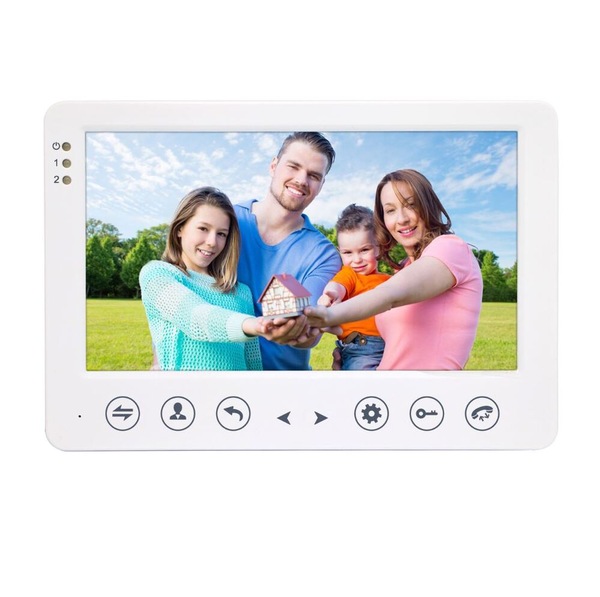

Internal Video Monitor Features

• 7″ TFT LCD Monitor, white, surface mount
• Touch button controls for ease of use
• Intercommunication & call transfer functions
• Door release (12VDC output)
• Analog or AHD CCTV camera and motion detector connection
• 4-wire system
• When SD card is inserted (not supplied), the follow features apply:
  • Memory Record (snapshot or video) when doorbell is pressed
  • Digital Photo Frame
  • Movie Player
  • Music Player
  • User defined ring tones
  • Motion detection recording
• Dimensions 185.3 (W) x 127.3 (H) x 21.5mm (D)

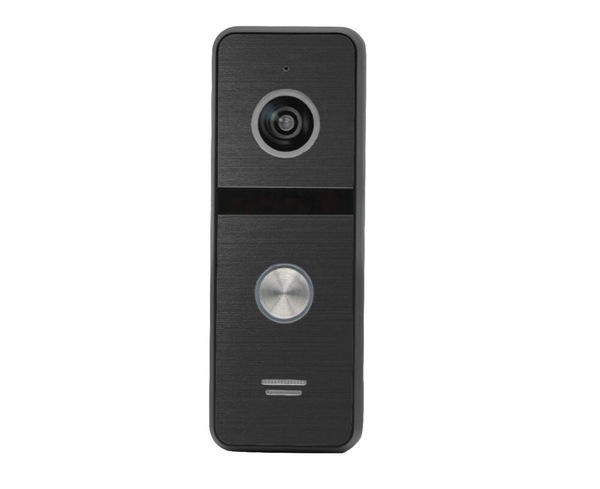

Surface Mount Outdoor Camera Features

• Single push button with illuminated call button
• IP65 weatherproof rating
• 1.3MP resolution
• Slim 17.5mm profile
• 45 degree angle bracket included for side wall mounting
• LED light for night vision
• Wide angle 120 degree view
• Dimensions: 48 (W) x 133 (H) x 17.5mm (D)

System Expandability

• Expandable up to 2 outdoor cameras and 6 internal video monitors & 2 Analogue or AHD CCTV Cameras

Cable Requirements

• 0m-50m: 1 x CAT-5e or 1 x 4 core 0.5mm2
• 51-100m: 1 x RG59 Coax + 1 x 4 core 0.5mm2
