PVC Ball Valve General Purpose F/F - BSP Thread

Image 1
Hurry! 9 items left!
From$2.97

Collect 2 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout

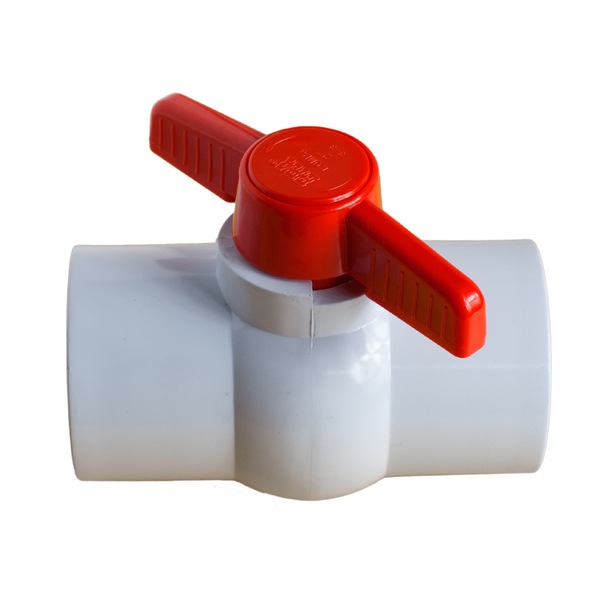

PVC Ball Valve Threaded BSP


Features



  • Positive drip-tight shutoff.

  • Rapid 1/4-turn on/off control manually operated

  • Durable PVC body and rugged ABS handle

  • Compatible with PVC piping

  • Threaded female connections

  • Working temperature 1 to 45 deg C

  • Maximum pressure rating 1000kPa


































MATERIAL LIST
PARTS MATERIAL
Body PVC
Seal PTFE
Ball PVC
O Ring EPDM
Handle ABS
Cap ABS










































































































PVC - BALL VALVE THREADED
SKU IMPERIAL SIZE L1 (mm) L2 (mm) H1 (mm) H2 (mm) W (mm) Weight (kg)
8014.01.15 1/2 80 69 64 44 32 0.06
8014.01.20 3/4 94 81 76 52 39 0.09
8014.01.25 1 106 100 94 65 45 0.14
8014.01.32 1 1/4 112 108 103 70 54 0.24
8014.01.40 1 1/2 129 108 113 75 63 0.27
8014.01.50 2 148 138 126 81 76 0.59
8014.01.65 2 1/2 178 193 166 109 93 1.30
8014.01.80 3 209 193 181 116 107 2.00
8014.01.94 4 294 262 237 152 135 3.90
