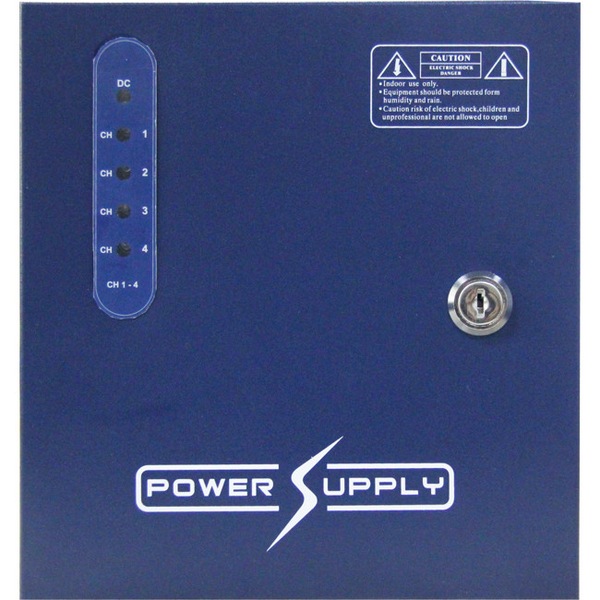

DOSS PW0412B05 4 Way 12V DC 5A Power Supply With Pfc Surge Protection Universal Ac Input Range:

Image 1
Hurry! 13 items left!
$66

Collect 66 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Pay in 4 interest-free payments of $16.50 with Learn More

The Doss range power supply boxes also knows as a power distribution boxes offer a great power solution for CCTV system as well as other system powered by DC 12V. It enablessurveillance system installers to easily manage the power tomultiple CCTV cameras at a central point and allows your camera installation to be neater. The DOSS power supply boxes are very simple to install, simply screw each cameras power cable in to the power supply terminal in the power supply box.

This product doesn't come with a K9 IEC lead.
Features
  • Universal AC input range: 96-264VAC, 47~63Hz
  • Each channel is protected seperately. There are one tubefuse (Glass fuse) for the main board and PTC (Polymeric temperature control) fuses for every individual channel.
  • Short circuit, over current and overload protection
  • Models with power larger than 60W are configured with PFC function.
  • Meet the European energy efficiency standard
  • 5kA surge protection
  • High quality cooling fin to reduce power consumption
  • External LED indicators for each channel output
  • Extra AC jack on the side of box (AC power lead is not included)
  • Buit-in EMI wave filter with 100% full load burn-in test
  • Using 105°C long life electrolytic capacitors
  • Wall type blue baking finished shell
Specifications
  • Input: 93 - 264V AC
  • Output: DC 12V 5A
  • Operating temperature: 30 ~ 70°C
Doss Wall Mounting Box Power supply range
Model Ways Output Voltage Output Amp. With UPS
4
12V DC
5A
No
8
12V DC
10A
No
16
12V DC
16A
No
4
12V DC
5A
Yes
8
12V DC
10A
Yes
16
12V DC
16A
Yes

Weight: 1.552
