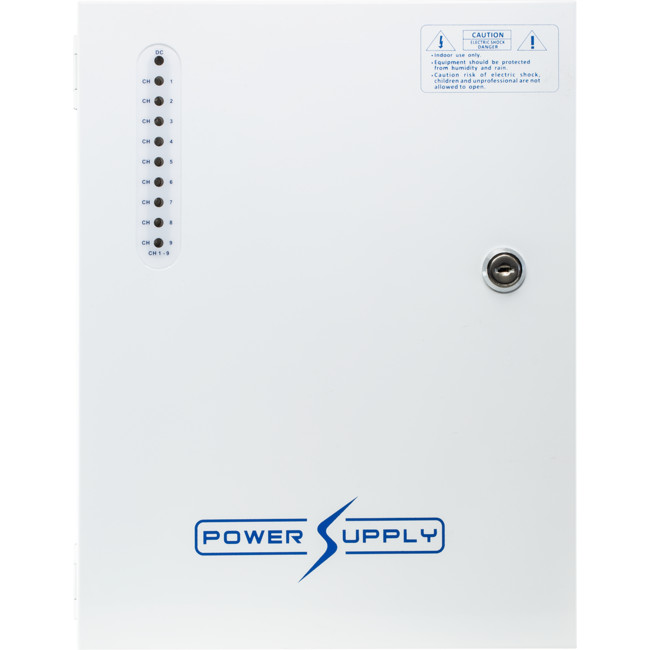

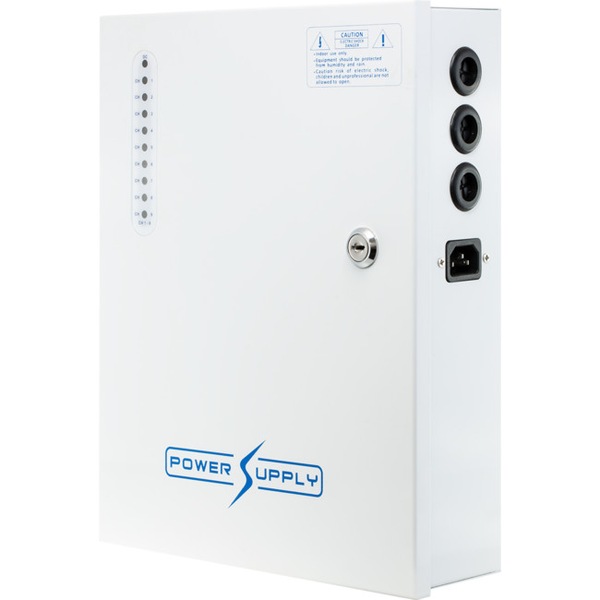

DOSS PWU0912W10 9 Way 13.8Vdc 10A Power Supply With UPS Pfc Surge Protection

DOSS PWU0912W10 9 Way 13.8Vdc 10A Power Supply With UPS Pfc Surge Protection

Hurry! 9 items left!

$146

Collect 146 Everyday Rewards points

Sold & shipped by Radio Parts

Secure ways to pay at checkout

(0)

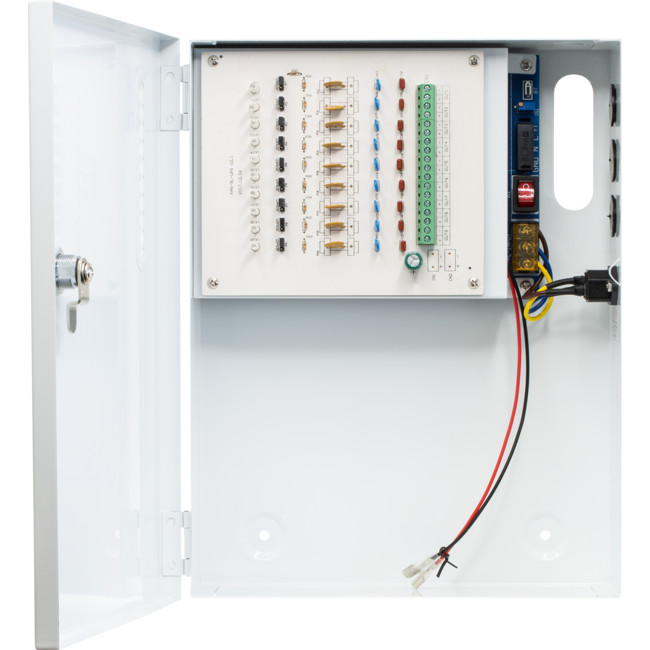

The Doss range power supply boxes also knows as a power distribution boxes offer a great power solution for CCTV system as well as other system powered by DC 12V. It enablessurveillance system installers to easily manage the power tomultiple CCTV cameras at a central point and allows your camera installation to be neater. The DOSS power supply boxes are very simple to install, simply screw each cameras power cable in to the power supply terminal in the power supply box.

This model also comes with UPS function which can work together with the (Sold separately) to back up the power for the systemwhen the power is cut off.

This product doesn't come with a K9 IEC lead.

Features

Full AC input range: 100~240V.
Withstand 300VAC surge input for 5 seconds.
Protection: short circuit / overload / over voltage / over temperature.
Forced air cooling by built in DC fan when the currentexceeds 12A.
Built-in cooling fan controlled by thermal-switch.
Withstand 5G vibration test.
Multiple DC outputs, and each channel has over current(PTC/Tube fuse) and surge protection.
LED indicators show working condition of each channel and indicator for total output power on.
100% full burn-in test: full load burn-in test at low voltage AC110V, no-load burn-in test at high
voltage AC240V and repeated switch of AC power at highvoltage AC240V.
High opera??ng temperature is up to 70°C.
Operating altitude is up to 5000 meters (note 8).
High efficiency, long service life, high reliability.

Specifications

Output	DC Voltage	13.8V
Current	10A
Power	138W
Ripple and Noise	≤200mVp-p
Voltage ADJ. Range	13.8V±10%
Voltage Accuracy	±10%
Set-up Time	1500ms, 50ms/230VAC 1500ms, 50ms/115VAC(at full load)
Hold up Time	15ms/230VAC 12ms/115VAC(at full load)
Input	Voltage Range	100V~240VAC
Frequency Range	47~63Hz
Efficiency (Type)	80%~95%
Protection	Over Load	105%~150% (rated load)
Over Voltage	115%~150% (rated output voltage)
Shorted Circuit	Fuse Tube
Environment	Operating Temp. & Hum.	-10°C~45°C; 20%~90%RH (non-condensing)

Storage Temp. & Hum.	-25°C~+70°C20%~95%

Others	Dimension (LWH)	324.5251.580.5mm
Packing	37025085mm
Cooling method	Free Air Convection
Net weight	2420 g

Doss Wall Mounting Box Power supply range

Model	Ways	Output Voltage	Output Amp.	With UPS
	4	12V DC	5A	No
	8	12V DC	10A	No
	16	12V DC	16A	No
	4	12V DC	5A	Yes
	8	12V DC	10A	Yes
	16	12V DC	16A	Yes

Weight: 2.845
