Specifications:

1. Working voltage: 80 ~ 260VAC

2. Test voltage: 80 ~ 260VAC

3. Rated power: 100A/22000W

4. Operating frequency: 45-65Hz

5. Measurement accuracy: 1.0 grade

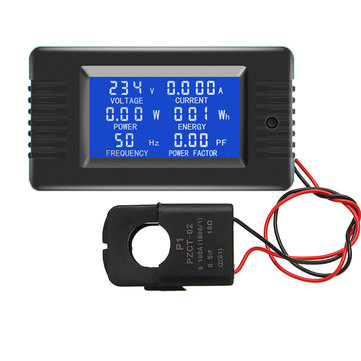

Display format:


1.Power
Test range: 0~22000W
Starting measure power: 0.2W

<10W    display format: 1.00~9.99W

<100W   display format: 10.0~99.9W

<1000W  display format: 100~999W

<10000W display format: 1.00~9.90kW

≥10000W display format: 10.0~22.0kW


2.Energy
Test range: 0~999kWh

<1kWh   display format: 0~999Wh

<10kWh  display format: 1.00~9.99kWh

≥10kWh  display format: 10~999kWh


3.Voltage
Test range: 80~260V

Display format: 80~260V


4.Current
Test range: 0~100A
Starting measure current: 0.001A

<10A display format:0.000~9.000A

≥10A display format:10.00~99.99A


5.Frequency
Test range: 45~65Hz

Display format: 45~65Hz


6.Power factor
Test range: 0~1PF

Display format: 0.00~1.00PF

Package Included:

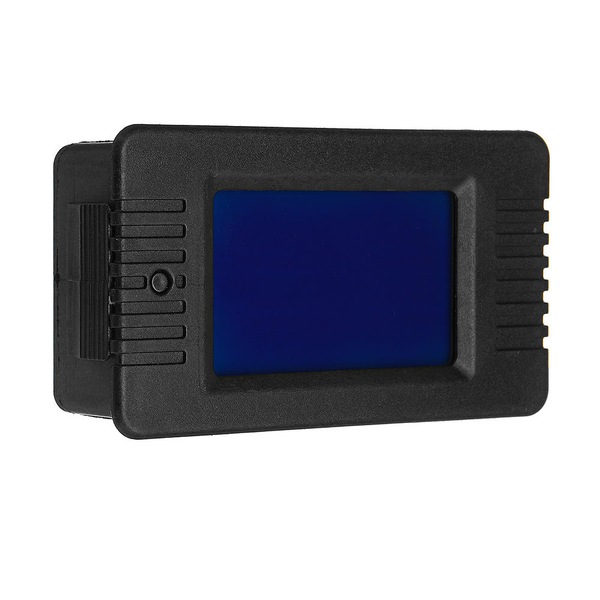

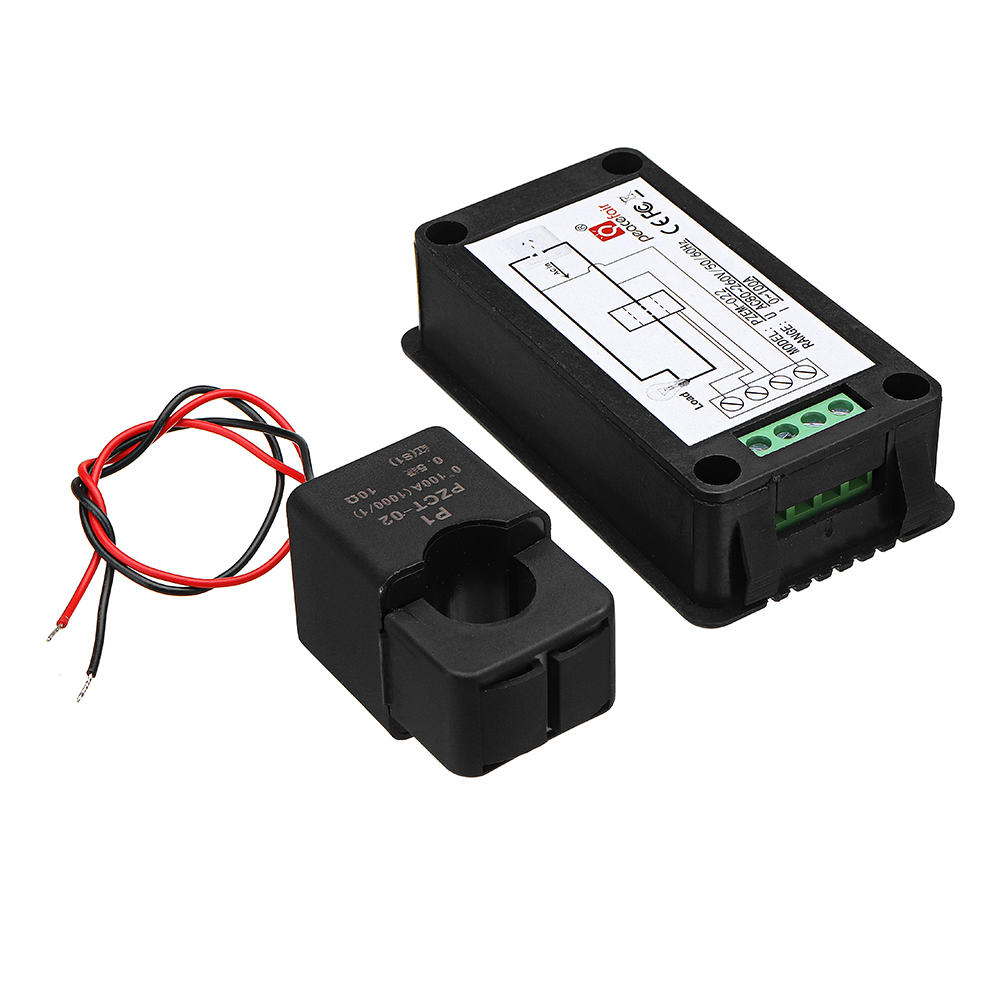

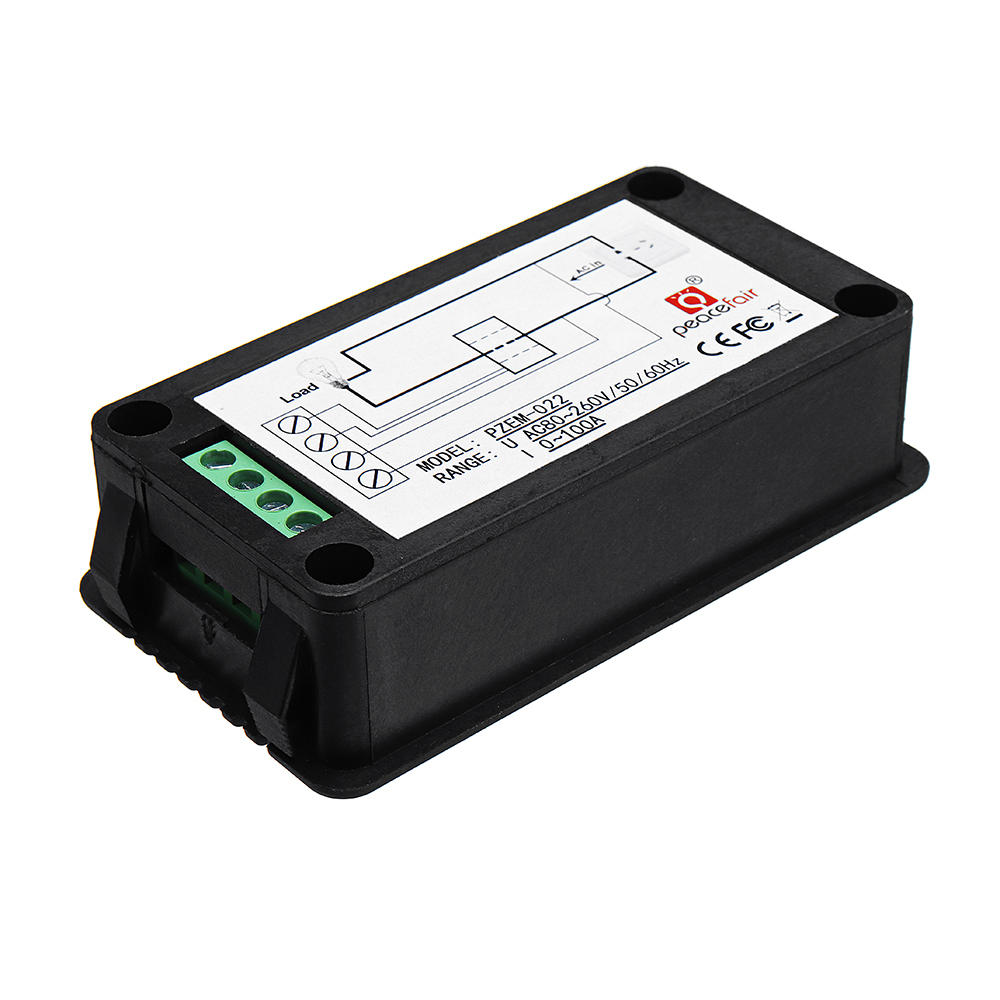

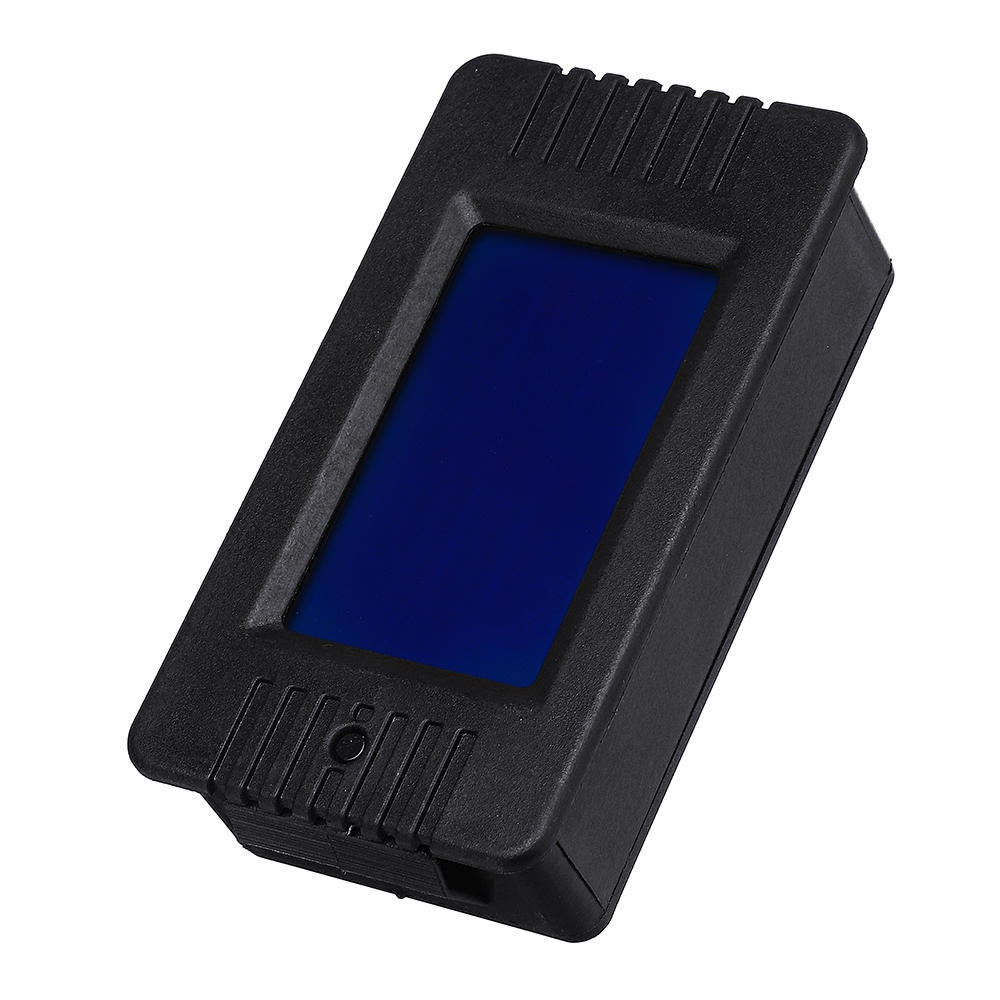

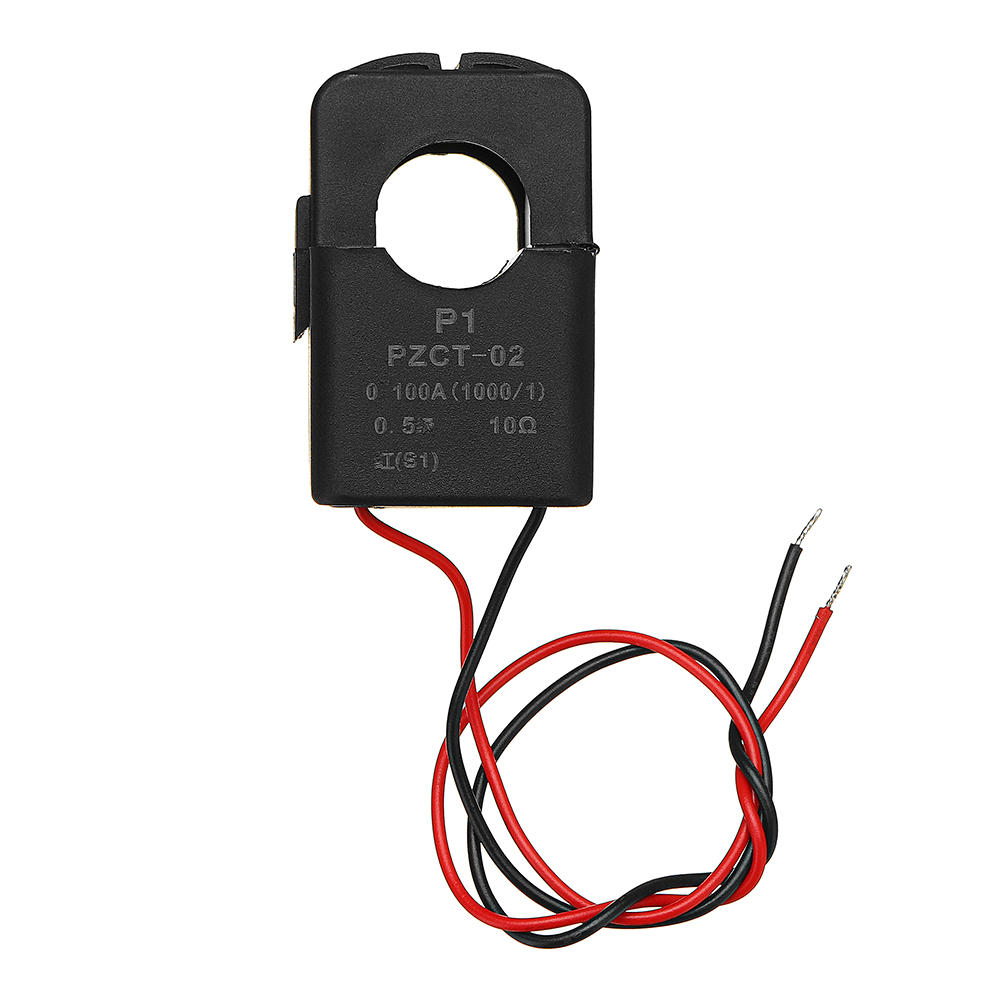

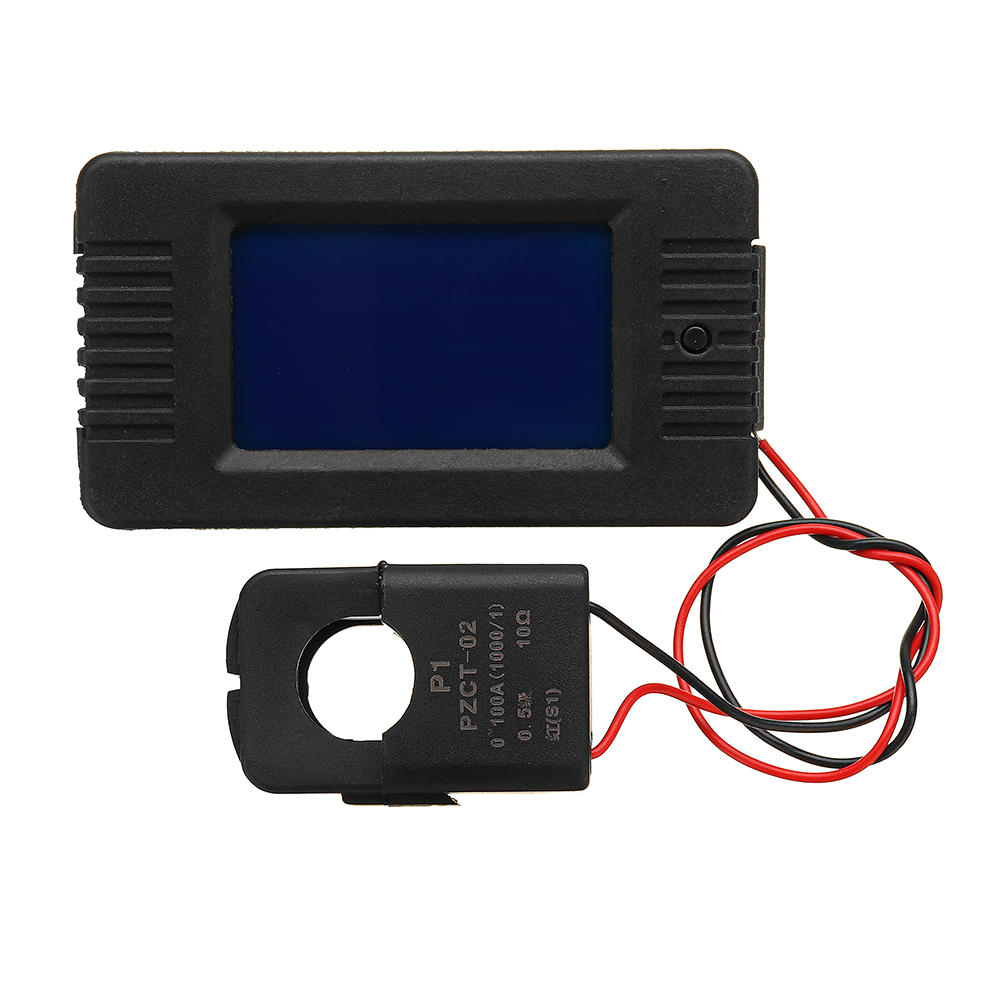

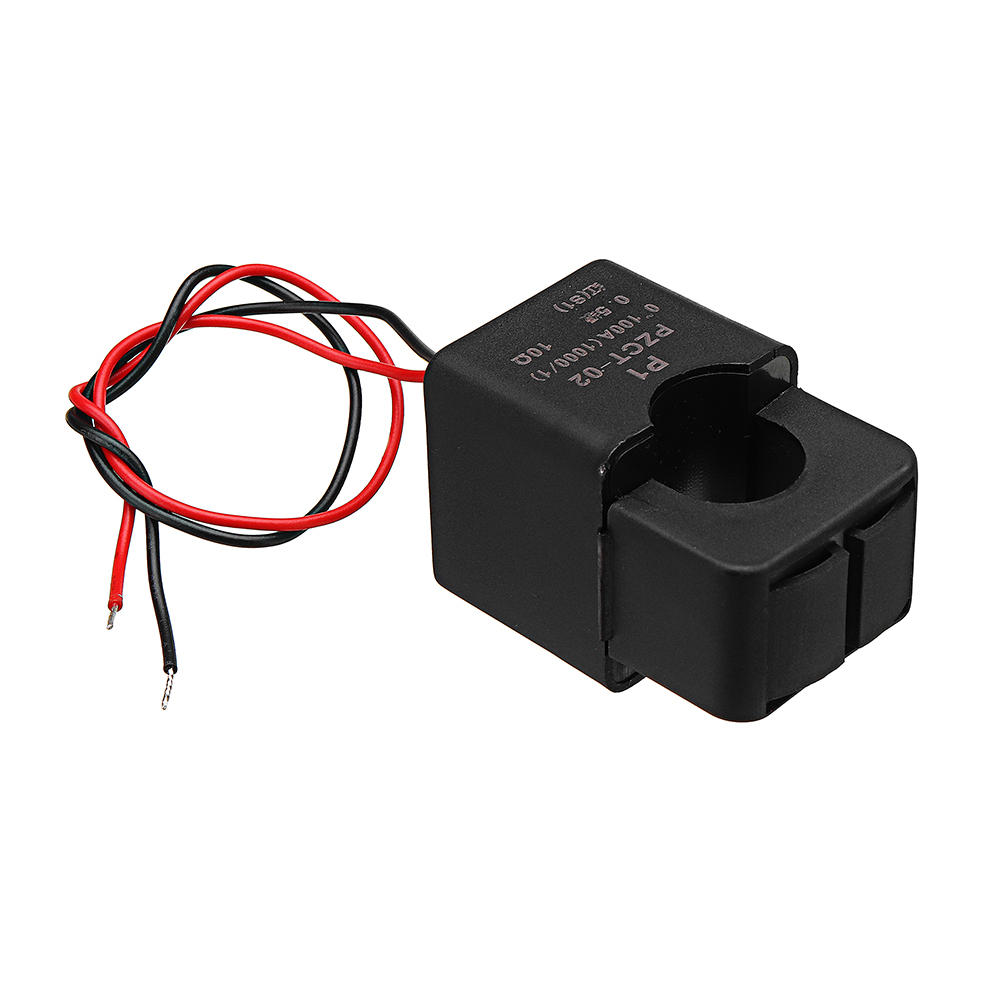

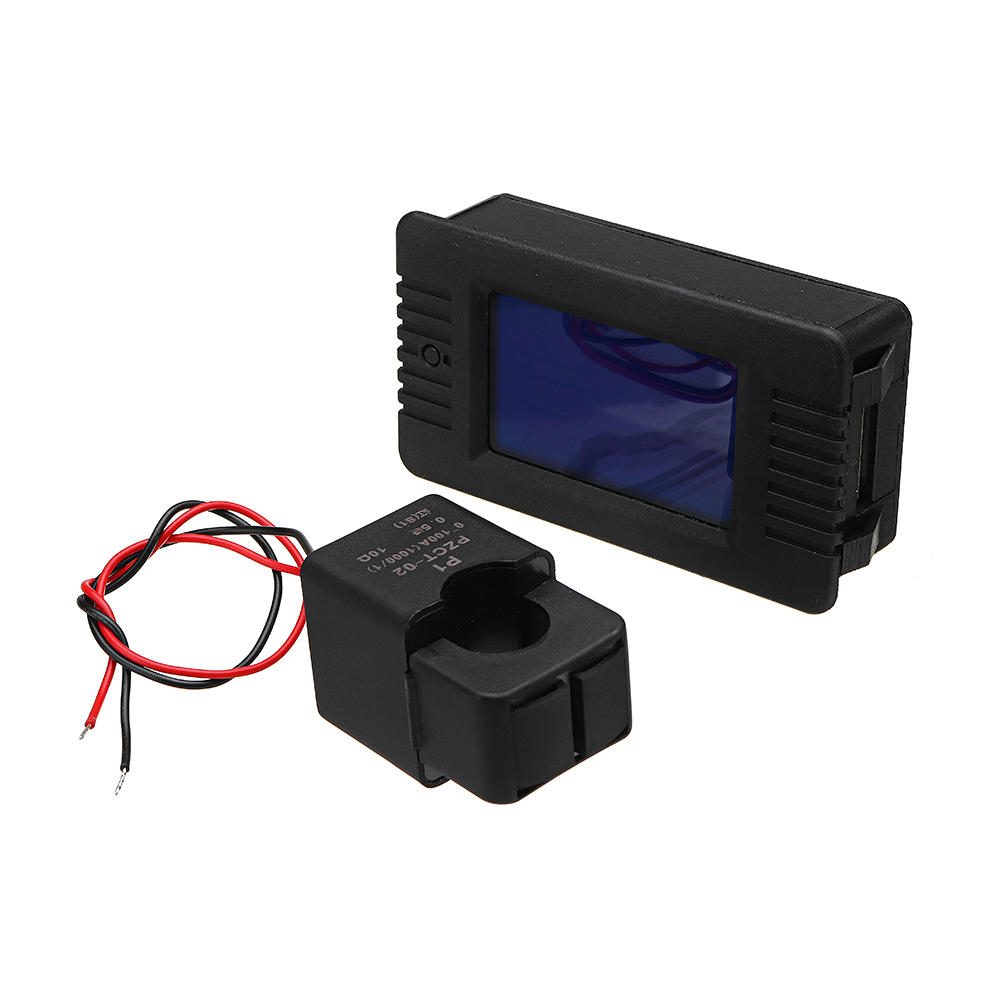

1 x Open and Close CT Power Monitor
