Elinz Quadscreen 9" DVR 4 Camera Package Kit 360 View Reversing Forward Side 12V 24V Bus Trucks Caravan

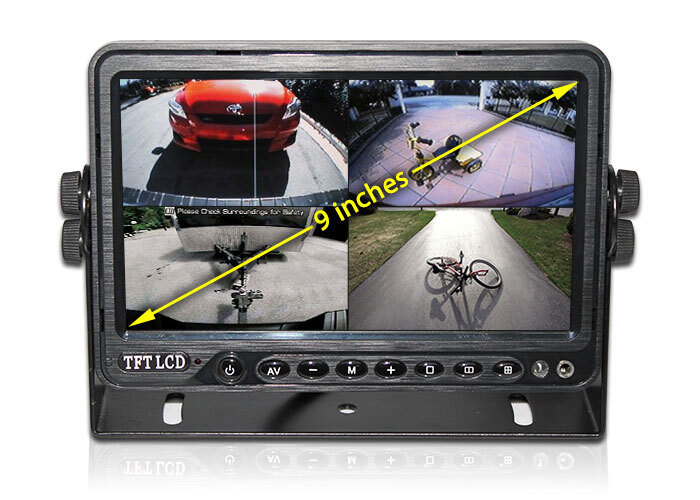

9 Inch Quadscreen Digital TFT Panel

• 9 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time.

3 Video Input + 1 Audio Video Input

• V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
• Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
• All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
• Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work

Real Time Recording

• It allows you to record real time and can see objects on their original places or position.
• You may easily control DVR using the remote control.

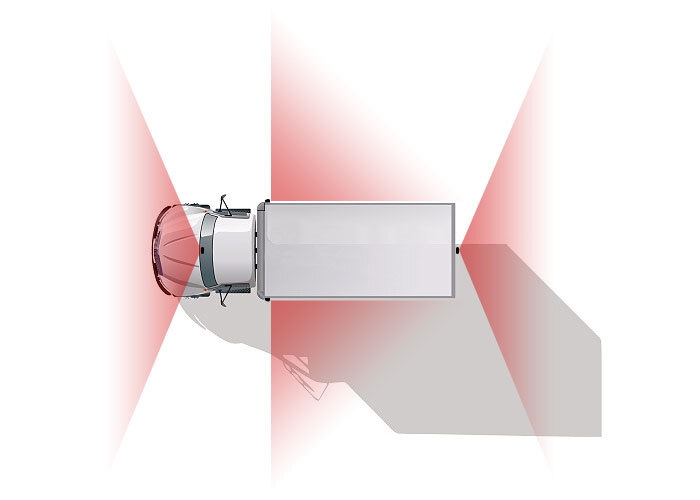

360° View for the Driver

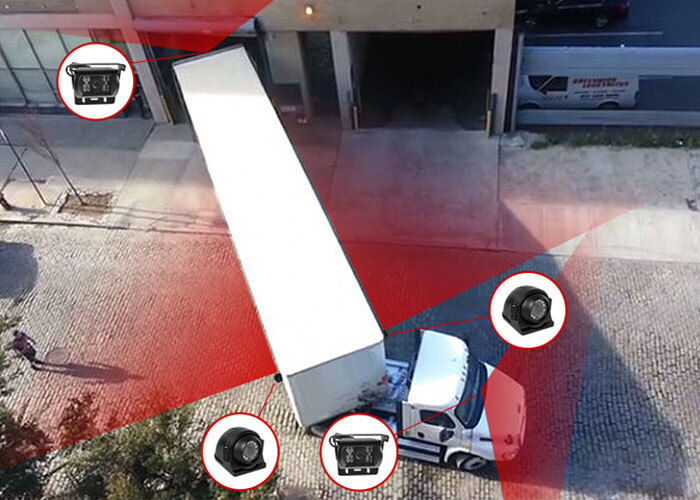

• One forward view camera, one reversing view camera, and 2 side view cameras.

Compact & Smartly Designed

• Helps prevent accidents while parking or reversing.

Mounting Bracket included

• No matter what the location aluminium of side camera it can be mounted easliy.

Heavy Duty Make

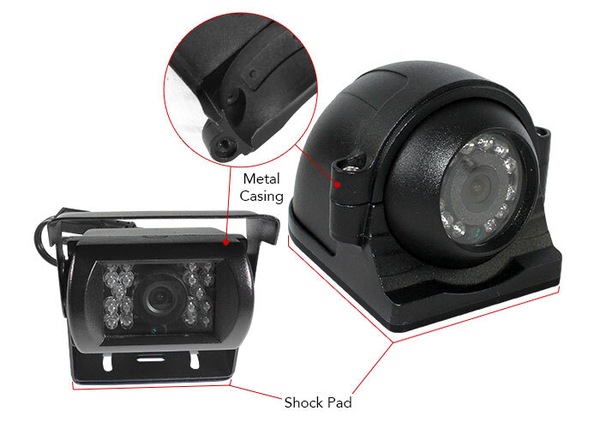

• Metal cased, mudproof, and shock resistant

CCD Image Sensor by Sharp

• To see clear images, even at night or in low light conditions.

10M 4PIN Advanced Cable

• Allows the monitor to power up the camera, no need to connect another power cable to camera.

Side View Camera

• Camera can capture passengers going up and down the bus for added safety.

Local Playback

• Locally playback in channel 1 or 4 channels.

Save Recordings in SD Card

• Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
• It can support up to 256GB SD card. (SD card not included)

  Note: Monitor do not have built-in speakers

Bracket Screw Lock

• With the bracket screw lock, it can hold the monitor in placed.

Rotational Angle Adjustment

• You can adjust monitor view depending on your preference

Remote

• Powered by AAA battery
  * No Batteries included

Button Panel Labels

Wiring Diagram

Image Modes

Menu Operation Instruction

Product Dimensions

• 9 inch digital TFT panel with 4 Channels simultaneously to full time live recording
  • Quadscreen recording support up to 4 cameras
  • All camera views can be shown on the screen at all times when driving.
  • The monitor can show single, dual, triple and quad image if you switch over AV button
• 3 Video Input + 1 Audio Video Input
  • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required.
  • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light.
  • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time.
  • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
• Forward Camera real time images
  • Reliable and durable reversing camera. Instead of showing mirror images like what most reverse cameras available today are doing, this camera system lets you see images in forward view. This basically means that when you use the camera to record what's in front or even at the back of your vehicle, you'll see the objects in their original places or position.
• Save Recordings in SD Card
  • Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor.
  • It can support up to 256GB SD card. (SD card not included)

    Note: Monitor do not have built-in speakers
• Car, Trucks, Bus rearview system + Real time recorder
  • Perfect for truck or Caravan that need to monitor the rearview all the time
• Reversing camera image can show up automatically on screen when reversing gear is induced.
• Tough and heavy-duty camera
  • The cameras are built and designed to last. In addition, each camera comes in a hard metal case. Because it is waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time. The reversing camera is shock resistant, too, so it can withstand strong vibrations without affecting picture quality.
• CCD image sensor from Sharp
  • The reversing cameras feature a CCD image sensor from the Sharp Company for better picture clarity, colour contrast, and sharpness.
  • They also have night vision as each camera comes infrared LED to enable users to see clear images, even at night or in low light conditions.
  • Heavy duty CCD camera is hard metal cased waterproof and mud proof. Can last for longer without heating up so you can show the rearview at all time.
• Cameras come with 10M advanced 4 PIN cable
  • Allowing the monitor to power up the camera no need to connect another power cable to camera.

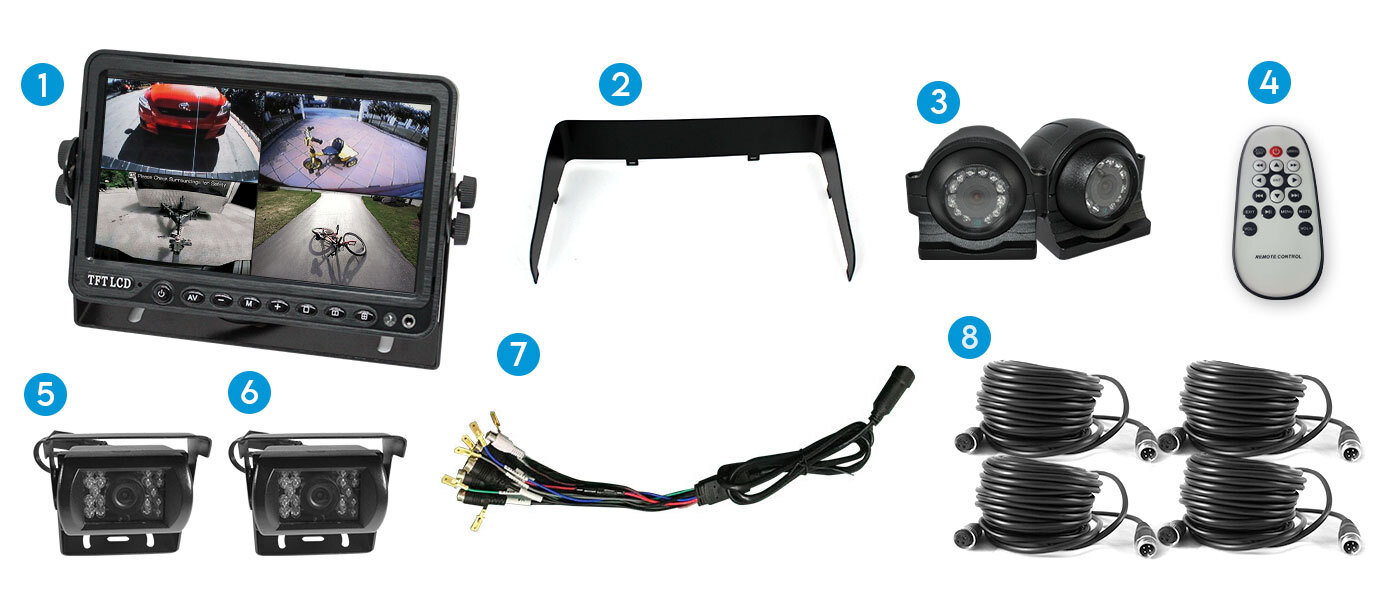

WHAT'S INCLUDED

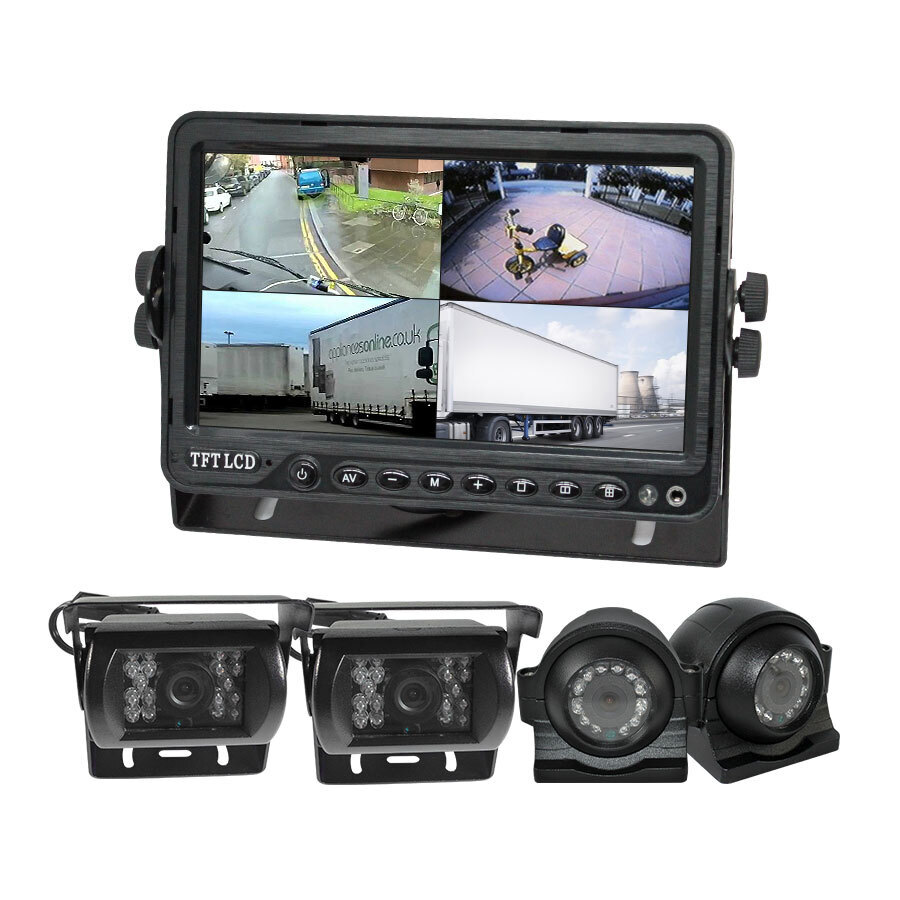

1. 1x 9" Quadscreen Digital Monitor

2. 1x Sun Shade

3. 2x 90-degree View Cameras

4. 1x Remote (Powered by AAA battery * No Batteries included)

5. 1x Forward view Camera

6. 1x Reversing Camera

7. 1x Power Cord

8. 4x 10M 4PIN Cables
