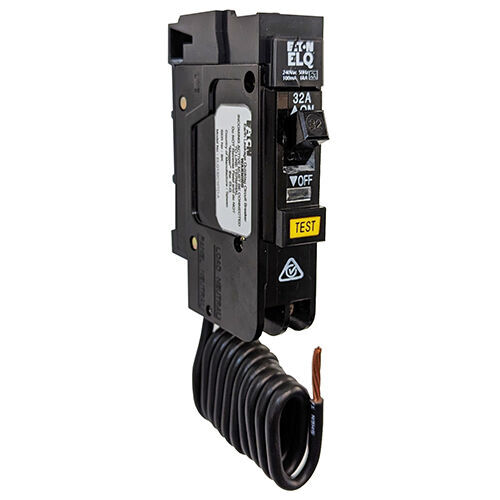

Quicklag 1 Pole 32A RCBO Earth Leakage Breaker

Quicklag 1 Pole 32A RCBO Earth Leakage Breaker

Hurry! 3 items left!

$197.21

Collect 197 Everyday Rewards points

Sold & shipped by MJS Electrical Products and Supplies

Secure ways to pay at checkout

(0)

Model: ELQ132C3-TD
Product: 1 Pole Earth Leakage Circuit Breaker
Breaking Capacity: 6 kA
Voltage: 240 VAC 50 Hz
Amperage: 32A

The ELQ Earth Leakage breaker combines overload, short circuit and residual current (earth leakage) protection in one compact unit in either one or two pole configurations. The two pole ELQ incorporates a switched neutral on the left side pole.

This style of circuit breaker, which has become mandatory in new installations, safeguards people from the danger of electric shock by instantly interrupting the electrical circuit to the load when a fault current to earth exceeds the rated sensitivity.

Protection applications include such areas as electrical office equipment, industrial plants, electrical hand tools, GPOs and socket outlets.

Athough the breaker combines three functions, the mounting width space is the same as a standard single-pole Quicklag circuit breaker.

Overload, short circuit and residual current protection in one compact unit
6kA at 240V AC/Sym (AS214)
Sensitivity available in 10, 30 and 100mA models.(30mA Listed, please contact us for pricing of other models)
Approval No. NSW27675
Complies with AS/NZS 3190:2016 and AS/NZS 3111:2009+A1-2
Trip indication window
Test button with preventative accidental push design
