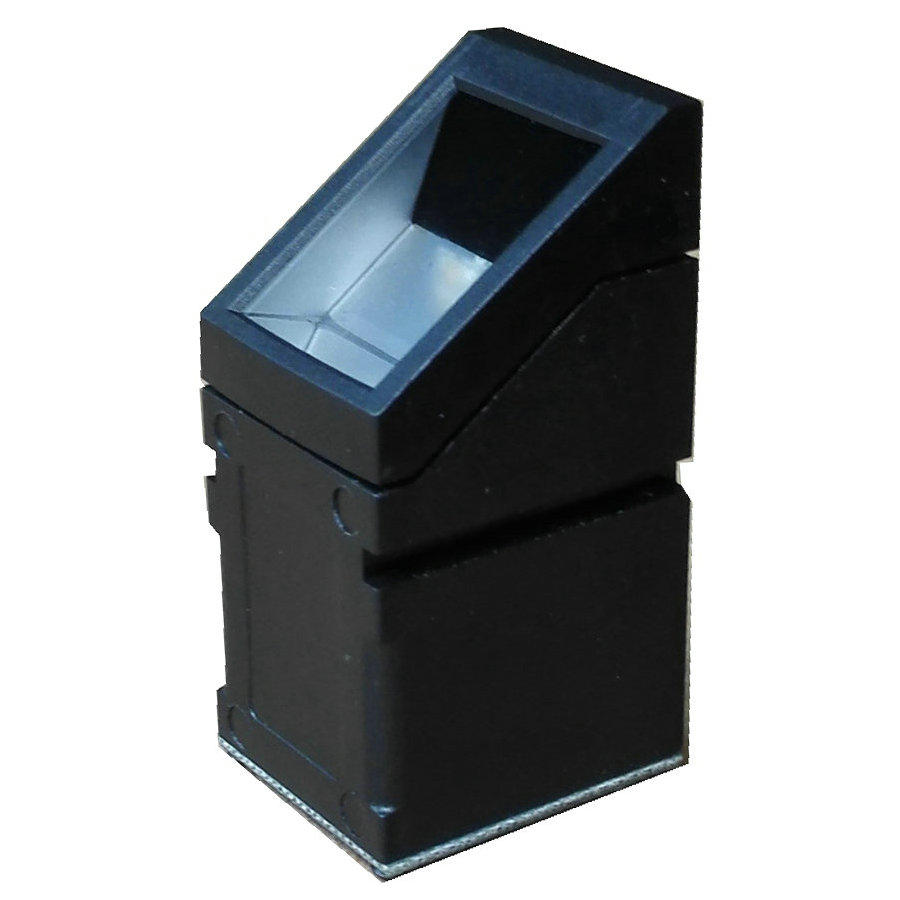

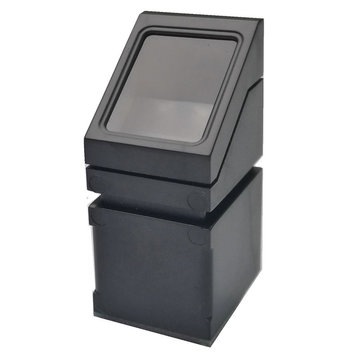

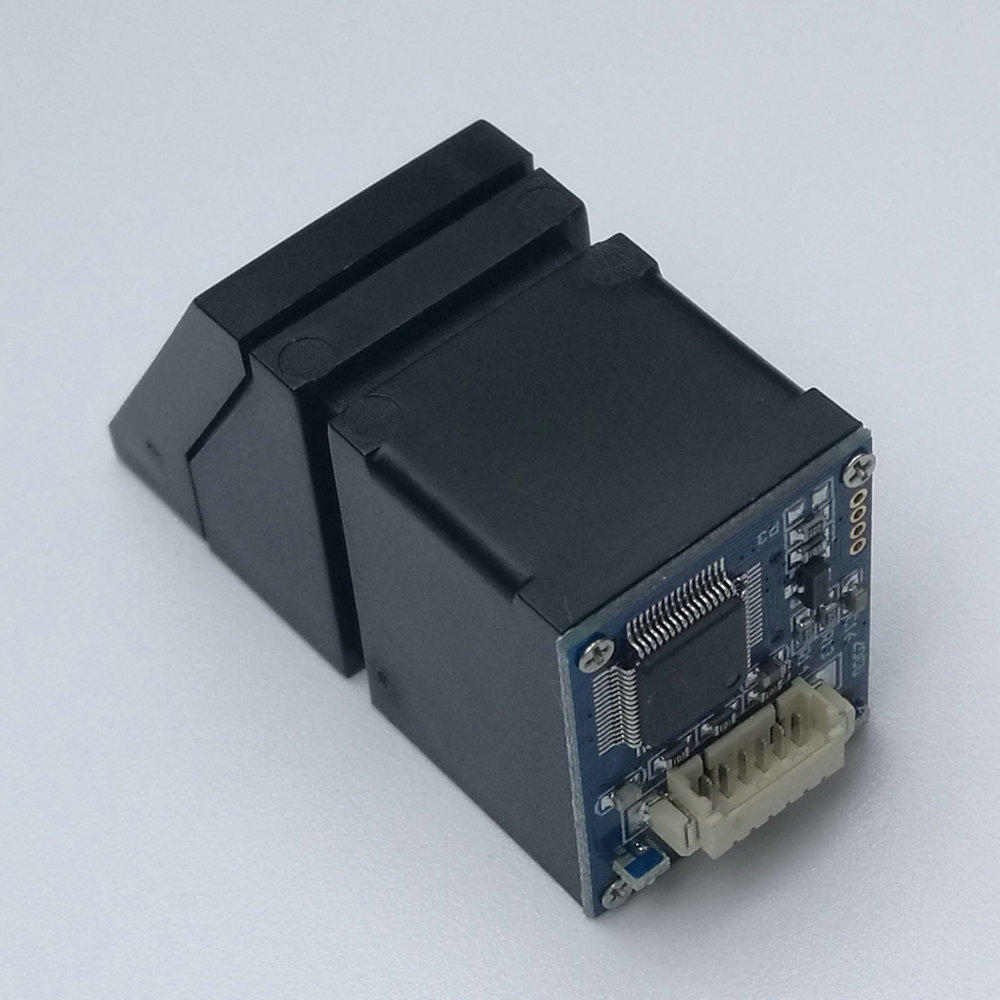

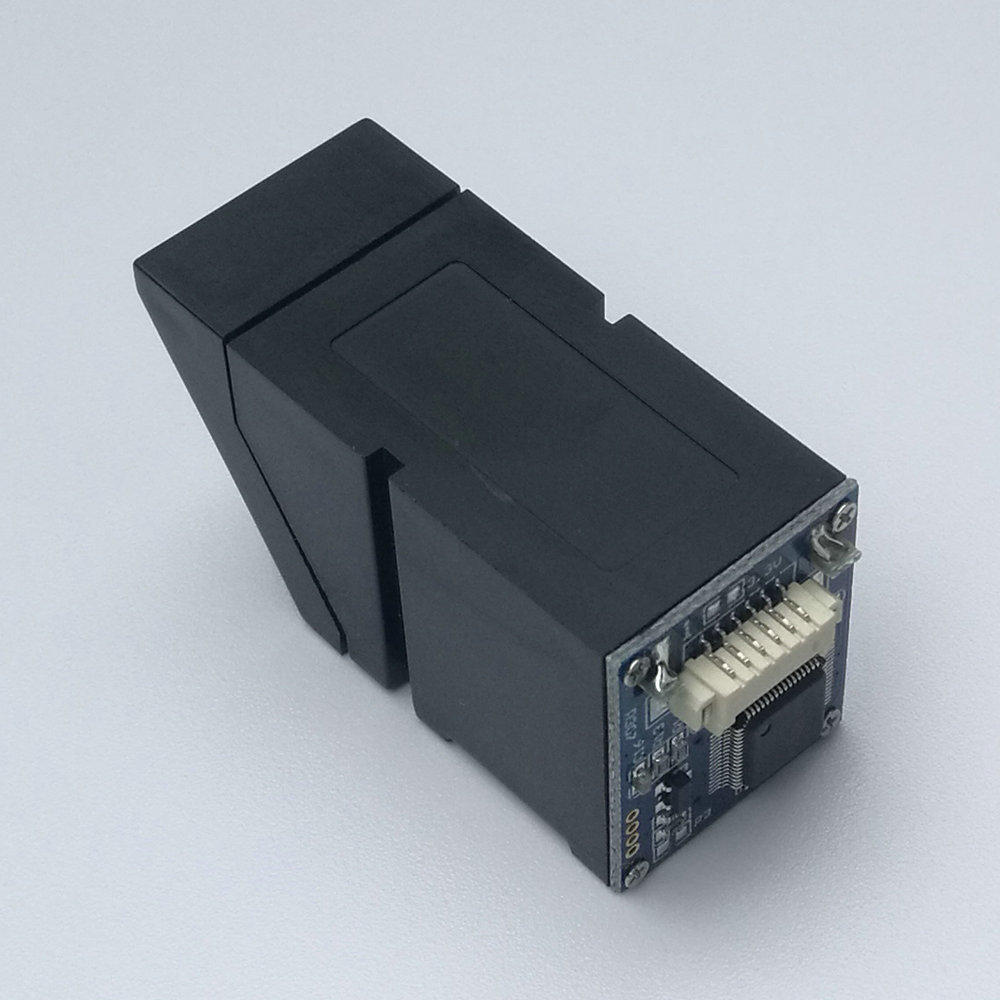

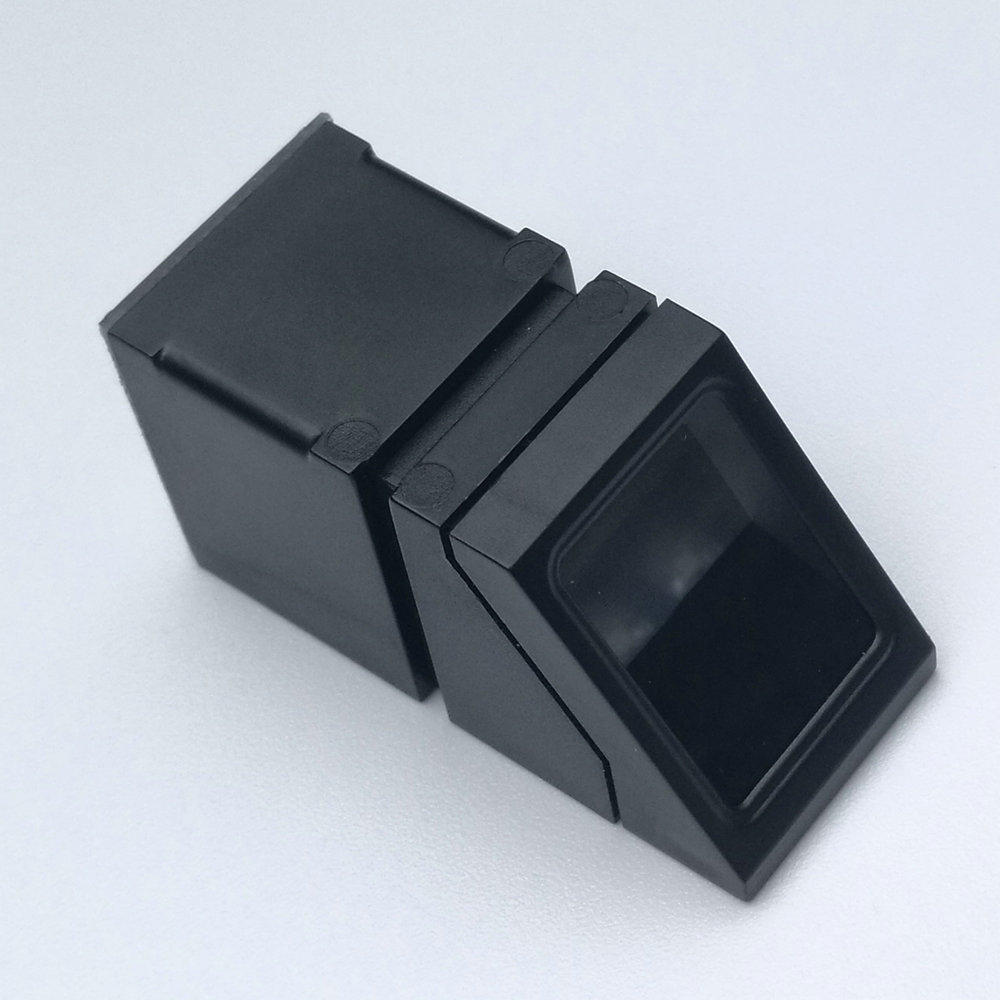

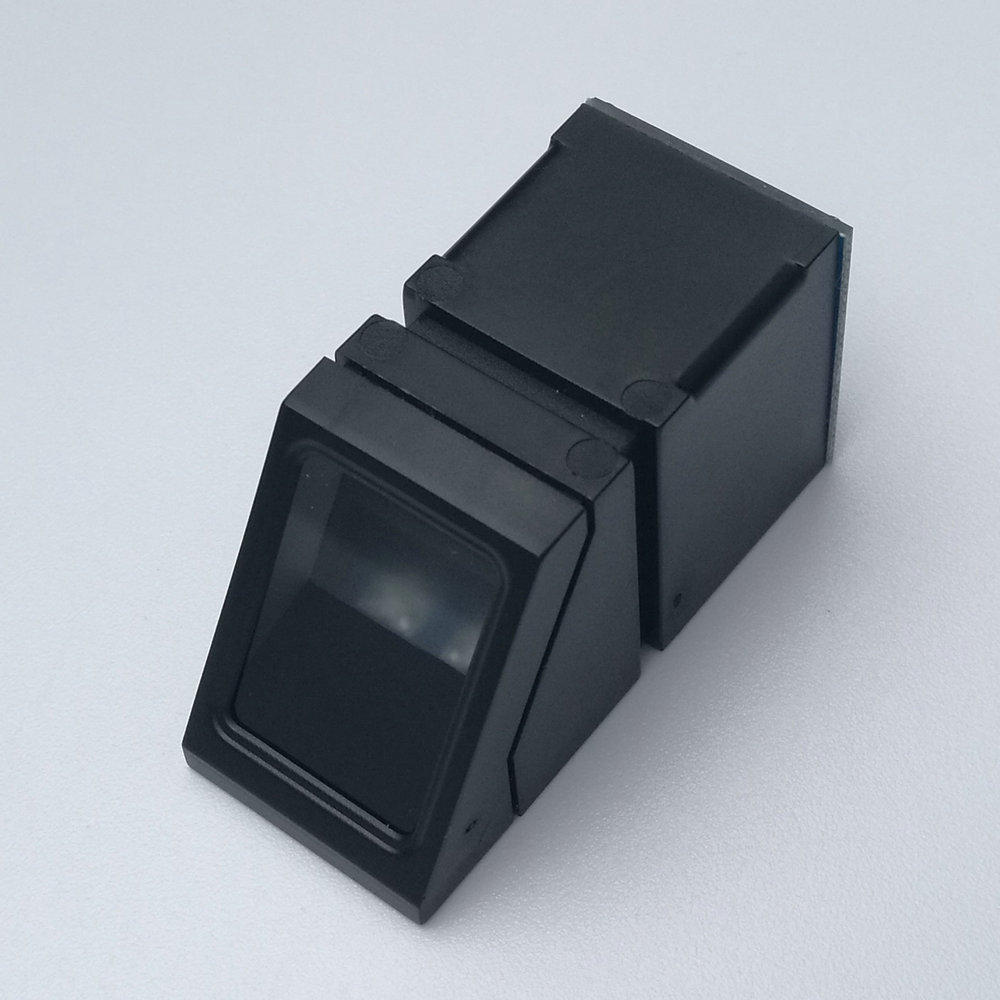

R307 Optical Fingerprint Reader Module Sensor Finger Detection Function
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 45 Everyday Rewards points
Dispatch in 2 business days
Collect 45 Everyday Rewards points
Dispatch in 2 business days
?
?
Features :
Integrated image collecting and algorithm chip together, ALL-in-One
Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
Low power consumption, low cost, small size, excellent performance
Professional optical technology, precise module manufacturing technics
Good image processing capabilities, can successfully capture image up to resolution 500 dpi
Finger??detection function.
?
Specification :
Type: Optical?
Sensor Life: 100 million times
Static indicators: 15KV
Backlight: Blue
Interface: USB2.0/UART(TTL logical level)
RS232 communication baud rate: 9600BPS~115200BPS changeable
Image Capture Surface?15×11(mm)
Verification Speed:??0.2 sec
Scanning Speed: 0.3 sec
Character file size:? 256 bytes
Template size: ?512 bytes
Storage capacity: 1000
Security level: 3 (1,2,3,4,5(highest))
False Acceptance Rate (FAR) :≤0.0001%
False Rejection Rate (FRR): ≤0.1%
Resolution 500 DPI
Voltage :4.2--6VDC
Working current: Typical?≤75mA
Matching Method: ?1: N
Operating Envirement Temperature: -20 to 50 degrees
?
?
?
?
Package Includes :
1 x?Fingerprint Reader
?
?
?
?
?
?
