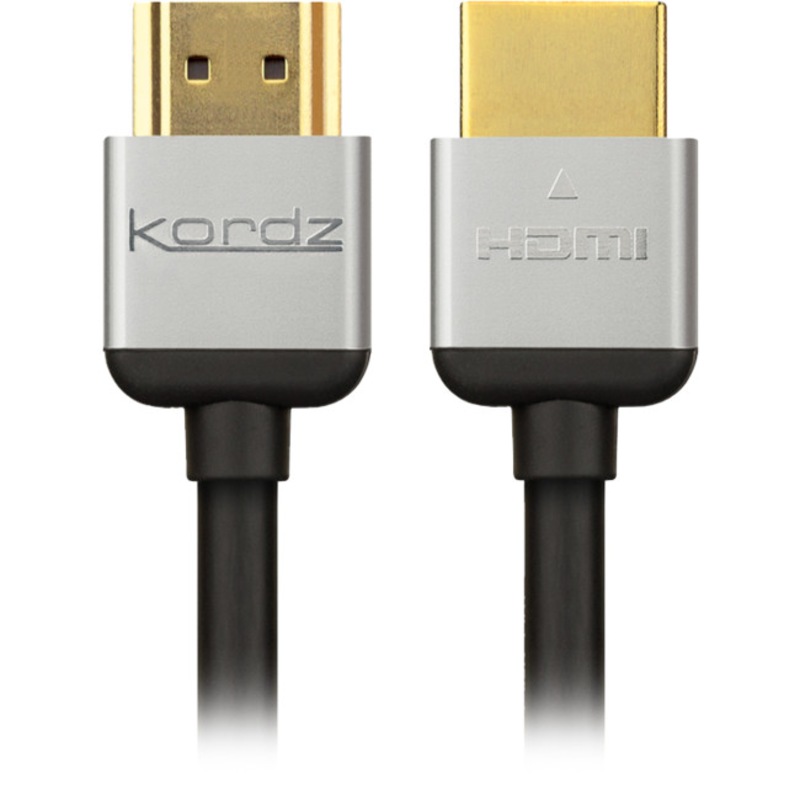

R.3 Series - R3HD0300 Passive HDMI Cable - 3.00m

Unrivalled connectivity never replicated in the market.

The world's most shielded HDMI cable that eliminates signal dropouts with an industry-leading success rate of 99.99%.

Kordz R.3 is their most robust installation HDMI cable, designed for tight spaces and engineered for electrical signal preservation to protect critical HDMI signals amidst high electrical noise environments.

A unique combination of advanced features and materials delivers unrivalled installation performance and reliability.

High-tech assembly and vacuum infra-red soldering minimise signal drop-outs, while nitrogen foam polyethylene insulation ensures the highest dielectric consistency for digital transmission.

With high flexibility and shallow operational depth, the Kordz R.3 HDMI Cable opens new installation design possibilities.

Used in space missions, military and medical settings, and iconic international events, the Kordz R.3 HDMI Cable is a significant component for critical signals and engineered todeliver maximum commercial uptime.

The Kordz R.3 Key features:

Anti-fatigue, die-cast zinc alloy connectors tested to ≥1,000 cycles & 2kg retention force
Double fully enclosed casings and unique copper wire annealing technique allows for twist rateresponsiveness while relieving device socket pressure
100% of units tested for zero Bit ErrorRate (BER) @ 340Mcsc, <0.05% in-field failure rate
Available in a total of 14 precision rack fit lengths - 0.3m increments between 0.3m - 3.0m, 0.6m increments between 3.6m - 5.4m.
High bandwidth solid OFC conductors andinduction soldered pin transitions for benchmark inter-terminal uniformity
Halogen-free cable construction
DPL certified 4K 18G-DC
Kordz' signature product performance and Lifetime Warranty.

Application

Video Format Support	Data rate per channel	Aggregate, TMDS Bandwidth
480i/p, 576i/p:	≤ 540Mbpsc/1.62Gbps	270MHz
720p/1080i:	742.5Mbpsc/2.22Gbps	371.25MHz
1080p	8-bit RGB/YCbCr 4:4:4	10/12-bit 4:2:2 or 4:2:0:
23.98/24/29.97/30	742.5Mbpsc/2.22Gbps	371.25MHz
50/59.94/60	1.485Gbpsc/4.455Gbps	742.5MHz
3D-24/30	1.485Gbpsc/4.455Gbps	742.5MHz
3D-50/60	2.97Gbpsc/8.91Gbps	1.485GHz
1080p	10/12/16-bit RGB/YCbCr 4:4:4	_
50/59.94/60fps	1.86-2.97Gbpsc/5.57-8.91Gbps	≤ 1.485GHz
2160p (UHD/4K)	_	_
HDMI 1.4b - 8-bit RGB/YCbCr 4:4:4	or 10/12-bit 4:2:2 or 4:2:0:	_
4096x2160p/24 (SMPTE)	2.97Gbpsc/8.91Gbps	1.485GHz
3840x2160p/23.98/24/29.97/30	2.97Gbpsc/8.91Gbps	1.485GHz
HDMI 2.0-8-bit YCbCr 4:2:0:	_	_
*2160p/50/59.94/60**	2.97Gbpsc/8.91Gbps	1.485GHz
HDMI 2.0Mode- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0:	_	_
*2160p/50/59.94/60-2D 9CEA-861-F**	5.94Gbpsc/17.82Gbps	2.97GHz
*2160p30-3D**	5.94Gbpsc/17.82Gbps	2.97GHz
VESA Graphics:	Supports all as defined by HDMI 2.0 specification	up to 17.82Gbps
Color Spaces:	RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, ITU-BT.2020	_
Audio Formats Support	PCM 2.0-7.1, DD/DTS HD 7.1,	3D Audio (10.2 \| 22.2 \| 30.2ch
HDMI Audio Return Channel:	Supported, System Dependant	_

Technical Specifications

Weight: 0.116

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.

HDMI CERTIFICATION ≤ 5.4m PASSIVE	_
HDMI CTS Certification	High Speed with Ethernet
DPL Labs Certified Data Rate	6.0Gbpsc, 17.82Gbps aggregate (4K UHD)
HDMI Clock	27-340MHz
CONSTRUCTION	_
Primary Conductors	Solid 32/28AWG OFC, length dependant
Insulation on TMDS	Foamed PE/Polyolefin
Insulation on 4C + HEAC Pairs	Foamed PE/Polyolefin
Shielding on TMDS Pairs	Al/Mylar
Shielding Overall	Al/Mylar + CU 90% coverage braid
Cable Jacket	Halogen-free TPE, black 4.8mm
HDMI Connector Shell	Anti-fatigue die cast Zn alloy, 1µ" 24K Gold plated
HDMI Connector Pins	Solid OFC, 15µ" 24K Gold plated
Termination	Contactless IR induction soldering
HDMI Backshell	Al anodised front with Halogen-free TPE strain relief
MECHANICAL	_
Cable Diameter	0.3m - 2.7m: 32 AWG, 4.8mm/0.19"Ø \| 3.0m - 5.4m: 28 AWG, 6.5mm/0.22" Ø Mounting Depth: 0.3m - 2.7m: 32 AWG, 47.0mm/1.85"Ø \| 3.0m - 5.4m: 28 AWG, 54.0mm/2.13"Ø
Cable Bend Radius	0.3m - 2.7m: 32 AWG, 20.0mm/0.79"Ø \| 3.0m - 5.4m: 28 AWG, 27.0mm/1.06"Ø
Retention Force (nom)	20N (approx 2kg / 4.4lbs) +10/-5%

GTIN: 9340382008692
