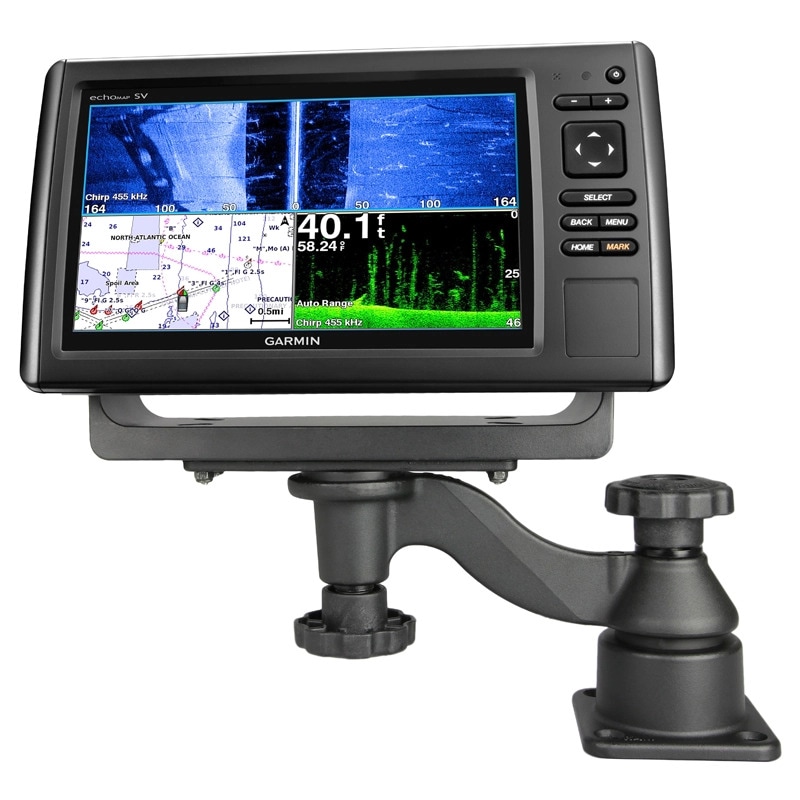

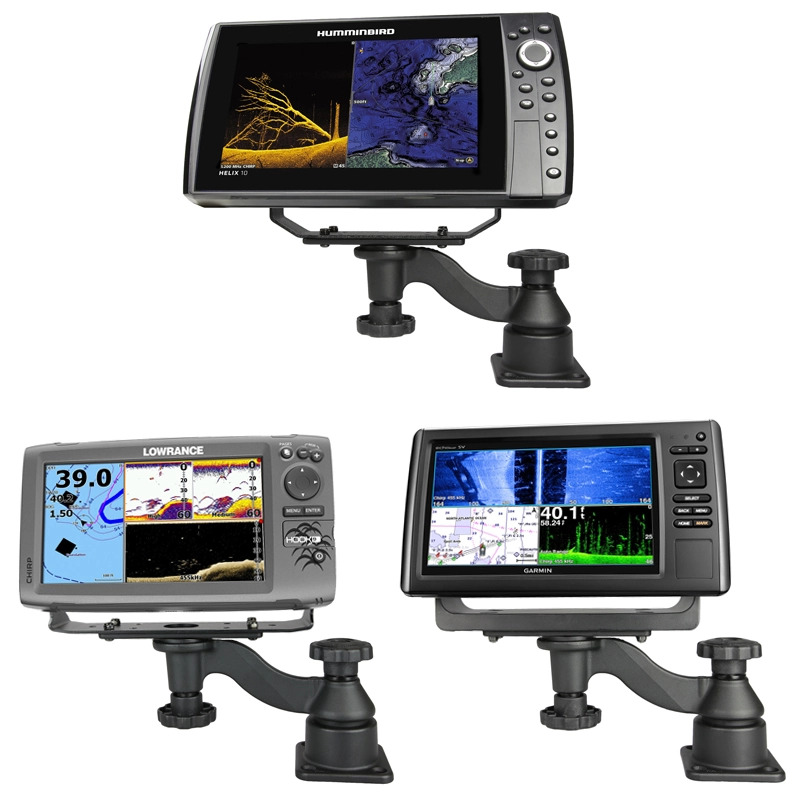

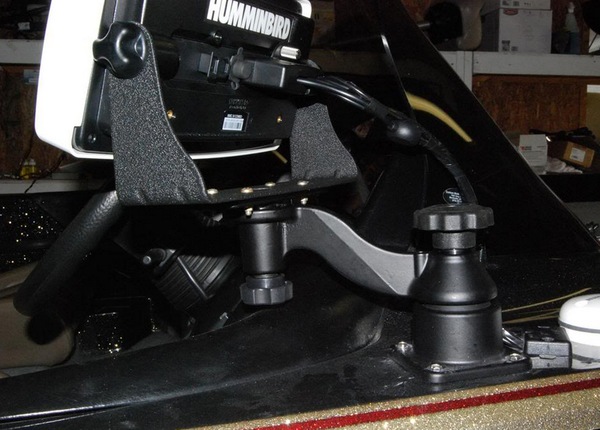

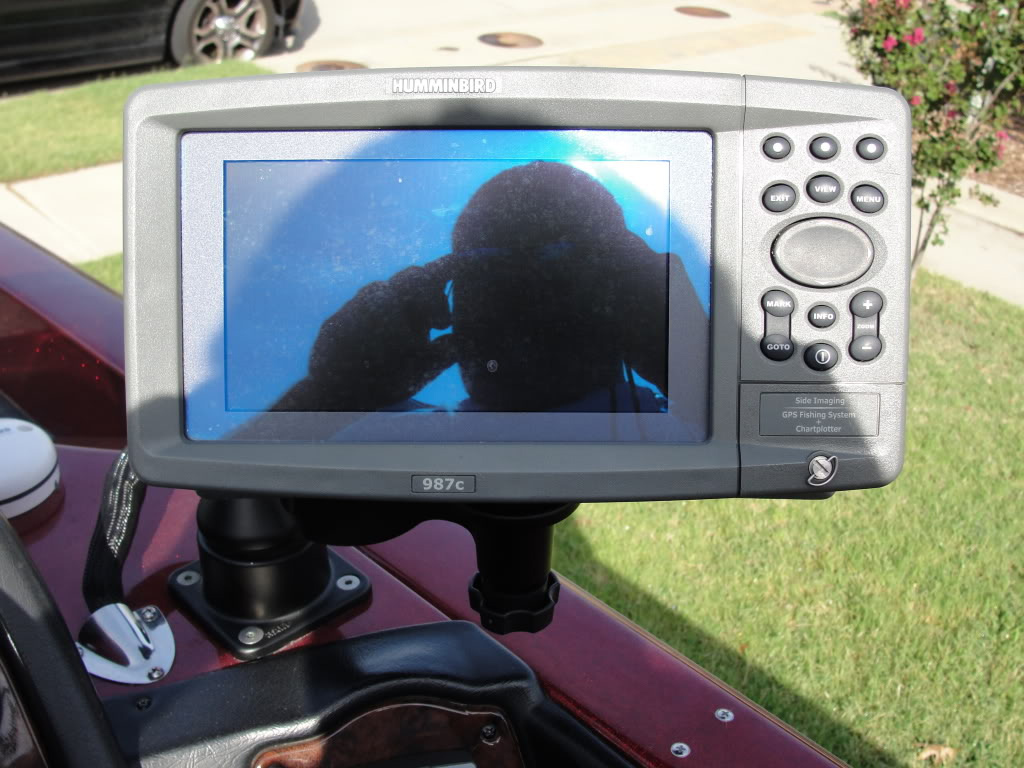

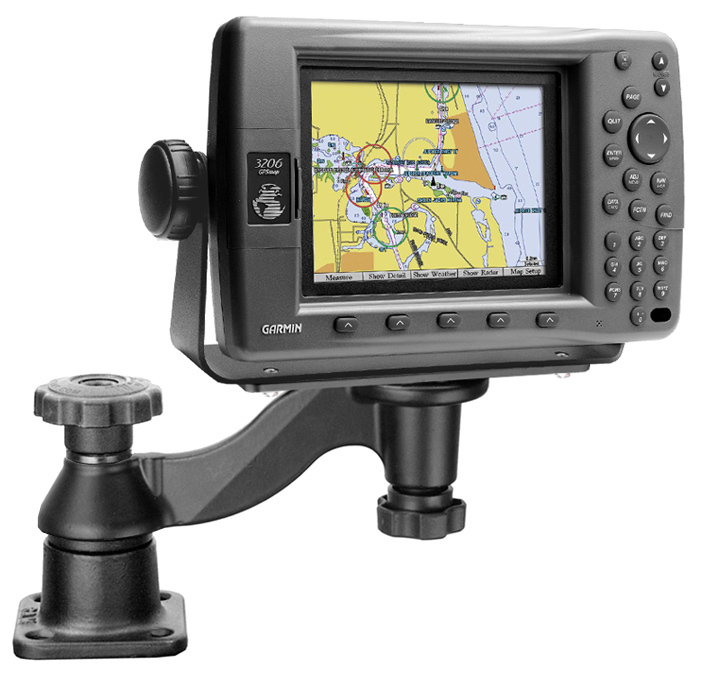

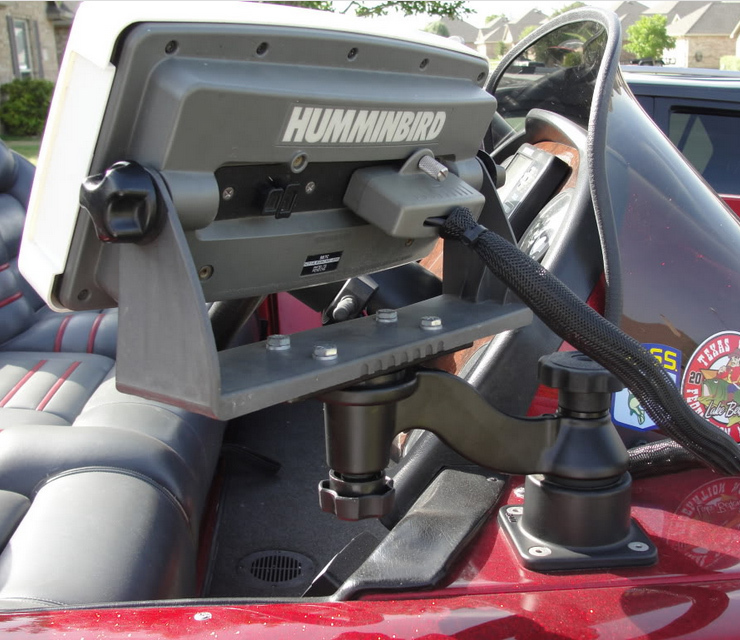

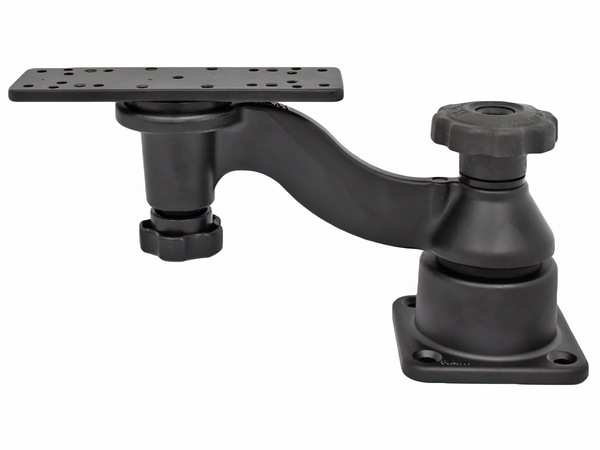

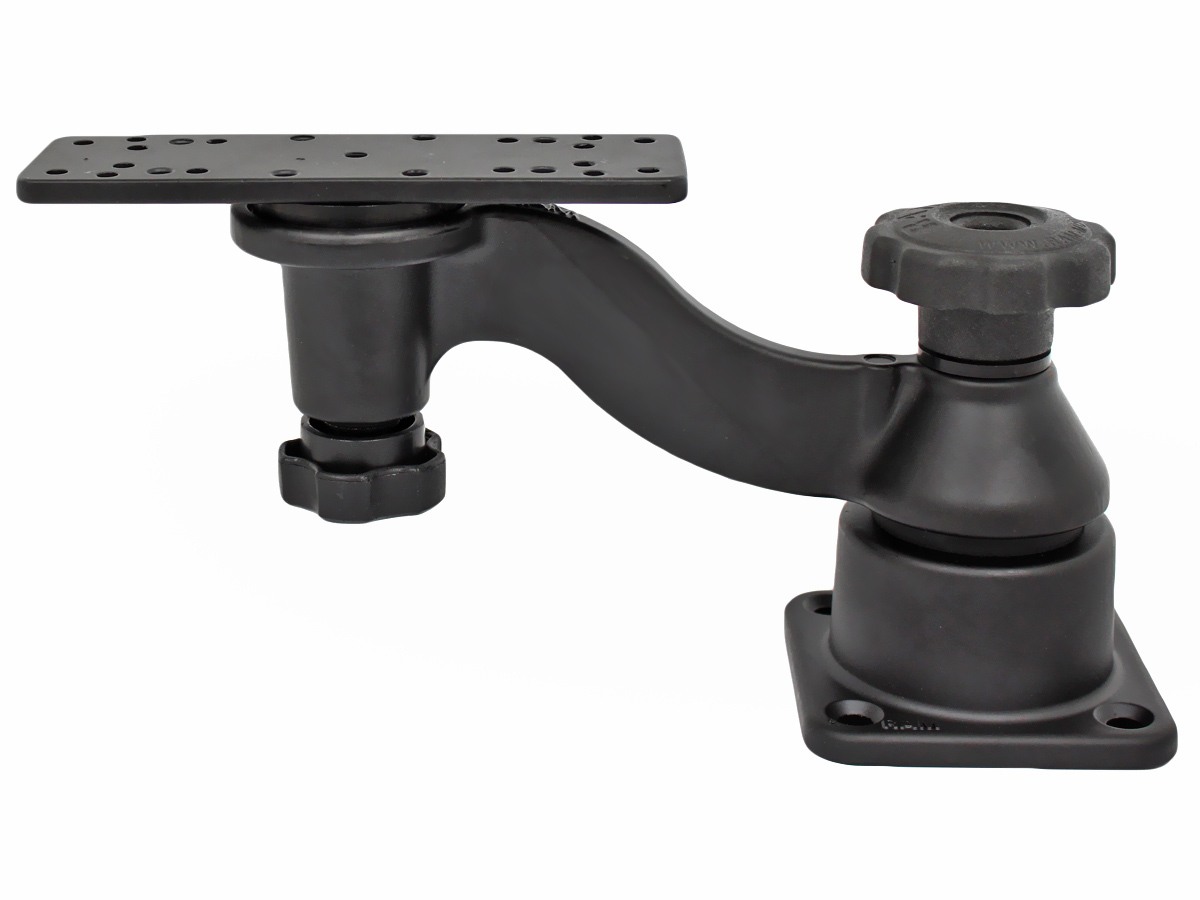

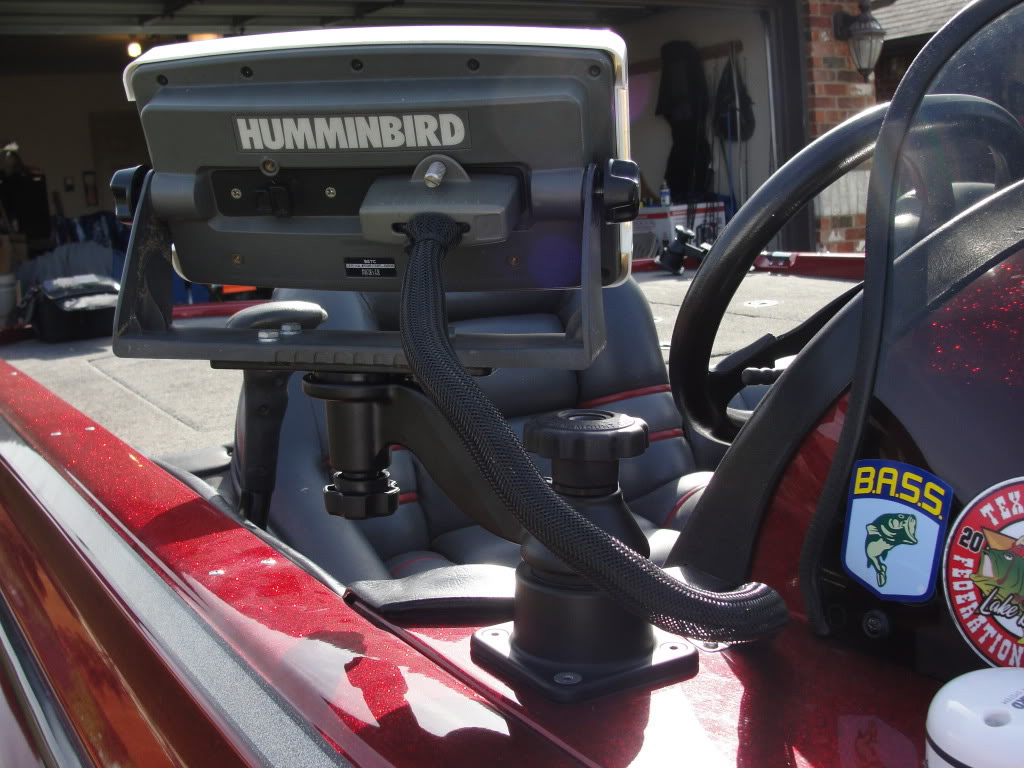

This product can be used to mount a variety of heavy duty marine electronic items. It consists of a 6" (15.24cm) long BENT swing-arm mounted on a horizontal surface mounting base, with a rectangular 6.25" x 2" (15.87cm x 5.08cm) plate.

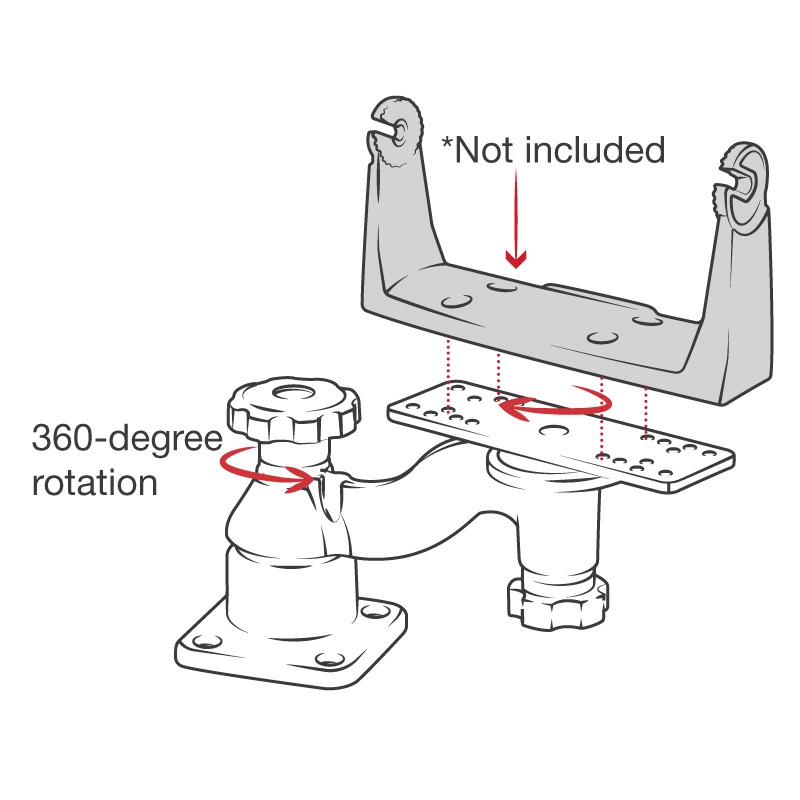

The mount has two pivoting points, using the RAM Mounts 1.5" ball system, with one at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

Weight Capacity: Up to 4.5kg.

Plate Hole Patterns

• Dimensions:
  Center of knob to center of ball socket: 6" (15.24cm)
  Overall length of swing arm assembly: 10.75" (27.30cm)
  Overall height: 5.6" (14.22cm)
  Height from base to top of knob: 4.91" (12.47cm)
• Material: Powder Coated Marine Grade Aluminium
• Weight: 948 grams

Note: The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Assembly Instructions (PDF)
