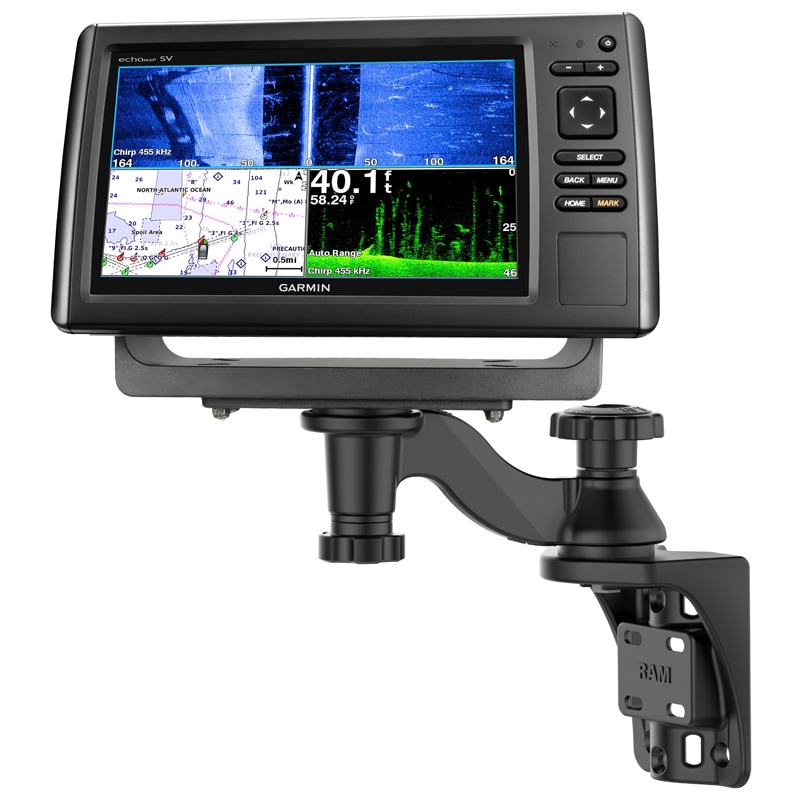

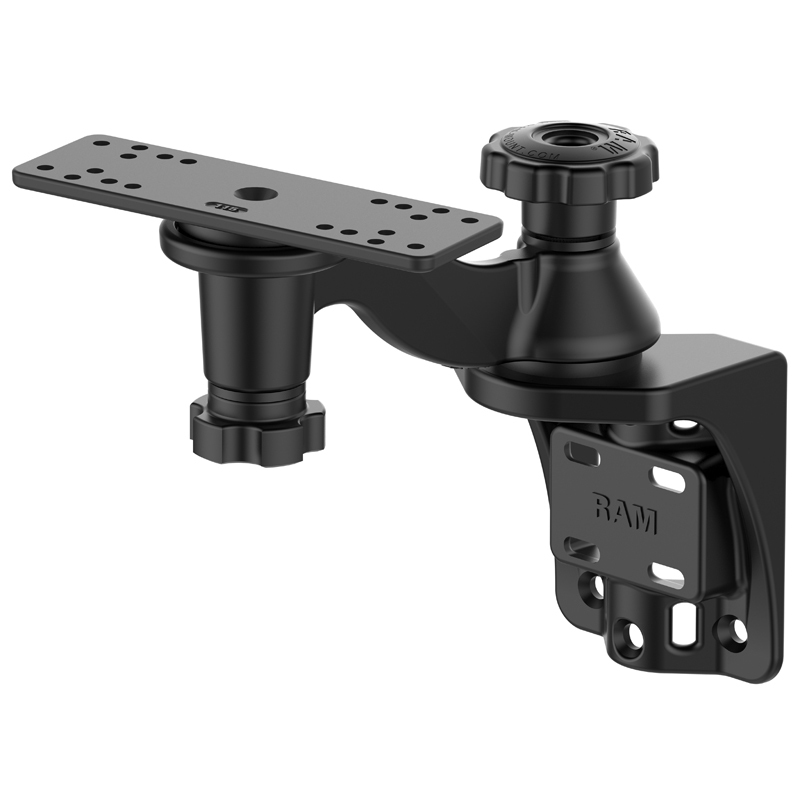

This product will let you mount a variety of heavy duty marine electronic products. It consists of a 6" (15.24cm) long swing arm mounted on a vertical surface mounting base, with a rectangular 6.25" x 2" (15.87cm x 5.08cm) plate.

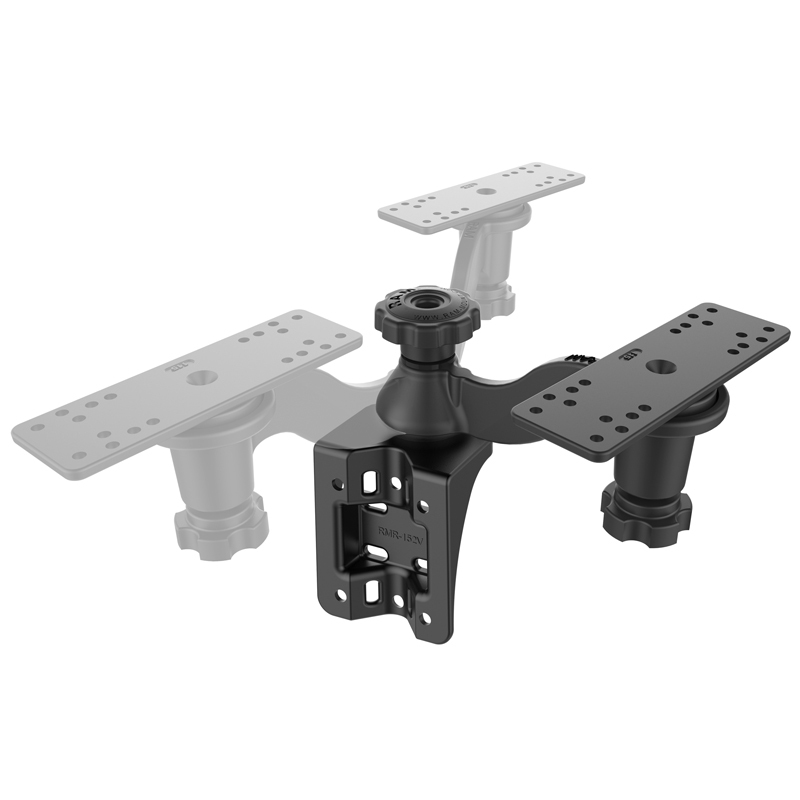

The mount has two pivoting points that use the RAM Mounts 1.5" ball system. One pivoting point is at the swing arm and base and one is at the center of the rectangular plate and the end of the swing arm, each allowing a complete 360 degree rotation.

Compatible Devices:
Garmin Fishfinders/Chartplotters
Humminbird Fishfinders/Chartplotters
Lowrance Fishfinders/Chartplotters
Raymarine Fishfinders/Chartplotters
Si-Tex Fishfinders and GPS Chartplotters

Max Weight Capacity: 4.5kg

• Dimensions:
  Center of knob to center of ball socket: 6" (15.24cm)
  Overall length of swing arm assembly: 11.4375" (29.05cm)
  Overall height: 8.45" (21.46cm)
• Material: Powder Coated Marine Grade Aluminium
• Weight: 1.18kg

Note: The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
