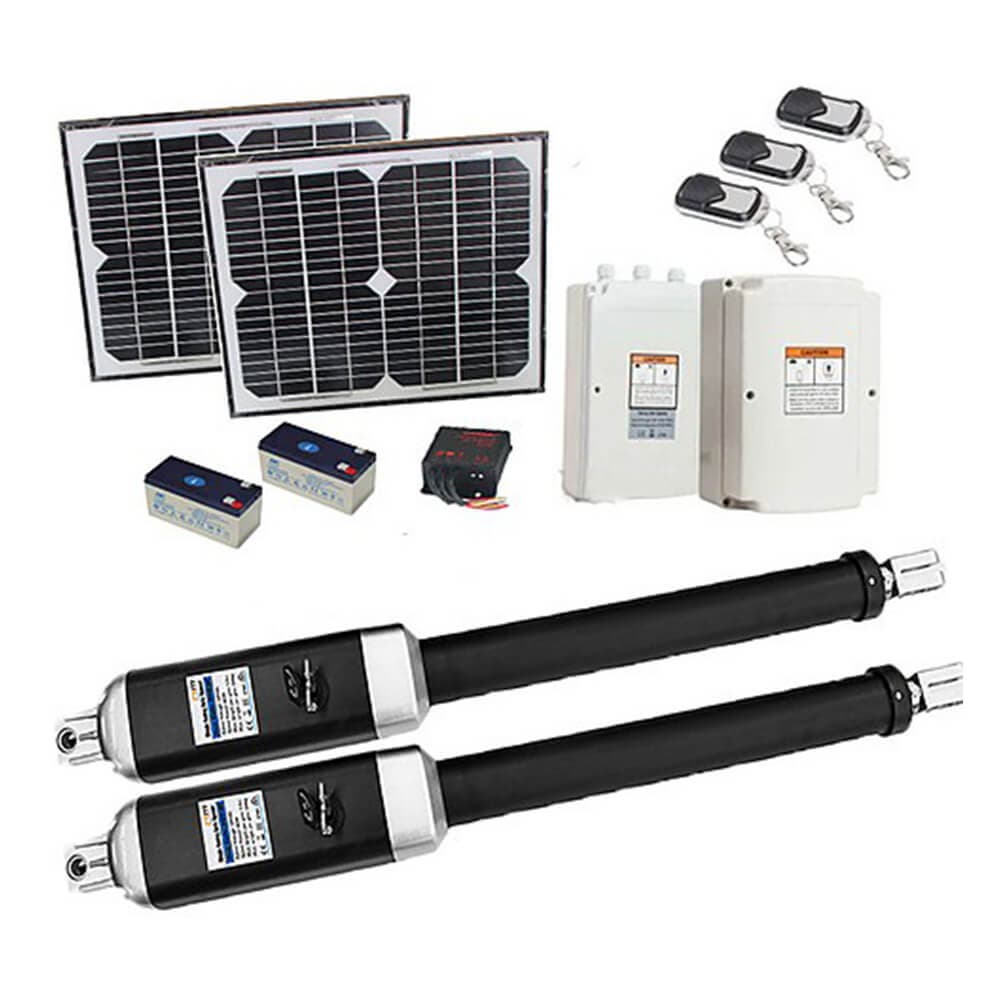

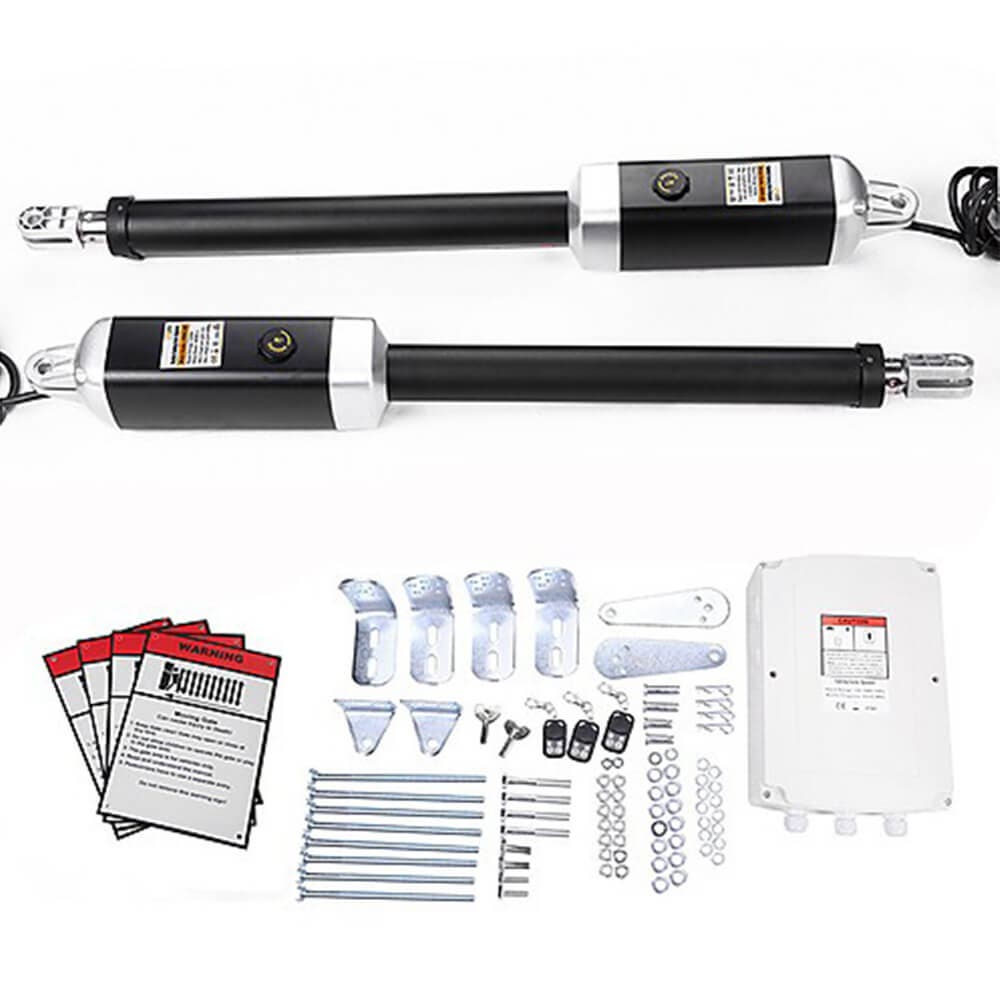

The double swing gate opener is guaranteed to be energy-efficient and comes with two backup solar panels. It is powered by two energy-smart 24V DC stainless steel motors that operate smoothly and silently. This automatic gate opener manages to open and shut gates weighing up to 600kg each motor, and are equipped with fully customisable features.

Customisable Motorised Gate Opener

TOUGH - Aluminium alloy actuator and a waterproof and dust-proof control box
USER-FRIENDLY - 4-button operation: close, open, stop and pedestrian open
SAFE - Features a stop and reverse function, as well as an emergency key for manual operation

Specifications

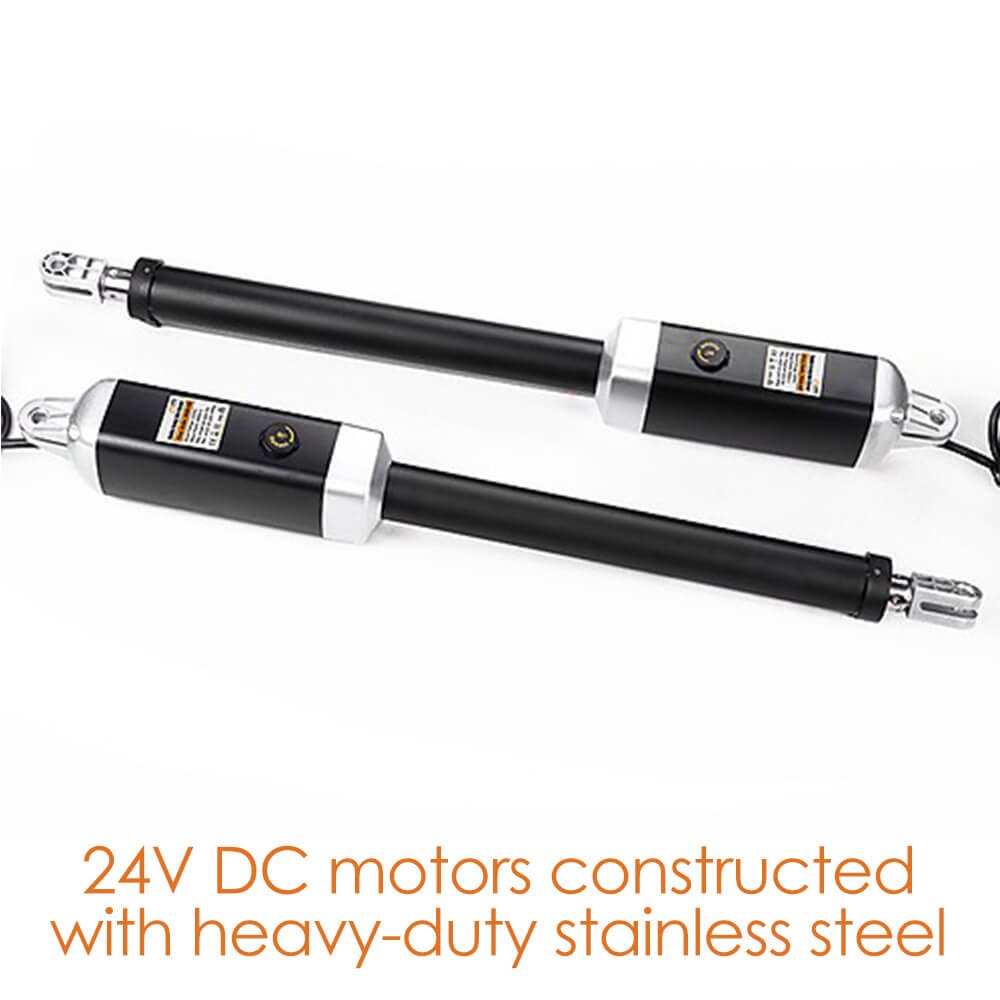

Motor: Two powerful 24V DC motors
Input: 230V/50Hz
Voltage: 24V DC
Power: 80W (each actuator)
Current: 3 amps
Overcurrent protection: Yes
Gate limit type: Intelligent Positioning System
Alarm: Yes, for openings and closings
Speed of actuator: 16mm/s
90-degree time of rotation: 8-12 seconds
Maximum opening angle: 0 to 110 degrees
Operating temperature: -25oC to +55oC

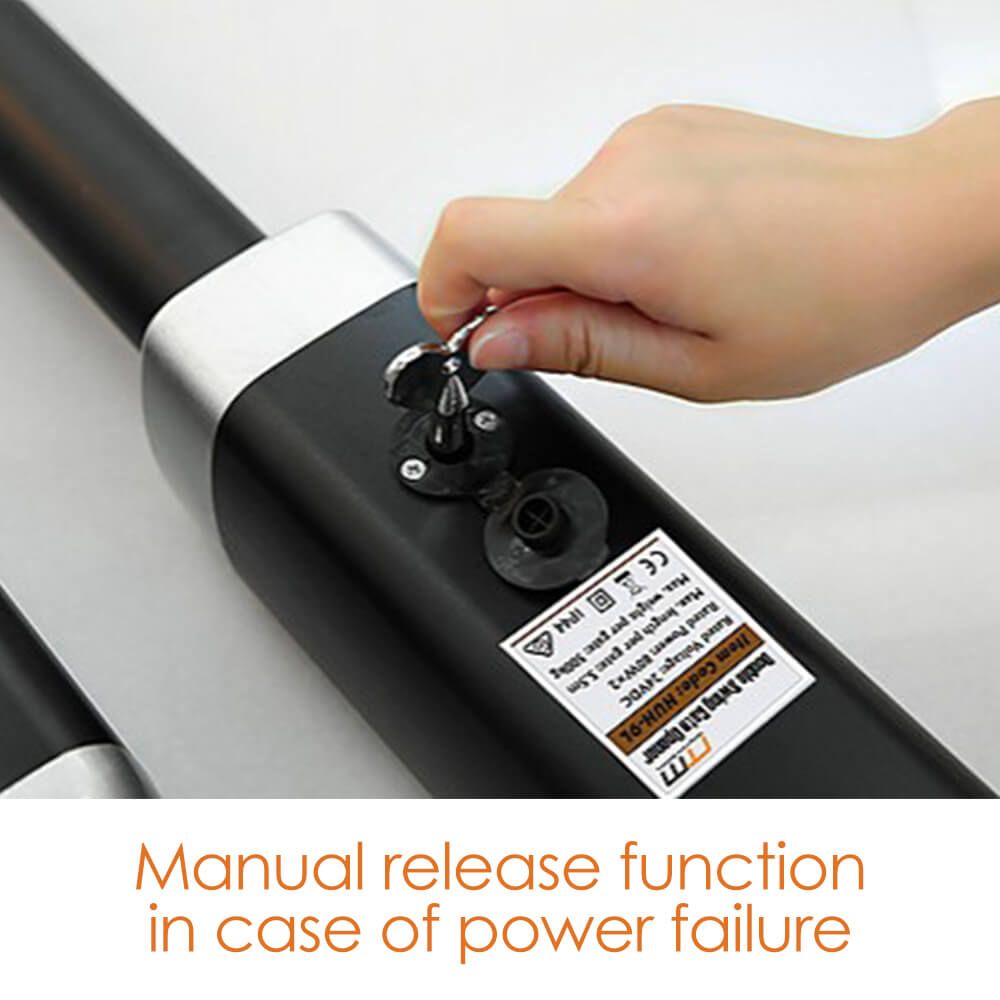

Manual operation: Allowed using an emergency key
Max piston travel: 480mm
Auto-close: Fully adjustable between 0 and 9 seconds
Stop and reverse mode: Yes, customisable sensitivity
Maximum weight per gate: 600kg (total maximum weight for the two gates is 1200kg)
Maximum width per gate: 6.0m (supporting a 100kg gate)
Protection class: IP44
Digital display: Yes
Remote controls: Includes 3 pcs (433.92 Mhz) with 30m operation range
Remote control battery: 27A 12V

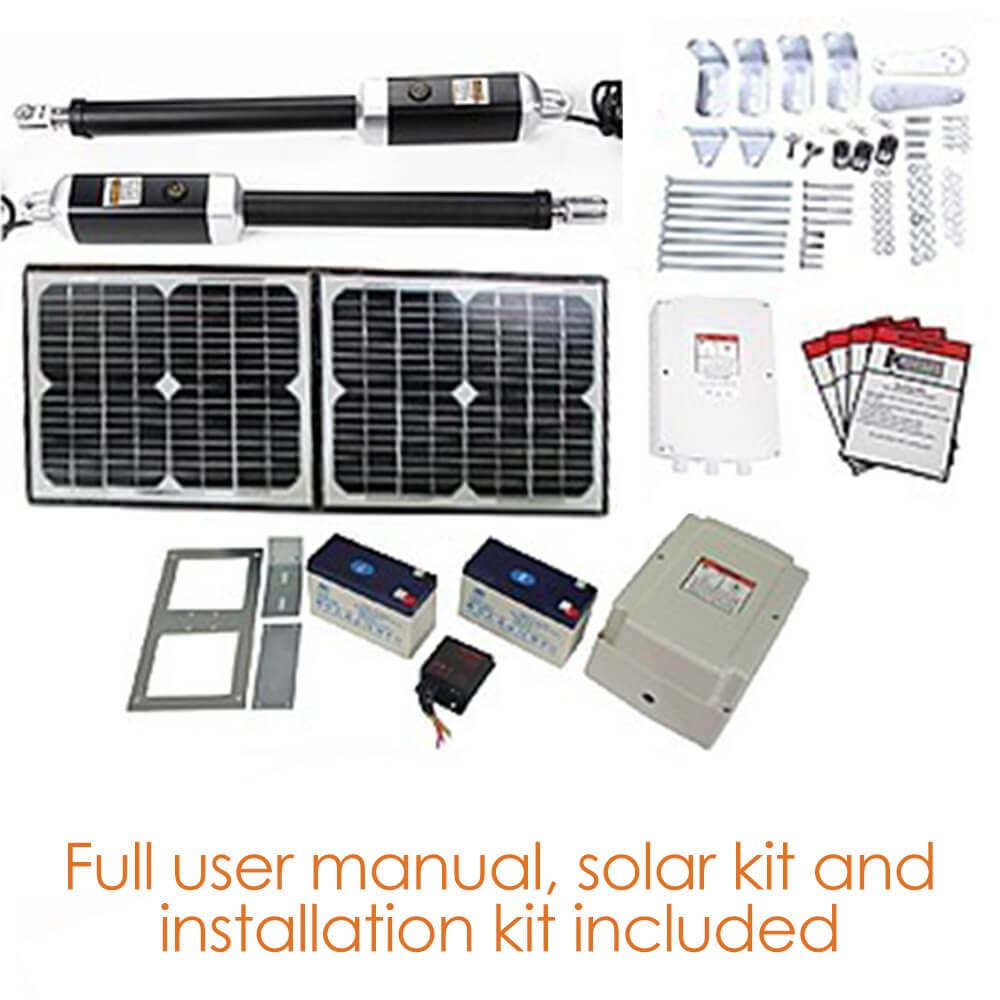

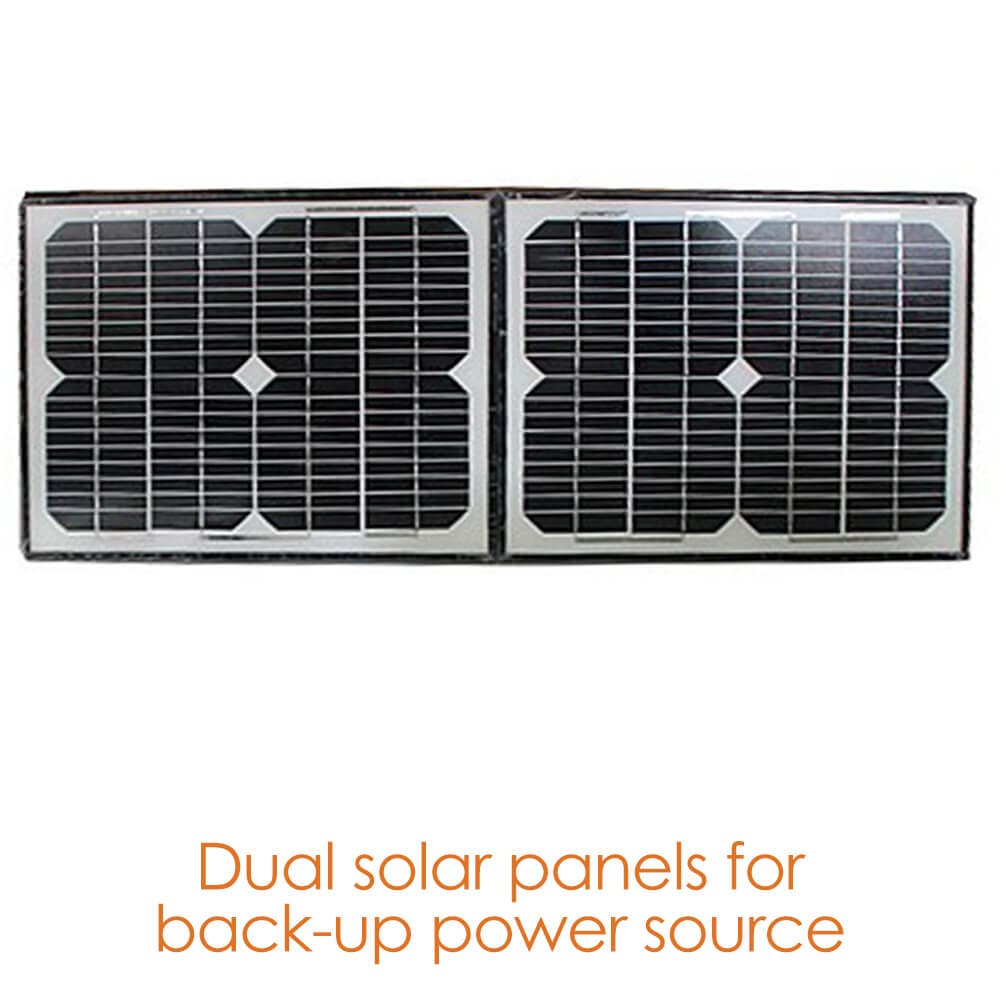

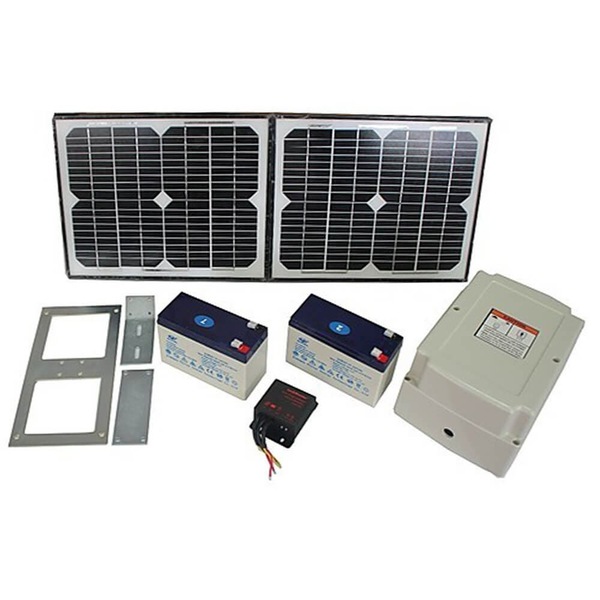

Solar kit: Included
User manual: Included
EESS number: E2023095545
SAA number: SAA-220582-EA
CE/EMC approval model
Gates are NOT included

Fully customisable motorised gate opener to match your needs

• MODERN - Automatic gate openers definitely give a modern and user-friendly upgrade to households

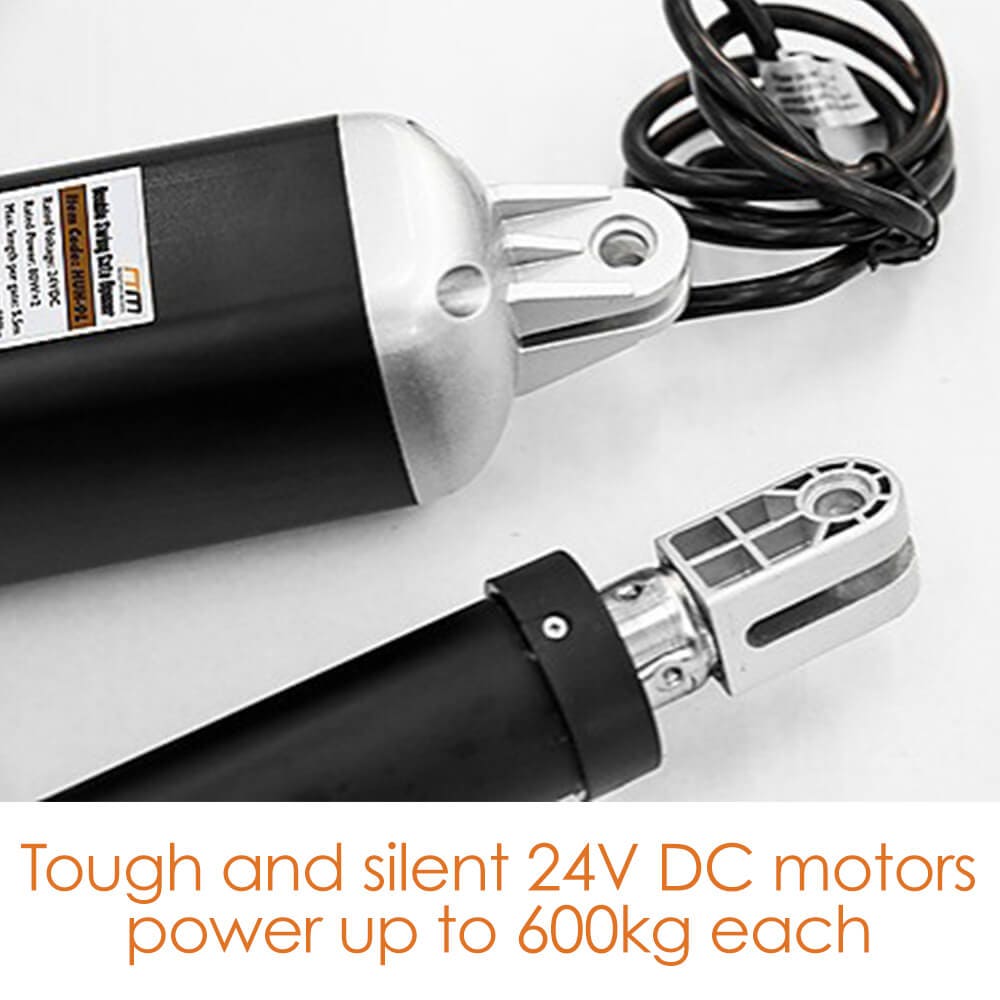

• HEAVY-DUTY - Powered by two powerful 24V DC motors and can carry a total of 1200KG for the two gates.



• TOUGH - Aluminium alloy actuator with a powerful motor inside and a waterproof and dust-proof control box



• CUSTOMISABLE - Can be operated on either single or dual gates and its maximum motor operation is customisable between 0 and 50 seconds



• USER-FRIENDLY - Practical 4-button operation: close, open, stop and pedestrian open



• CONVENIENT - Easily operate the gates from up to 30 metres away with its remote controls



• SAFE - Features a stop and reverse function in case of obstructions, as well as an emergency key for manual operation during power outages
