RAPIER - Small Irrigator Layflat Hose
Delivering Precious Water Effectively
Whether you're retrieving bore water to irrigate your crops or transferring water through irrigation channels, you need irrigation hose solutions that are cost effective and efficient. With water being such a scarce resource, it's vital to use high quality hose to transport it with minimum loss. The key to water conservation when dealing with pumping and irrigation is secure clamping and couplings that you can rely on. Our fitting and coupling service can repair and restore efficient water delivery on your existing irrigation hose or ours.

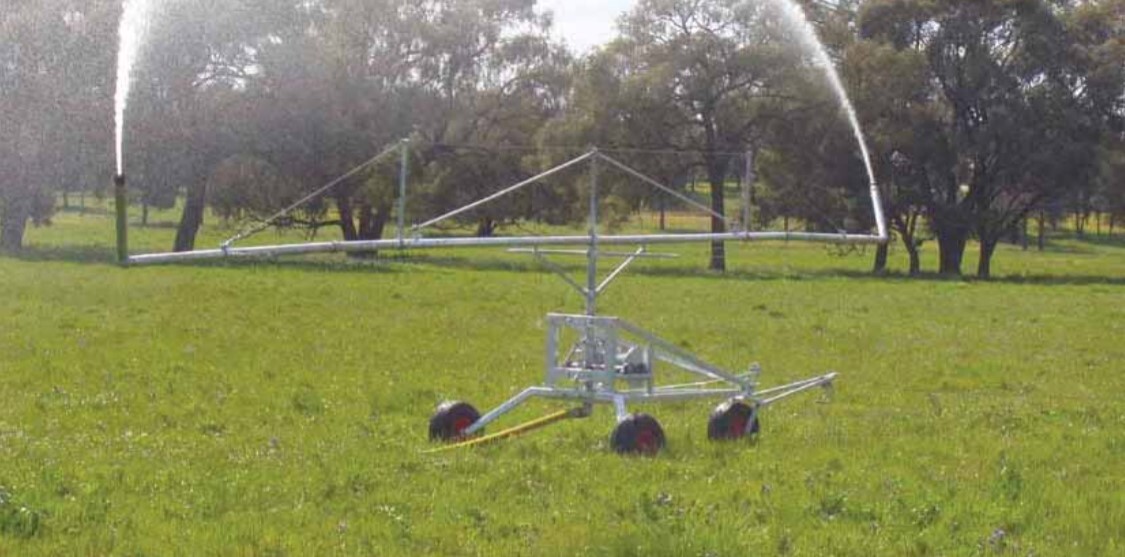

RAPIER is and extruded hose made of heavy duty PVC/Nitrile covered hose and it is ideally suited for towing behind smaller traveling irrigators. The woven reinforcement polyester hose jacket gives RAPIER a very high bursting threshold and tensile strength. The synthetic cover protects the hose from abrasion damage and it is tough and UV protected. This allows the RAPIER hose to be left out in the field, without degradation.
Secure couplings can be easily attached on site. A strip with intermittent loops every half meter runs along the length of the hose. This allows the secure attachment of the electrical power cable to the hose and prevents possible rubbing against the bore casing.
Fittings are not included with the hosesFittings to be purchased separately.
Features
Suitable Applications
| SPECIFICATIONS | ||||||
| SKU | MPN NO | Inside Diameter (mm) | Inside Diameter (inch) | Working Pressure (Kpa) | Burst Pressure (Kpa) | Weight per Metre (kg) |
| 141.316.038 | HHR038XYA | 38 | 1 1/2 | 2100 | 5250 | 0.30 |
| 141.316.051 | HHR051XYA | 51 | 2 | 2100 | 5250 | 0.43 |
| 141.316.063 | HHR064XYA | 64 | 2 1/2 | 2100 | 5250 | 0.56 |
Estimated Delivery Time Frame:2-7 business days
