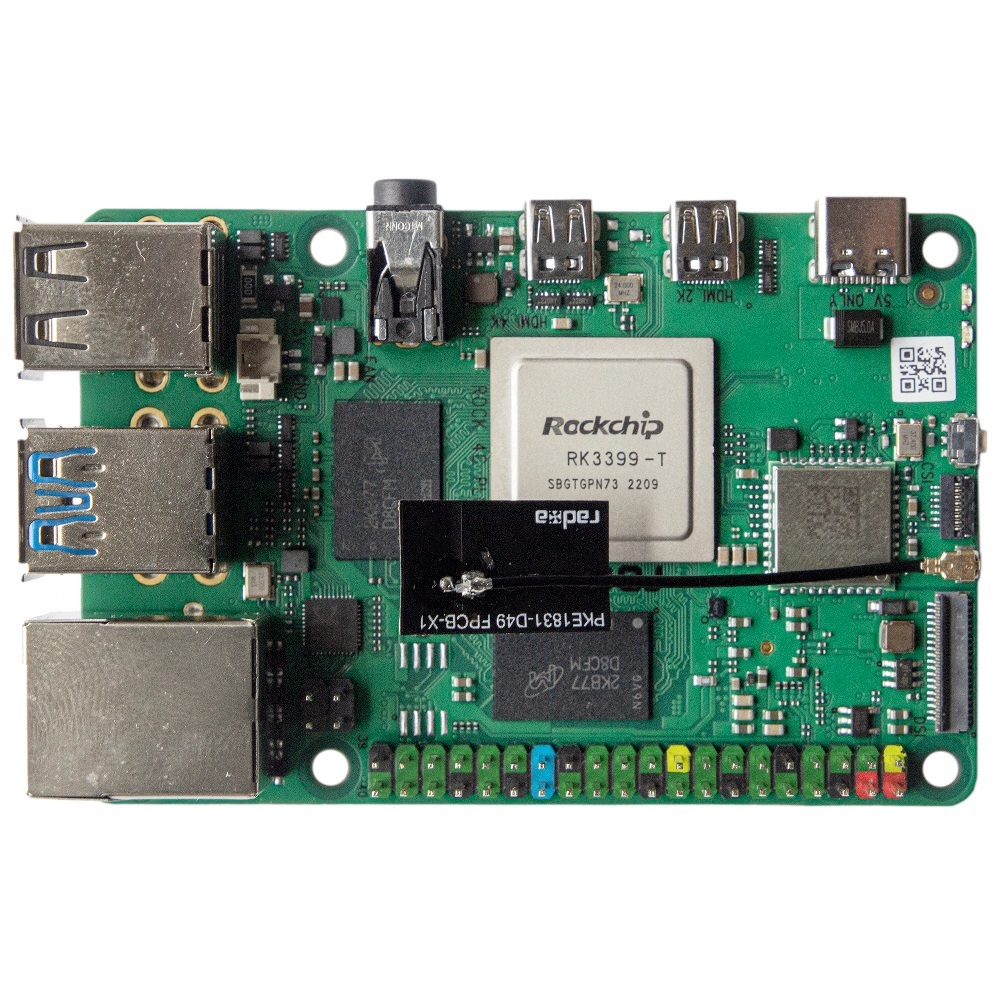

ROCK 4 C+ 4GB Single Board Computer
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 139 Everyday Rewards points
Collect 139 Everyday Rewards points
Â
On board on/off power button
Â
Integrated fan control forthermal management
Â
Dual-display support
Â
Two micro-HDMI ports supporting displays up to 4Kp60 resolution
Â
Multiple connectivity capabilities so less add on hardware required, including Bluetooth 5.0 with BLE, Gigabit Ethernet & Wireless LAN
Â
A 40P GPIO expansion header provides extensive compatibility with a wide range of accessories
Â
Get more multiple memory options, including 4GB RAM and a speed eMMC socket
Â
Â
Rockchip RK3399T SoC
Â
Arm® big.LITTLE™ technology (Dual Cortex®-A72 frequency 1.5GHz and a Quad Cortex-A53 frequency 1.0GHz)
Â
Arm Mali™ T860MP4 GPU, supporting OpenGL® ES 1.1 /2.0 /3.0 /3.1 /3.2, Vulkan® 1.0, Open CL® 1.1 1.2, DirectX® 11.1
Â
Dual Arm Cortex – M0
Â
Dual channel 4GB 64bit LPDDR4
Â
eMMC connectors
Â
Display supporting mirror and extended modes
Â
Dual micro-HDMI
Â
MIPI DSI
Â
H.265/VP9 (HEVC) hardware decode (up to 4Kp60)
Â
H.264 hardware decode (up to 1080p60)
Â
USB TypeCâ„¢ power input
Â
Â
802.11 b/g/n/ac (WiFi 5) Wireless LAN
Â
Bluetooth 5.0 with BLE
Â
1 x micro-SD card slot
Â
2 x HDMI ports supporting displays up to 4Kp60 resolution and 2Kp60
Â
2 x USB2 HOST ports
Â
1 x USB3 OTG/HOST port, 1x USB3 HOST port
Â
1 x Gigabit Ethernet port (supports PoE with addon PoE HAT)
Â
1 x camera port (2lane MIPI CSI)
Â
1 x display port (4lane MIPI DSI)
Â
40 x user GPIO supporting a wide range of interface options: 2 x UART, 2 x SPI bus, 2 x I2C bus, 1 x PCM/I2S, 1 x SPDIF, 1 x PWM, 1 x ADC, 6 x GPIO, 2 x 5V DC power in, 2 x 3.3V power pin.
Â
Â
Full implementation of the Arm architecture v8A instructions set, Arm NEON Advanced SIMD (single instructions, multiple data) support for accelerating media and signal processing
Â
Armv8 cryptography extensions
Â
TrustZone® technology support
Â
Debian/Ubuntu Linux support
Â
Android 7.1/Android 5.0/Android 10/Android 11 support
Â
GPU enabled Al stack
Â
Hardware access/control library for Linux/Android
