Experience Unmatched Realism: The Ultimate 6CH RC Flight Training with RealFlight G7 XTR

Social Media Reviews

Shipping

Orders within Australia will be dispatched using AU Post Express.

Supports global express shipping, orders dispatched within 24 hours, ensuring fast delivery.

Explore

Want to see our products in action? Check out more video showcases on our Shop Our Instagram page!

SPECIFICATIONS

•
  Material: Metal



•
  Origin: Mainland China



•
  Recommended Age: 12+ years



•
  Barcode: Yes



•
  Model Number: S803



•
  Certification: CE



•
  Color: Silver



•
  Aerial Photography: No



•
  Control Channels: 6 channels



•
  Type: Simulators



•
  Controller Mode: MODE2

Key Features and Compatibility

•
  G7.0 Easy Installation: Comes with exclusive Realflight G7/ G6.5 serial number. Online upgrade supported.



•
  Phoenix 5.0 Upgradeable: Supports online updates.



•
  Languages Available: English and Chinese.



•
  Operating System Compatibility: Works on 32-bit and 64-bit versions of XP, Windows 7, Windows 8, Windows 10, and Vista.



•
  Simulator Handle Support:






  • Compatible with G7.0, G6.5 to G4.



  • Supports Phoenix versions 5.0 to 2.5.



  • Compatible with XTR.






Note

• Please turn off the antivirus software before installation.



• Switch the gear lever to Phoenix RC

Installation Instructions

•
  Quick Start: Initially, locate the "autorun" icon in the CD for a quick installation guide.



•
  DirectX9.0 Installation: Ensure to install "DirectX9.0" from the CD before running any program.



•

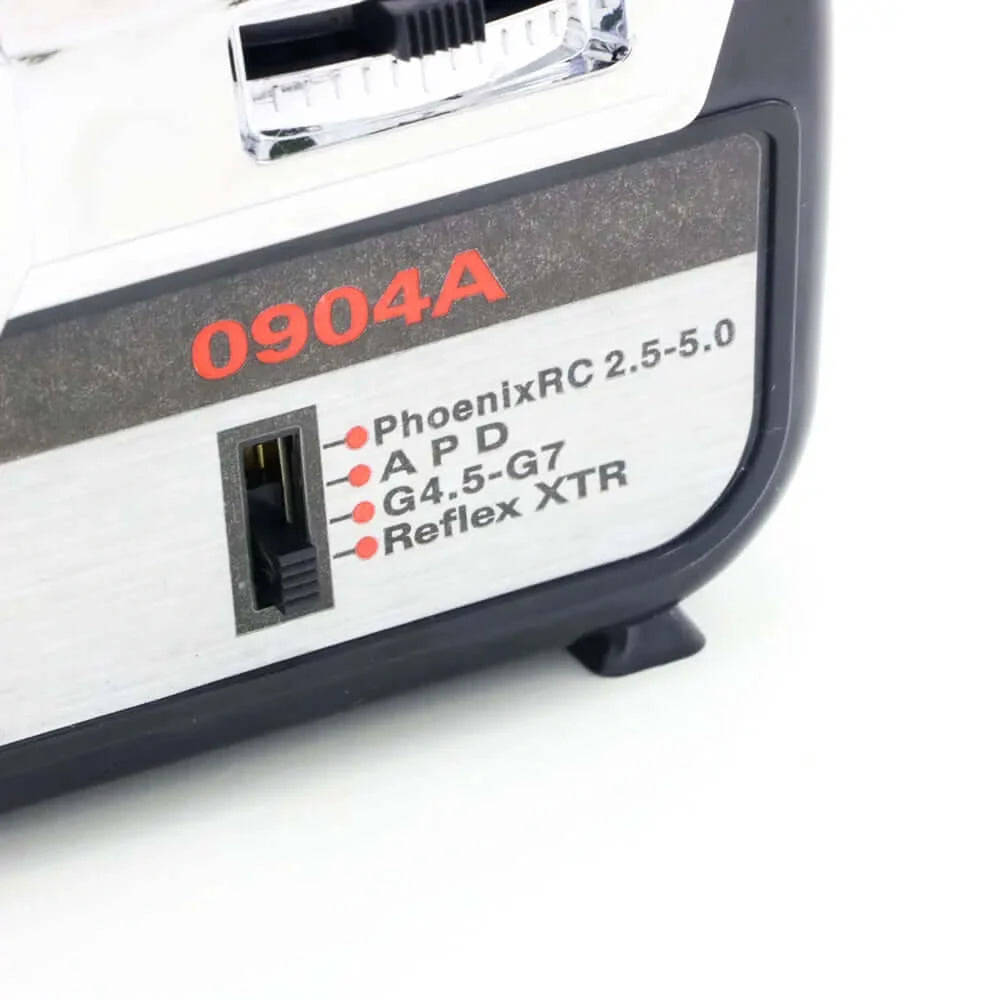

  Simulator Launch: Execute "SimLauncher2017.exe" as administrator for easy and convenient program switching. Alternatively, adjust the USB emulator handle's switch in the lower right corner - choose from four sliding gears.



•
  Selecting Software: Use Simulator Switcher to choose between G7.0, Phoenix 5.0, or XTR before running.

XTR Simulator Setup Guide

•
  Step 1: For XTR setup, correctly position the analog switch to the XTR section, connect the USB lint plug to your computer, and switch on the remote control power. If the power light flashes and there's no computer recognition, try a different computer USB port and repeat the setup.



•
  Step 2: Once XTR software is installed, open it, navigate to "remote control" in the menu bar, then to "channel distribution" to set up channel allocations as shown. If signal setting fails due to channel allocation, switch to another USB port.



•
  Step 3: For channel settings, select a helicopter model and center all remote control tunings. Fully push and pull the throttle several times to avoid calibration issues. Then, find "calibrate neutral position" in the software under "remote control" for calibration. If any channels are incorrect, adjust them from "+" to "-" as necessary and recalibrate.



•
  Step 4: If the helicopter feels too heavy, adjust its weight to less than 1 kg via "model" and "physical parameters of change" for closer real-machine sensitivity. Modify other simulator parameters as needed, like gyro sensitivity, for optimal flight. Note: Mastery of the simulator, akin to real flight, requires gradual practice.

Simulator Overview

• Connects to computers as a remote control flight simulator, not a radio.



• Does not support actual physical remote-controlled aircraft.



• Powered by computer USB, eliminating the need for batteries.

Please Note:

• Mode 1: Throttle stick on the right.



• Mode 2: Throttle stick on the left.

Package Contents

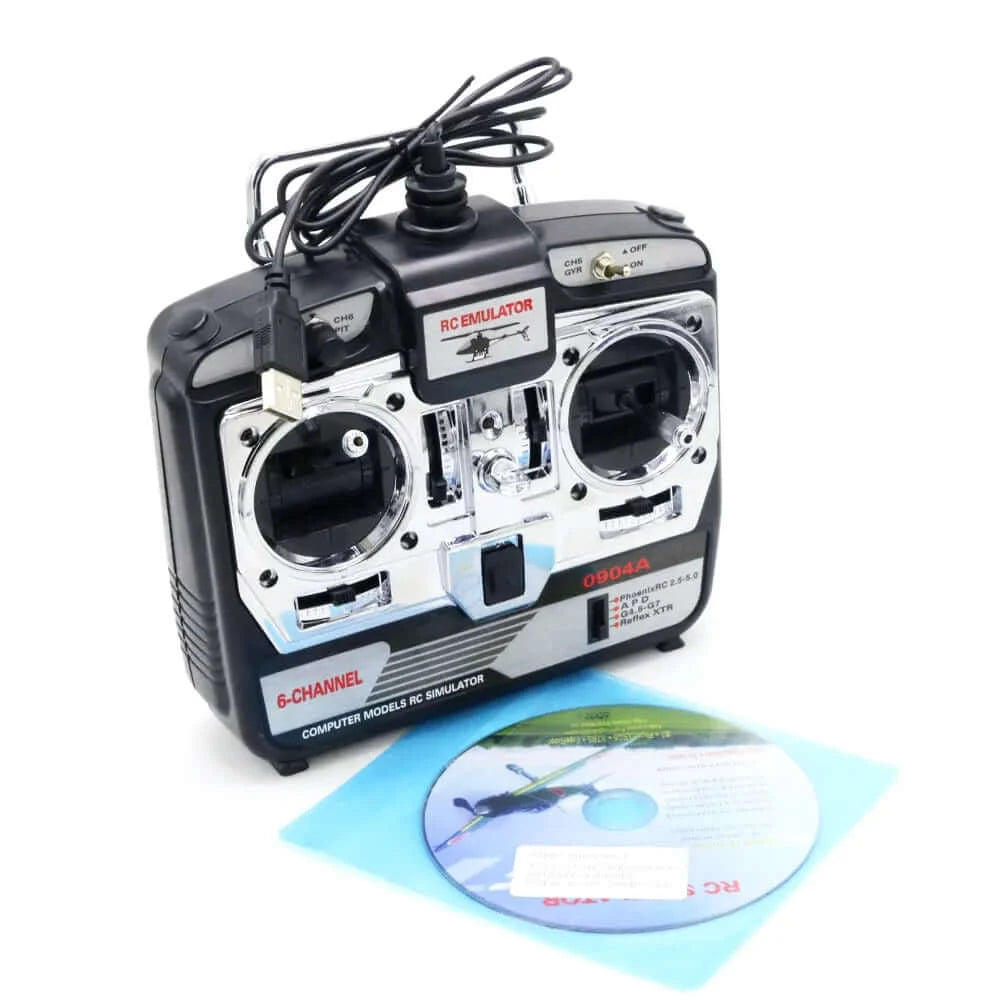

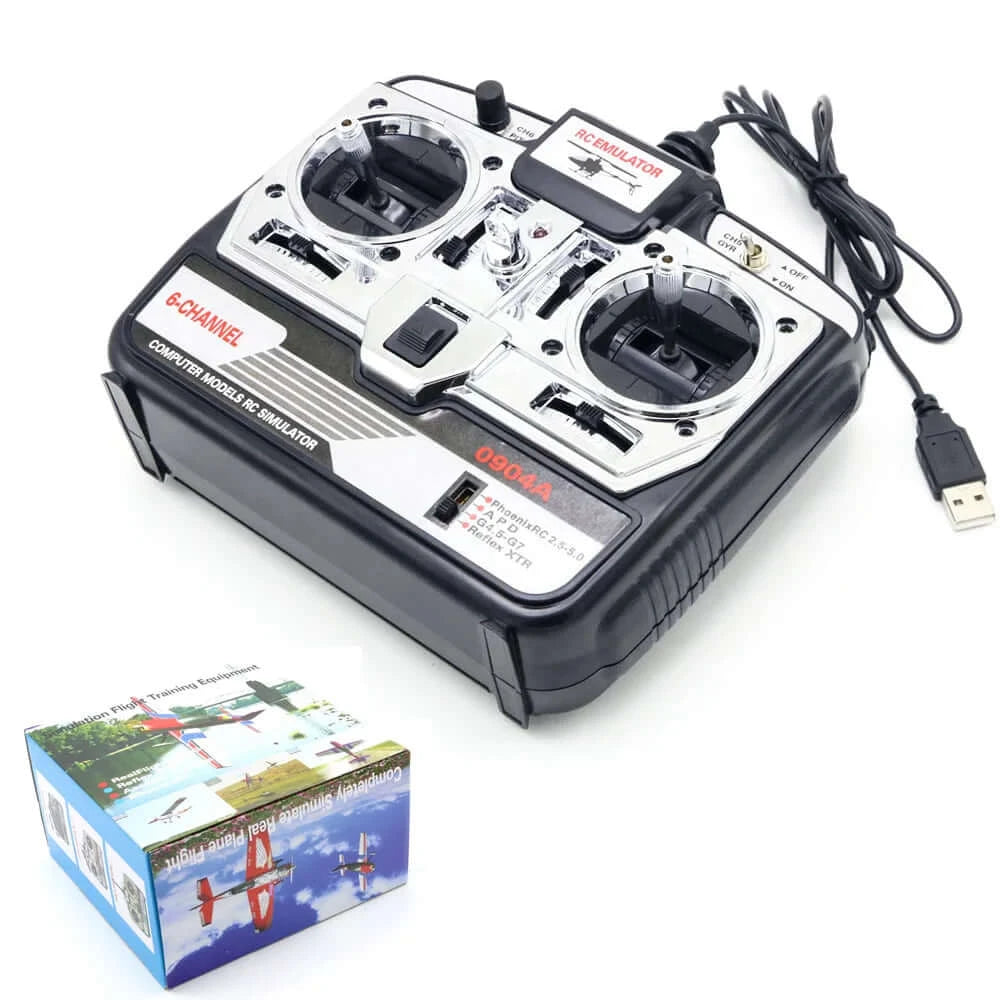

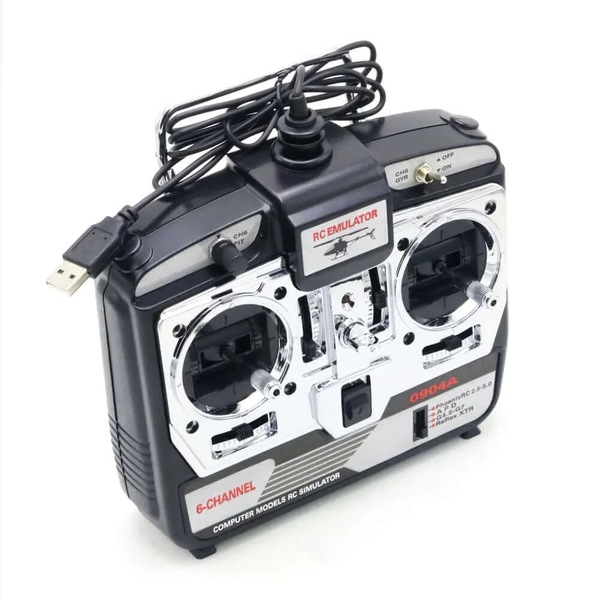

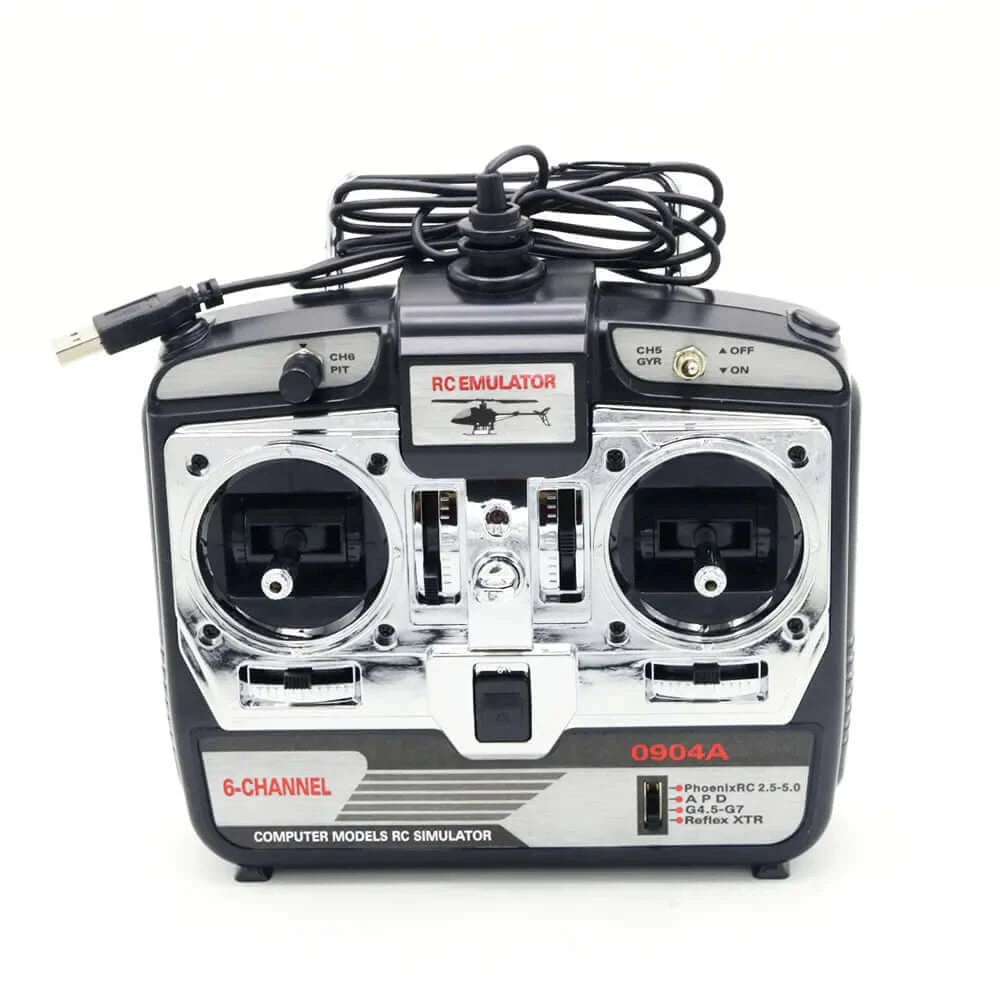

• 1x 6CH XTR Flight Simulator



• 1x Simulator Software DVD
