Key Features...

• 170 degree wide viewing angles,Night vision and good waterproof function.

• Solve the issue of bad car rear view effect, can help parking and reduce incidents and accident.

• Support NTSC TV system, Made of advanced material, Simple and modest design.

.Manufacturer Specifications

General

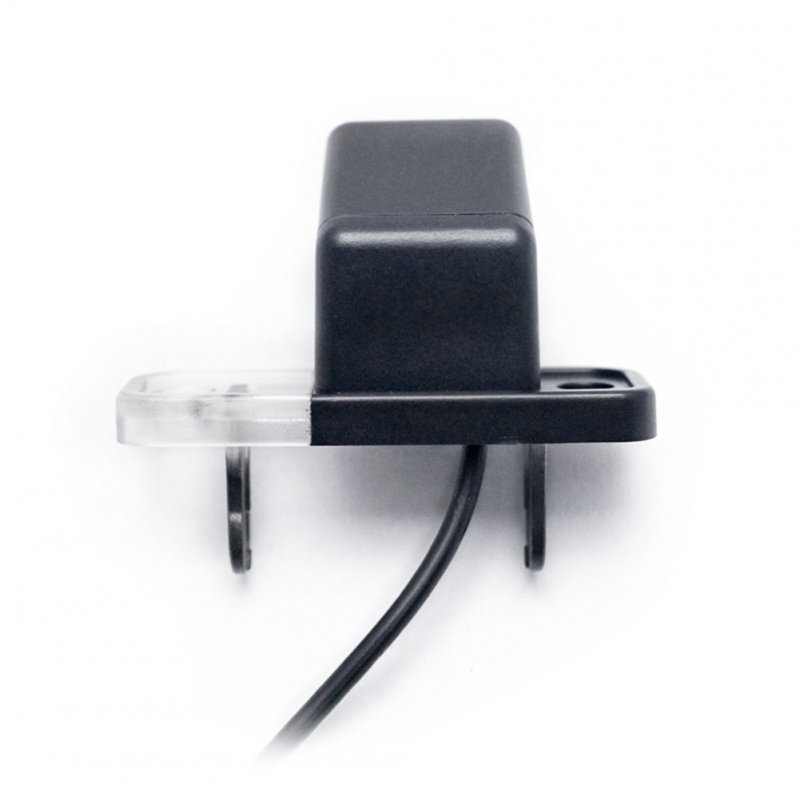

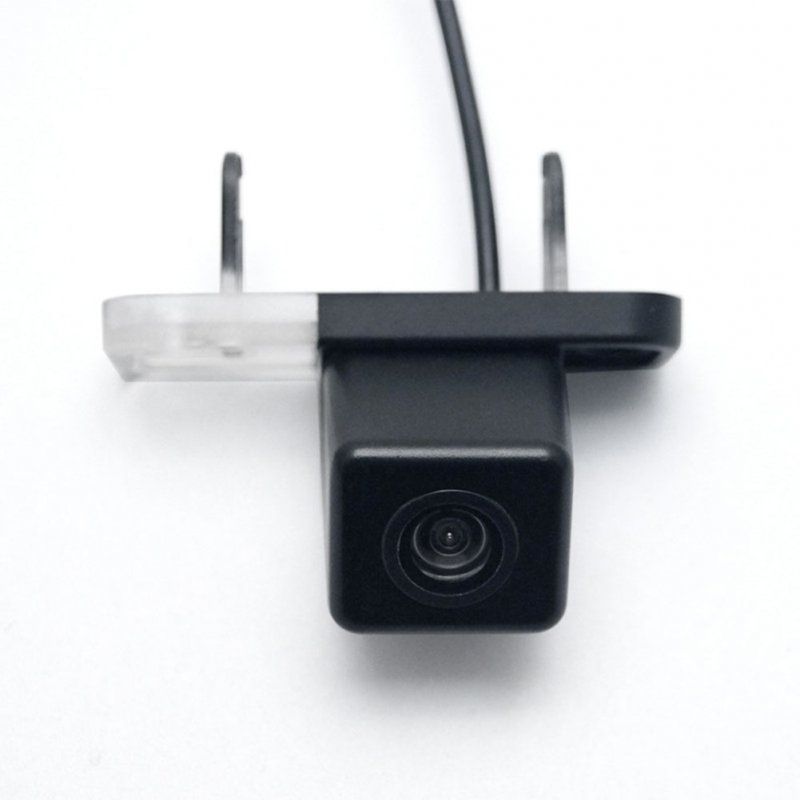

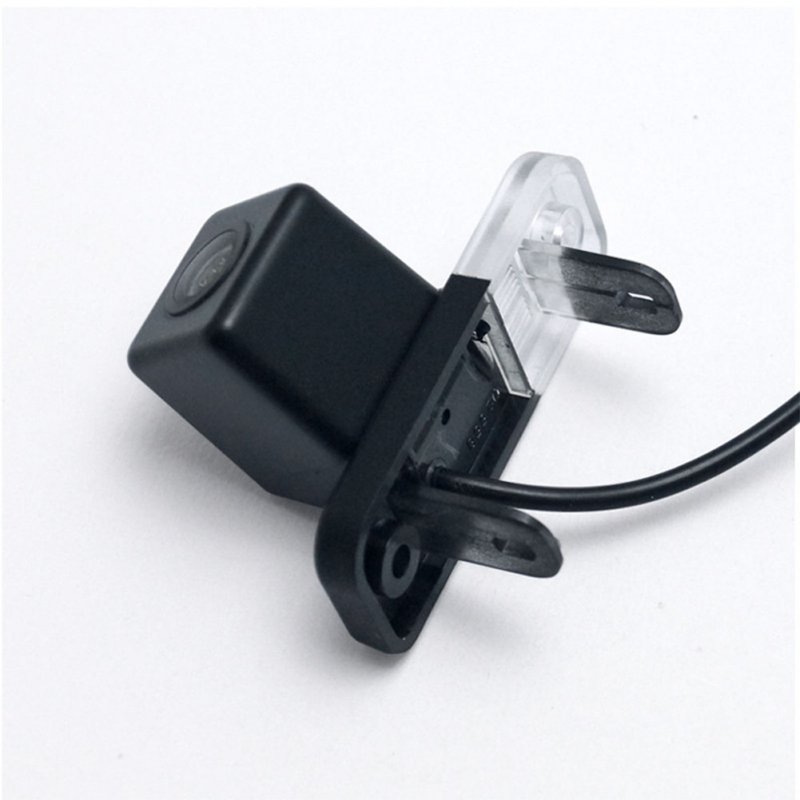

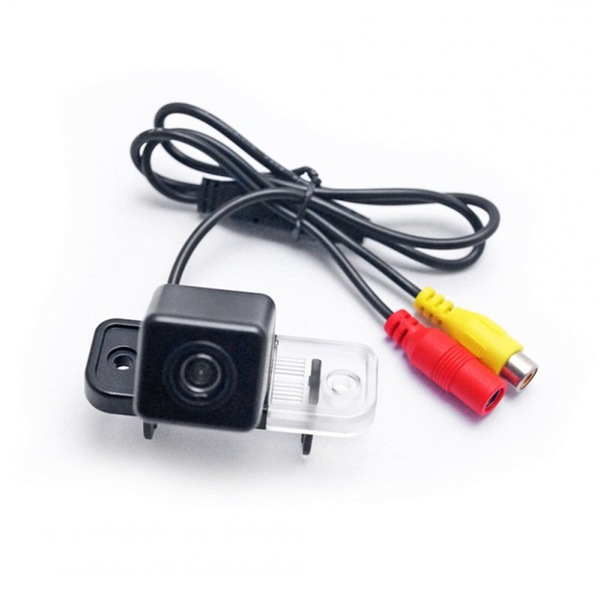

• Name: Backup Camera

• Material: ABS

• Image sensor: 1/4 inch CMOS PC7070

• Lens material: 100% glass

• Effective pixels: 640 * 480 pixels

• Horizontal resolution: 480TV line

• Field perspective: 170 degrees (diagonal), 138 degrees (H), 125 degrees (V)

• Night vision: support

• Lens with LED lights: No

• Parking Guidelines: Support

• Wire switch: No

• Reversing image: mirror image

• Mirror/original switch: No

• Television system: NTSC

• Video output: CVBS RCA connector (1.0VP-P, 70OHM)

• Minimum illumination: 0.01 Lux/F = 1.2 (0 Lux vs IR)

• Power supply: DC12V

• Power consumption: 120 mA

• Power: 5W

• Working temperature: - 20 C - 75 C, RH 95% MAX

• Storage temperature: - 40 C - 80 C, RH 95% MAX

• Waterproof grade: IP67/IP68

• Applicable models: Mercedes-Benz C/E/CLS series

• Compatibility:

• Suitable for Benz C series T-model.S203/W203/W211/S211 Kombi Limousine (Bj 2000-2007)

• Suitable for Benz E Series W211 Limo/W300

• Suitable for Benz E-series T-model.S211 Kombi

• Applicable to Mercedes-Benz CLS C219/W219/320 CDI/CLS550/CLS300/320/350/500 (Bj2004-2011)

Packages includes:

• 1 *Backup Camera

• 1*power line

• 1*video line
