Description :?

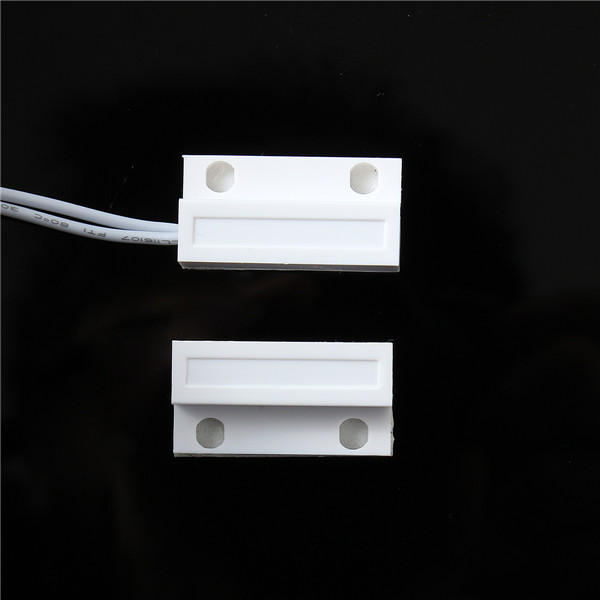

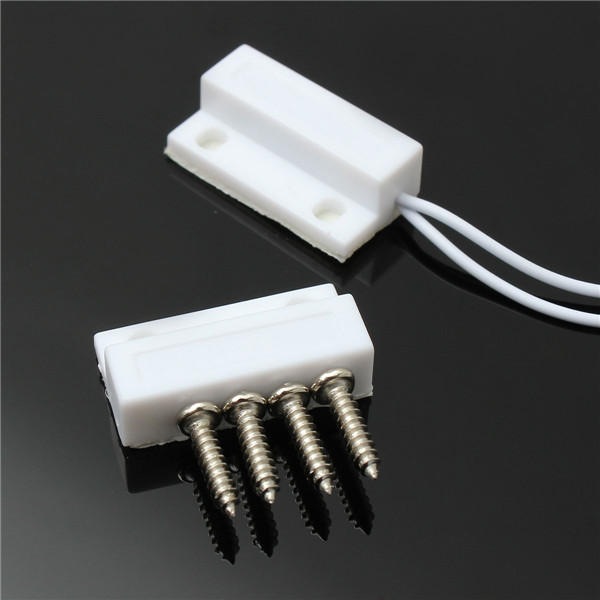

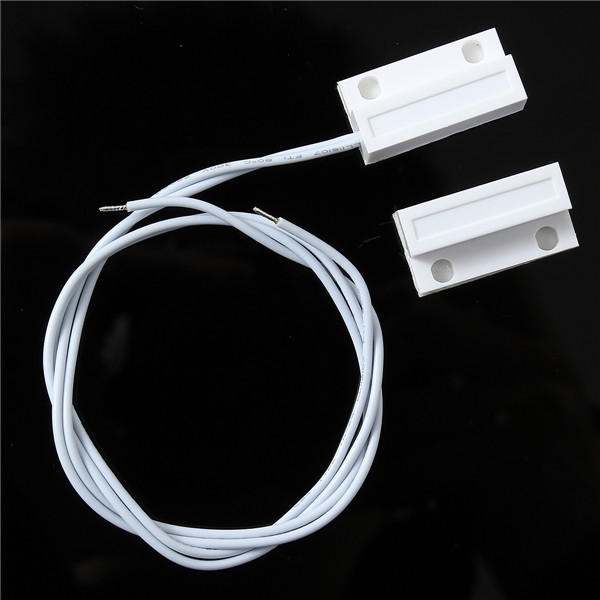

Recessed Door Window Contacts Magnetic Reed Security Alarm Switch Screws

Features :?

Easy installation !
Reliable performance !
Good characteristic of abrasion-proof !
Best Choice for you to protect family !

There are two types of reed switches : "normally open" reed switches and "normally closed" reed switches.
The metal reeds on a normally open switch stay open when there is no magnet near the switch.
In the presence of a magnetic field, the contacts of a normally-open reed switch will close.
A normally-closed reed switch is closed when it is not near a magnet; as a magnet is brought close to it, a normally-closed switch will open.

Specifications :

Color : white
Material :?ABS
Dimensions : 27mm x 14mm x 8mm
Switch pattern : N/O normally open, alarm-on-broken
Contact capacity : Maximum switch current : 0.5Amp
Voltage :?200V?DC
Rated power?:?10W
Actuation distance : 20-25mm
Wire lead :?22?Awg, About 350mm long
Mounting method : SMD (by screws or double-sided tapes)
Recommendations in application : wooden door, window

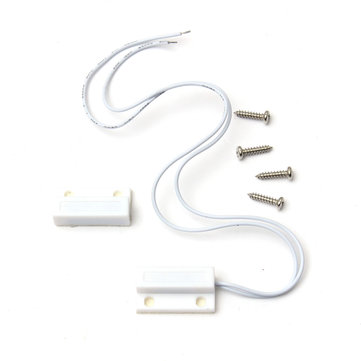

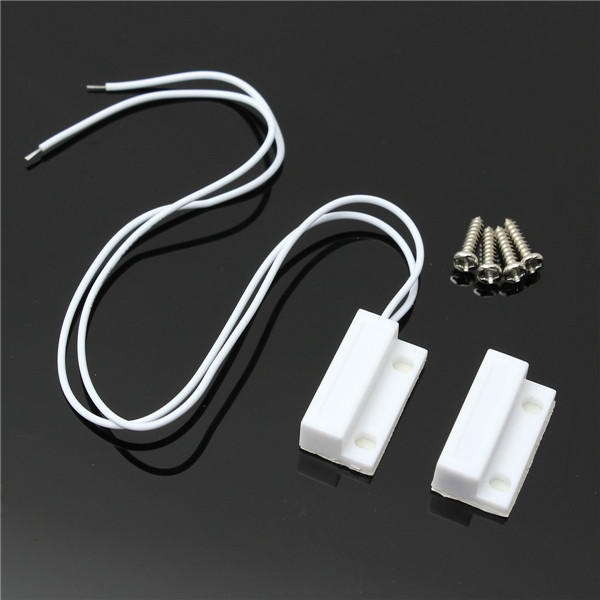

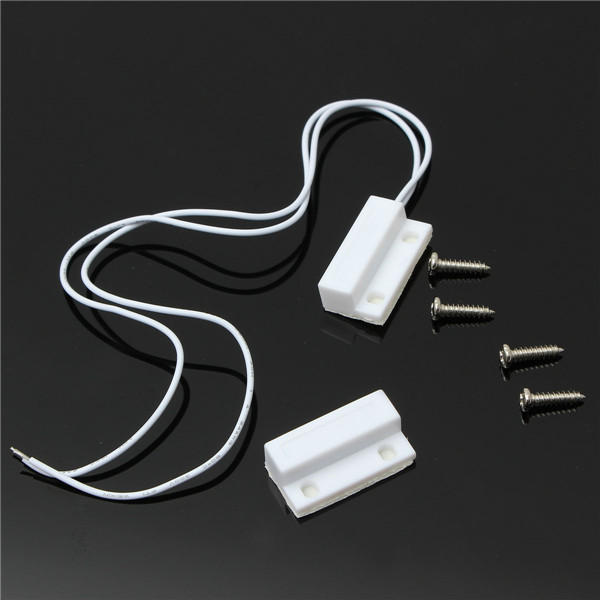

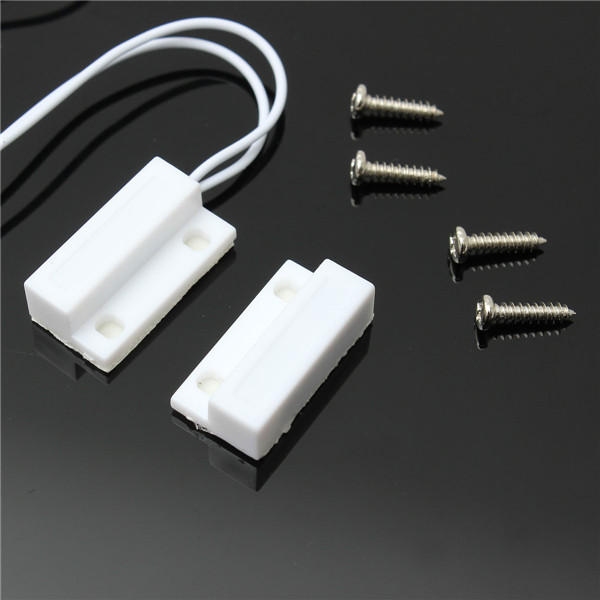

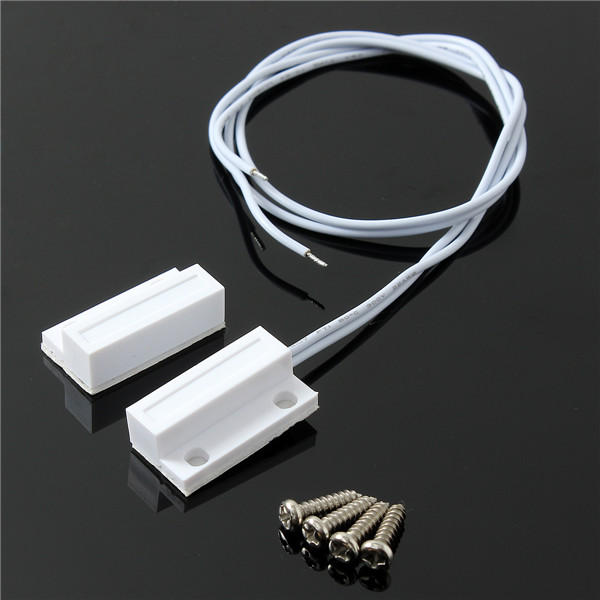

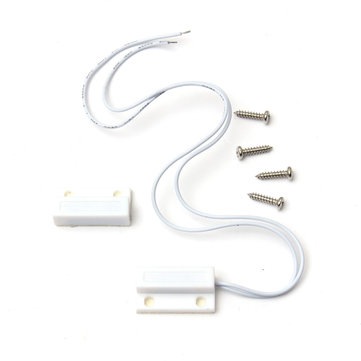

Package Includes :????? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??

1 x Reed switches

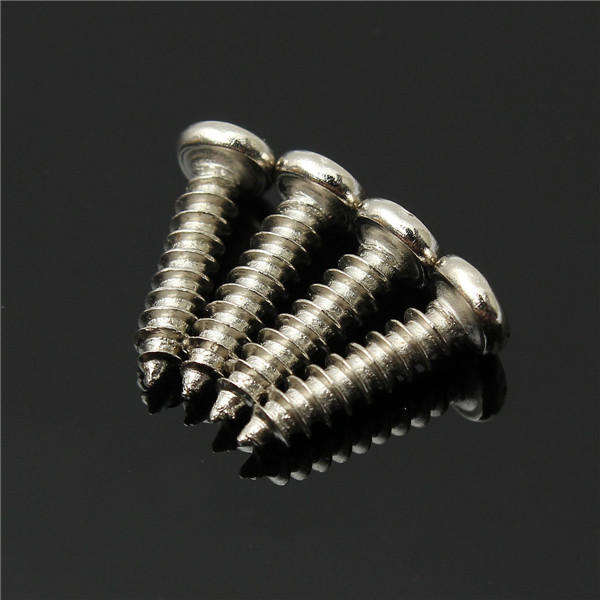

1 x Necessary screws for installation
