The Red Smoke Alarms RSDUALPB is a 240V mains-powered photoelectric smoke alarm with a 10-year lithium battery backup, providing long-lasting, uninterrupted protection. Finished in bold black, it's ideal for modern residential and commercial interiors. It supports hardwired interconnection of up to 40 alarms or wireless linking of up to 20 units when paired with the optional RFWMD module (sold separately).

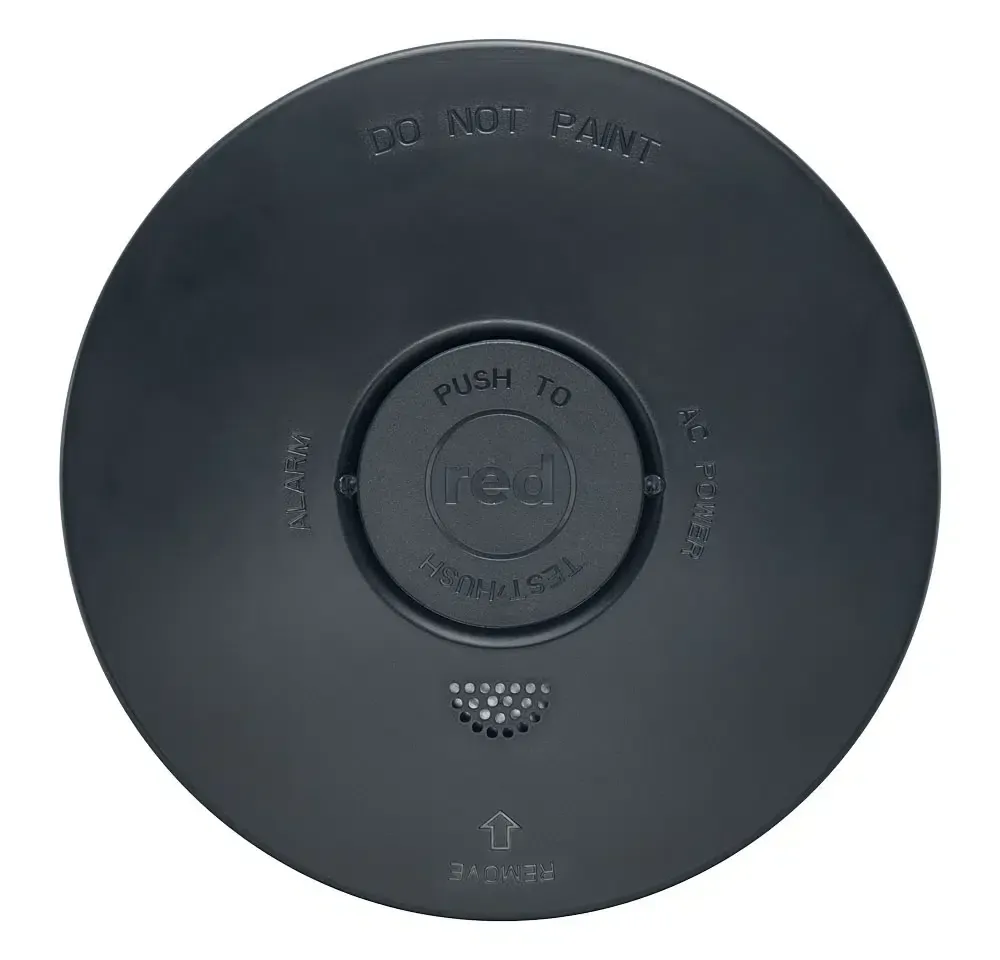

This alarm features a photoelectric sensor for reliable early detection of smouldering fires, along with an 85 dB siren, LED indicators for test, fault, memory, and power, and a large test/hush button. Designed for wall or ceiling surface mounting, it's easy to install and complies with AS 3786:2014+A1:2015+A2:2018 for Australian fire safety standards.
RSDUALPB Features
RSDUALPB FAQ
Q: Is the RFWMD wireless module included?
A: No, the module is sold separately and is only needed for wireless interconnect setups.
Q: Can it function as a standalone alarm?
A: Yes, it can operate independently or be connected to other Red alarms via hardwire or RF.
Q: How long does the backup battery last?
A: It features a sealed 10-year lithium battery designed to last the life of the alarm.
| Specification | Details |
|---|---|
| Model | RSDUALPB |
| Detection Type | Photoelectric Smoke |
| Power Supply | AC Mains and/or 3V Lithium Battery |
| Rated Supply Voltage | 220...240Vac |
| Backup Type | 3V Lithium Battery (when on AC Mains) |
| Battery Life | 10 years |
| Alarm Volume | 85 dB at 3m |
| Operating Distance (Hard Wired) | 150m in Free Field |
| Wireless Compatibility | Compatible with RFMD Module |
| Transmission Frequency | Radio Frequency 433.92 MHz |
| Wireless Range | 100m in Free Field |
| Time Delay Ranges | 10 min (Hush), 10 hr (Silence), 72 hr (Memory Function) |
| Visual Indicators | Red LED for Warning, Low Battery, Fault, Memory; Green LED when AC is ON |

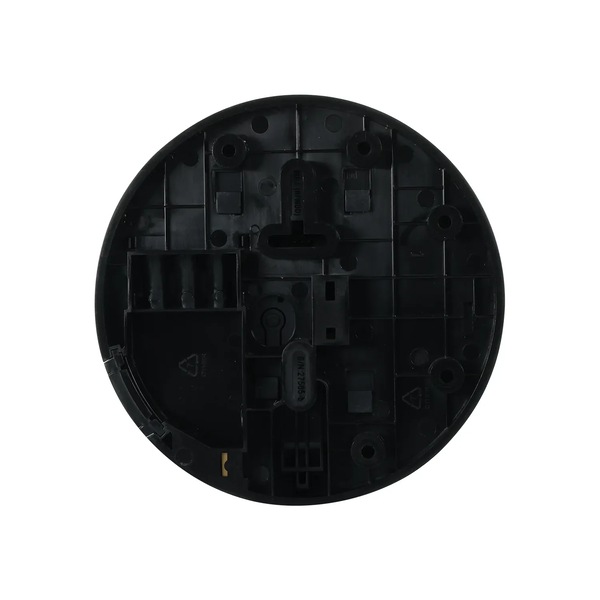

| Installation | Indoor, Wall/Ceiling Mount |
| Fixing Type | By Screws |
| Alarm Diameter | 140 mm |
| Protrusion from Ceiling | 49 mm |
| Ambient Temperature Range | 0°C to 45°C |
| Relative Humidity | 5%–95% |
| Certifications | CSIRO |
| Standards | AS 3786:2014+A1:2015+A2:2018 |
Warranty starts from Invoice Date
Domestic Use: 10 Year
Commercial Use: 10 Year
Warranty Method: If you have a faulty smoke alarm, please contact Red Smoke Alarms Customer service. They offer a 10 year full parts and labour warranty on all RED Smoke Alarms.
Red smoke alarms are supported by a national network of service/warranty agents ready to swing into action in the rare event that you ever have a faulty smoke alarm.
Red Smoke Alarms contact number is 1300 316 552
Contacting Sparky Direct for a product fault after installation will delay the fix all repairs are handled by RED Smoke Alarms.
GTIN: 9358418000794
