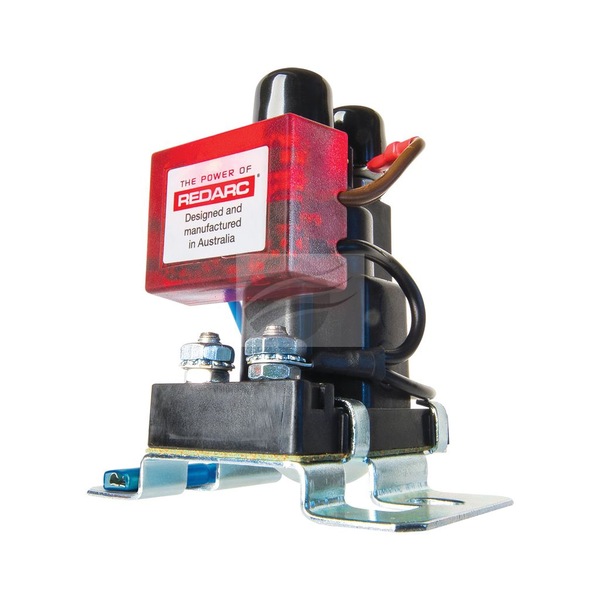

Redarc 12v Smart Battery Isolator 100A Max C/Rate 400A In-Rush

Off Volts: 12.7 Volts. On Volts: 13.2 Volts.

Maximum In-Rush Rating: 400amps.

Microprocessor-controlled Battery Isolator designed for use in multi-battery applications as a solenoid priority system to protect the start battery from excessive discharge whilst allowing the auxiliary

battery to supply non essential loads. Ensures a low charge in the secondary battery won't drain the primary battery.

Silver Contacts- Cooler operating temperature- engaged draws 0.15amps- Fault indication- Red LED Light for solenoid activation- fully surge protected.

Applications: 4WD and Commercial vehicles with dual battery setups.

Approximate Weight: 200g.

2 year Warranty

Redarc 12v Smart Battery Isolator 100A Max C/Rate 400A In-Rush

Off Volts: 12.7 Volts. On Volts: 13.2 Volts.

Maximum In-Rush Rating: 400amps.

Microprocessor-controlled Battery Isolator designed for use in multi-battery applications as a solenoid priority system to protect the start battery from excessive discharge whilst allowing the auxiliary

battery to supply non essential loads. Ensures a low charge in the secondary battery won't drain the primary battery.

Silver Contacts- Cooler operating temperature- engaged draws 0.15amps- Fault indication- Red LED Light for solenoid activation- fully surge protected.

Applications: 4WD and Commercial vehicles with dual battery setups.

Approximate Weight: 200g.

2 year Warranty

Redarc 12v Smart Battery Isolator 100A Max C/Rate 400A In-Rush

A 12V DC 100A microprocessor-controlled, dual battery isolator designed to protect the start battery from excessive discharge while allowing the auxilliary battery to

supply charge to non-essential loads.

It is better than a diode battery isolator due to the voltage drop associated with diode type isolation. It features a low standby current draw and sophisticated fault

detection and LED indication of operation to warn the user of faults including over-voltage, voltage drop and excessive current draw conditions.
