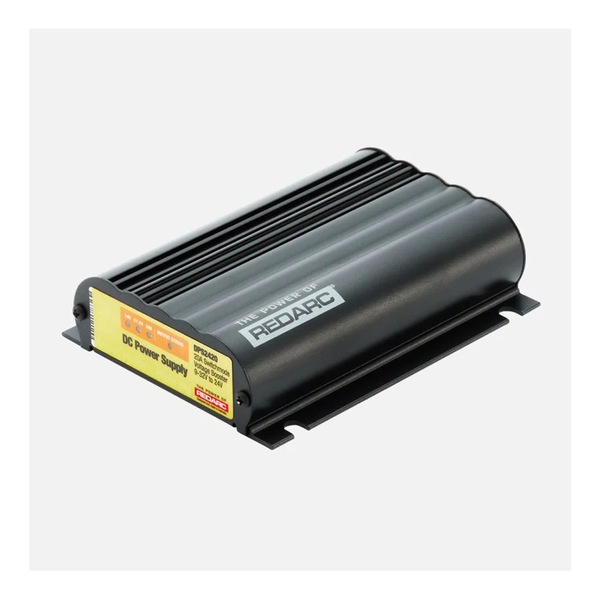

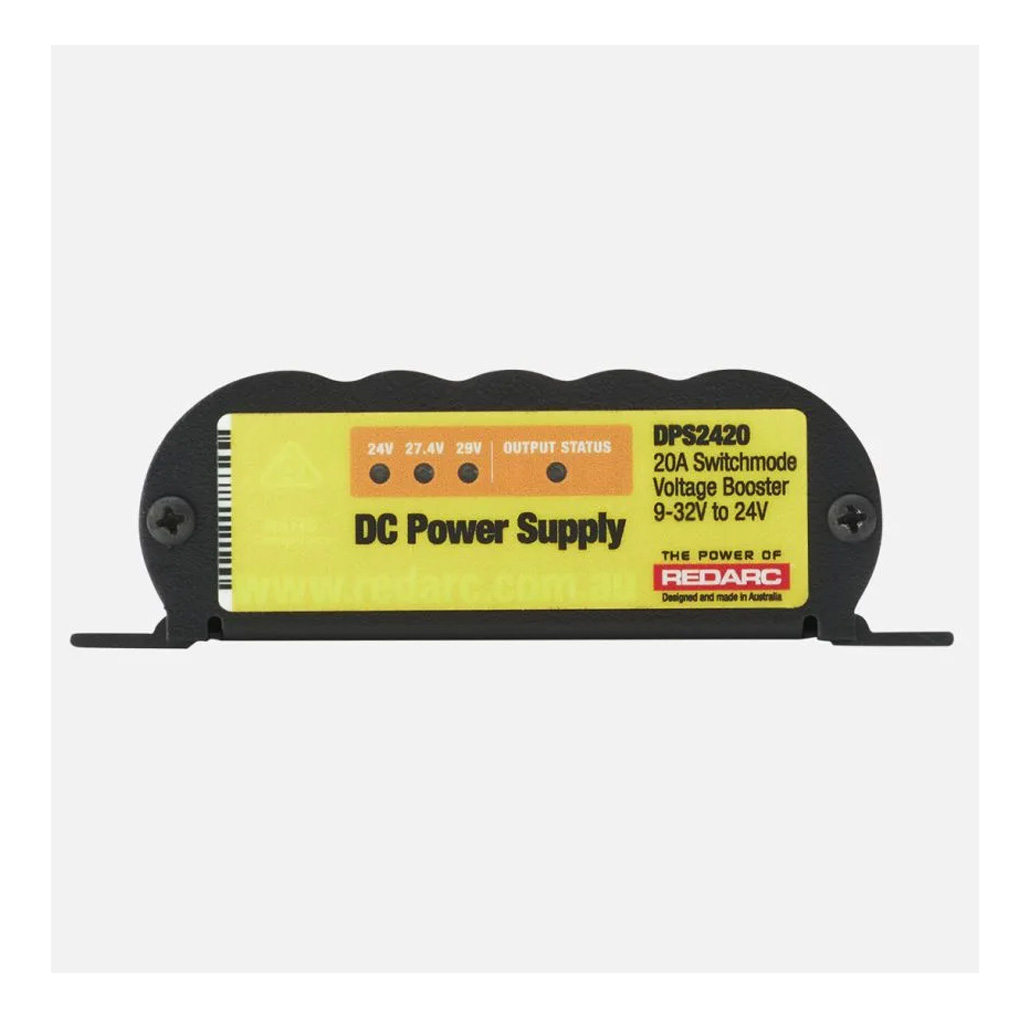

Redarc 24v 20amp In Vehicle DC Power Supply

The REDARC DPS2420 is a 24V 20 amp DC Power Supply that provides constant, regulated power for all sensitive load requirements.

In some cases, the DPS is a great option for those looking to install an auxiliary battery.

The DC Power supply features a wide input voltage range of 9 to 32 volts and selectable voltage output for a number of loads such as lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 24V automotive power system.

The DC Power Supply generates little electrical noise enabling the unit to power hi-tech radio systems without any interference.

Fully encapsulated in REDARC s silicone elastomer, the DC Power supply can be mounted externally on the vehicle and can be used in marine applications. The DC Power Supply has in-built protection against spikes/surges and reverse polarity.

Benefits

More efficient with regulated output power

Improved functionality and reduced installation complexity

Protects against surges/spikes and incorrect connections

Features

Fully encapsulated

Ignition controlled

No fan for reduced noise

Highly efficient design

Wide input voltage range

User selectable output voltage

Redarc 24v 20amp In Vehicle DC Power Supply

The REDARC DPS2420 is a 24V 20 amp DC Power Supply that provides constant, regulated power for all sensitive load requirements.

In some cases, the DPS is a great option for those looking to install an auxiliary battery.

The DC Power supply features a wide input voltage range of 9 to 32 volts and selectable voltage output for a number of loads such as lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 24V automotive power system.

The DC Power Supply generates little electrical noise enabling the unit to power hi-tech radio systems without any interference.

Fully encapsulated in REDARC s silicone elastomer, the DC Power supply can be mounted externally on the vehicle and can be used in marine applications. The DC Power Supply has in-built protection against spikes/surges and reverse polarity.

Benefits

More efficient with regulated output power

Improved functionality and reduced installation complexity

Protects against surges/spikes and incorrect connections

Features

Fully encapsulated

Ignition controlled

No fan for reduced noise

Highly efficient design

Wide input voltage range

User selectable output voltage

Redarc 24v 20amp In Vehicle DC Power Supply

The REDARC DPS2420 is a 24V 20 amp DC Power Supply that provides greater efficiency with regulated power for all sensitive load requirements with voltage output from a 24V automotive power system

More Information

gtin_barcode - 9338628003839

brand - REDARC

No Load Current - <100mA

Standby Current - <5mA

Conversion Efficiency - >94%

Operating Temperature - -50 C to 50 C

Weight - 680 g

height - 37 mm

width - 120 mm

depth | length - 150 mm

Warranty - 2 Years

Input Voltage - 9 - 32V

Output Voltage - 24V DC

Max. Rated Output Current - 20A

Input Fuse Rating - 60A

Output Fuse Rating - 40A
