Redback 3 Relay, 2 Serial Control Hub With PIR Trigger Matrix Mixer

Image 1
Image 2
Shop More Products

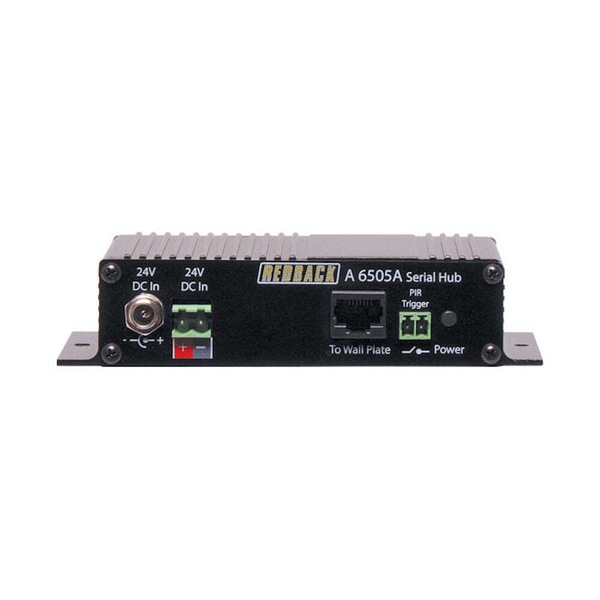

Designed to be used in conjunction with the A 6500 or A 6500A programmable touchscreen wallplate, this control hub enables the control of a variety of devices. Connection to the wallplate is via Cat5/6 cable up to 50m away. All commands from the programmed plate are then transported to this hub and the appropriate command signal being either serial (RS232/485 or both), IR or relay is then output to the corresponding pluggable terminals. Combined with the wallplate this could be used for controlling an AV system in a classroom, lecture theatre, board room etc. The serial outputs could be used to control a projector and amplifier, the IR for controlling a set top box and relays for motorised projector screen, lighting etc. A passive infra red (PIR) detector input allows for motion activation of devices, such as when people enter the room. Requires 24V DC power which in turn powers the wallplate.
Size: 66W x 131W x 29H inc flanges.

Features

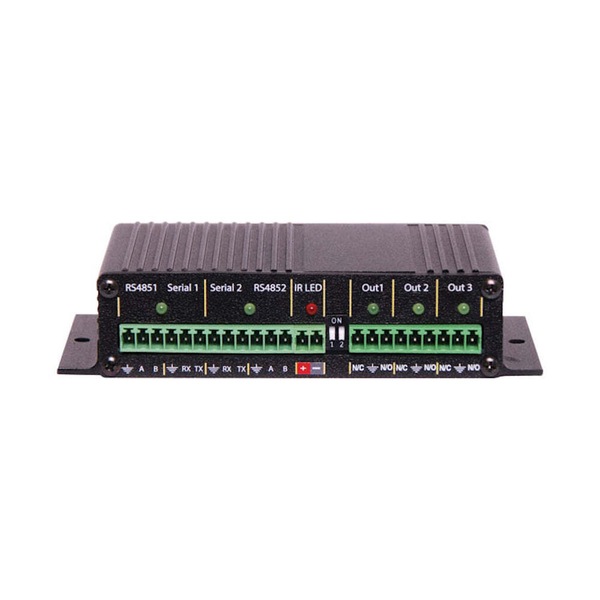

  • Provides 3 relay control outputs plus 2 serial control outputs.
  • Ideal for automation control in domestic and commercial applications.
  • PIR motion detect trigger sensor input.
  • RS232/485 compatible serial control.
  • Works with both A 6500 and A 6500A Redback touchscreen wallplates or any 3rd part control interface.
  • Compact design housed in a tough aluminium extruded case.
  • Australian Designed & Manufactured.

MPN: A6505A
