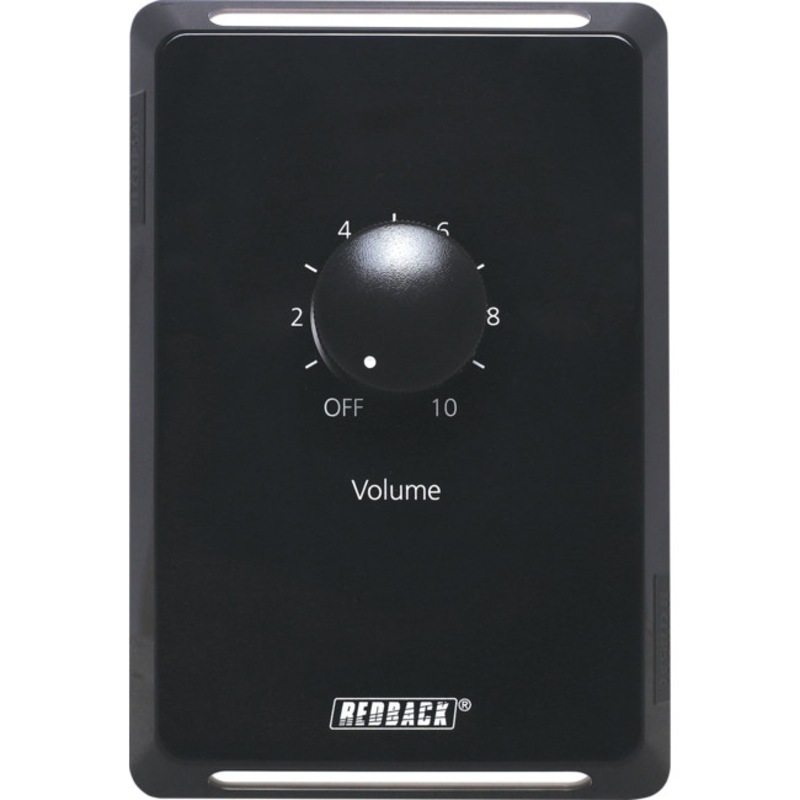

REDBACK A2237 40W 100V Volume Control Vertical Black

Image 1
Image 2
Hurry! 5 items left!
$84

Collect 84 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
REDBACK 40W 100V LINE VOLUME CONTROL – VERTICAL BLACK

This 40W volume control is designed for 100V line speaker systems.The volume control is fitted to a black Clipsal Pro Series wall plate which has been specifically designed for commercial building installations.

FEATURES
  • 11 position switches for fine adjustment of sound level

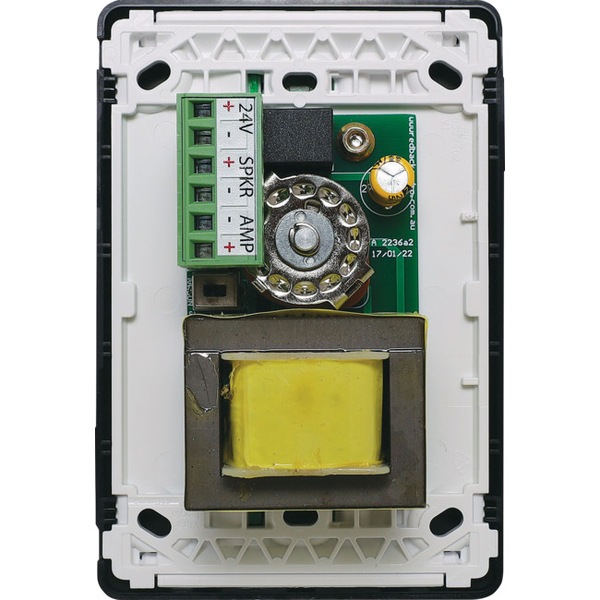

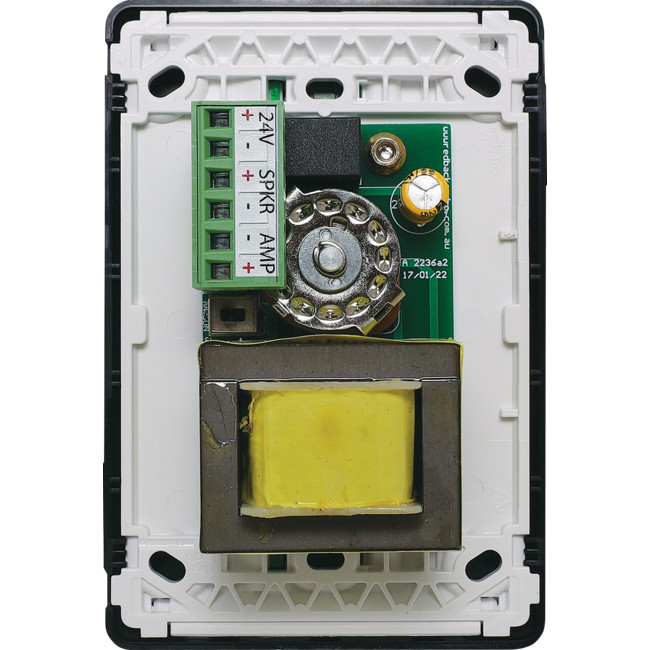

  • All circuitry is housed on a PCB with screw terminals for easy installation
  • Override relay for emergency paging application
  • 22µF bipolar capacitor for line monitoring purposes
  • Normal and failsafe mode onboard switch selection

With the switch in the Normal position energising the override relay (24V DC to the 24V DC terminal) bypasses the controller. Full input power is directed to the speaker load. De-energising the override relay configures the unit to normal level control function. With the switch set to the Failsafe position energising the override relay is necessary for normal level control function. De-energising the override relay bypasses the controller. That is, full power is directed to the speaker load.

ABOUT CLIPSAL PRO SERIES WALLPLATES

The Clipsal Pro series has been specifically designed for commercial building installations and is the new standard for retail, offices, schools and public spaces. The secured fascia plate can only be removed with a tool preventing tampering and accidental removal due to impact etc. Available in white and black, the switches and sockets will blend into any commercial environment.

WIRING DIAGRAM

Weight: 0.315

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.

GTIN: 9321758246313

Estimated Delivery Time Frame:4-8 business days
