Introduction
With this REL010 (M) HD Video Capture, you can capture 1080P video from HDMI or YPbPr(Component Video) port, such as blue ray, set-top-box, computer, game box, etc.

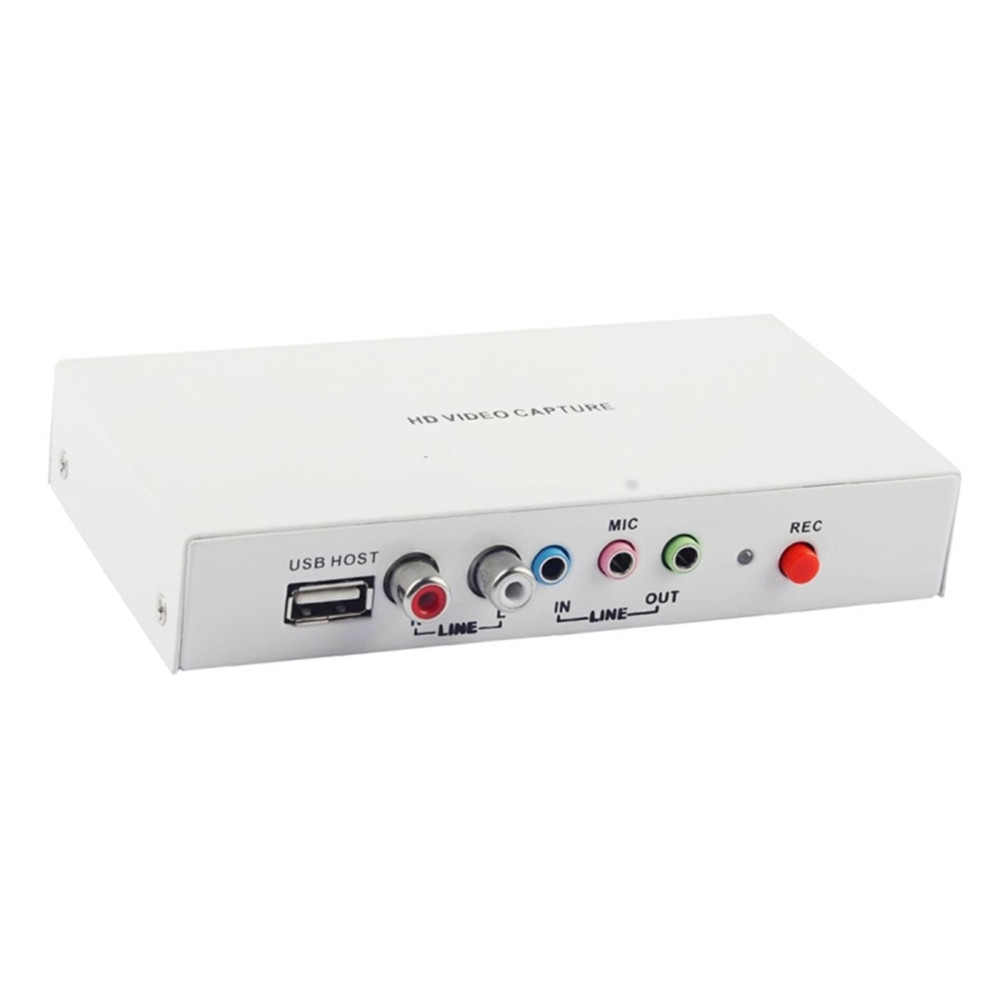

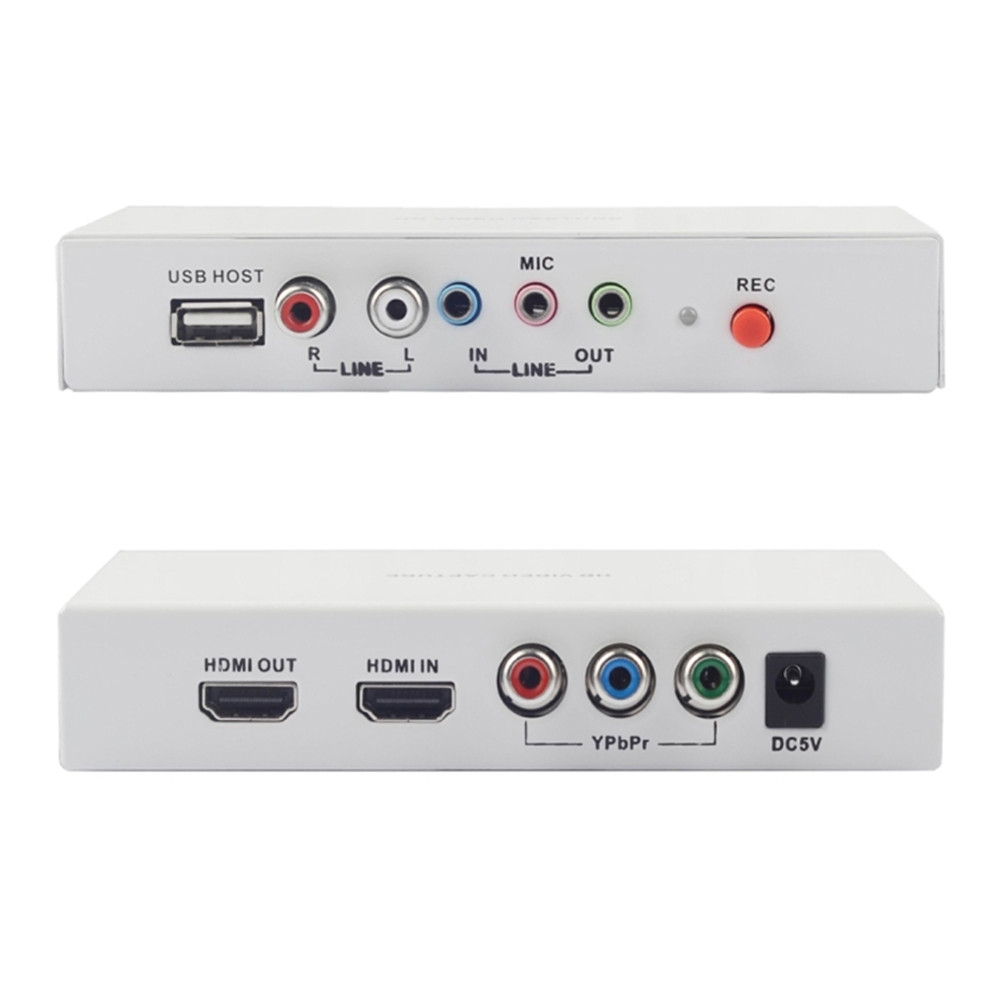

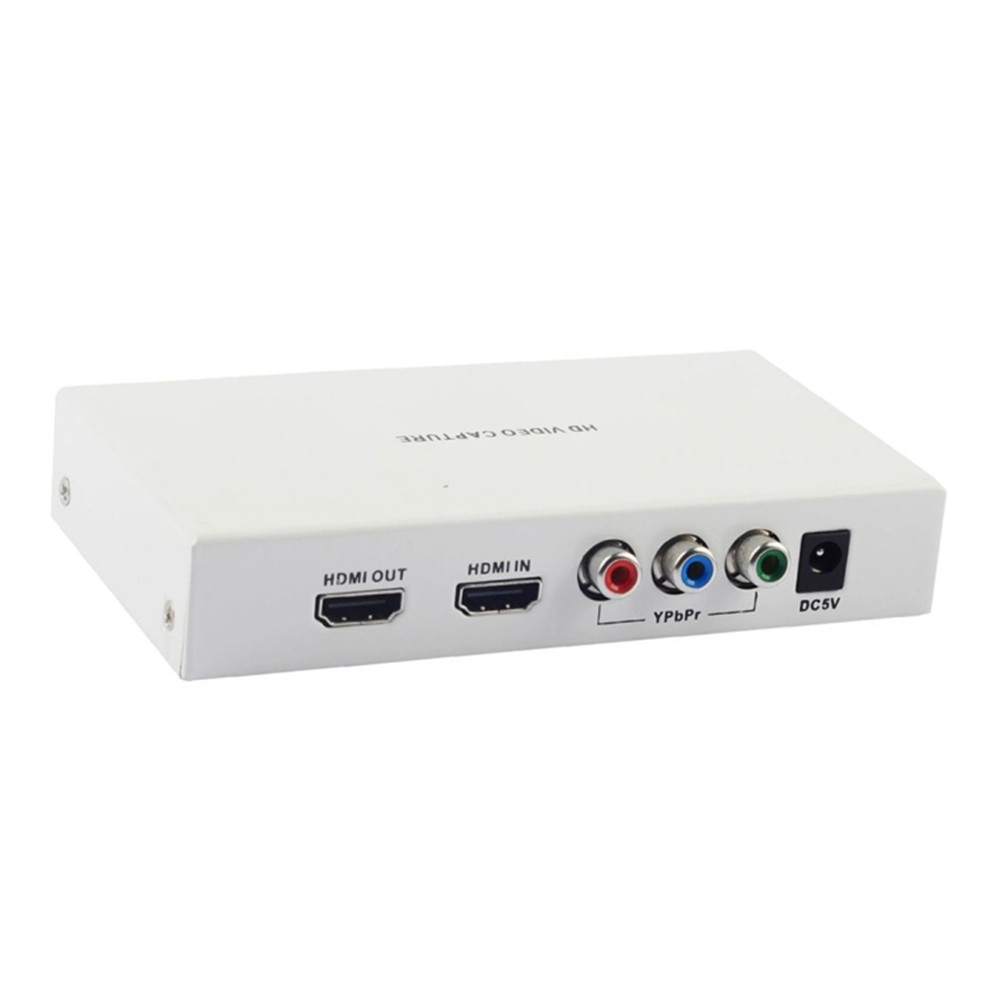

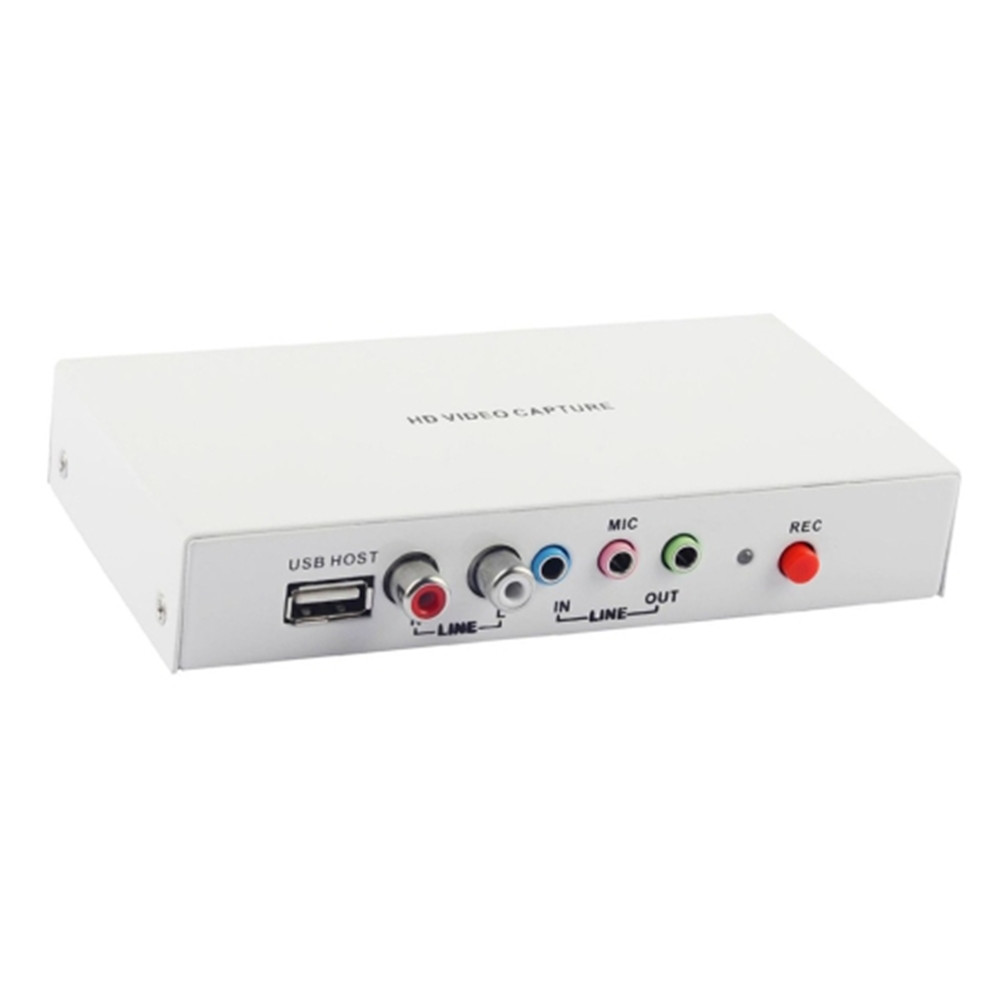

Features/ports and buttons
1. OUTPUT: HDMI output, pass through display HDMI or YPbPr video.
2. INPUT: HDMI input.
3. YPBPR INPUT: YPbPr component input.
4. PWR: DC 5V power supply.
5. USB HOST: For plug USB flash drive or USB HDD for saving record files.
6. LINE IN: Work with YPbPr input only.
7. MIC: For connect a microphone and record voice comments when play game ( REL010 only work with YPbPr component input.)
8. LINE OUT: Audio output.
9. LED indicator: Color be green when standby, be red when recording.
10. REC button: Press to record/stop.

Specification:

Model:REL010

Interface:1 x USB 2.0

               DC 5V

               YPbPr

               1 x HDMI In

               1 x HDMI Out

               3 x LINE (IN & OUT & MIC)

               2 x LINE (R & L)

Power:DC 5V 2A

Size:26x14x9cm

Weight:260g

Hardware:

Record File:Max 2GB/per file

Record Place:Max 140MB/minute, 8.4GB/hour

Multimedia:

Audio Format:AAC

Video Format:AVI, MPEG-4

Decoder Format:MPEG4

Resolution Input / Output:720 x 480 (60p), 720 x 576 (50p),1280 x 720p (50p), 1280 x 720p(60p),1920 x 1080 (50i), 1920 x 1080 (60i),  1920 x 1080 (24p),1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p),  1920 x 1080 (60p)

Capture Resolution:720 x 480 (60p),720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i),1920 x 1080 (24p),1920 x 1080 (25p), 1920 x 1080 (30p)

Record Quality:Max 18Mbps@1080P 30fps

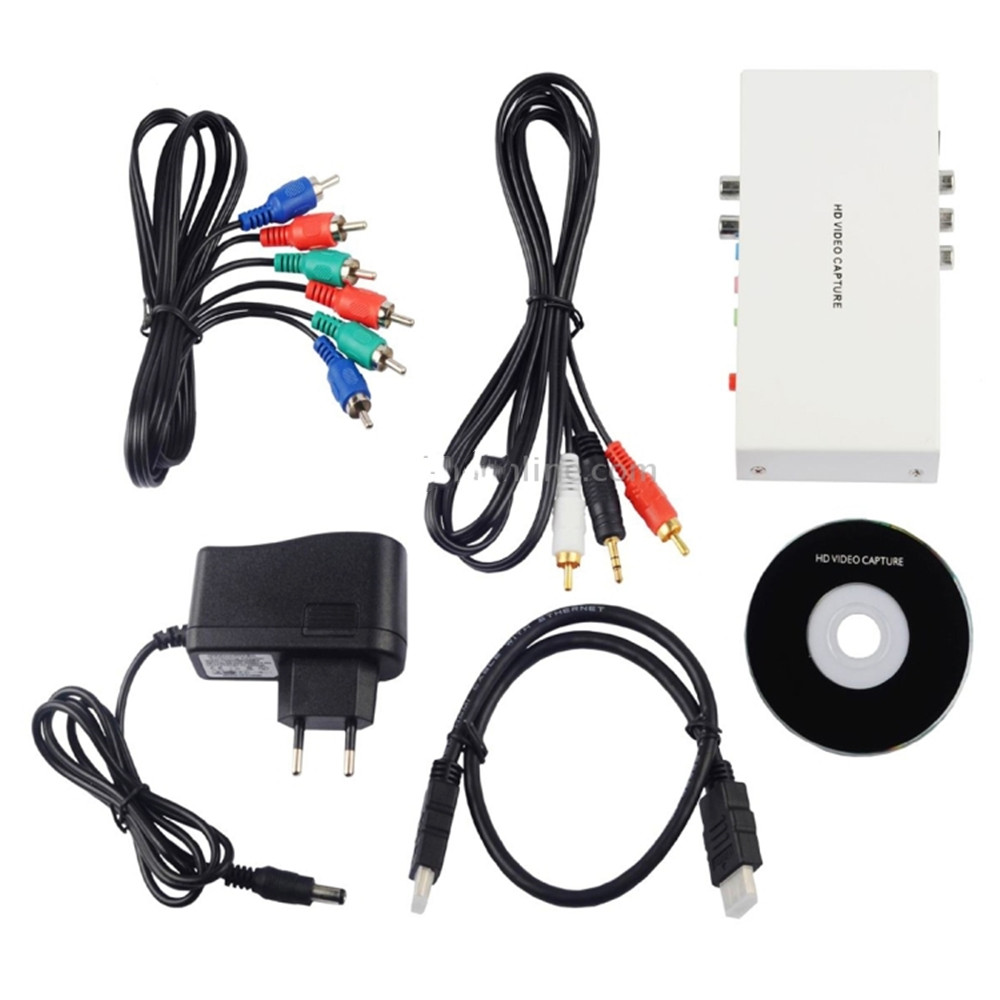

Package Include:

1 x HDMI cable

1 x User manual

1 x Power Adapter

1 x Video Cable

1 x CD

1 x Video Capture
