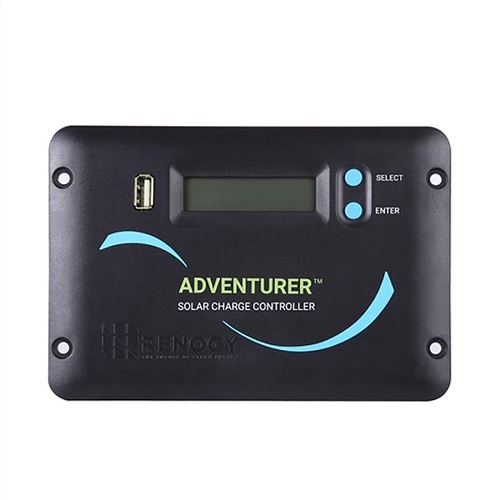

Meet the Renogy Adventurer-Li, newly improved with two advanced features. Thanks to its programmable Lithium charging voltage, the 30A PWM solar charge controller is now capable of charging most Lithium batteries available on the market. The second addition to the controller is the RS232 port, used to connect and communicate with the Renogy BT-1 Bluetooth module. By adding the BT-1 to the Adventurer-Li, you can now use the smartphone app, the Renogy DC Home smartphone App, to monitor and adjust your solar system remotely.

Unique in its form, the Adventurer-Li is a common-negative ground, flush mount controller, designed for an aesthetically clean and integrated look on RV and camper walls. However, if flush mounting does not appeal to you, an included Surface Mount Attachment allows you to forgo it. Capable of charging both 12V and 24V photovoltaic systems, the Adventurer-Li integrates highly efficient PWM charging to increase battery longevity by regulating the charge flowing from the solar panels to the battery bank. This charge controller comes equipped with a fully comprehensive self-diagnostic system and electronic protection functions to prevent damage from installation mistakes or system faults.

Features:

Unique

• Unique USB port on the front display
• The only Renogy controller with flush mount capabilities.

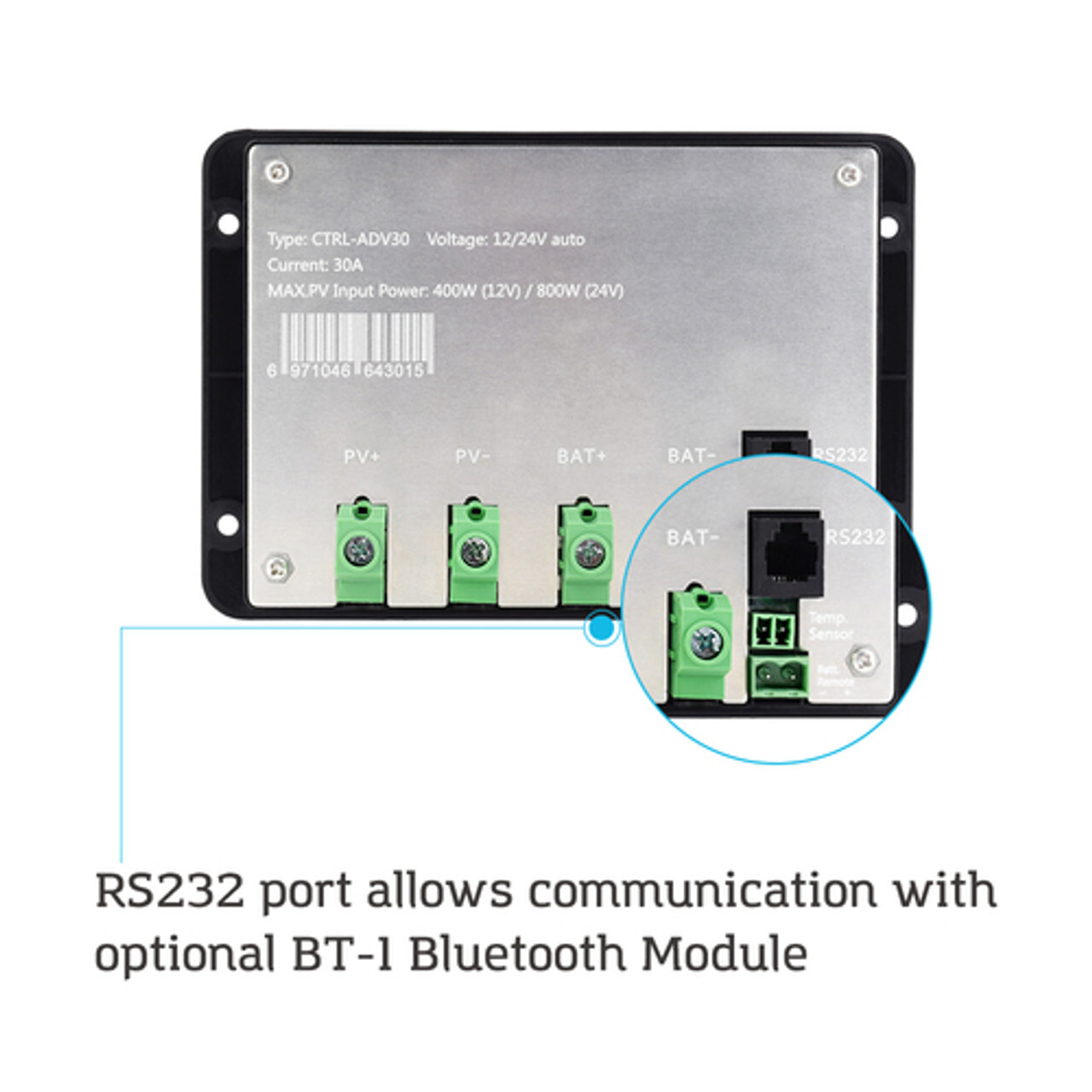

• RS232 port allows communication with BT-1 Bluetooth module and usage of Renogy BT smartphone app

Safe

• Negative-ground controller
• Protection against: overcharging, overload, short-circuit, and reverse polarity
• 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) prevents batteries from over-charging and over-discharging

Smart

• 12V and 24v compatibility
• LCD for displaying operating information and data
• Compensates for temperature, automatically corrects charging and discharging parameters, and improves battery longevity

Versatile

• Compatible with Sealed, Gel, Flooded and Lithium batteries

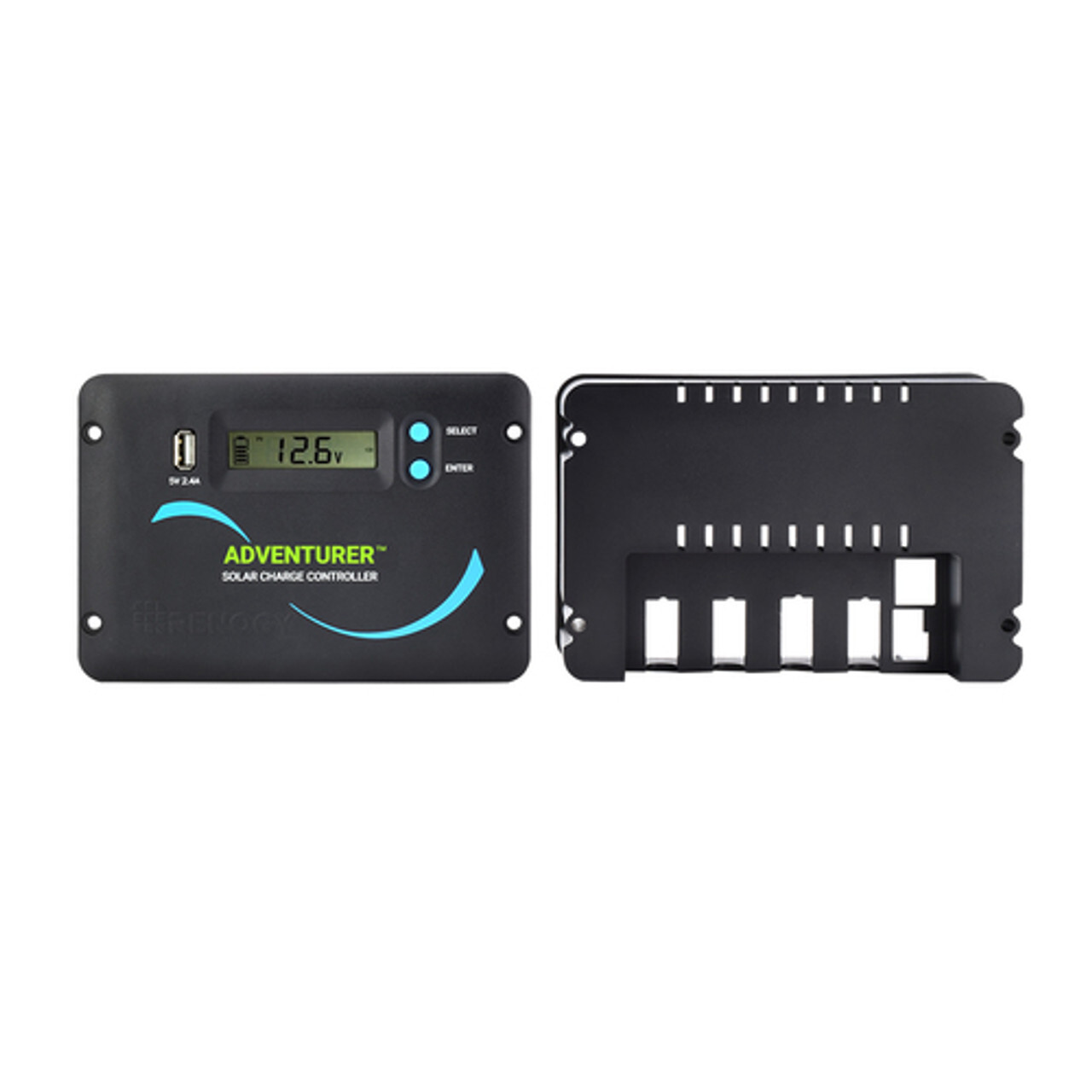

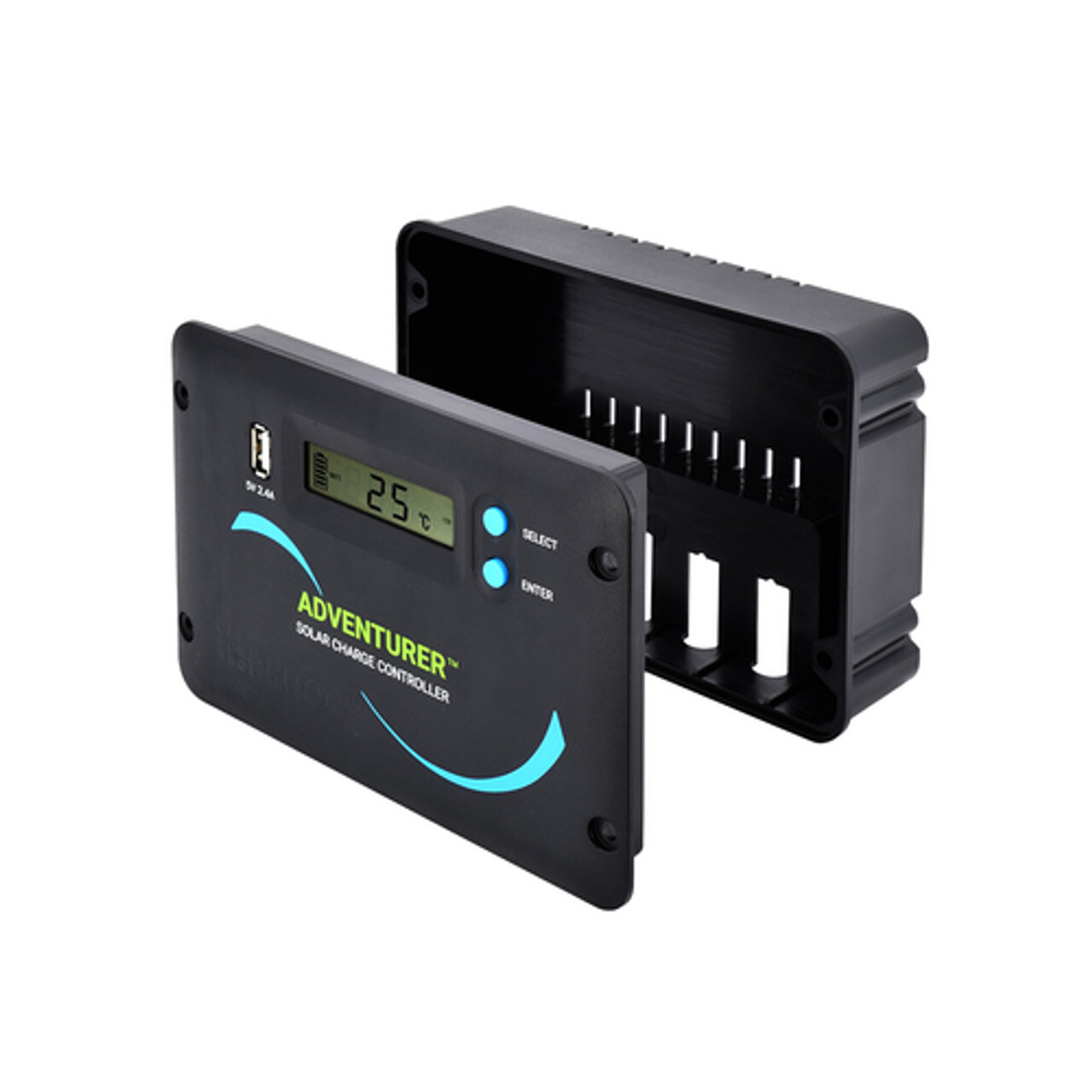

• The included Adventurer Surface Mount allows for versatility in mounting

Included:

• Renogy Adventurer Li 30A PWM Charge Controller

Optional Accessories:

• Renogy Temperature sensor
• BT-1 Bluetooth Module
