Renogy BT-1 Bluetooth Module for Renogy Products with RS232 Port

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 3 items left!
$46

Collect 46 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Caravan Rv Camping
Secure ways to pay at checkout

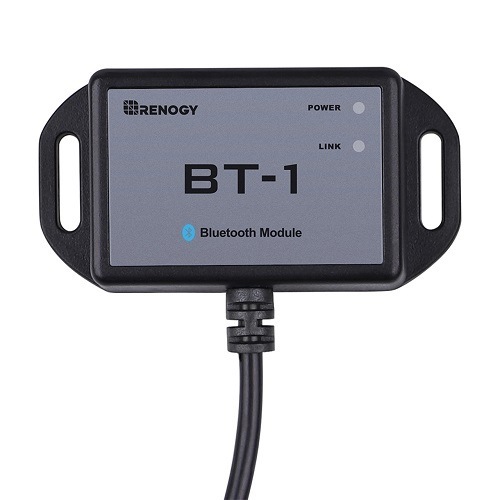

Renogy BT-1 Bluetooth Module for Renogy Products with RS232 Port

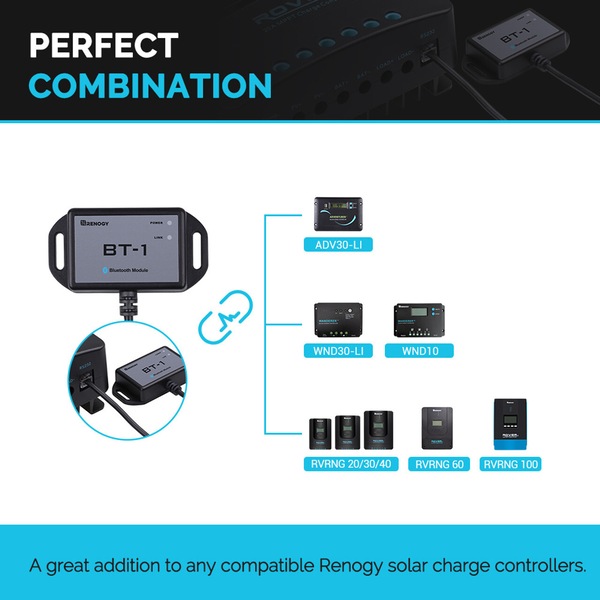

The Renogy BT-1 is a great addition to any compatible Renogy solar charge controller. Powered by its RJ12 communication port, the BT-1 provides wireless monitoring of system data through the Renogy DC Home smartphone App. And allows users to change parameters when using the Renogy DC Home smartphone App.



Features:

  • Wirelessly monitor and control compatible solar charge controllers via Bluetooth.
  • Connects to our user-friendly smartphone App, Renogy DCHome, to keep track of your system.
  • Embedded exclusive Bluetooth chip with high efficiency and low energy consumption.
  • Bluetooth 4.2 and BLE technology provide fast and uninterrupted communication.

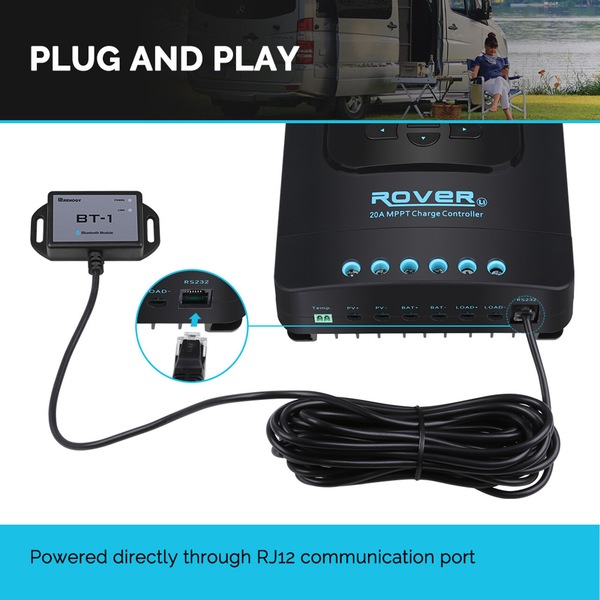

  • Powered directly through RJ12 communication port.

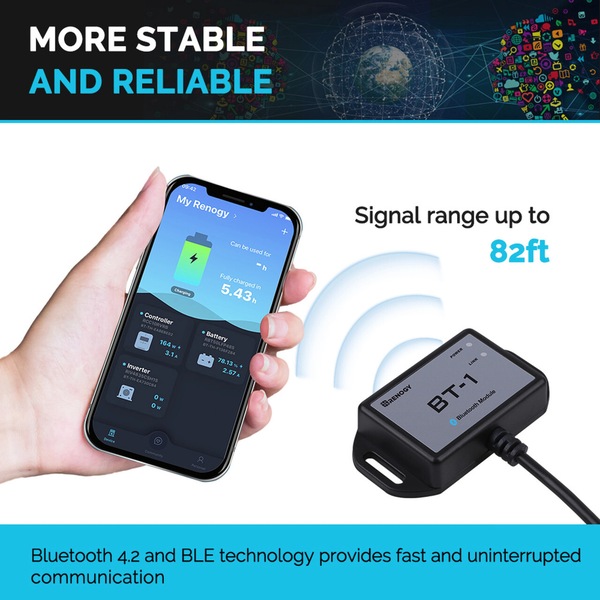

  • Signal range up to 82ft.

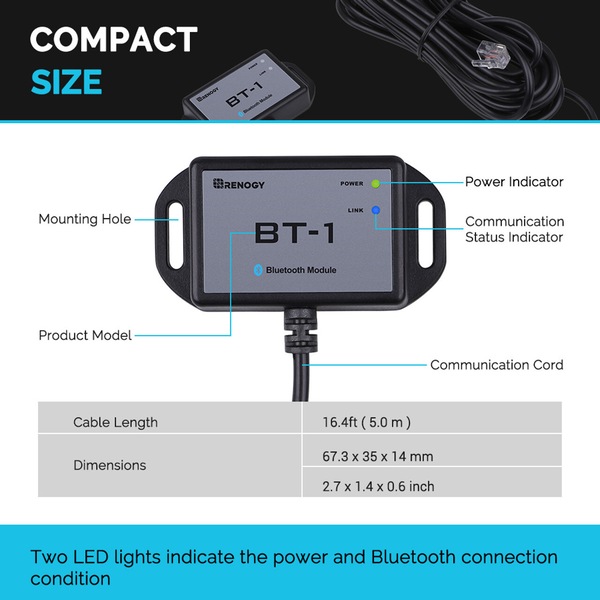

  • Two LED lights indicate the power and Bluetooth connection condition.



Specifications:

  • Communication Protocol: RS232
  • Port Type: RJ12
  • Input Voltage: 12V
  • Protection Grade: IP54
  • Standby Power Consumption: 0.04W
  • Operating Power Consumption: 0.05W
  • Communication Range: ≤82ft
  • Serial Baud Rate: Fixed Baud Rate 9600bps
  • Cable Length: 5.00 m (16.4 ft)
  • Installation Dimensions: 67.3 φ3.5mm(2.66 φ 0.14in)
  • Operation Temperature: -20℃~85℃
  • Dimensions: 67.3 X 35 X 14 mm
  • Weight: 130g

GTIN: 00810009714439
