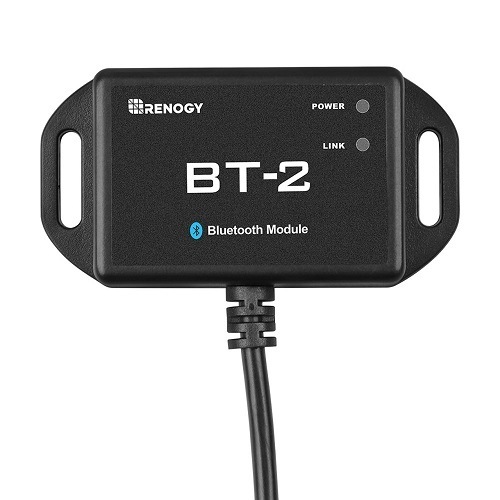

Renogy BT-2 Bluetooth Module for Renogy Products with RS485 Port

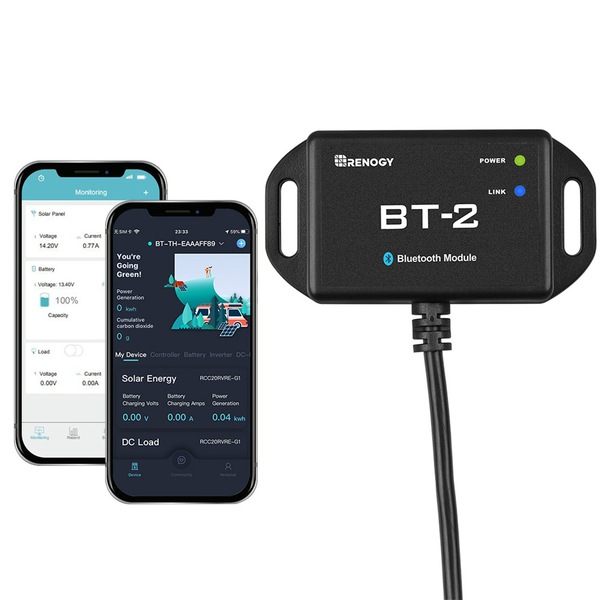

The Renogy BT-2 is the new generation Bluetooth module for select Renogy solar charge controllers, DC-DC battery chargers, and smart lithium batteries. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data and allows users to change parameters through the Renogy DC Home smartphone App.

The Renogy DC Home App can help make your off-grid power system smarter by giving you access to configure, monitor, update, and diagnose your Renogy products from the convenience of your smartphone or tablet.

Connect the BT-2 to the component's RJ45 communication port to wirelessly check and adjust your system's parameters through the DC Home App (available in both the App Store and Google Play).

Features:

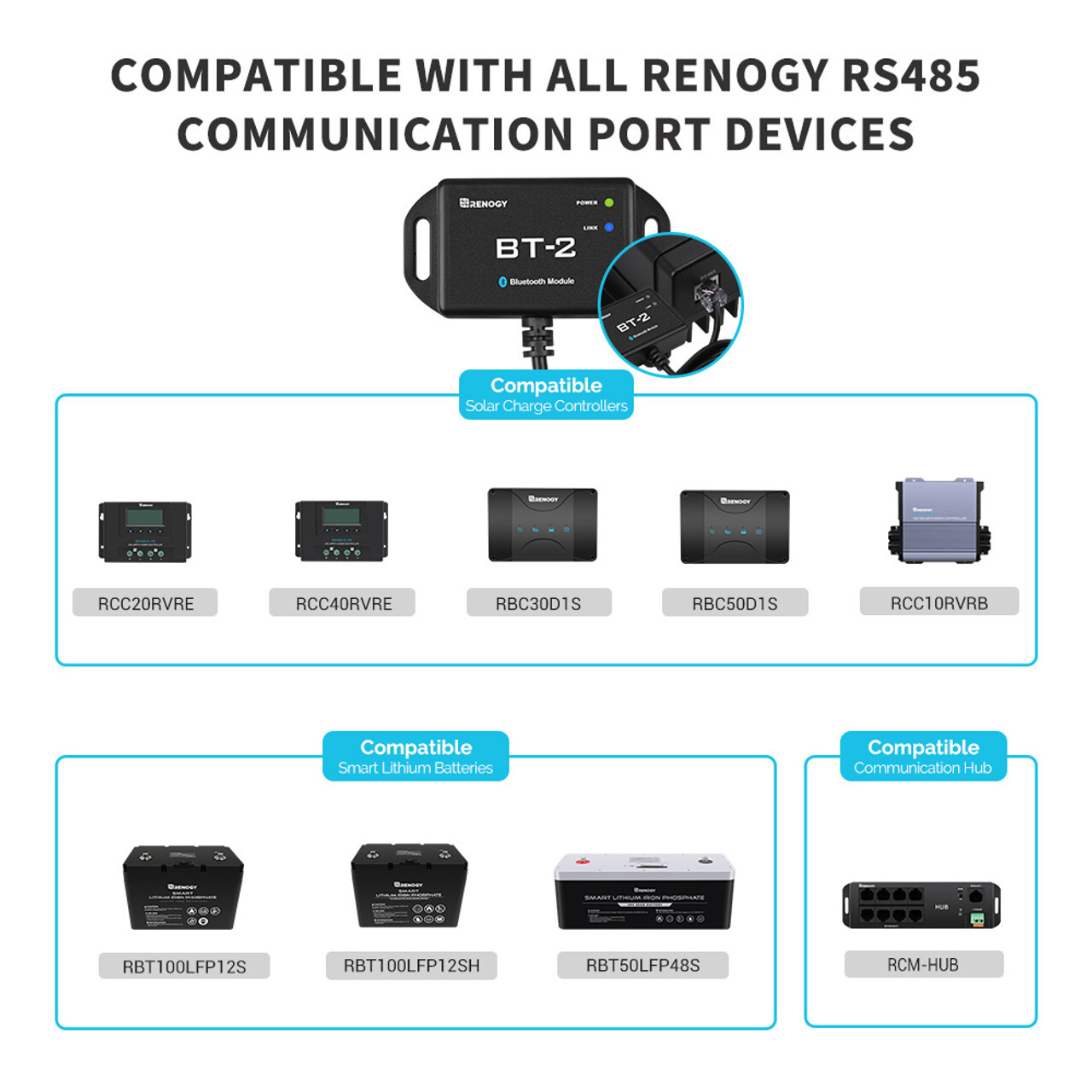

• Precise Control Over Your Devices: Compatible with all Renogy RS485 communication port products includes the Rover Elite MPPT Solar Charge Controller, Smart Lithium Batteries, and Dual DC-DC MPPT Battery Charger.

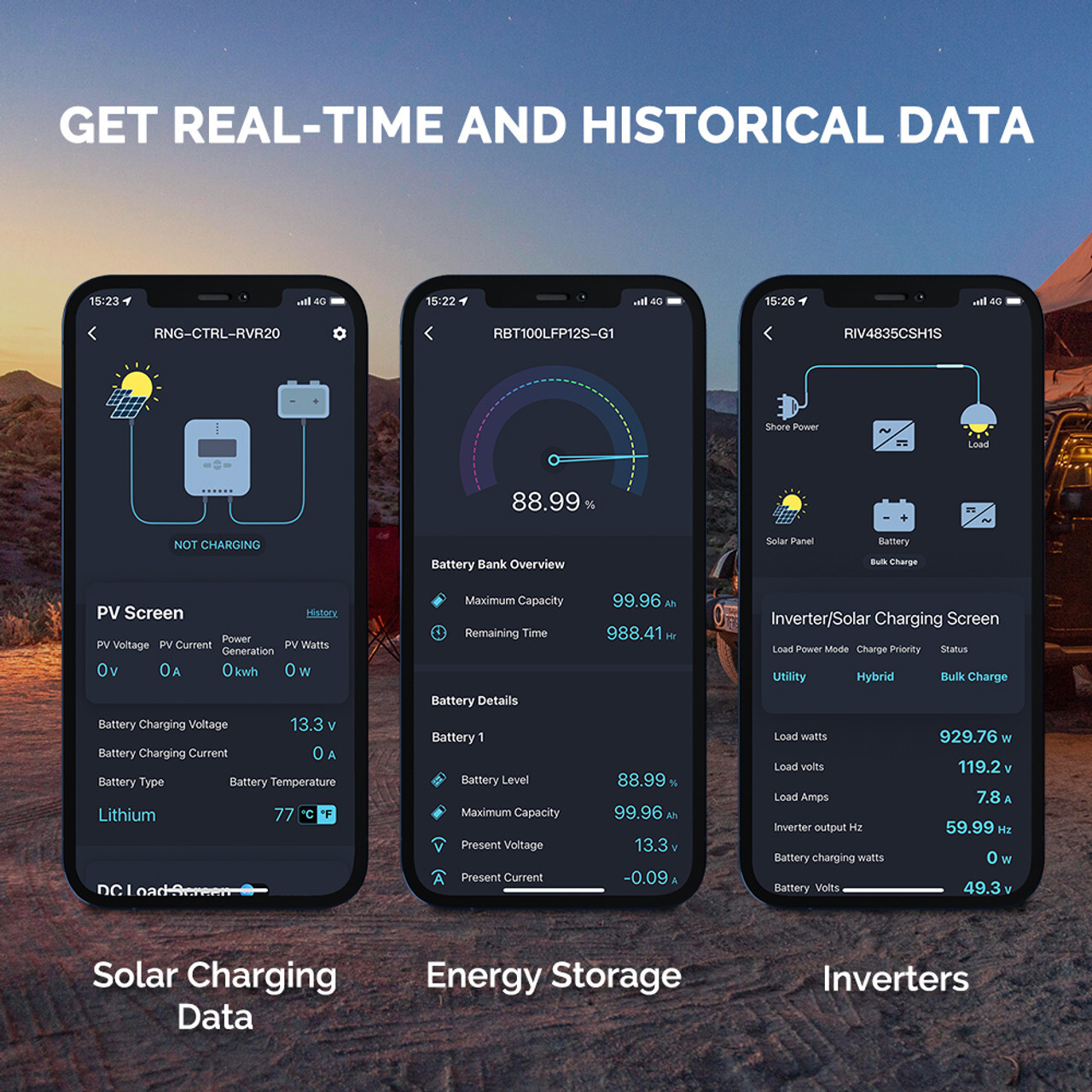

• Real-time Insight: Get real-time and historical data via Bluetooth Module and Renogy DC Home App. Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication.

• User-friendly: Easily connect the Bluetooth Module to the RS485 communication port, and follow the App instructions. The Bluetooth Module is powered by solar energy, and the ultra-low-power dedicated chip will allow signal range up to 82ft.

Specifications:

• Communication Protocol: RS485
• Port Type: RJ45
• Input Voltage: 5V or 12V
• Protection Grade: IP54
• Standby Power Consumption: 0.04W
• Operating Power Consumption: 0.05W
• Communication Range: ≤82ft
• Serial Baud Rate: Fixed Baud Rate 9600bps

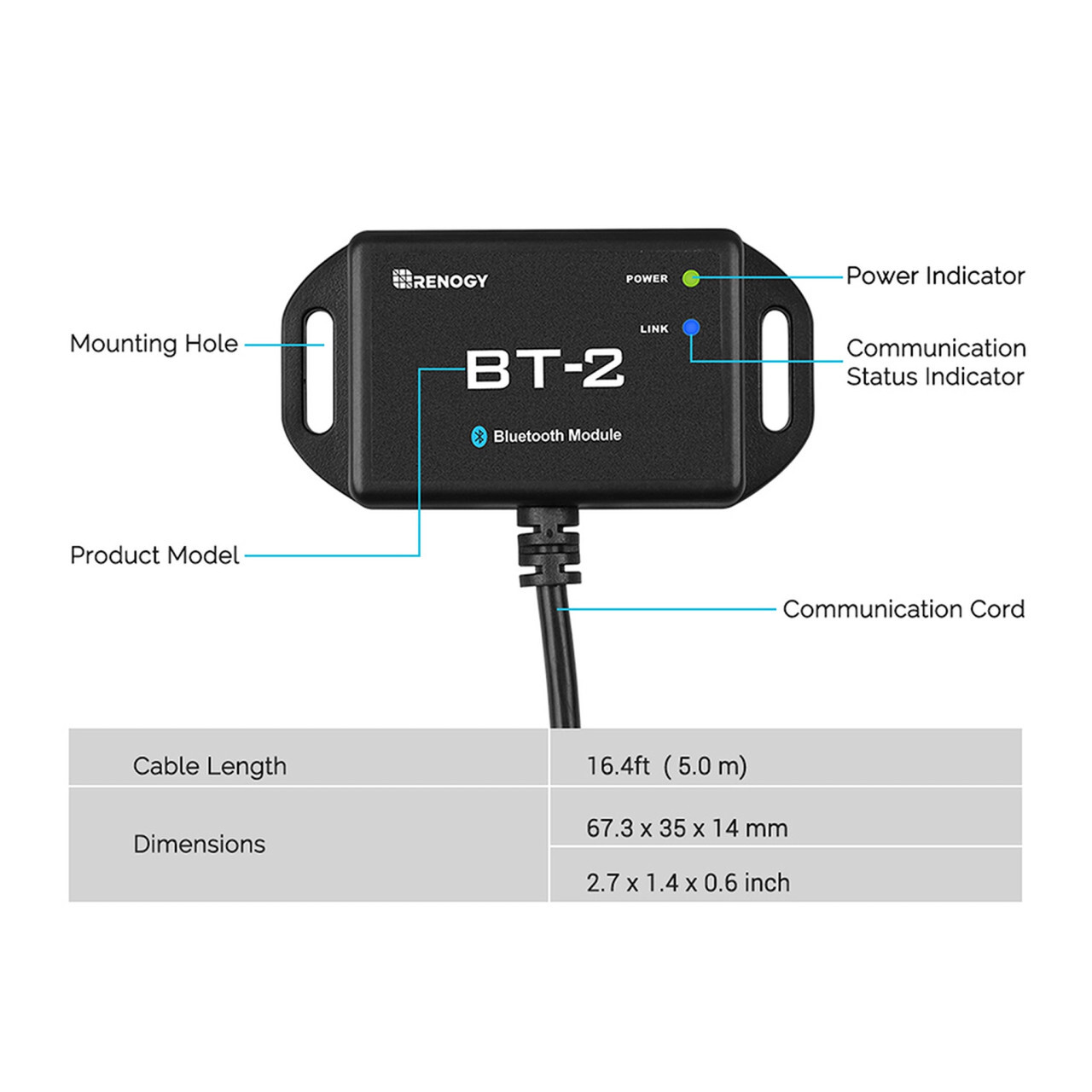

• Cable Length: 5.00 m (16.4 ft)
• Dimensions: 67.3 X 35 X 14 mm
• Installation Dimensions: 67.3 φ3.5mm
• Operation Temperature: -20℃~85℃
• Weight: 130g
