The REGO DC-DC Battery Charger's exclusive bidirectional charging technology not only provides the most effective way to charge your house batteries from the starter battery on the go but also recharges and maintains your starter battery when the house batteries are full. The battery charger is compatible with the most popular 12V alternators and batteries. 4-Stage charging provides reliable and effective charging of your batteries. The REGO DC-DC battery charger is ideal for RVs, commercial vehicles, boats, yachts, and vans that need stable energy on the go!

Features:

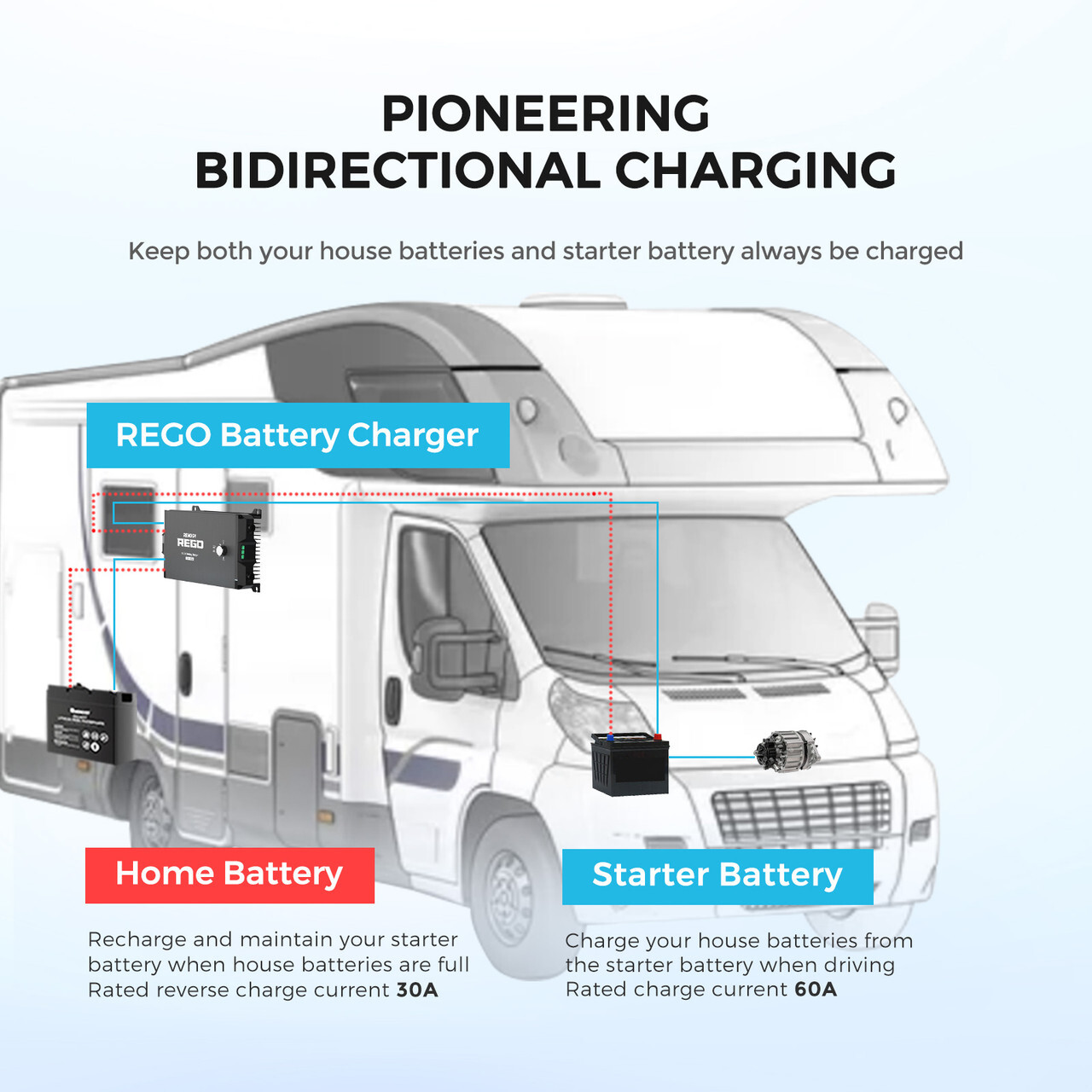

• Exclusive Bidirectional Charging: This battery charger can charge your house batteries from the starter battery when driving and recharge your starter battery when the house batteries are full. Keep your house batteries and starter battery at peak performance on the go.

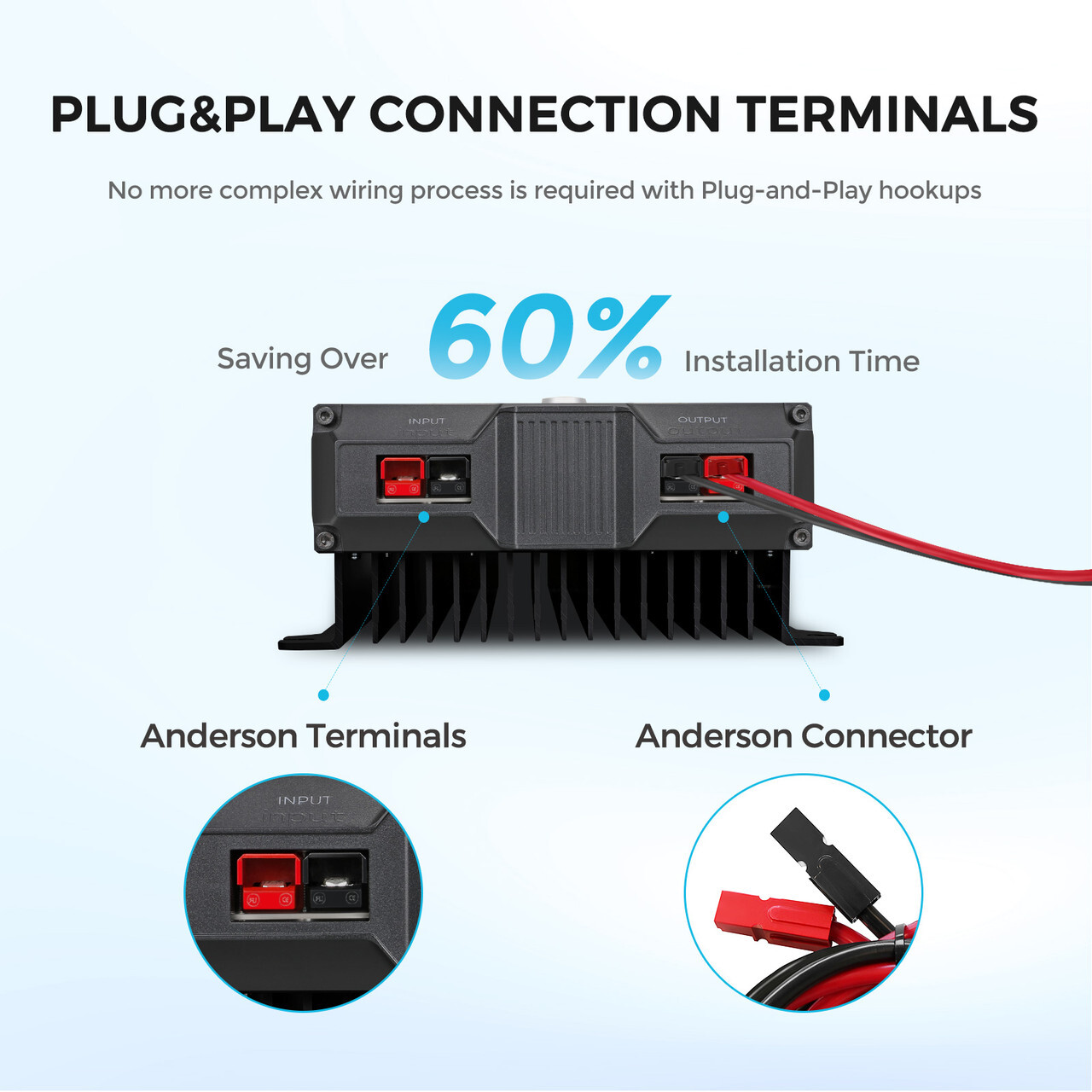

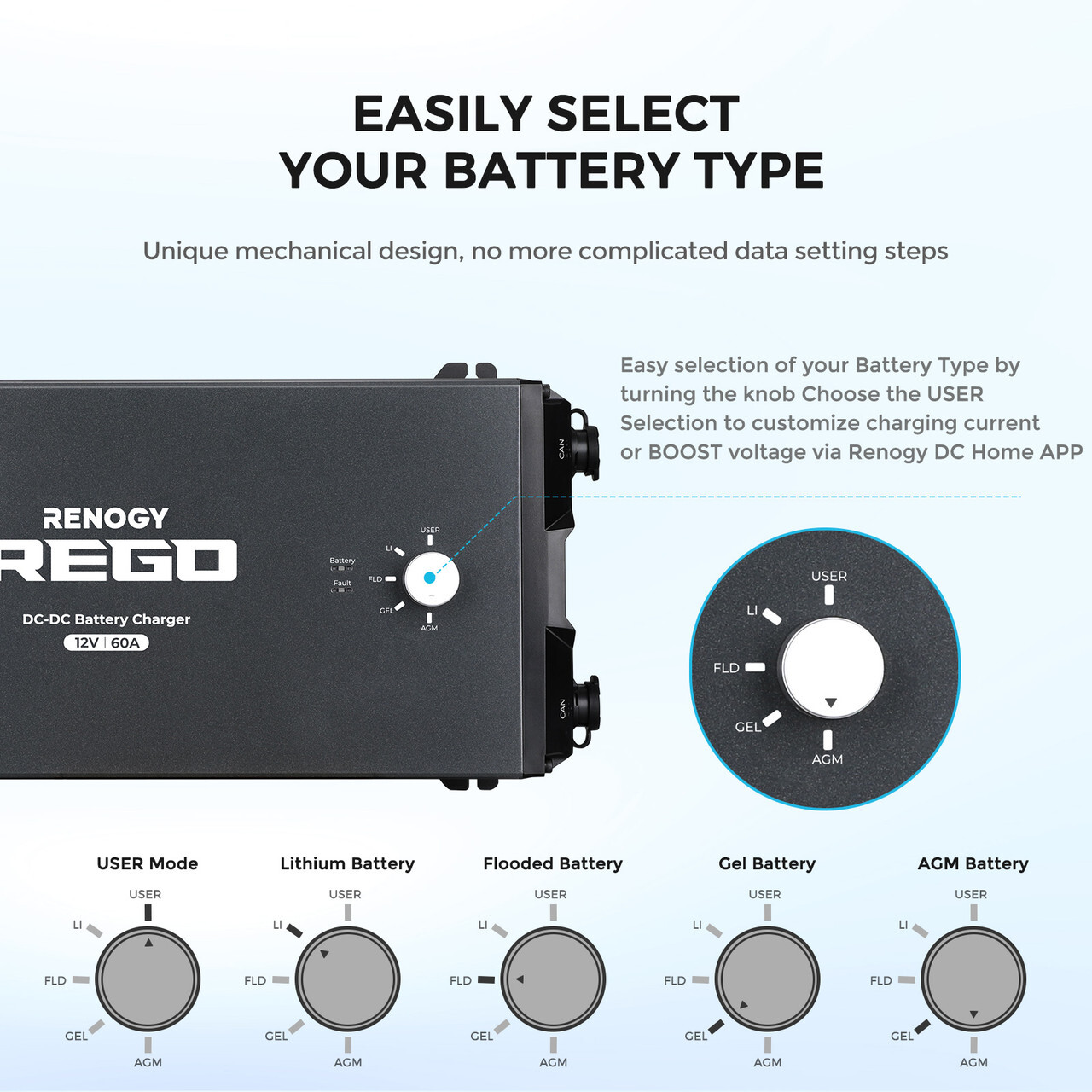

• Easy Installation and Operation: REGO DC-DC battery chargers use Anderson terminals instead of ring terminals for a simple, easy connection that reduces installation time by 60%! REGO’s simple design eliminates tedious data settings and lets you switch between batteries by just turning a knob.

• High-Efficiency Charging: 4-stage charging technology (Bulk, Float, Absorption and Equalize) maximize charging efficiency and optimizes battery levels for a longer lifespan.

• Compatible with Most Batteries and Alternators: The REGO DC-DC battery charger is compatible with multiple types of batteries: AGM, SLD, Flooded, Gel, and Lithium, providing a powerful solution for different occasions. Moreover, it can interoperate with both traditional and smart alternators.

• Integrated Safety Features: REGO chargers offer Overvoltage Protection, Overtemperature Protection, and Reverse Polarity Protection on both inputs and outputs to ensure operation safety. They have reverse polarity protection and multiple safety certifications including FCC-ID, CE-RED, MIC, etc.

Specifications:

• System Voltage: 12V
• Input Voltage: 10V to 16V DC
• Output Voltage: 10V to 16V DC
• Alternator Input: Traditional Alternator: 13.5V to 16VDC
• Smart Alternator (Euro 6): 12.5V to 16VDC
• Maximum Output Current Rating: 60A
• Output Power: 800W
• Battery Types: SLD/AGM; GEL; Flooded; LI; USER
• Input Fuse Rating: 90A
• Output Fuse Rating: 80A
• Charging Efficiency: ≥94%
• Temperature Compensation Non-Lithium: -3mV / ℃ / 2V Lithium: 0mV / ℃ / 2V; no compensation
• Idle Power Consumption: ≤50 mA
• Operating Temperature Range: -20℃ to 60℃
• Storage Temperature Range: -35℃ to 65℃
• Humidity: 0%-95%, No Condensation
• Communication: Protocol Modebus; RV-C
• Dimensions: 350 x 213 x 102 mm
• Weight: 3.12kg
• Terminal Size/Type: Anderson PP75
• Terminal Range: 6AWG to 8AWG
• Certification: CB; FCC; CE; UKCA; MIC
