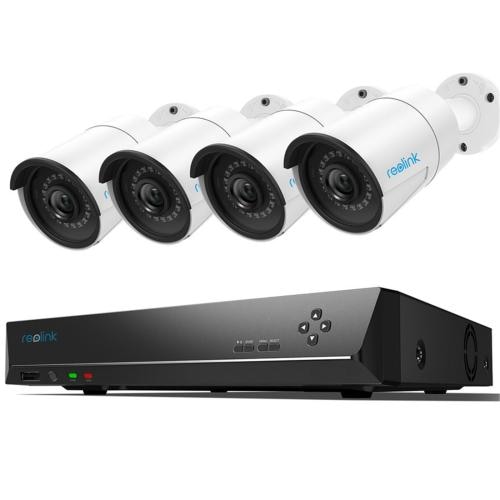

Reolink 5MP/2K 8 Channel NVR Surveillance System with 2TB HDD 4x RLC-410 AI Bullet Cameras
Super HD 5MP High Resolution
5MP RLK8-410B4 with a pixel resolution of 2560x1920, that is, nearly 2.4X the resolution of 1080p Full HD, and even 1.3X the resolution of 1440p. It sees and records your home security more clearly, with more details.
PoE - Easy Setup, Even for a Beginner
A real plug and play security system! It features PoE (Power over Ethernet), with a single network cable connecting each IP camera to the NVR for both power supply and video signal transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners.
24/7 Recording and Monitoring
-Pre-installed 2TB HDD for 24/7 recording and monitoring.
-Support all cameras recording at the same time (up to 8 cameras).
-If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
-Allow you to install an external hard disk drive via e-SATA for more storage (up to 4TB).
Motion Detection & Rich Alerts
RLK8-410B4 wired PoE camera security system detects moving objects and trigger alerts when dangers occur. It will inform you in real time when invasion happens:
Email
Email photos or 30-second video clips
App
Push notifications to your mobile device
FTP
Save and upload captured images & videos to an FTP server
Buzzer
The buzzer in NVR makes sound warning
Local and Remote Access Anytime & Anywhere
For local access and control
Connect the system to a monitor or an HD TV.
For remote access and control
Get live streaming via free Reolink App on iOS & Android devices, through free Reolink Client software on Windows pcs & Mac computers, or via web browsers.
Only 3 steps to use Reolink App/Client
High Quality Night Vision
With plenty LED lights and improved infrared radiation for 24-hour vigilance, the 5MP/4MP cameras ensure a clear night vision, up to 100 feet long distance (depending on the environment).
- Plenty Infrared LEDs
- 100feet Night vision*
- 80° Viewing angle*
Video Playback - Recall Events and Moments
The playback feature of this Reolink RLK8-410B4 allows you to know the whole events.
-Replay significant evidence or funny video records.
-4-channel simultaneous playback.
-Quick search for any event that happened at any time.
-Freely playback any event on days, hours and even minutes with the help of timer axis under the split screen.
Work with Various Reolink IP Cameras
This security camera system can be expanded up to 8-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP, or 4MP - to cover every corner in your home, store or factory.
* The Reolink NVRs work with Reolink security cameras ONLY.
Quick and Easy Video Data Backup
Local backup
Prepare a USB flash drive and insert it to one of the USB ports on the NVR for local backup.
Remote backup
-Launch Reolink Client on your computer.
-Go to the page Playback -> Remote Playback.
-Download the recording files for backup.
What's in the Box
x1 RLN8-410
x4 B500 (5MP)
x1 NVR Power Adapter
x1 HDMI Cable
x1 USB Mouse
x1 1m Network Cable
x4 18m Network Cable
x1 Quick Start Guide
x5 Mounting Template
x4 Surveillance Sticker
x4 Waterproof Lid
x5 Pack of Screws
x1 Wrench
RLN8-410
Hardware
Hardware
V2
Video/Audio Input
IP Video Input
PoE IP camera x 8
Audio Input
Cameras with built-in mic
Video/Audio Output
Video Output
VGA, HDMI
Display Resolution
HDMI: 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
VGA: 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768
Audio output
1-channel, RCA
Decoding
Video Format
H.264, H.265
Live View/Playback Resolution
3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
Synchronous Playback
Up to 4 channels
HDD
SATA
1 x SATA interface (1 x Seagate 2TB HDD included)
External HDD
1 eSATA interface for HDD
Capacity
Up to 8TB (Max. 4TB capacity for each HDD)
External Interface
USB Interface
2 x USB 2.0
Network Interface
RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN
8 Independent 100 Mbps PoE Network Interfaces
PoE
Max. Power Per Port
25W
Supported Standard
IEEE 802.3af/at
Network
Network Protocols
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browsers Supported
Edge, Firefox, Chrome, Safari
OS Supported
PC: Windows, Mac OS; SmartPhone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
Power Supply
DC 48V/2A
Power Consumption
<10W (without HDD&PoE)
Working Environment
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
Dimensions
260 x 41 x 230mm
Weight
1.4kg
B500(5MP)
Camera
Image Sensor
1/2.7" CMOS Sensor (B500)
Effective Pixels
B500: 2560x1920(5.0 Megapixels)
Lens
f=4.0 mm Fixed, F=2.0
Angle of View
Horizontal: 80°, Vertical: 58°(B500); Vertical: 42°(B400)
Day/Night Mode
Auto Switchover
Min. Illumination
0 Lux (With IR Illuminator)
IR Distance
30 Meters (100ft)(LED: 18pcs/14mil/850nm)
Backlight Compensation
Support
Noise Reduction
3D DNR
Note
The cameras of the kit cannot work without the NVR.
Video
Compression
H.264
Resolution
B500: Mainstream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Substream: 640x480
Bitrate
B500: Mainstream: 1024Kbps~8192Kbps; Substream: 64Kbps~512Kbps
Frame Rate
Mainstream @ 30fps, Substream @ 7fps
Audio
Interface
Built-in Microphone
Network
Interface
One 10M/100Mbps RJ45
General
Power Supply
DC12V & PoE (IEEE 802.3af 48V Active)
Power Consumption
<10W(B500)
Working Environment
-10°C~+55°C (14°F~131°F), Humidity: 10%~90%
Ingress Protection
IP66
Dimension
F67x186 mm
Weight
350g(B500)
- MPN: RLK8-410B4-5MP(AI)
