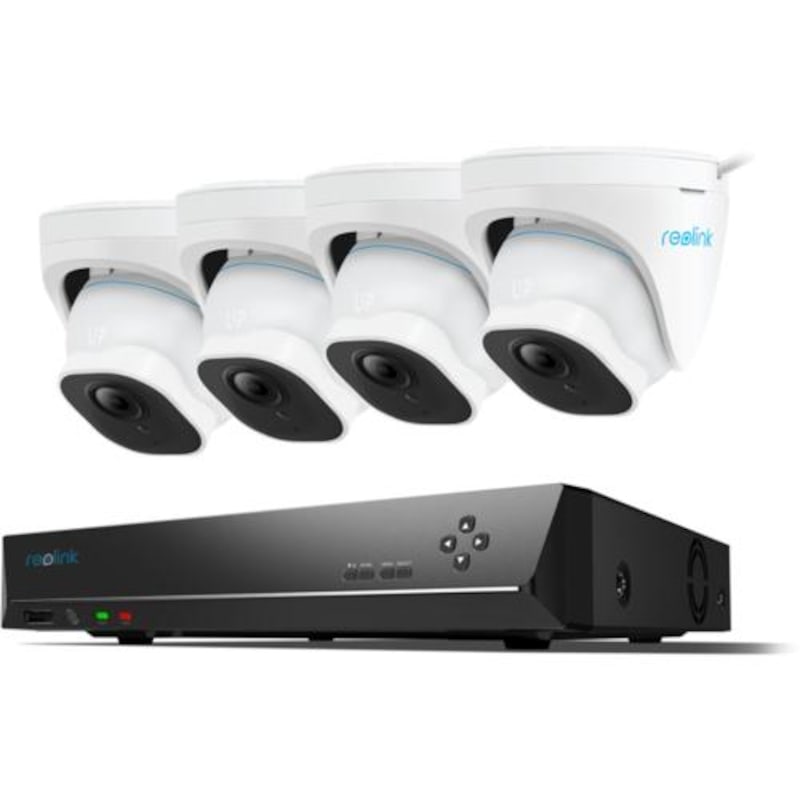

Reolink 5MP/2K 8 Channel NVR Surveillance System with 2TB HDD 4x RLC-520 AI Dome Cameras
Cameras with Intelligence
Equipped with smart motion detection technology, the cameras in the RLK8-520D4 kit can detect moving objects and distinguish people and vehicles from other objects. Alert you immediately when a suspicious person or car appears and filter out false alarms triggered by trivial objects' movements.
- Person/Vehicle Detection
- Accurate Alerts
- No Subscription
More Than 5MP Super HD
Boasting a high resolution of 2560x1920, the 5MP security cameras in the kit capture clear and sharp images. With recording at 30 frames per second, you get buttery-smooth videos, without any freezing or jerky footage.
- Audio recording
- 80° viewing angle*
Keep Guard at Night
To protect your home and business 24 hours a day, this system features 18 infrared LEDs in each camera to capture videos clearly in the dark with a range of up to 100ft.
- 18 IR LEDs
- 100ft night vision*
Easy Setup with PoE Technology
The system features PoE (Power over Ethernet) technology, allowing you to connect each camera to the NVR with a single cable for both power supply and video signal transmission. A real plug-and-play security system!
Continuous, 24/7 Recording
With its 2TB hard drive and up to 8TB of storage capacity, the PoE video surveillance kit supports all cameras to allow for simultaneous and continuous recording. Record continuous video, without missing a beat.
- Built-in Seagate 2TB HDD
- Up to 8TB
Access Your Camera, Anywhere and Anytime
Stay connected with your home or business on the go using your mobile phone, tablet, or computer. See live streams, replay key moments, or check on motion alerts with just a few clicks.
Motion Alerts
Get push notifications, emails, or NVR buzzer alarms when a camera identifies movement.
Multi-Cam Live Feed
Keep track of your property easily with live feeds from multiple cameras on the same screen.
Playback
Videos can be stored on either the NVR or an FTP server. Easily find, replay, or download footage with our intuitive app/client.
Record Scheduling
Choose the settings on each individual camera to record continuously, when motion is detected or when scheduled.
Motion Zone
You can customize the motion zone to your like, deciding where objects’ movements will be detected and where they will not.
Compatible with All Reolink PoE IP Cameras
This security camera system can be upgraded to an 8-camera kit and is compatible with any Reolink PoE camera – bullet, dome, or PTZ 4K, 5MP, or 4MP – to cover every corner of your home, store, or factory.
* The Reolink NVRs work with Reolink security cameras ONLY.
IP66 Waterproof. Certified.
Featuring a rugged housing and body, the dome security IP cameras are fully waterproof. Even in harsh weather conditions, these cameras work perfectly, both inside and outside of your house.
What's in the Box
x1 RLN8-410
x4 D500
x1 NVR Power Adapter
x1 HDMI Cable
x1 USB Mouse
x1 1m Network Cable
x4 18m Network Cable
x1 Quick Start Guide
x5 Mounting Template
x4 Surveillance Sticker
x4 Waterproof Lid
x1 Wrench
x5 Pack of Screws
RLN8-410
Hardware
Hardware
V2
Video/Audio Input
IP Video Input
PoE IP camera x 8
Audio Input
Cameras with built-in mic
Video/Audio Output
Video Output
VGA, HDMI
Display Resolution
• HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
• VGA: 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768
Audio output
1-channel, RCA
Decoding
Video Format
H.264, H.265
Live View/Playback Resolution
4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
Synchronous Playback
Up to 4 channels
HDD
SATA
1 x SATA interface (1 x Seagate 2TB HDD included)
External HDD
1 eSATA interface for HDD
Capacity
Up to 12TB (Max. 6TB capacity for each HDD)
External Interface
USB Interface
2 x USB 2.0
Network Interface
• 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN
• 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
Max. Power Per Port
25W
Supported Standard
IEEE 802.3af/at
Network
Network Protocols
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browsers Supported
Edge, Firefox, Chrome, Safari
OS Supported
PC: Windows, Mac OS; SmartPhone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
Power Supply
DC 48V/1.875-2.5A
Power Consumption
<10W (without HDD&PoE)
Working Environment
Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%
Dimensions
260 x 41 x 230mm
Weight
1.4kg
RLC-520
Video & Audio
Image Sensor
1/2.7" CMOS Sensor
Video Resolution
2560x1920 (5.0 Megapixels) at 30 frames/sec
Lens
f=4.0mm fixed; F=2.0, with IR-cut filter
Video Format
H.264
Field of View
• Horizontal: 80°
• Vertical: 58°
Day & Night
Auto-switching with IR-cut filter
Night Vision
30 meters (100ft) (LED: 18pcs/14mil/850nm)
Audio
Audio recording
Power
PoE
IEEE 802.3af, 48V Active
DC Power
DC 12.0V?1A, <8W
Interface
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps; RJ45
Audio
Built-in microphone
Software Features
Frame Rate
• Mainstream: 2fps - 30fps (default: 30fps)
• Substream: 4fps - 15fps (default: 7fps)
Code Rate
• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 160Kbps)
Smart Alarm
Motion detection; person detection; vehicle detection
Record Mode
Motion-triggered recording; scheduled recording
Working Environment
Temperature
Operating temperature: -10°C - +55°C (14°F - 131°F)
Humidity
Operating humidity: 10% - 90%
Waterproof
IP66
Size & Weight
Dimension
F105*93mm
Weight
385g
Please note
The cameras of the kit cannot work without the NVR.
- MPN: RLK8-520D4-5MP
