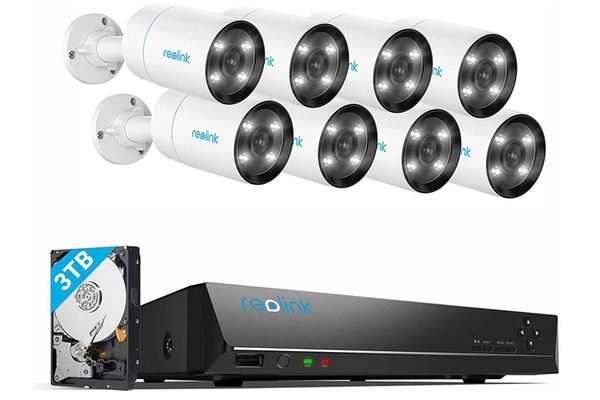

Reolink RLK16-812B8-A 8MP 4K Camera System

Image 1
$1399

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Elite Electronics
4K 8MP PoE Camera System with Smart Motion Detection
  • Person/Vehicle Detection
  • 4K 8MP Ultra HD
  • Power over Ethernet
  • 16-Channel NVR
  • Color Night Vision
  • 4 Powerful Spotlights
  • Plug & Play
  • Reliable Connection
  • Built-in Seagate 3TB HDD
  • Up to 12TB
  • IP66 Certified Weatherproof

  • Package Includes:
  • RLN16-410 x1
  • RLC-812A x8
  • NVR Power Adapter x1
  • HDMI Cable x1
  • USB Mouse x1
  • 1m Network Cable x1
  • 18m Network Cable x8
  • Quick Start Guide x1
  • Mounting Template x9
  • Surveillance Sticker x8
  • Waterproof Lid x8
  • Pack of Screws x9





  • RLN16-410
  • Hardware
  • Hardware - V2

  • Video/Audio Input
  • IP Video Input - PoE IP camera x 16
  • Audio Input - Cameras with built-in mic

  • Video/Audio Output
  • Video Output - VGA, HDMI
  • Display Resolution - HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768, VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
  • Audio output - 1-channel, RCA

  • Decoding
  • Live View/Playback Resolution - 4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
  • Video Format - H.265, H.264
  • Synchronous Playback - Up to 4 channels

  • HDD
  • SATA - 2 x SATA interface (1 x Seagate 3TB HDD included)
  • Capacity - Up to 12TB (Max. 6TB capacity for each HDD)

  • External Interface
  • USB Interface - 2 x USB 2.0
  • Network Interface - 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN, 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

  • PoE
  • Max Power Per Port - 25W
  • Supported Standard - IEEE 802.3 af/at

  • Network
  • Network Protocol - HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
  • Browser Supported - IE, Firefox, Chrome, Edge, Safari
  • OS Supported - PC: Windows, Mac OS; Smartphone: iOS, Android
  • Max User Access - 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

  • General
  • Power Supply - DC 52V/2.88A
  • Power Consumption - <10W (without HDD&PoE)
  • Working Environment - Temperature: -10°C~+55°C (14°F~131°F); humidity: 10%~90%

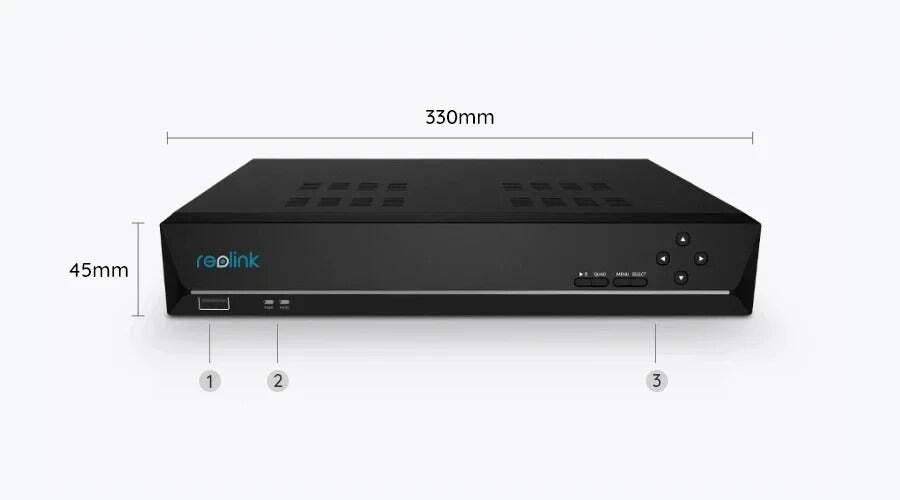

  • Dimensions - 330 x 45 x 285mm
  • Weight - 2.4kg

  • Warranty
  • Limited Warranty - 2 Years

  • RLC-812A
  • Video & Audio
  • Image Sensor - 1/2.49" CMOS Sensor
  • Video Resolution - Default: 3840X2160 (8.0 Megapixels) at 25 frames/sec
  • Lens - f=4.0mm fixed, F=2.0
  • Video Format - H.265
  • Field of View - Horizontal: 85°, Vertical: 44°
  • Day & Night - Auto-switching
  • Color Night Vision - Spotlight: 4pcs/3.5W/6500K/400 Lumens
  • Audio - Two-way audio

  • Power
  • POE - IEEE 802.3af, 48V Active
  • DC Power - DC 12.0V⎓1A, <12W

  • Interface
  • Power - DC power port
  • System - Reset button
  • Ethernet - One 10M/100Mbps; RJ45
  • Storage - Micro SD card slot (Max. 256GB)
  • Audio - Built-in microphone and speaker

  • Software Features
  • Frame Rate - Mainstream: 2fps - 25fps (default: 25fps), Substream: 4fps - 15fps (default: 10fps)
  • Code Rate - Mainstream: 4096Kbps-8192Kbps (default: 6144Kbps), Substream: 64Kbps - 512Kbps (default: 256Kbps)
  • Browsers Supported - IE, Edge, Chrome, Firefox, Safari
  • OS Supported - PC: Windows, Mac OS; Smartphone: iOS, Android
  • Smart Alarm - Motion detection/person detection/vehicle detection
  • Record Mode - Motion-triggered recording (default); scheduled recording; 24/7 recording
  • Protocols & Standards - HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
  • Maximal User Access - 20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
  • Work with - Google Assistant

  • Working Environment
  • Temperature - Operating temperature: -10°C - +55°C (14°F - 131°F)
  • Humidity - Operating humidity: 10% - 90%
  • Waterproof - IP66

  • Size & Weight

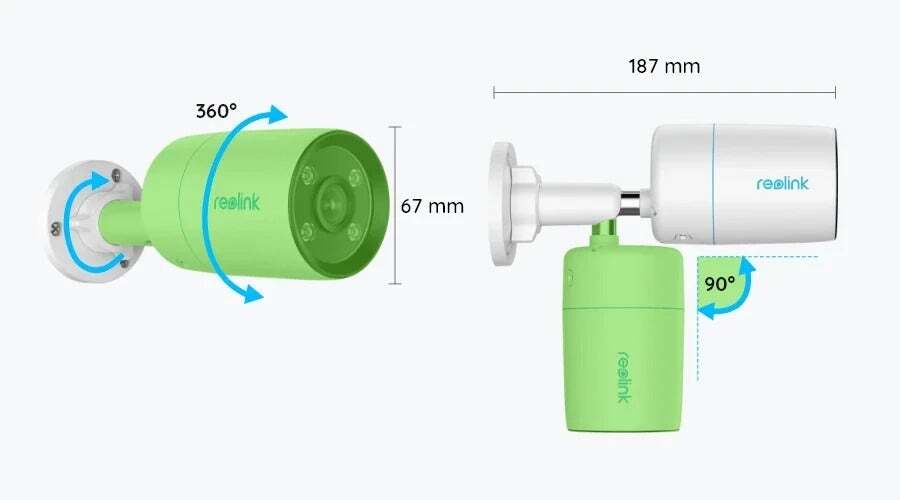

  • Dimension - Φ67*187mm
  • Weight - 460g

  • Warranty
  • Limited Warranty - 2-year limited warranty


  • * DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.

GTIN: 6972489776735

Reference ID: 7357818
