Description:

• A smart, programmable misting and humidifying system designed to replicate tropical rainforest environments for reptiles and plants. Features 360 degree adjustable nozzles, automatic timing, intuitive touchscreen control, and easy installation with no tap connection required.

Features:

• Smart Timed Misting Modes: Always-on, always-off, and automatic cycle modes with memory function. Easily configure spray duration and intervals with a responsive touchscreen.

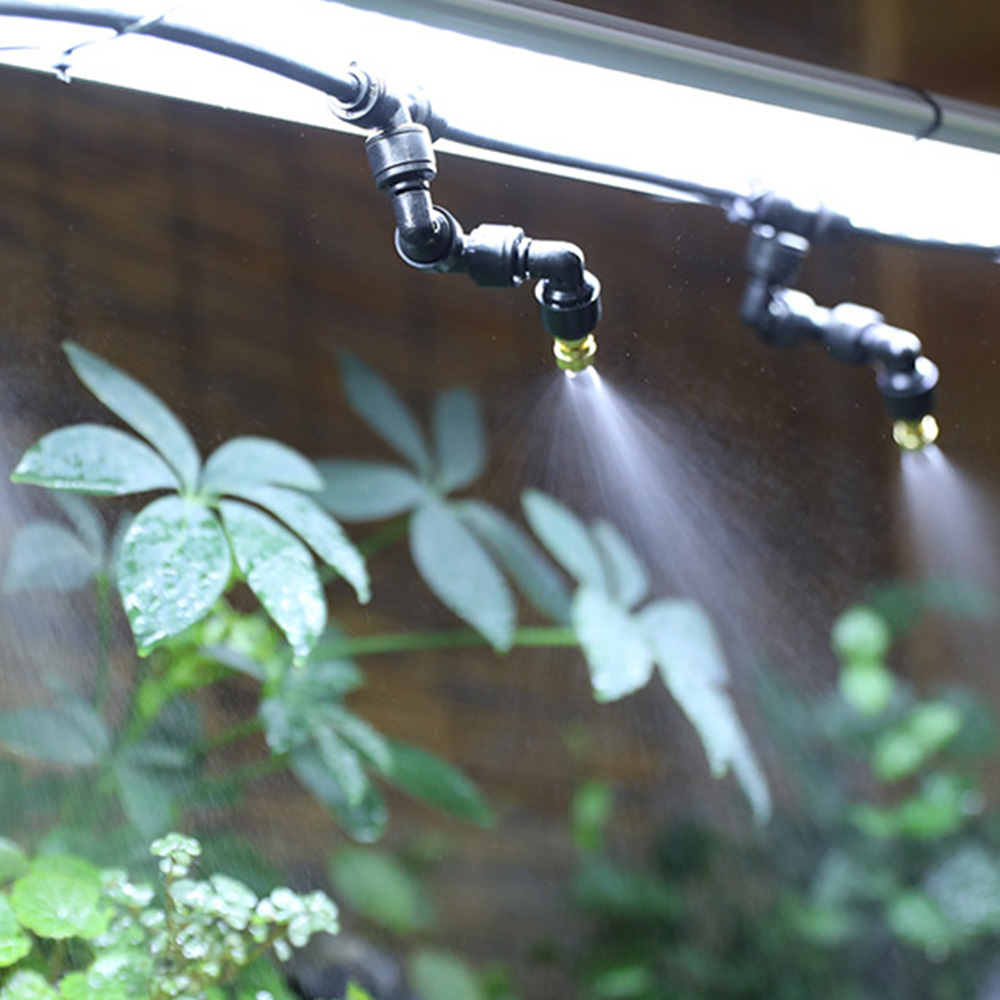

• Rainforest-Level Mist Coverage: Simulates natural precipitation with fine misting for effective humidity and cooling. Ideal for rainforest terrariums.

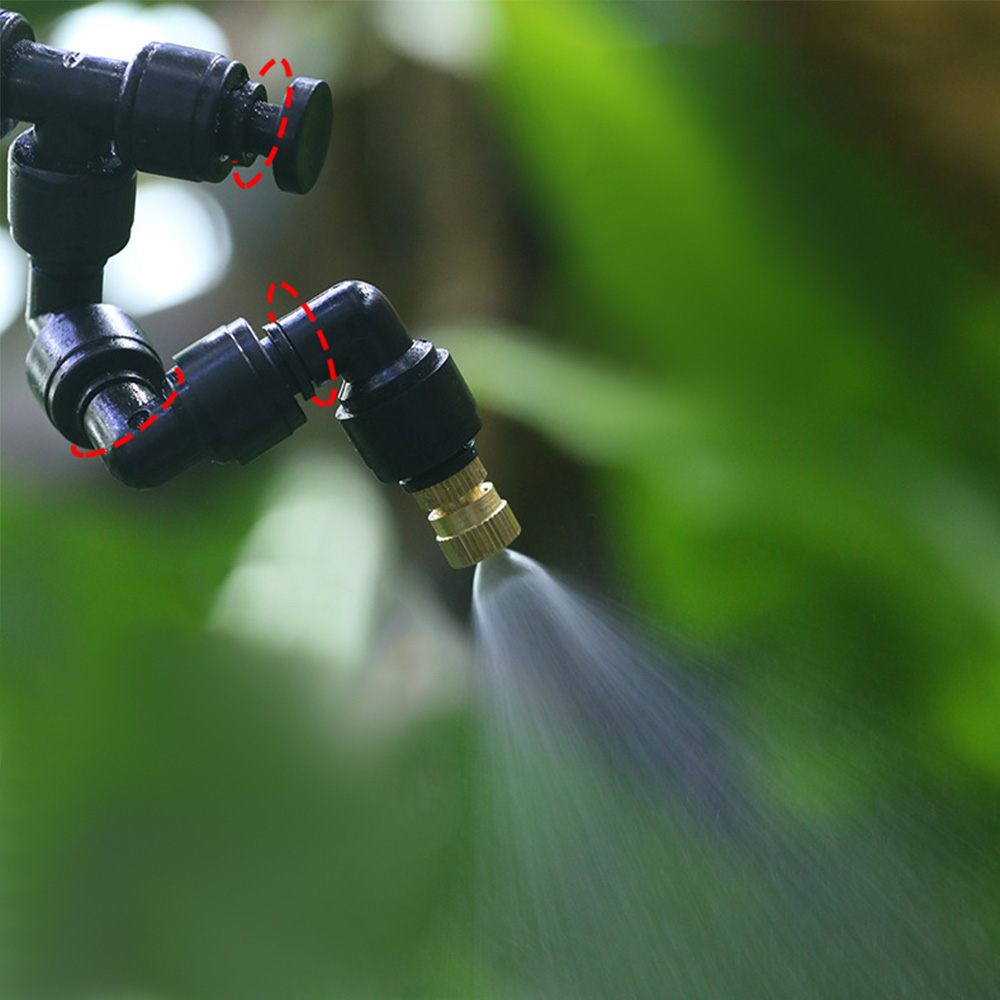

• 360 degree Adjustable Spray Heads: Bendable brass nozzles with adjustable mist flow. Rotate freely to direct mist to specific areas, ensuring full coverage.

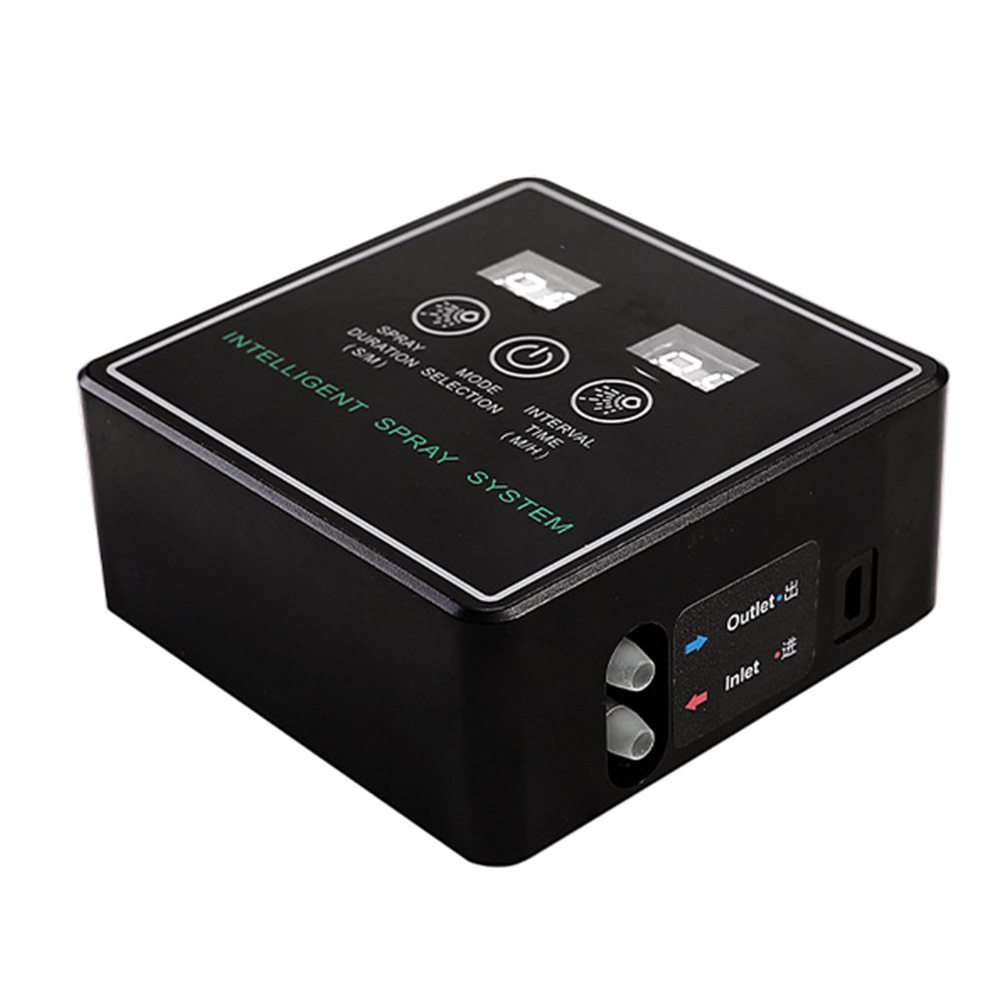

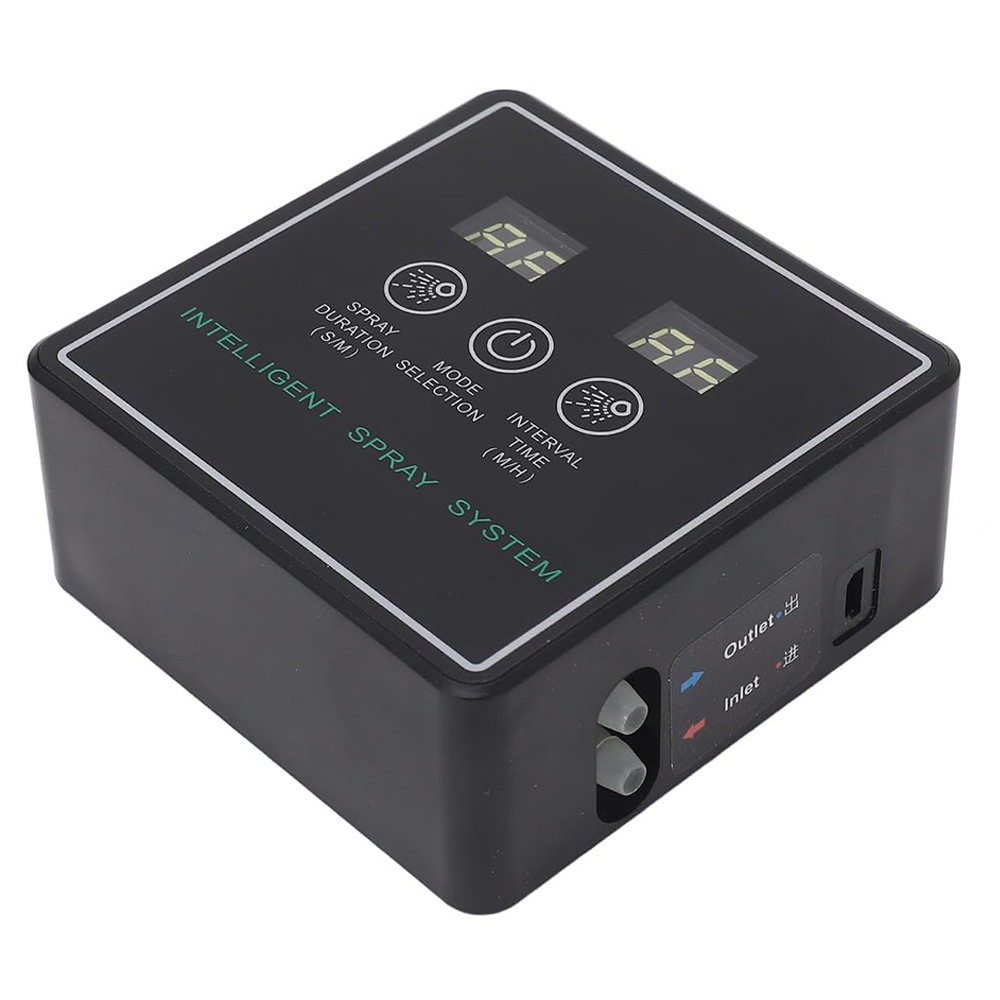

• Compact Integrated Design: Combines water pump and timer in one small square unit. Equipped with two soft mist spray heads, gentle on plants and decor.

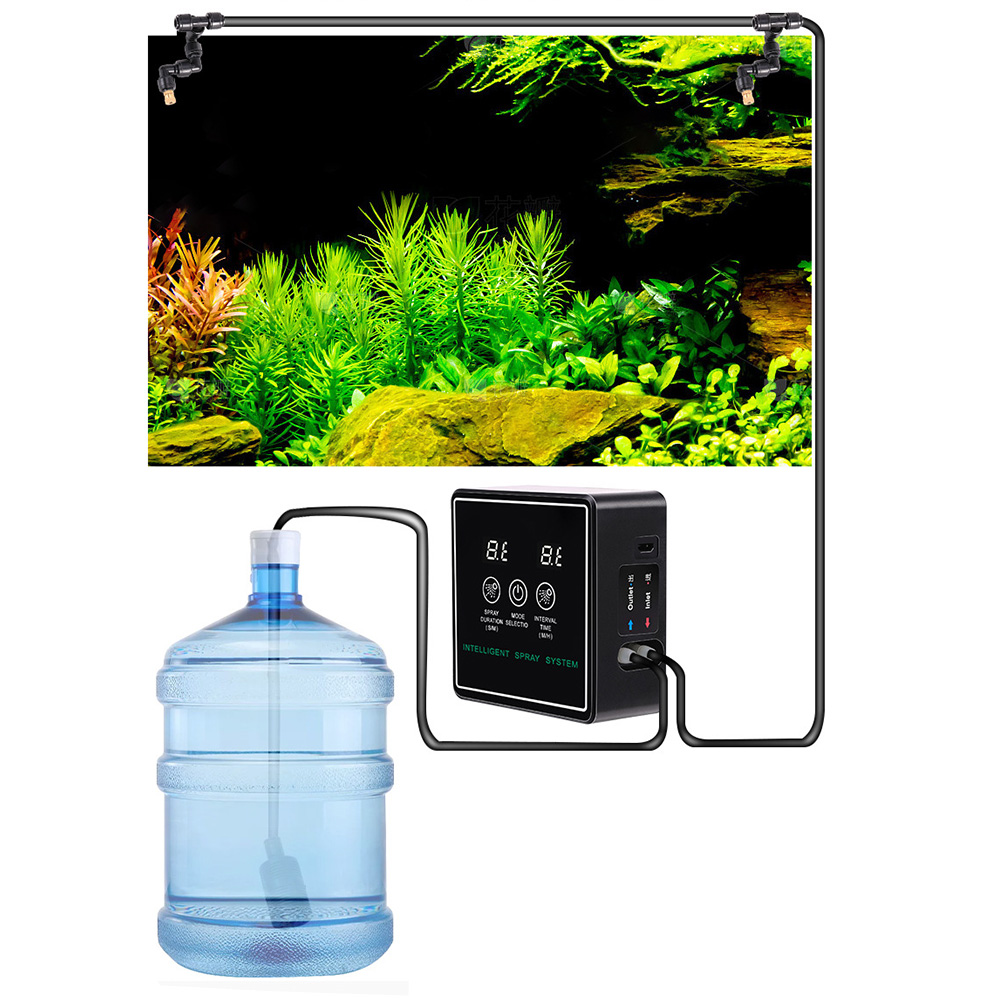

• Independent Water Source System: Self-priming pump allows drawing from any water container, eliminating need for water tap. No leakage risk, compatible with containers of any shape or size.

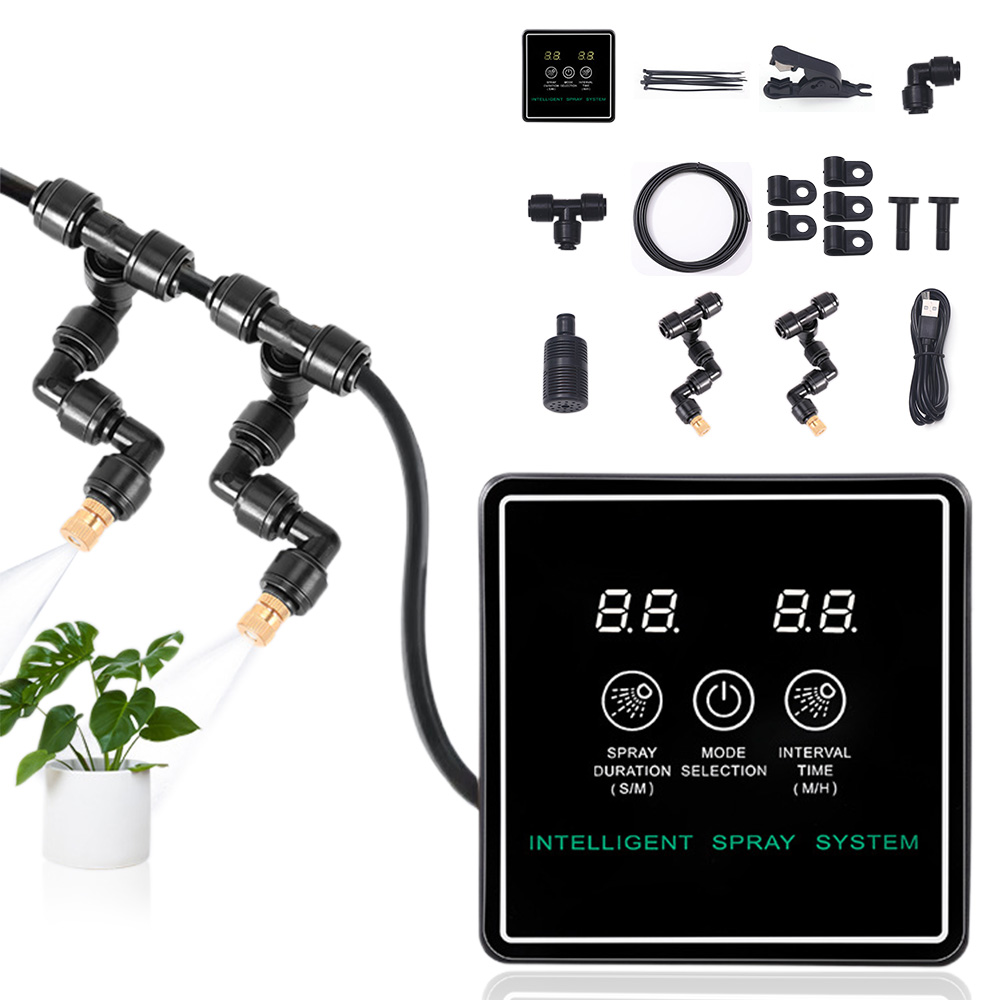

• Complete Installation Kit: Includes everything needed—main unit, tubing, nozzles, filter, clamps, cutter—for DIY setup and customized spray layout.

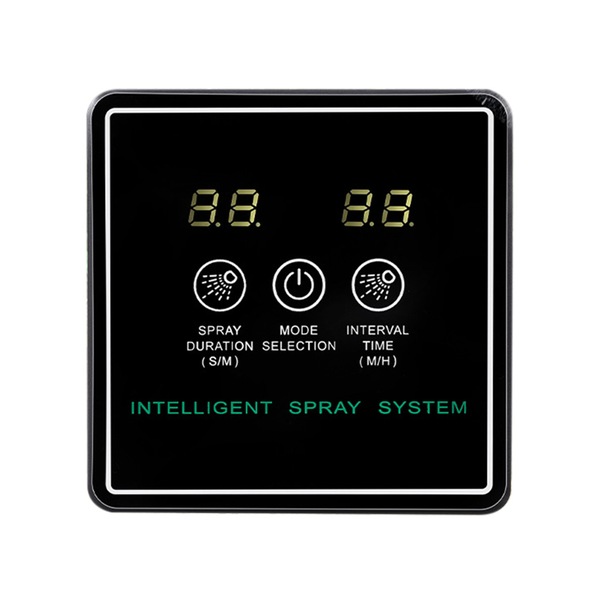

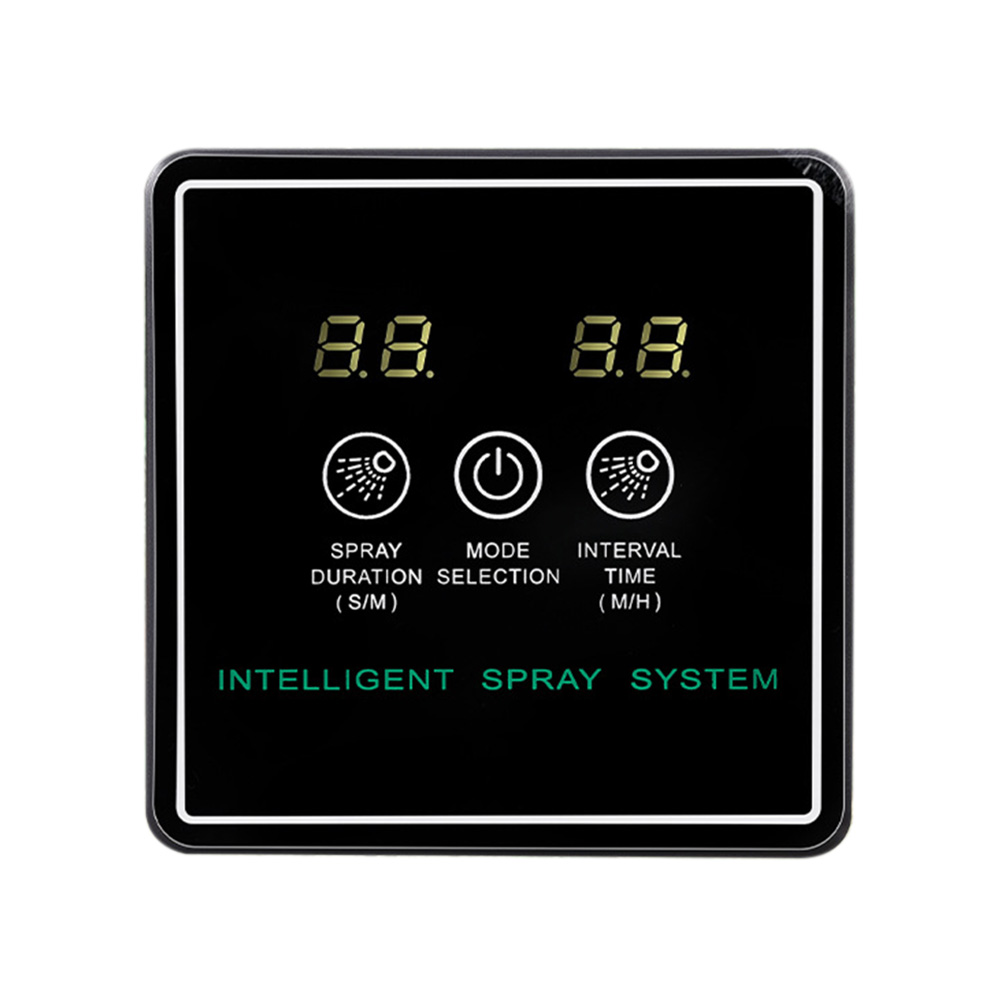

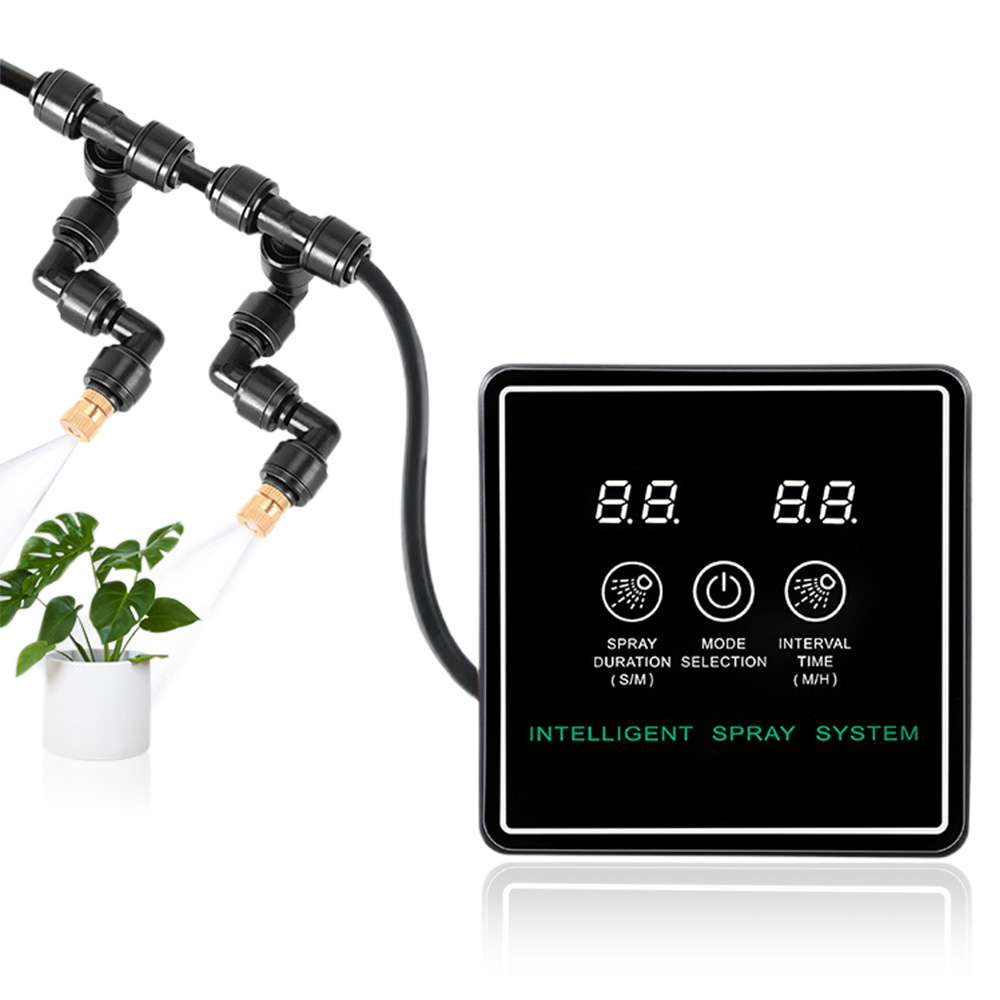

• Elegant Touchscreen Panel: Glossy black touchscreen with intuitive controls for seamless mode and timer settings.

Operation Instructions:

• Enter Mode: Long press [Mode Select] to enter Auto Mode (screen digits light up). Long press again to switch to Always-On Mode.
• Set Spray Duration: Press [Spray Duration] repeatedly to adjust-1 press = +1 second; after 60 seconds, it switches to minute unit. Max: 99 minutes.
• Interval Timer: Press [Interval Time] to set interval duration-1 press = +1 minute; after 60 minutes, it switches to hours. Max: 99 hours.
• Adjust Time Settings: Short press [Mode Select] to decrease time; long press for continuous reduction.
• Time Unit Indicators: S = seconds, M = minutes, H = hours.
• Save Settings: After adjustments, wait 5 seconds for auto-save of current configuration.
• Installation Notes:
• The water intake filter must be fully submerged in water. Otherwise, air entry may cause water supply failure.
• Ensure inlet tube is pushed tightly to the base of the connector. Loose fitting can result in air leakage and failed water intake.
• Nozzle Setup and Angle Adjustment: Different nozzle types offer varied misting effects. Adjust position and angle as needed.
• Initial Air Purge: Before full connection, let pump run briefly with outlet tube disconnected until bubbles are cleared and water flow is stable. Then connect misting lines.
• Specifications:
• Material: ABS Plastic, PE Tubing, Brass Nozzles
• Spray Capacity: Approx. 850ml/min
• Power Supply Method: USB Direct Plug-In (Adapter Not Included)
• Rated Voltage: 5V
• Rated Current: 1A
• Spray Distance: At least 2 meters
• Suction Height: Up to 15 meters
• Noise Level: No more than 65 decibels (measured from 30 cm away)
• Water Pressure: Over 30 psi (about 200 kPa)
• Operating Temperature: 4 - 45 Temperature
• Size (L x W x H): 8.45 x 8.45 x 3.6 cm

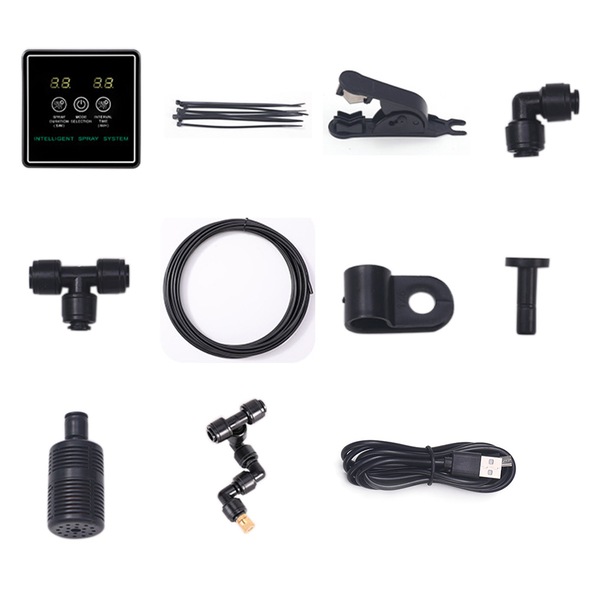

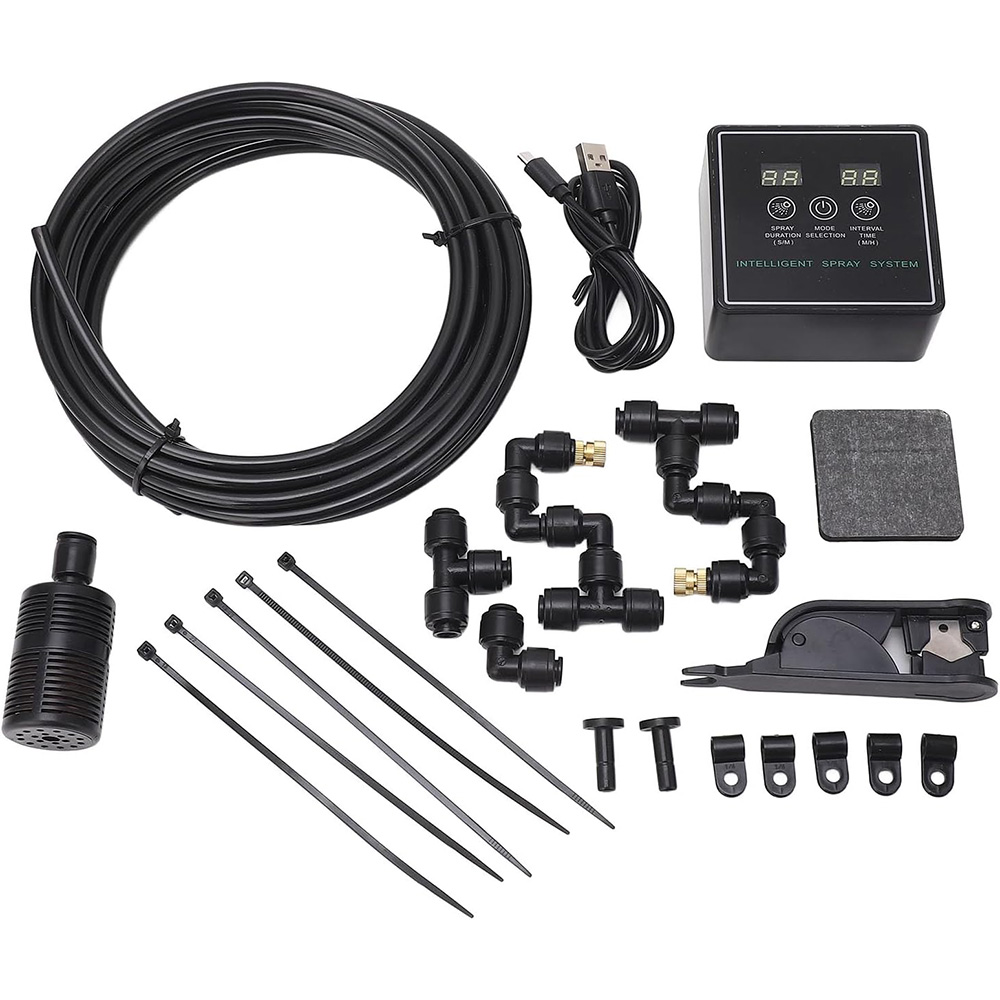

Package Contents:

• 1 x Mist System Unit

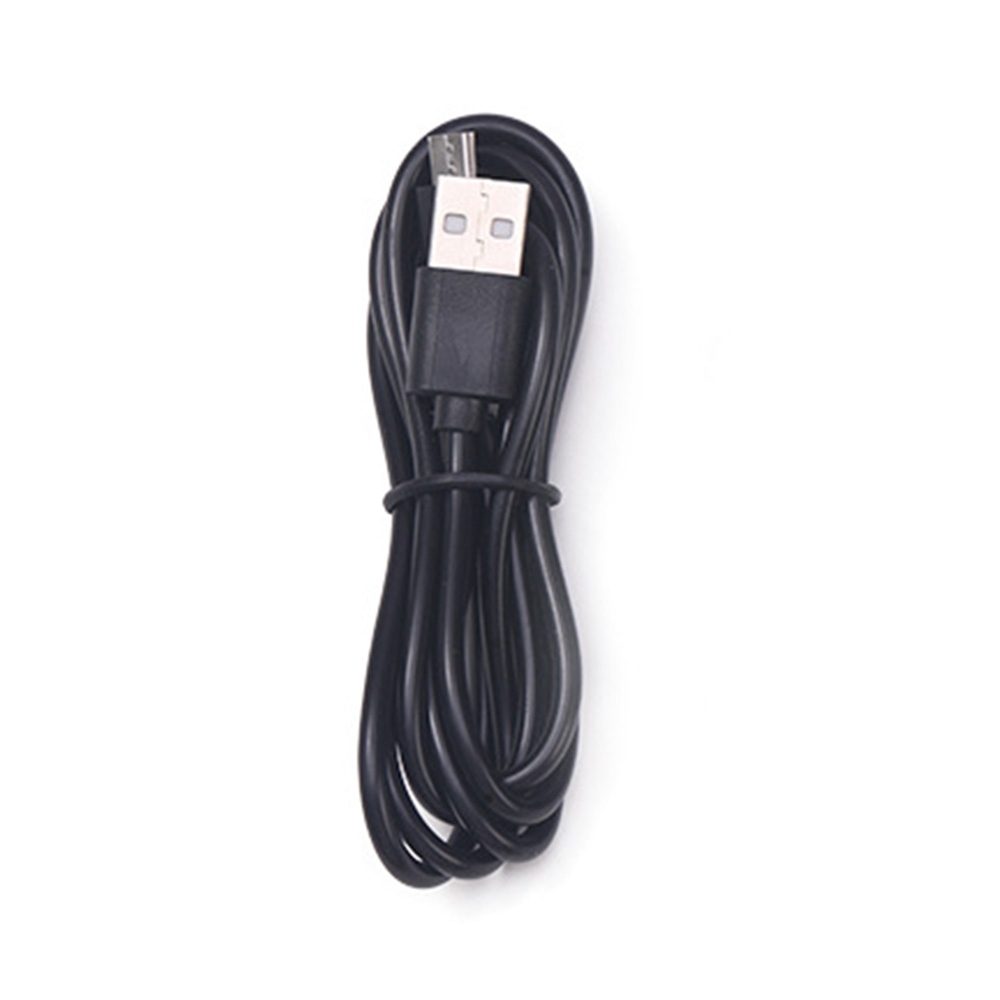

• 1 x USB Cable
• 1 x 500cm PE Tube
• 1 x Tube Cutter
• 1 x Filter
• 1 x Tee Connector
• 1 x Elbow Connector
• 1 x R-Clip
• 2 x Spray Heads
• 5 x Cable Ties

Please Note:

• 1.To prevent siphon effect, keep the water container’s surface level below the misting heads.
• 2.Use purified water to avoid white residue on leaves and glass surfaces.
