PRODUCT CODE: ROP5-G-380LPD

HIGH FLOW DOMESTIC RO SYSTEM WITH FINAL STAGE COCONUT SHELL CARBON FILTER, BOOSTER PUMP AND INSTALL KIT FOR USE ON NON-POTABLE WATER WHERE INLET WATER PRESSURE IS TOO LOW TO WORK WITH REVERSE OSMOSIS WITHOUT A PRESSURE BOOSTER PUMP

THIS SYSTEM IS ASSEMBLED, LEAK + PRESSURE TESTED + PERFORMANCE RATED LOCALLY AT OUR QLD PREMISES

Our locally assembled reverse osmosis units are designed to provide the purest possible drinking water at a reasonable price. All of our locally assembled units are leak tested overnight under pressure and checked to ensure that they are operating optimally and producing water of a standard that meets our quality guidelines.

Reverse osmosis technology is known for its ability to produce pure water of a consistent quality, typically reducing the total contaminant in the feed water by +/- 96% on average. Our systems are effective in removing / reducing various contaminants from your drinking water, including fluoride, chlorine, cysts, bacteria and heavy metals among many other contaminants as indicated in the table below.

• Barium: 97%
• Potassium: 99.9%
• Bicarbonate: 99.9%
• Radium: 97%
• Cadmium: 97%
• Selenium: 97%
• Calcium (Hardness): 99.9%
• Silicate: 99%
• Chromate: 95%
• Silver: 99%
• Copper: 97%
• Sodium: 98%
• Detergents: 97%
• Strontium: 97%
• Fluoride: 99%-99.9%
• Sulphate: 99.9%
• Lead: 97%
• PCB’s: 97%
• Magnesium: 99.9%
• Insecticides: 97%
• Nickel: 97%
• Herbicides: 97%

All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we use when assembling your system have NSF INTERNATIONAL (National Sanitation Foundation), WQA (Water Quality Association) or FDA (Food and Drug Administration) quality standard certification.

• Minimum feed pressure: 15psi / 100kpa
• Recommended feed pressure: 15-80psi / 100-550kpa
• Minimum operating temperature: 5°C / 40°F
• Maximum operating temperature: 45°C / 110°F
• Minimum feed water pH: pH 3
• Maximum feed water pH: pH 11
• Maximum feed water TDS: 1000ppm
• Production rate: 150GPD / 575LPD

Where the feed water TDS reading is high, the minimum operating pressure of the unit may be affected. If your feed water TDS is in excess of 400ppm we recommend that you consult us before you purchase. Generally these systems are suited to most town mains water supplies, however if you are intending to use the unit on tank or bore water we recommend testing the feed pressure and water quality first.

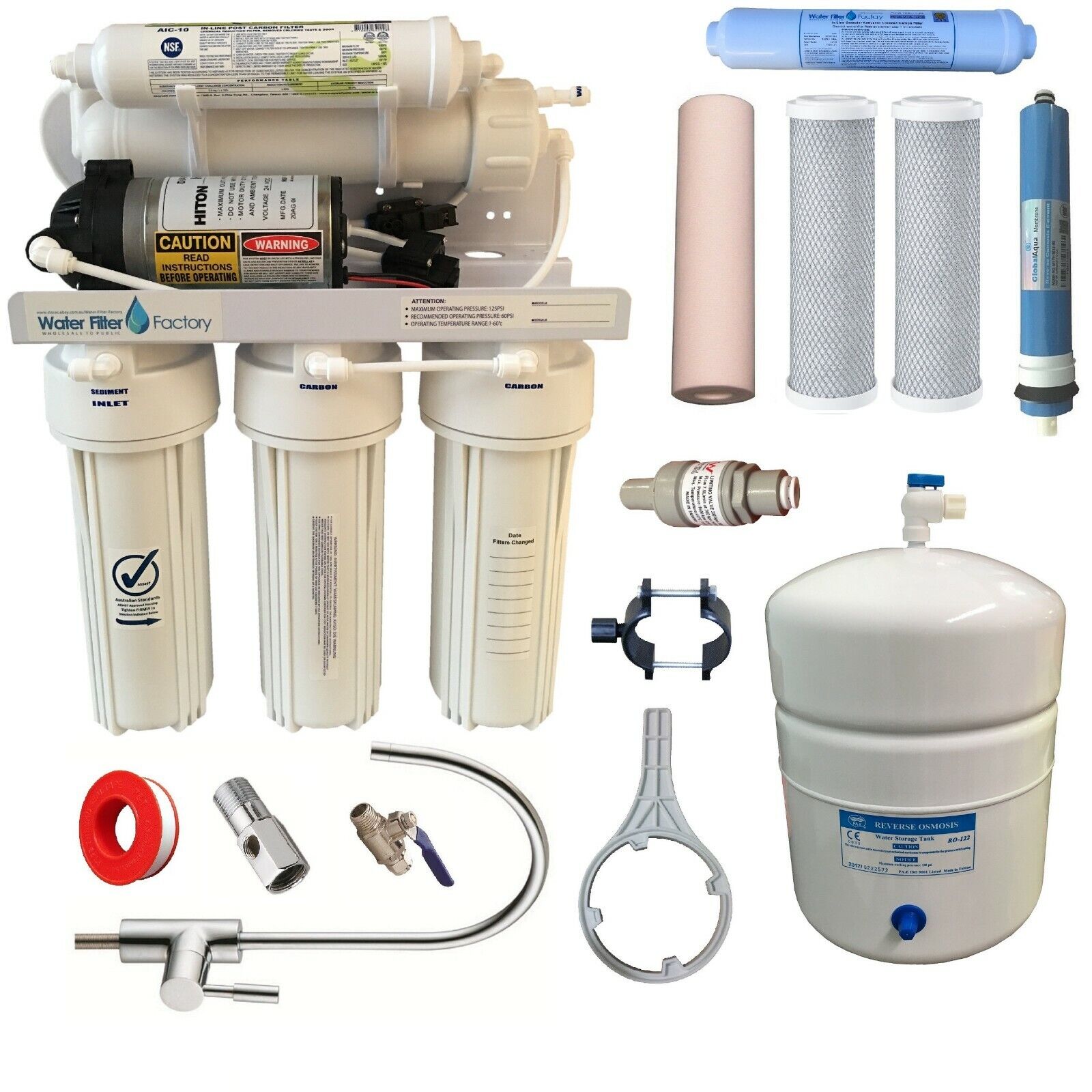

• Multi stage reverse osmosis unit:
• AS3497 tested and compliant 10"x2.5" pre-filter housings.

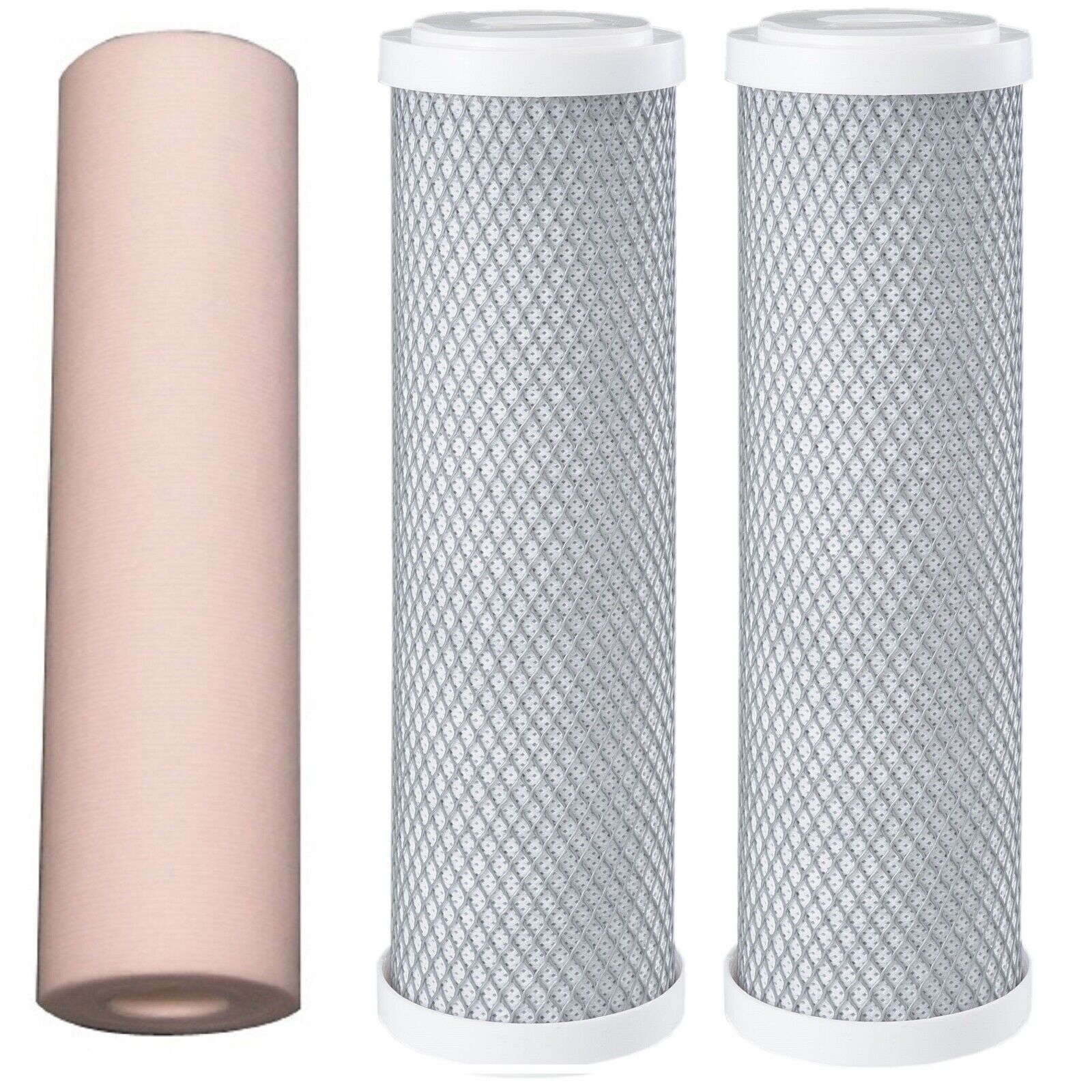

• One 10"x2.5" 1 micron spun sediment pre-filter.
• Two 10"x2.5" high volume carbon block pre-filter.

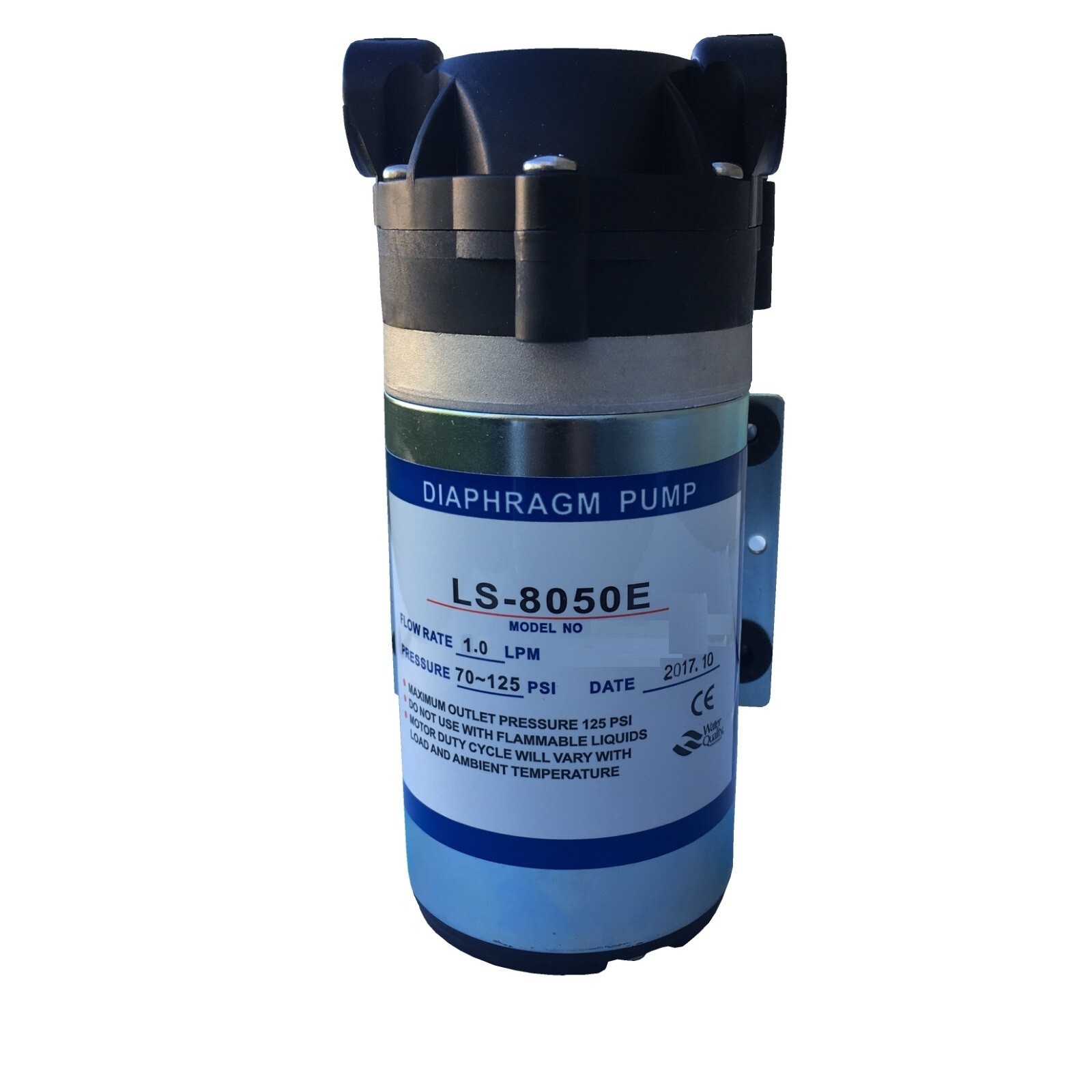

• 1x 12v* or 24v* diaphragm pressure booster pump [including Australian approved transformer].

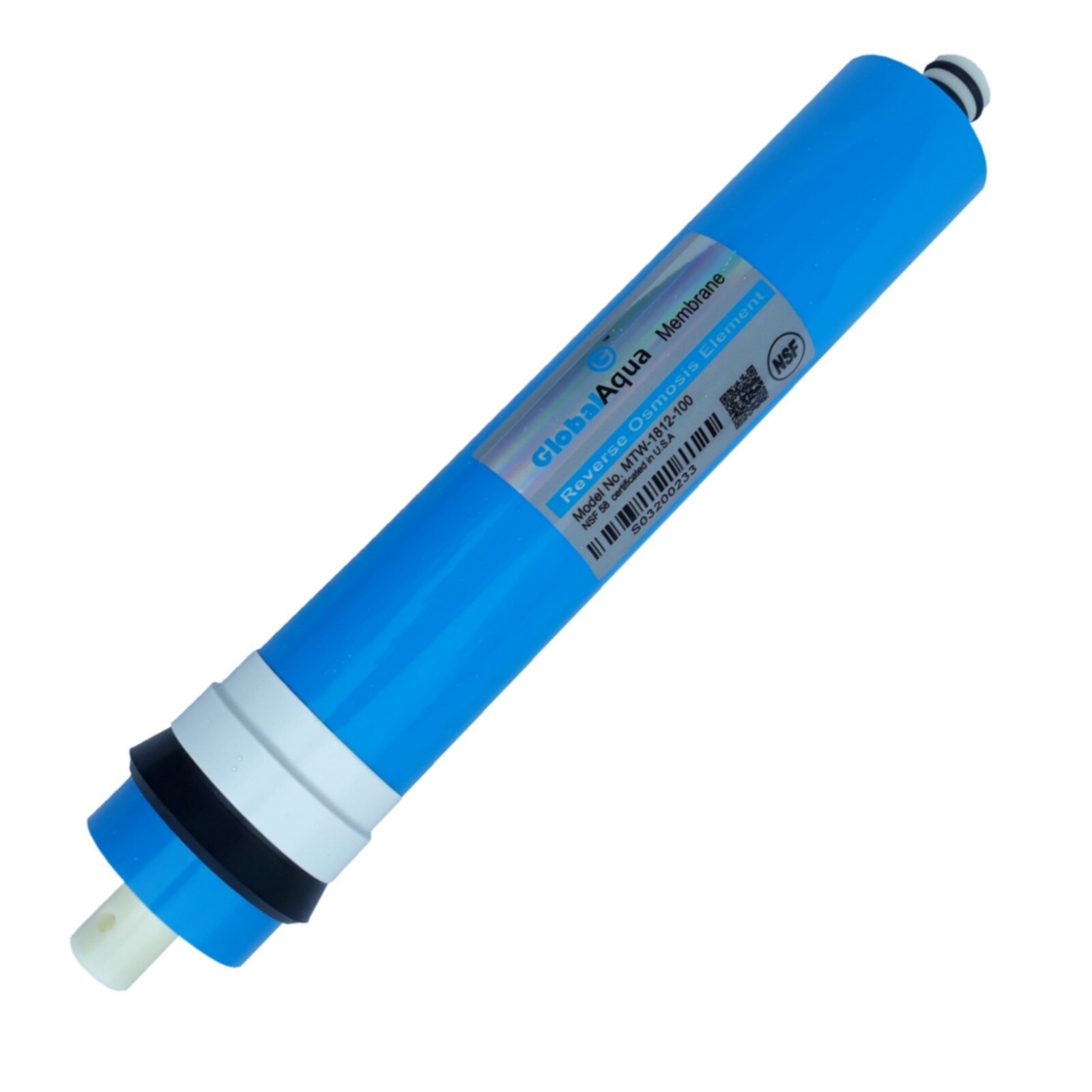

• One 100GPD TFC membrane made using membrane film sourced from the USA
• If needed we can supply with a 150GPD / 570LPD membrane for $ 30 extra

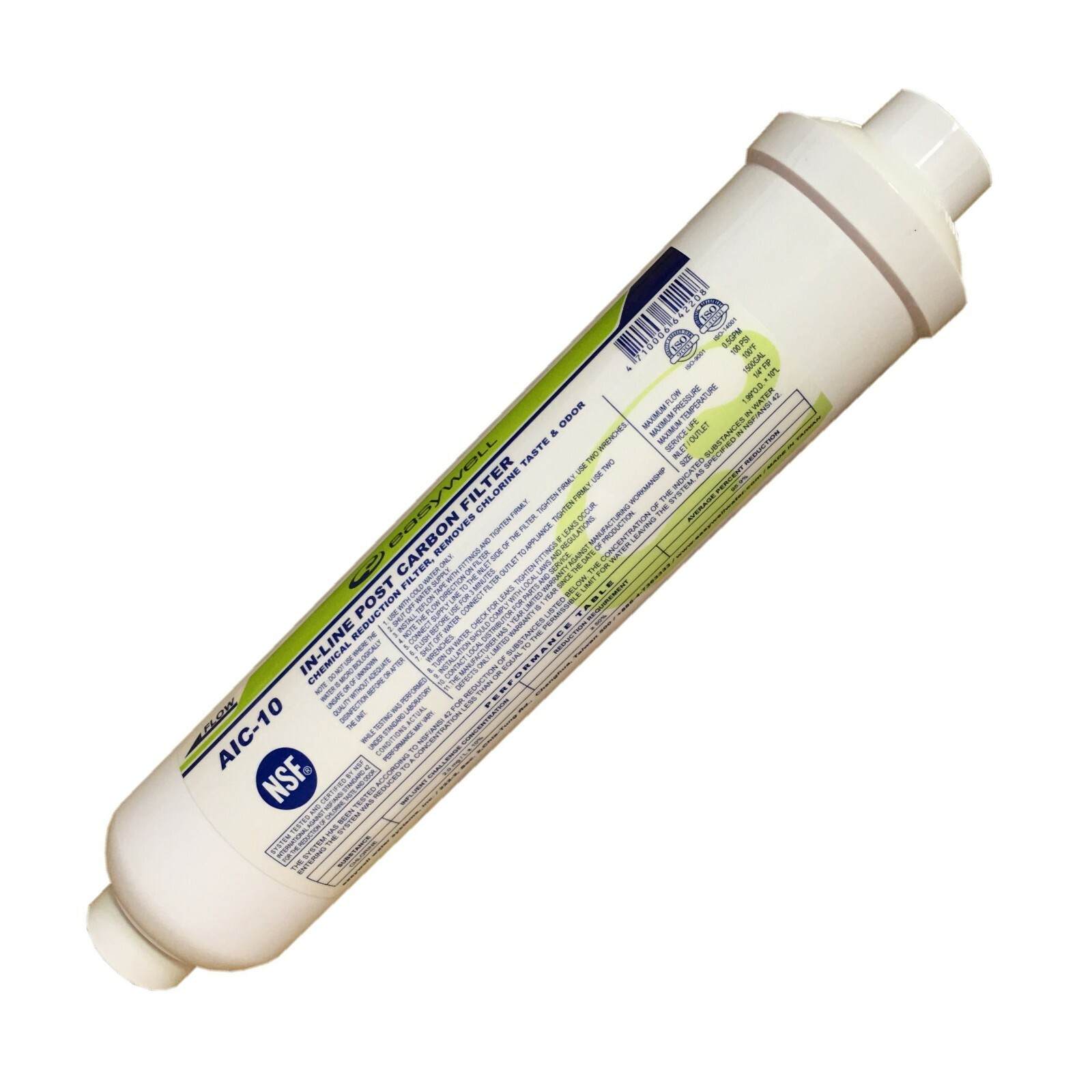

• One in line post membrane coconut carbon water filter.
• Your choice of one of the following accumulator tanks:
• 5 Litre* - (33cm height, 20cm diameter).
• 8 Litre* - (39cm height, 22cm diameter).
• Your choice of one of the following feed/inlet fittings:
• 1/2" insert* - Shares normal cold water line to most mixer taps.
• 3/4" insert* - Shares normal cold water line to most dishwasher.
• Your choice of one of the following waste drain clamp fittings:
• 40mm* solid clamp.
• 50mm* adjustable clamp.

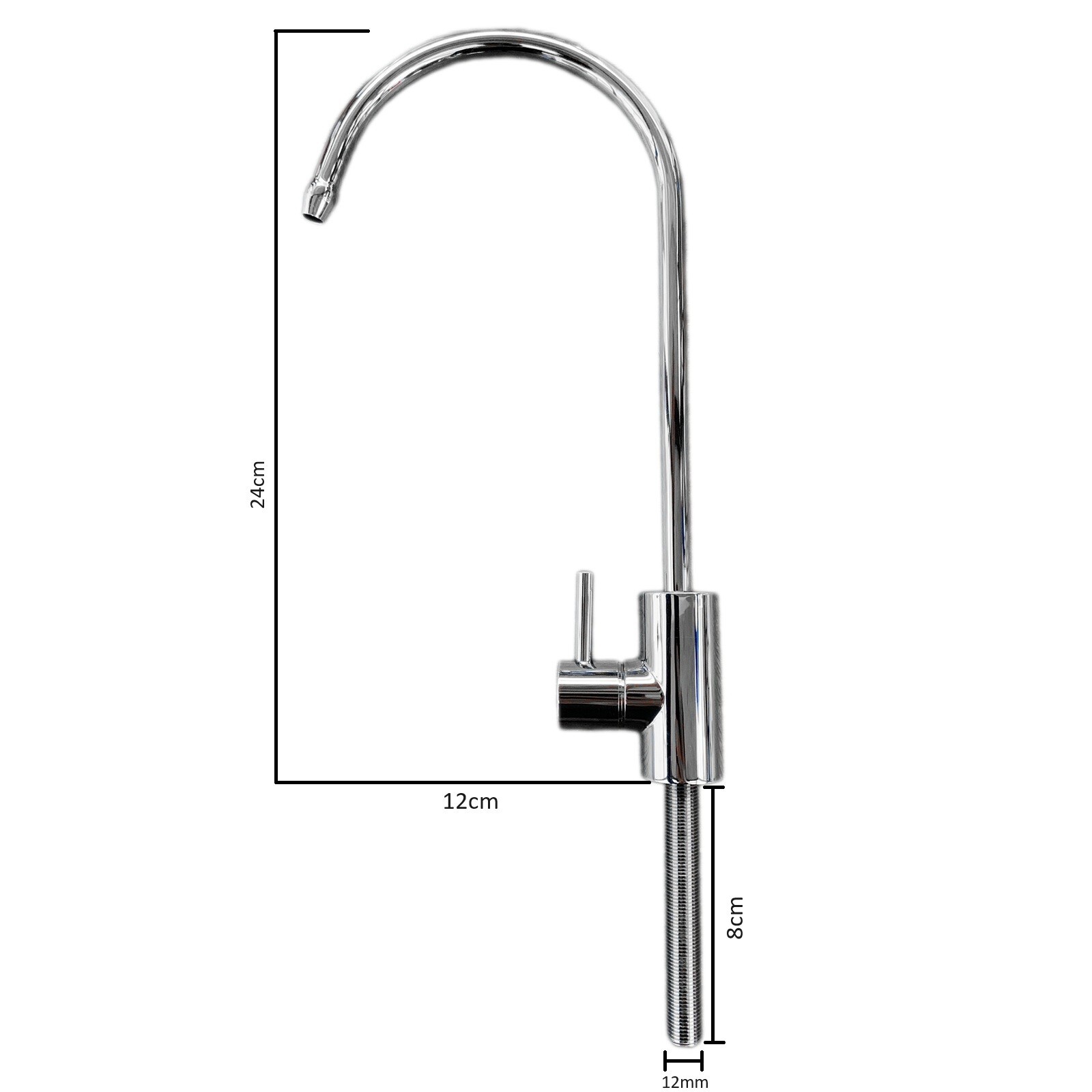

• An all chrome modern style faucet as pictured in the listing images.

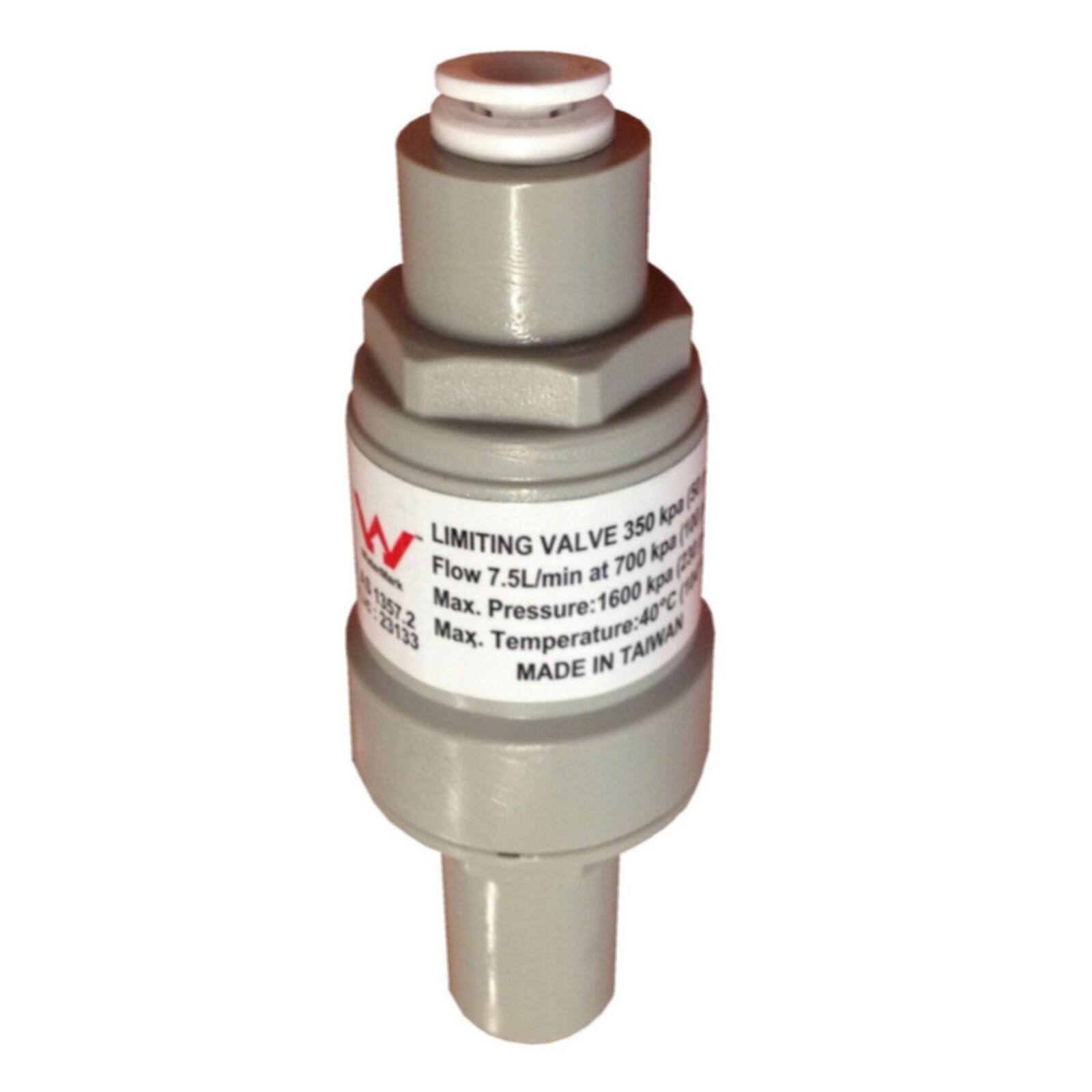

• An approved 350kpa pressure reducing valve as required by Australian standards.
• A housing spanner to open and close water filter housings.
• An installation kit including a roll of tubing, a roll of thread tape, spare fittings.
• An installation and maintenance guide.

*NB:You will need to let us know when checking out if you have specificrequirements regarding a 12v or 12v booster pump, tank size, inlet connectorsize and waste clamp size and if we don't receive any specific requests WITH yoursale, we will send according to stock levels and the onus is on you to let usknow of any specific requirements as we can't change order once an item hasbeen despatched and we generally dispatch within a day so sending requestedhours after you've checked will most likely mean your order will have alreadybeen sent
