PRODUCT CODE: ROP-6-AN

DOMESTIC SYSTEM WITH FINAL STAGE ANTIBACTERIAL NANO SILVER FILTER, BOOSTER PUMP AND INSTALL KIT FOR USE ON NON-POTABLE WATER WHERE INLET WATER PRESSURE IS TOO LOW TO WORK WITH REVERSE OSMOSIS WITHOUT A PRESSURE BOOSTER PUMP

THIS SYSTEM IS ASSEMBLED, LEAK + PRESSURE TESTED + PERFORMANCE RATED LOCALLY AT OUR QLD PREMISES

Reverse osmosis technology is known for its ability to produce pure water of a consistent quality, typically reducing the total contaminant in the feed water by +/- 96% on average. Our systems are effective in removing / reducing various contaminants from your drinking water, including fluoride, chlorine, cysts, bacteria and heavy metals among many other contaminants as indicated in the table below.

All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we use when assembling your system have NSF INTERNATIONAL (National Sanitation Foundation), WQA (Water Quality Association) or FDA (Food and Drug Administration) quality standard certification.

• Minimum feed pressure: 15psi / 100kpa
• Recommended feed pressure: 15-80psi / 100-550kpa
• Minimum operating temperature: 5°C / 40°F
• Maximum operating temperature: 45°C / 110°F
• Minimum feed water pH: pH 3
• Maximum feed water pH: pH 11
• Maximum feed water TDS: 1000ppm
• Production rate: 100GPD / 380LPD

*Where the feed water TDS reading is high, the minimum operating pressure of the unit may be affected. If your feed water TDS is in excess of 400ppm we recommend that you consult us before you purchase.

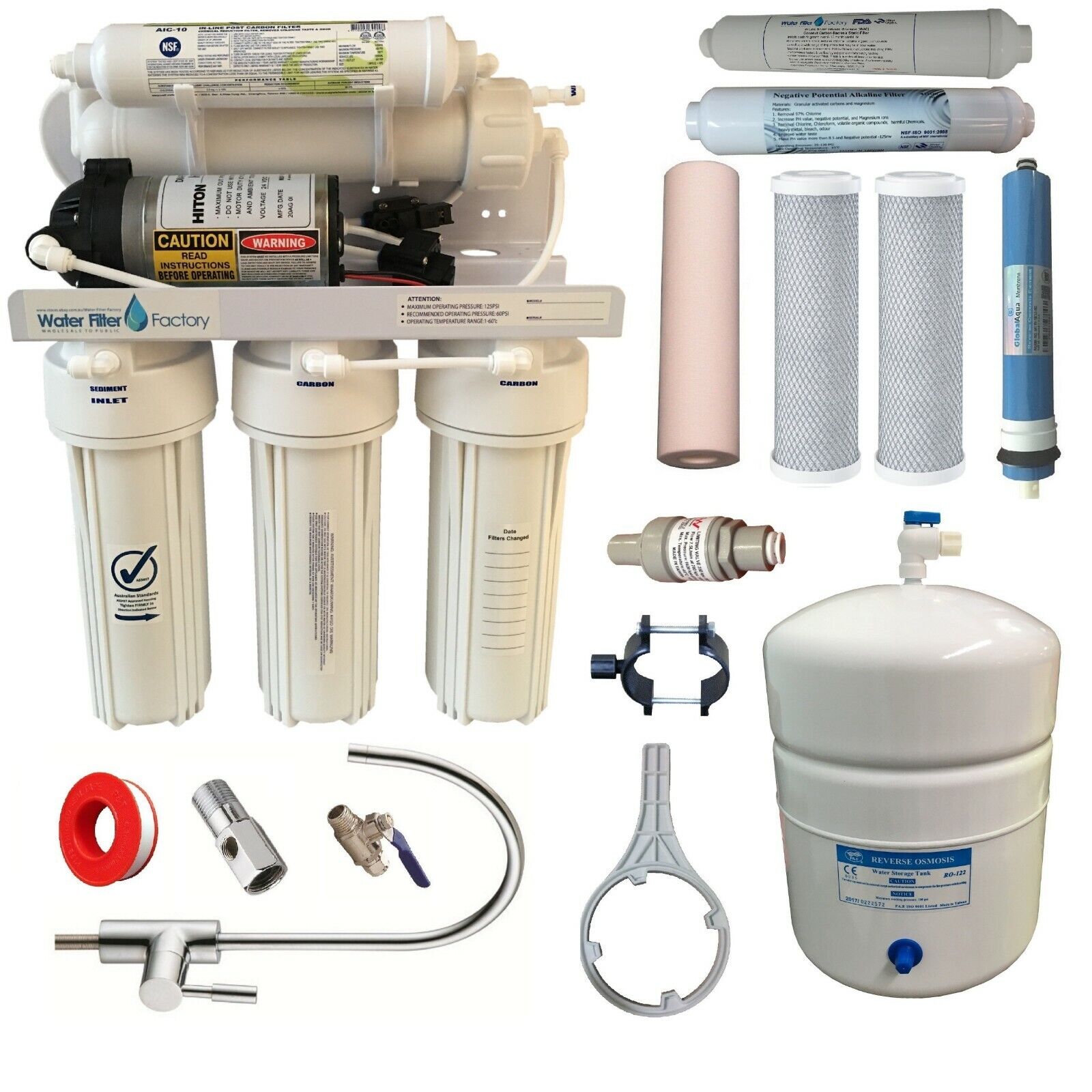

• Multi stage reverse osmosis unit:
• AS3497 tested and compliant 10"x2.5" pre-filter housings.
• One 10"x2.5" 1 micron spun sediment pre-filter.
• Two 10"x2.5" 5 micron coconut carbon block pre-filter.

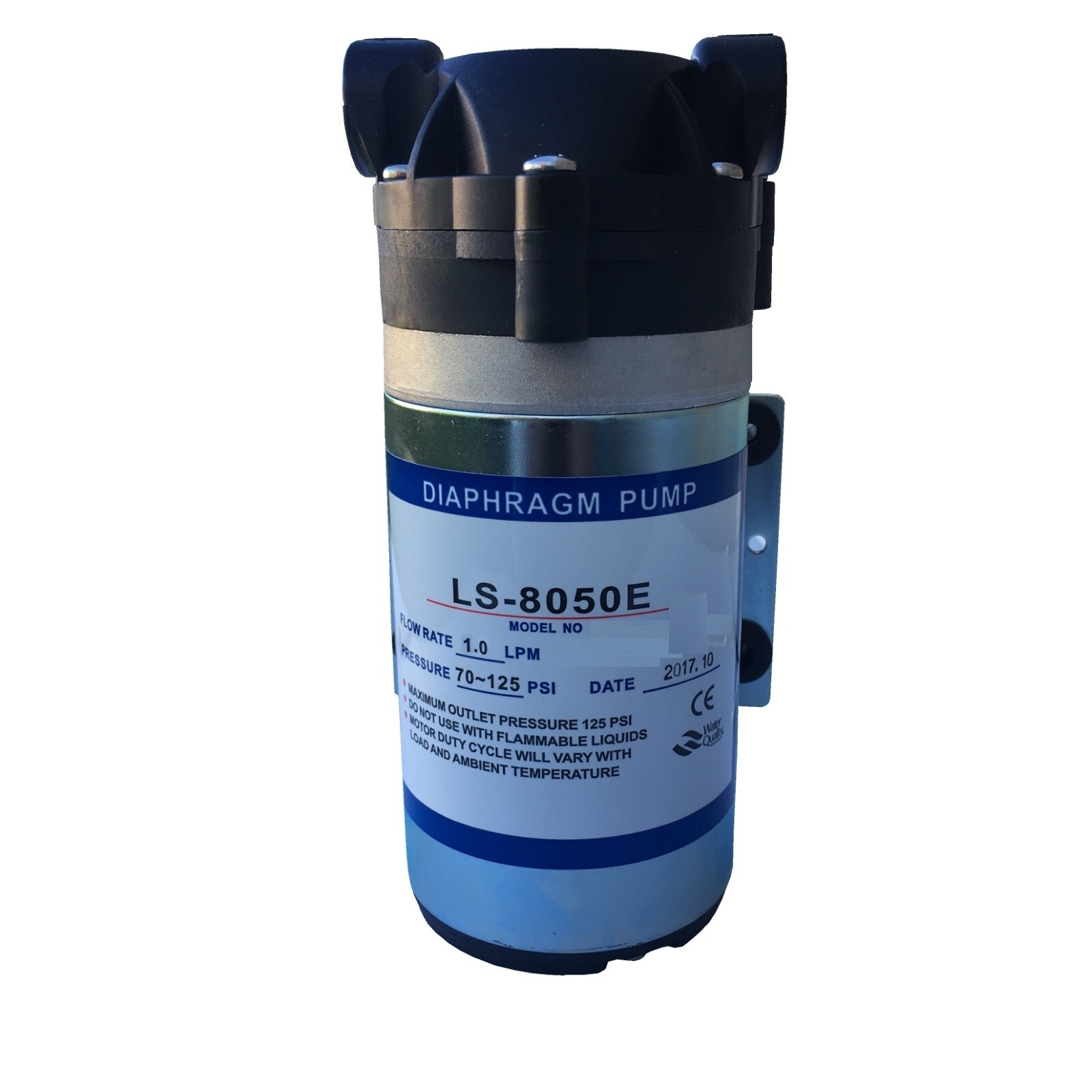

• 1x 12v* or 24v* diaphragm pressure booster pump [including Australian approved transformer].

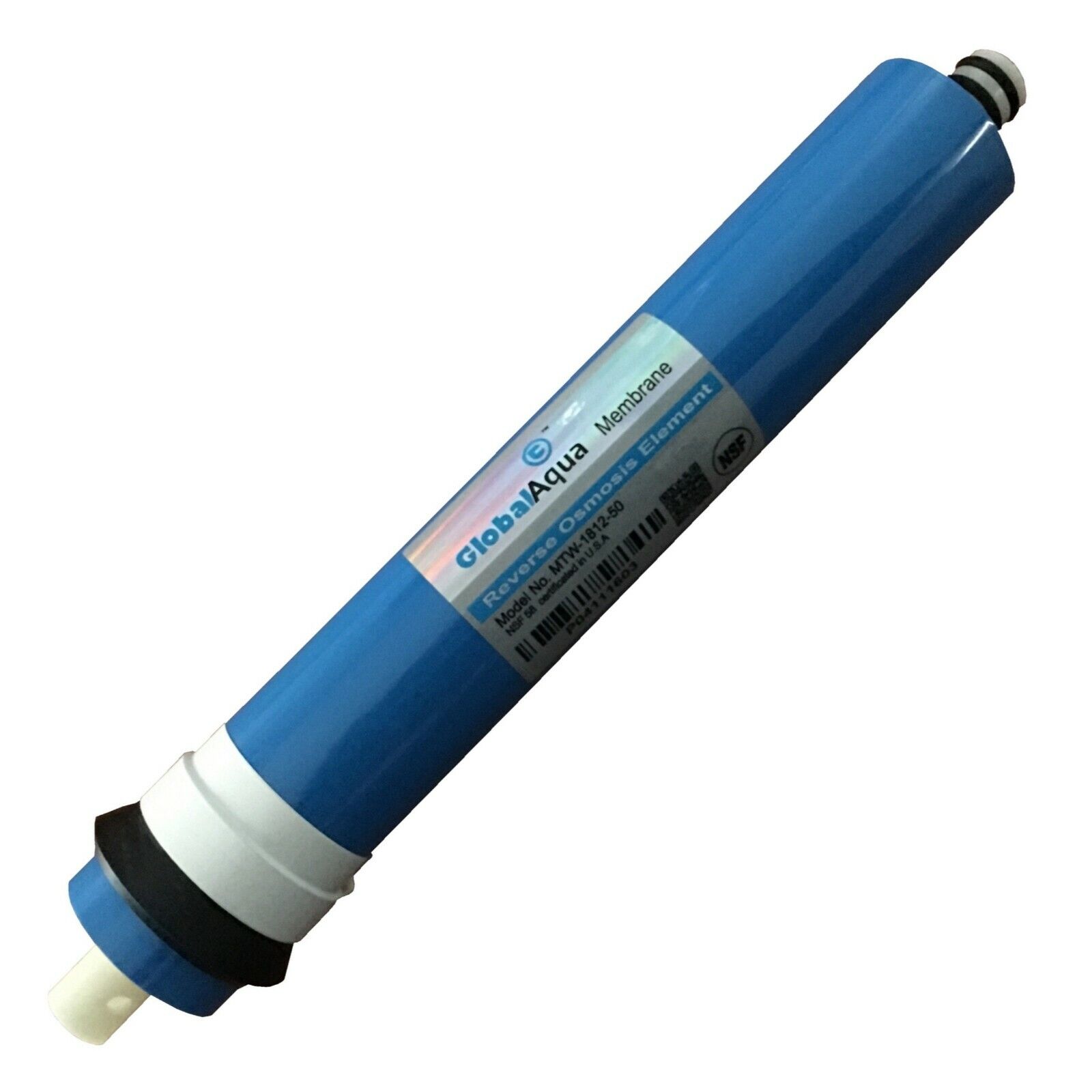

• One 100GPD NSF compliant TFC membrane made using materials sourced from the USA.

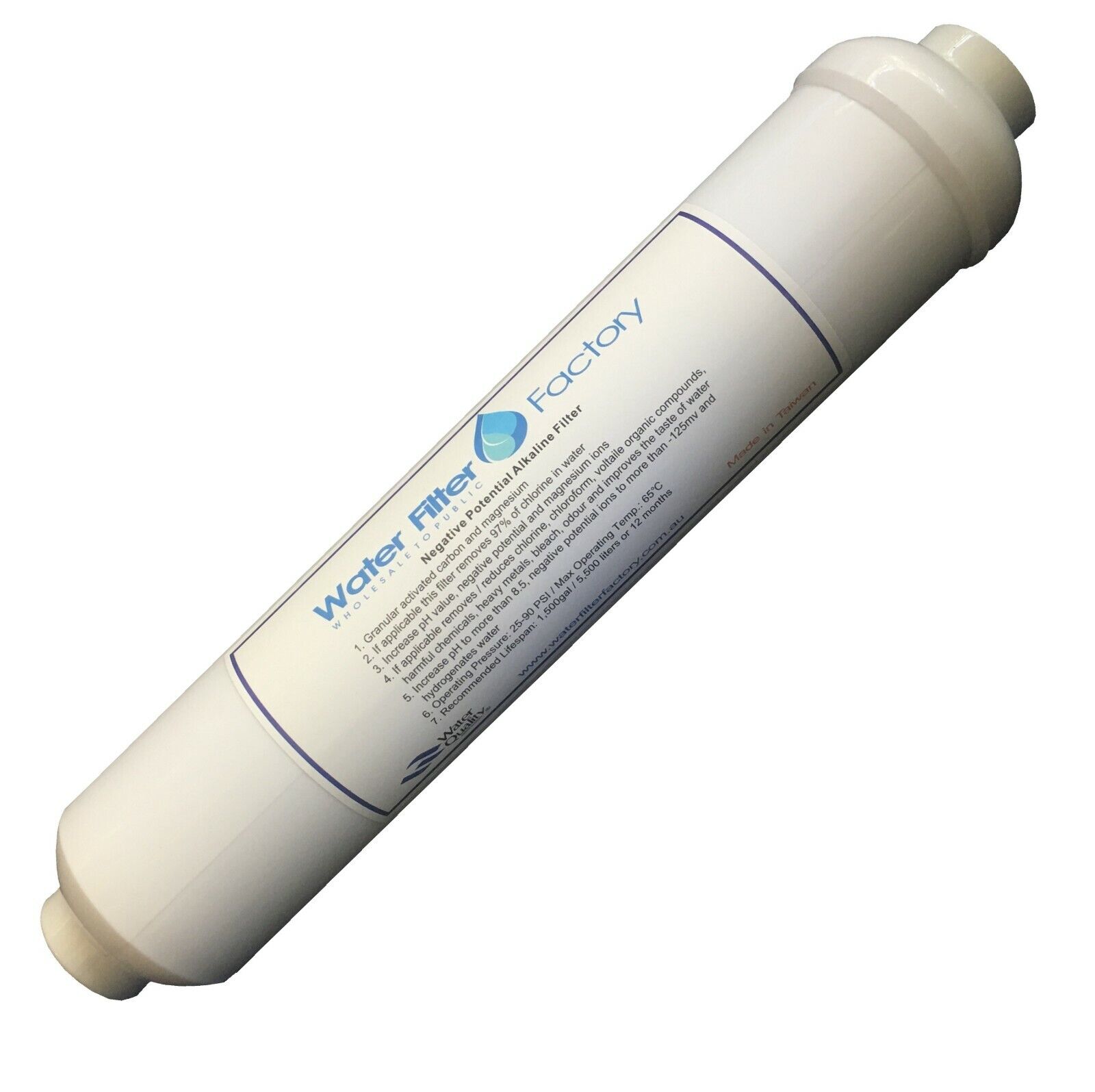

• One in line post membrane coconut carbon + magnesium alkalising water filter.

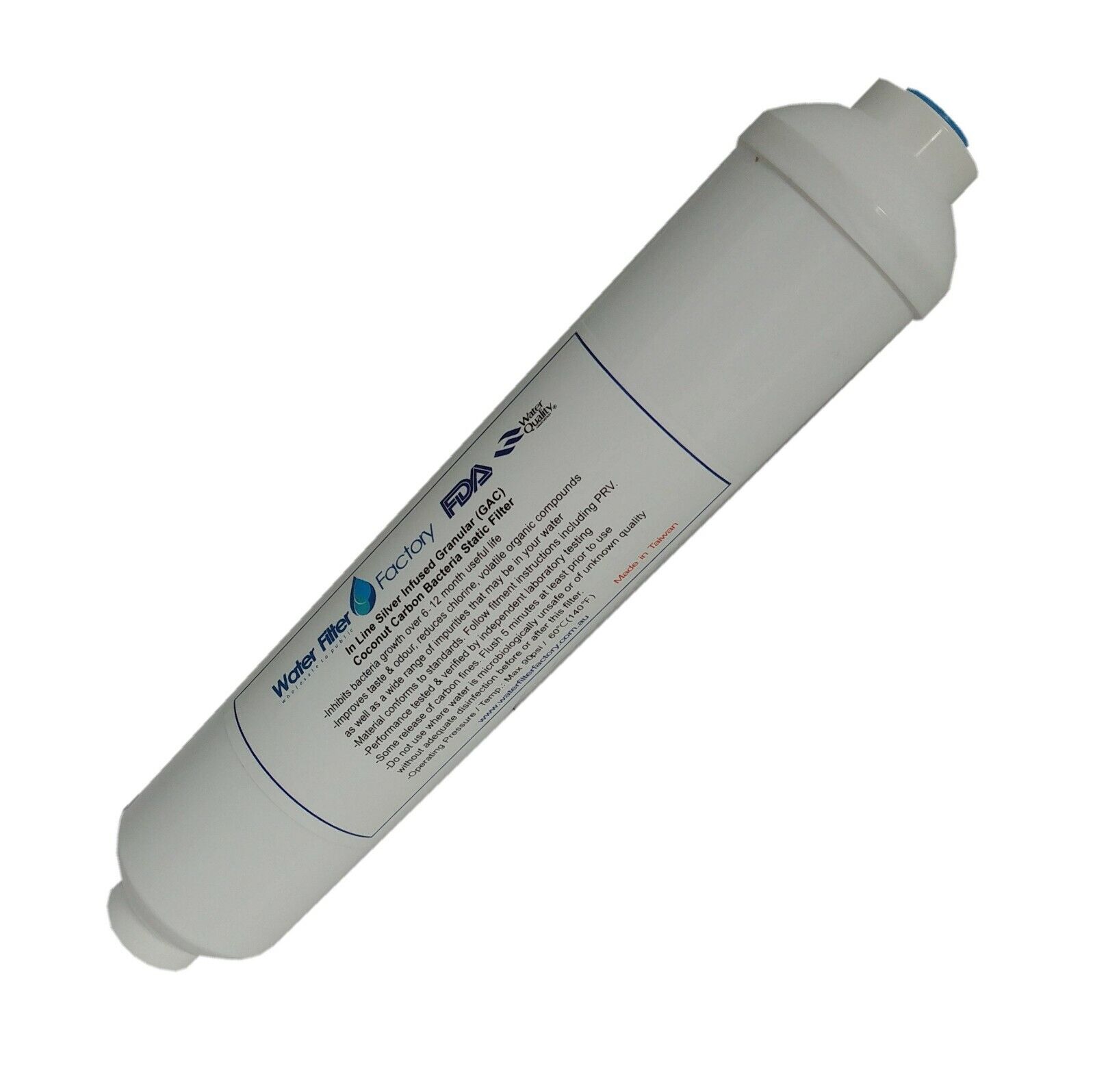

• One final stage 0.5uM nano silver coconut carbon 99.99% anti-bacterial water filter.

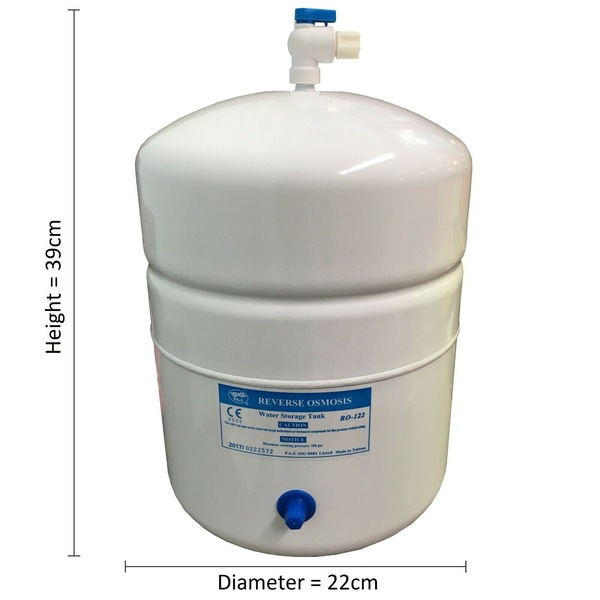

• Your choice of one of the following accumulator tanks: 5 Litre* - (33cm height, 20cm diameter). 8 Litre* - (39cm height, 22cm diameter).
• Your choice of one of the following feed/inlet fittings: 1/2" insert* - Shares normal cold water line to most mixer taps. 3/4" insert* - Shares normal cold water line to most dishwasher.
• Your choice of one of the following waste drain clamp fittings: 40mm* solid clamp. 50mm* adjustable clamp.

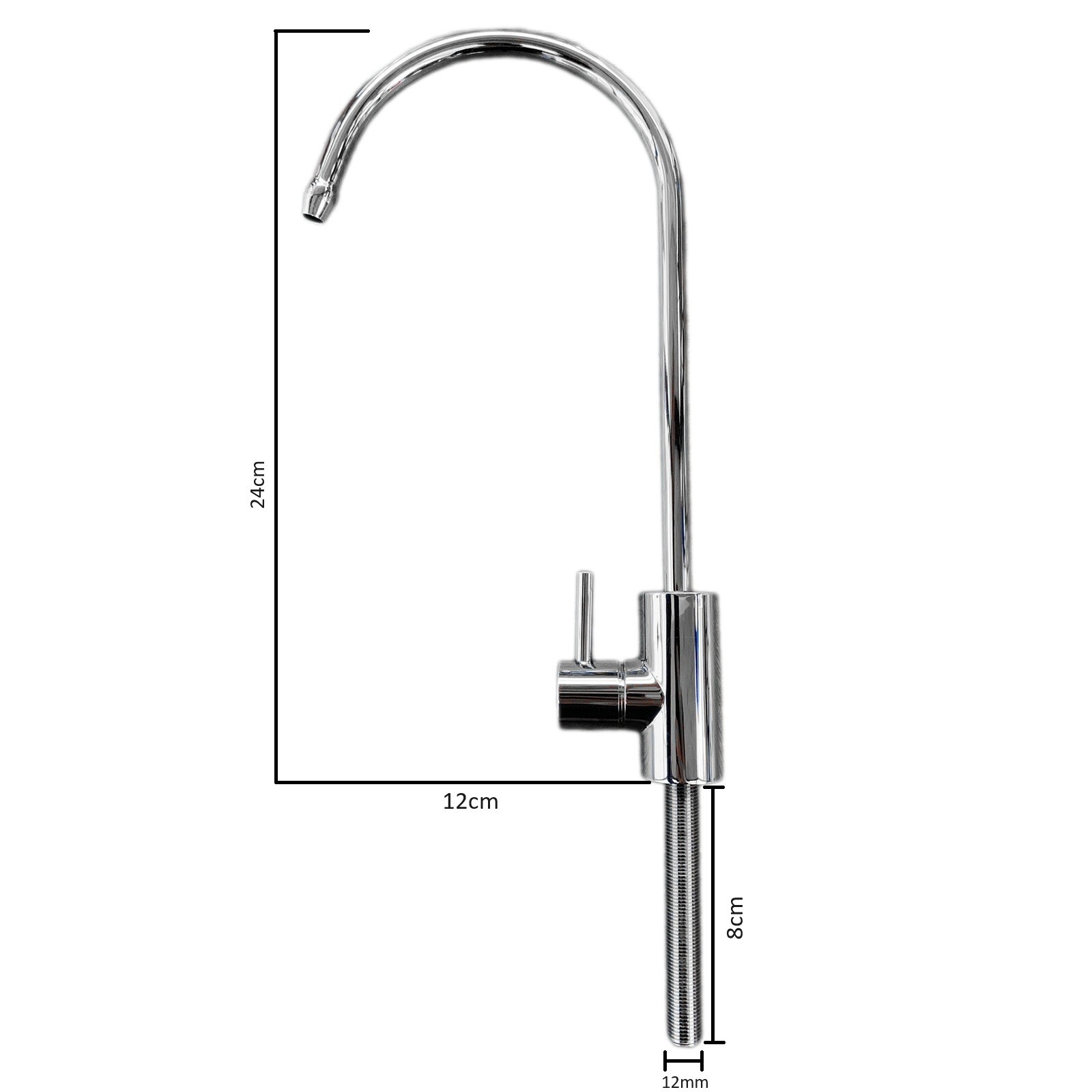

• An all chrome modern style faucet as pictured in the listing images.
• An approved 350kpa pressure reducing valve as required by Australian standards.
• A housing spanner to open and close water filter housings.
• An installation kit including a roll of tubing, a roll of thread tape, spare fittings.
• An installation and maintenance guide.
