7 STAGE MINERALISING REVERSE OSMOSIS PURIFIERPRODUCT CODE: ROP-7-MGUDOMESTIC SYSTEM WITH FINAL STAGE ANTIBACTERIAL ULTRA VIOLET WATER STERILISER, BOOSTER PUMP AND INSTALL KIT FOR USE ON NON-POTABLE WATER WHERE INLET WATER PRESSURE IS TOO LOW TO WORK WITH REVERSE OSMOSIS WITHOUT A PRESSURE BOOSTER PUHIS SYSTEM IS ASSEMBLED, LEAK + PRESSURE TESTED + PERFORMANCE RATED LOCALLY AT OUR QLD PREMISESUV (Ultraviolet) sterilisation is widely used in the water and air sterilisation industries, and plays a significant role in the medical industries. UV is effectively used to treat for 99.9% of present micro organisms, including: Bacteria, Viruses, Algae, Fungi, Cryptosporidium and Giardia.Our locally assembled reverse osmosis units are designed to provide the purest possible drinking water at a reasonable price. All of our locally assembled units are leak tested overnight under pressure and checked to ensure that they are operating optimally and producing water of a standard that meets our quality guidelines.Reverse osmosis technology is known for its ability to produce pure water of a consistent quality, typically reducing the total contaminant in the feed water by +/- 96% on average. Our systems are effective in removing / reducing various contaminants from your drinking water, including fluoride, chlorine, cysts, bacteria and heavy metals among many other contaminants as indicated in the table below.

CONTAMINANTREDUCTIONCONTAMINANTREDUCTIONBarium97%Potassium99.9%Bicarbonate99.9%Radium97%Cadmium97%Selenium97%Calcium (Hardness)99.9%Silicate99%Chromate95%Silver99%Copper97%Sodium98%Detergents97%Strontium97%Fluoride99%-99.9%Sulphate99.9%Lead97%PCB’s97%Magnesium99.9%Insecticides97%Nickel97%Herbicides97%All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we use when assembling your system have NSF INTERNATIONAL (National Sanitation Foundation), WQA (Water Quality Association) or FDA (Food and Drug Administration) quality standard certification.

SYSTEM SPECIFICATIONS:Minimum feed pressure15psi / 100kpaRecommended feed pressure15-80psi / 100-550kpaMinimum operating temperature5°C / 40°FMaximum operating temperature45°C / 110°FMinimum feed water pHpH 3Maximum feed water pHpH 11Maximum feed water TDS1000ppm*Production rate100GPD / 380LPD*Where the feed water TDS reading is high, the minimum operating pressure of the unit may be affected. If your feed water TDS is in excess of 400ppm we recommend that you consult us before you purchase. Generally these systems are suited to most town mains water supplies, however if you are intending to use the unit on tank or bore water we recommend testing the feed pressure and water quality first.

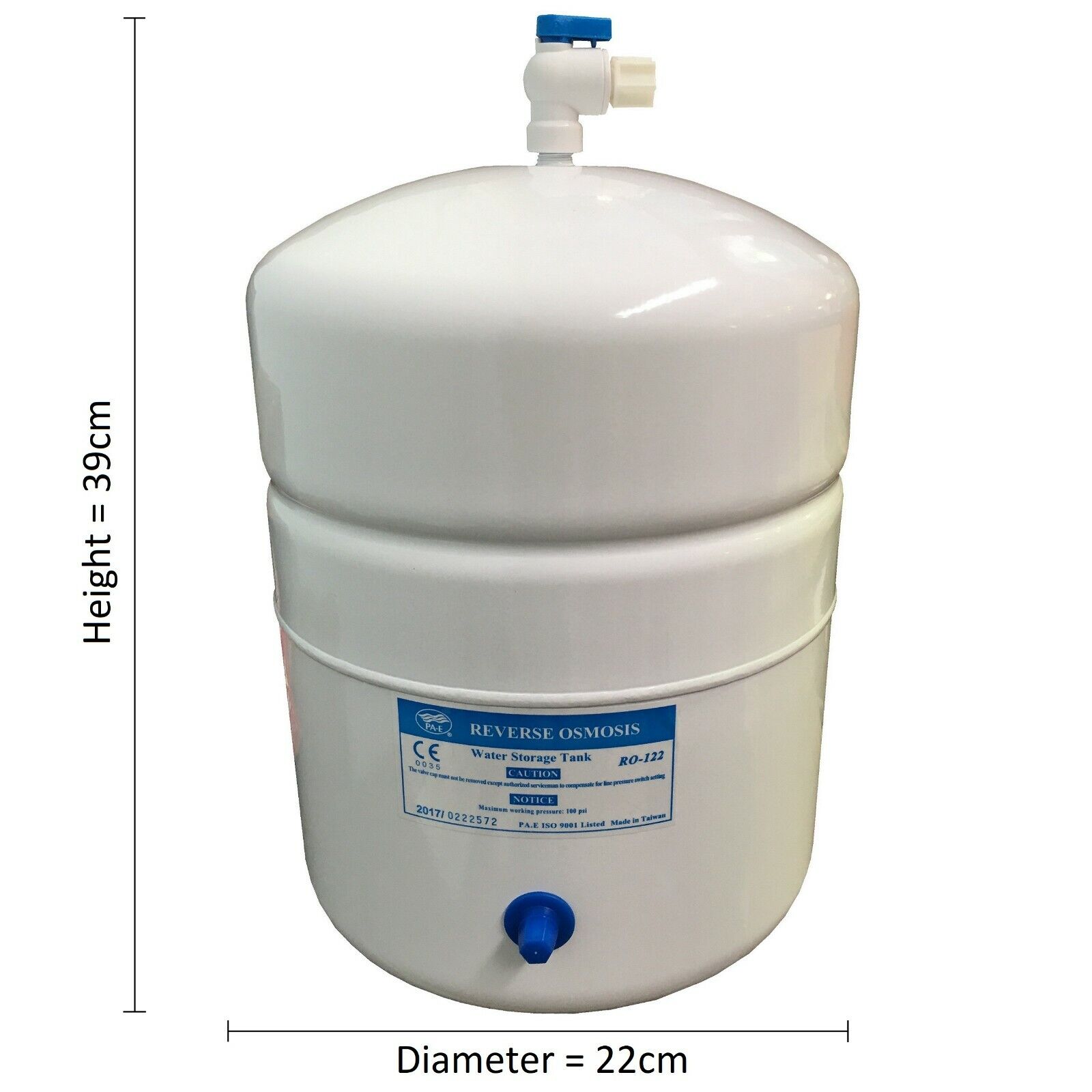

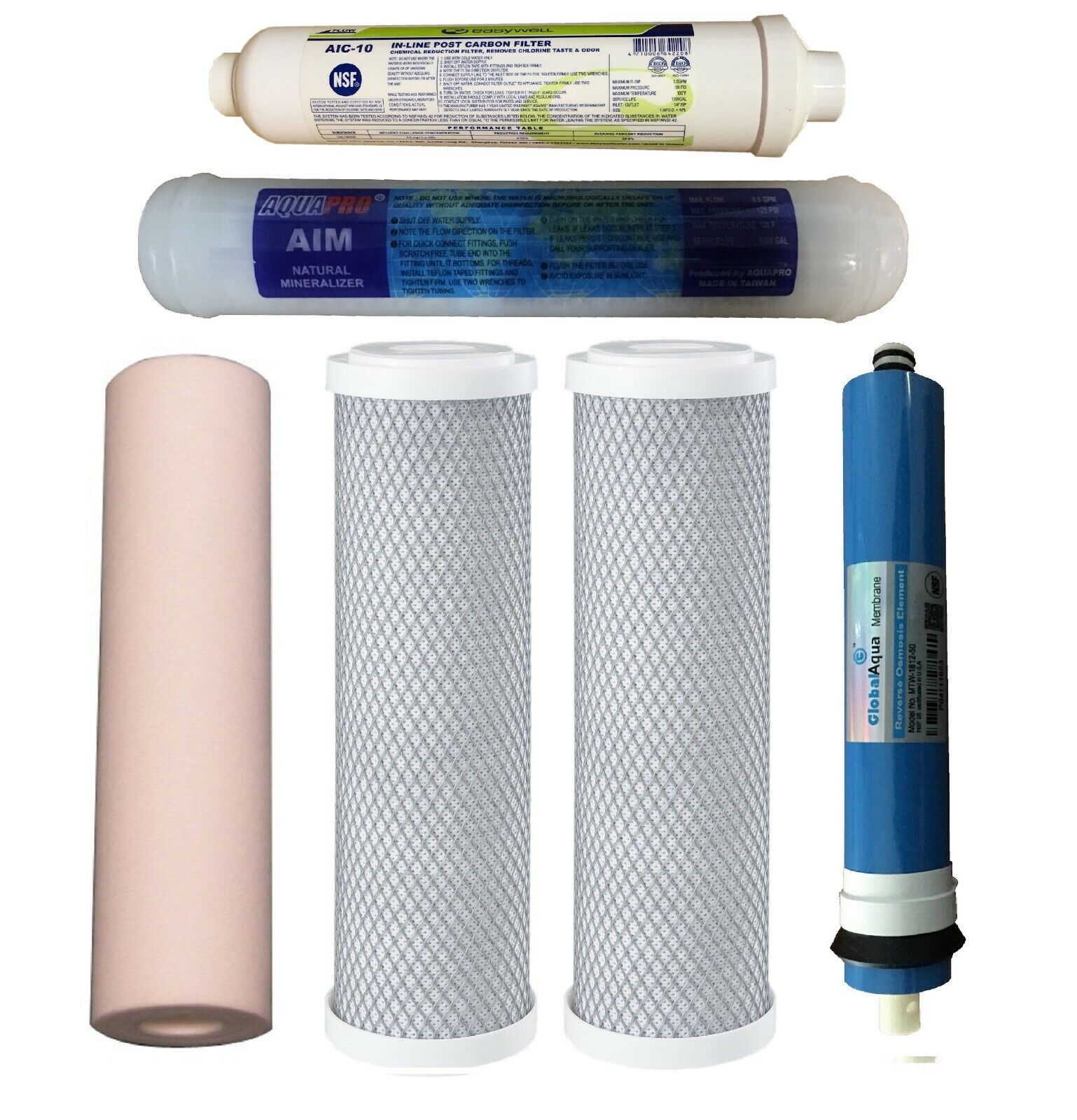

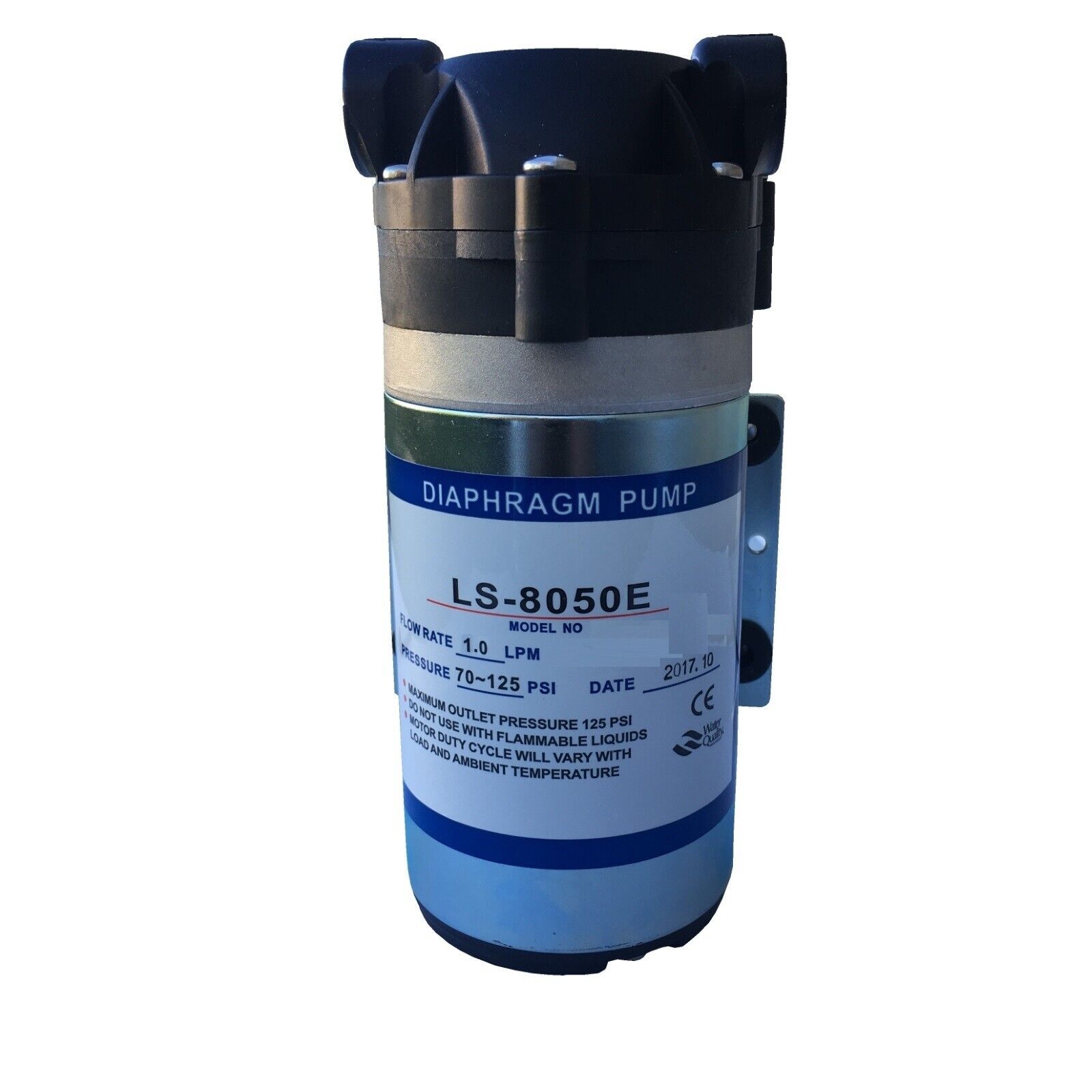

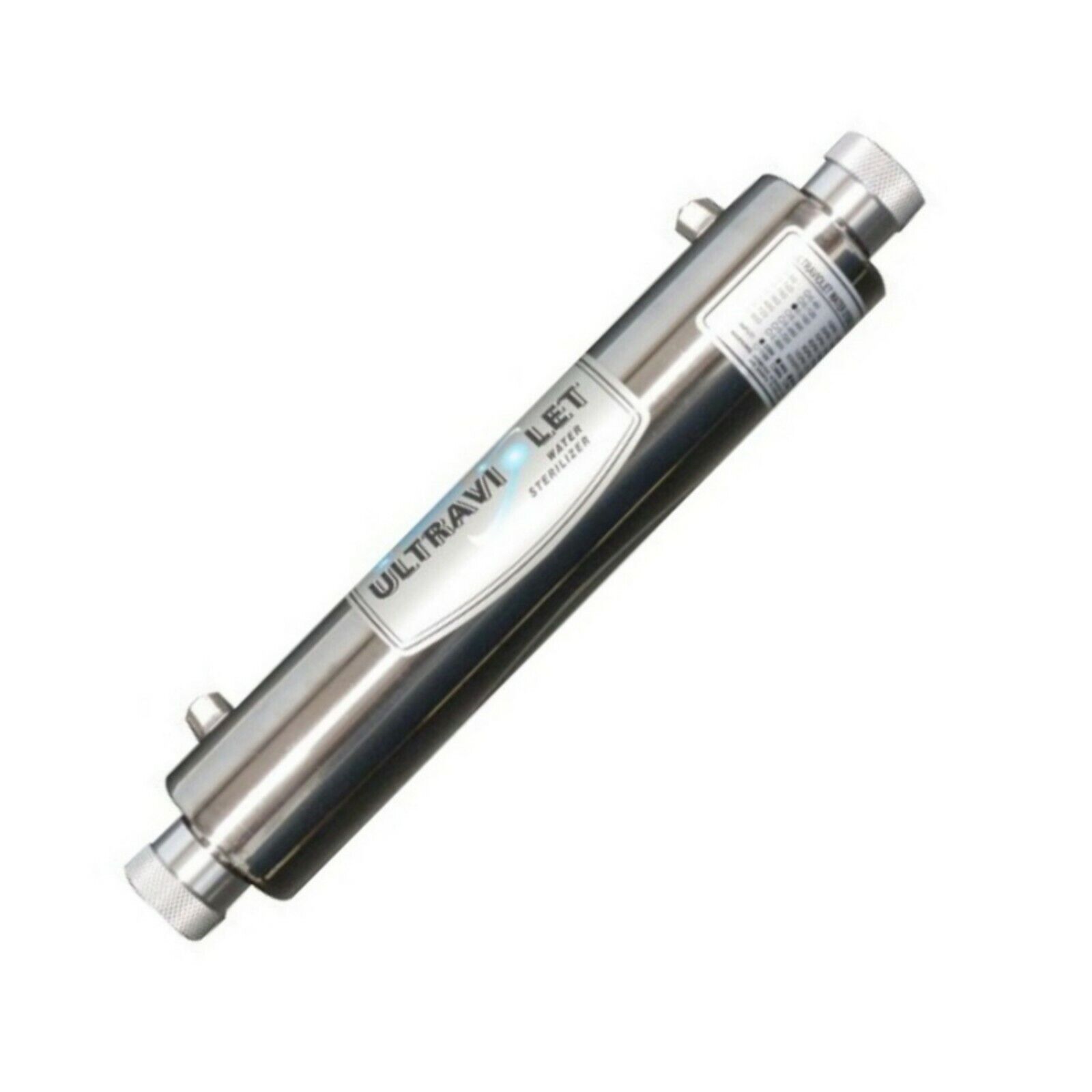

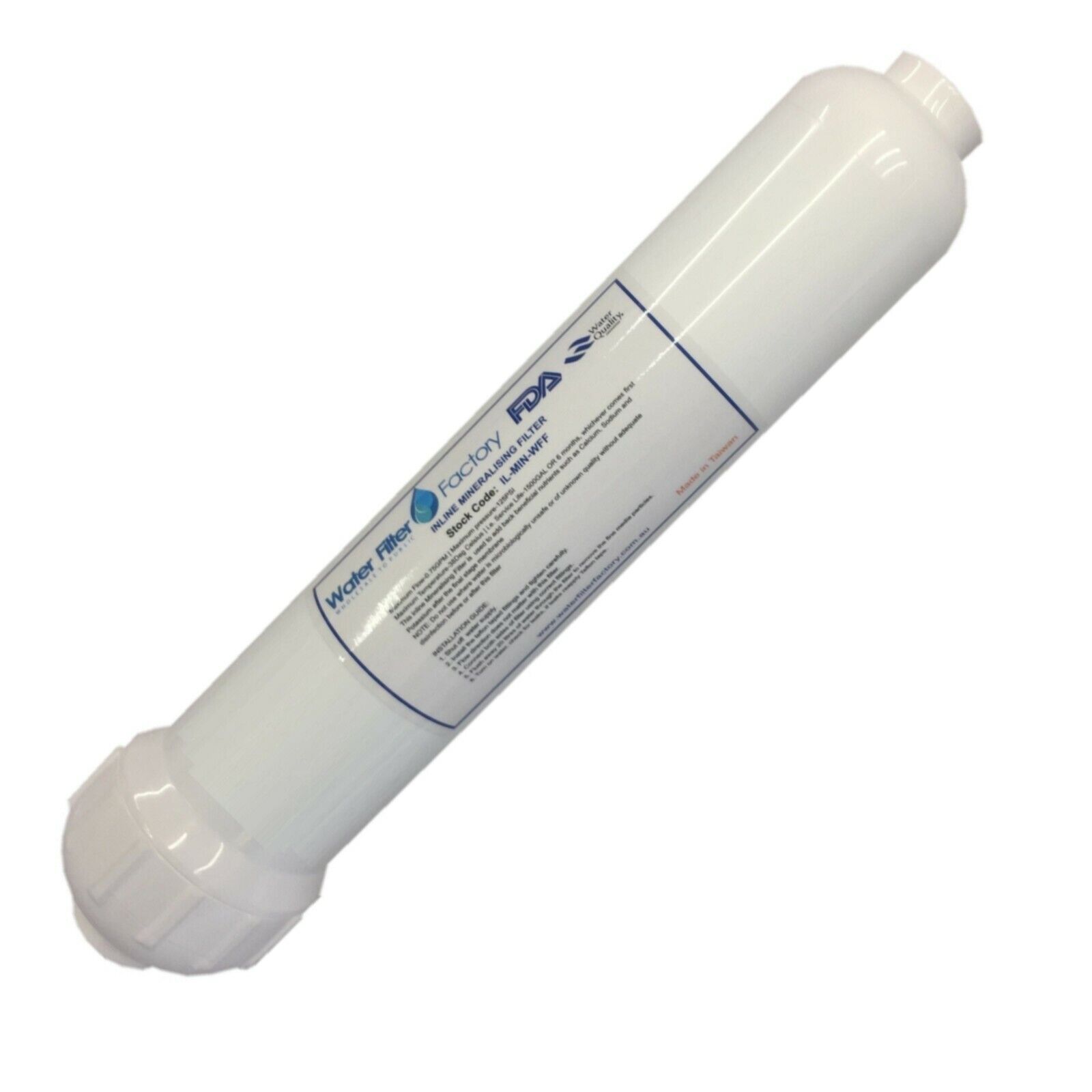

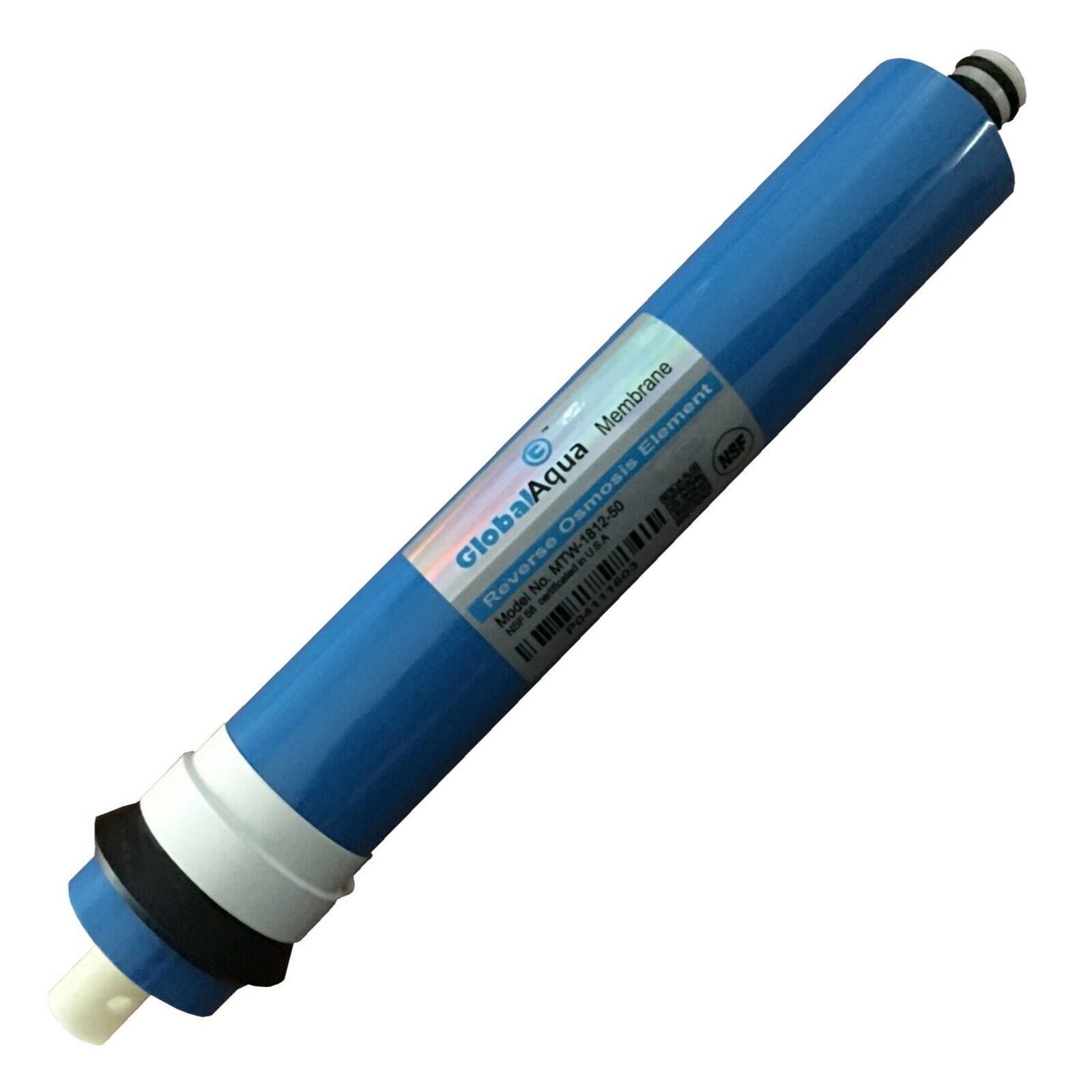

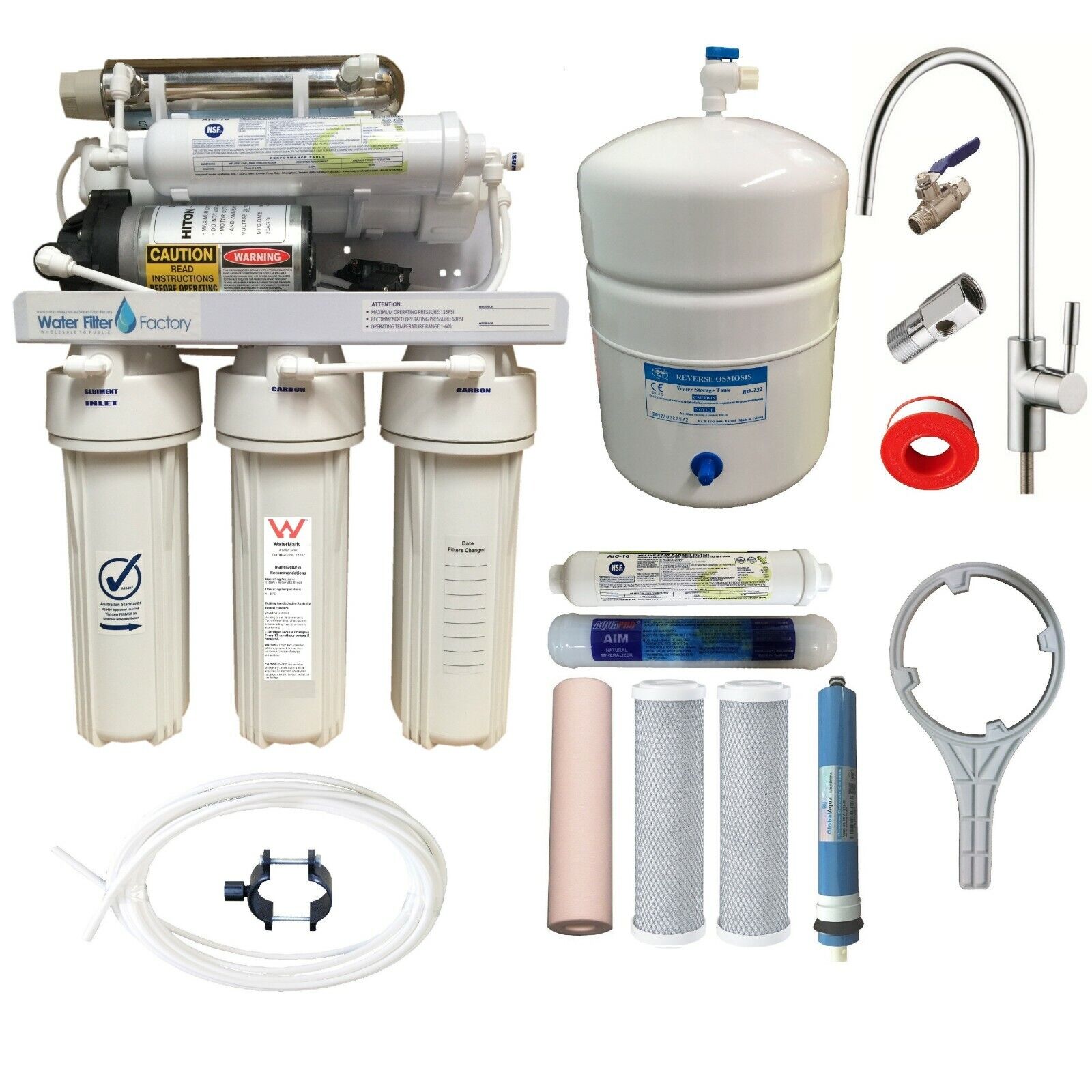

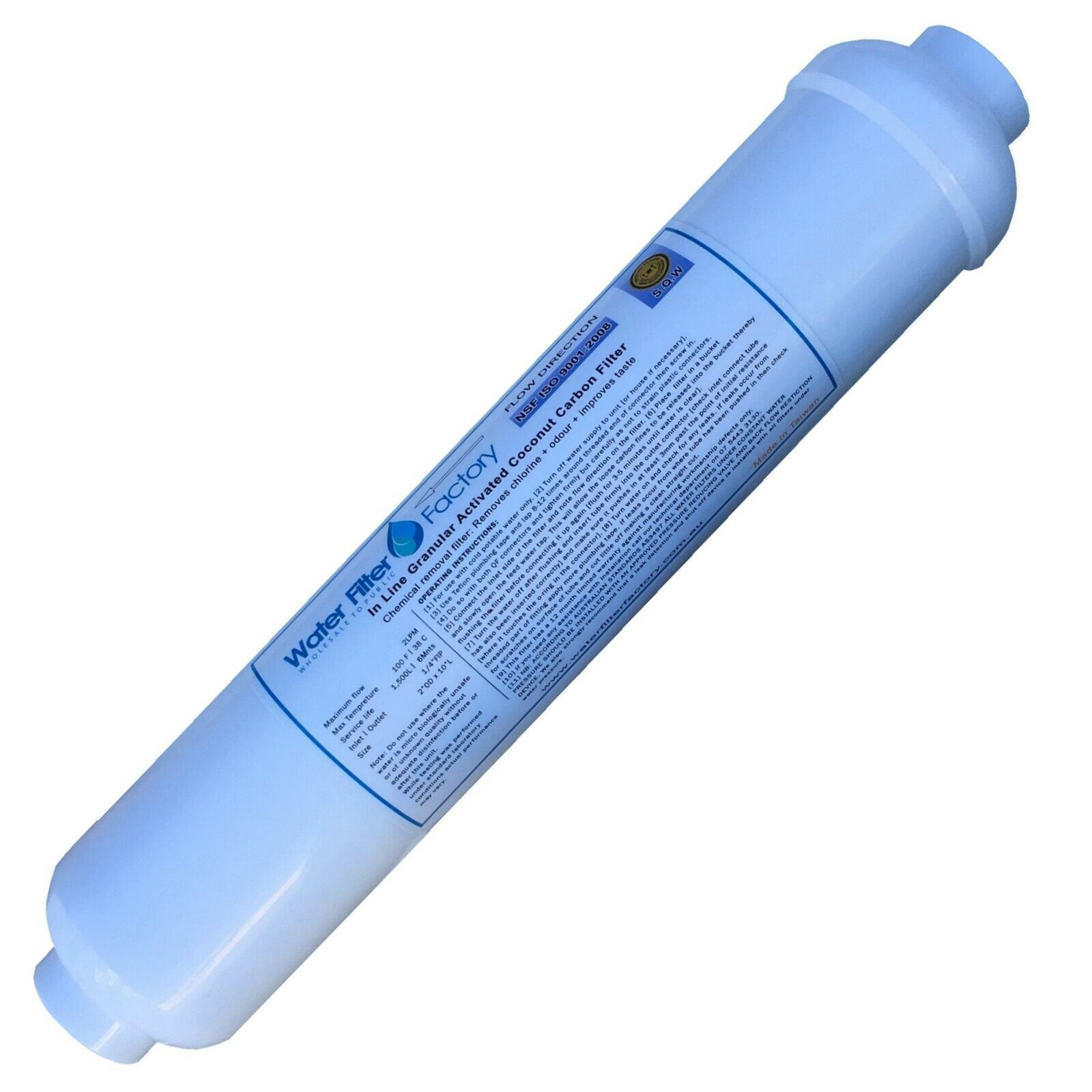

KIT INCLUDES:Multi stage reverse osmosis unit:AS3497 tested and compliant 10"x2.5" pre-filter housings.One 10"x2.5" 1 micron spun sediment pre-filter.Two 10"x2.5" 5 micron coconut carbon block pre-filter.One 12v* or 24v* 1.0LPM diaphragm booster pump [including Australian approved transformer].One 100GPD NSF compliant TFC membrane made using materials sourced from the USA.One in line post membrane mineralising water filter.One in line post membrane coconut carbon water filter.One stainless steel 6w ultra violet water steriliser [per 1st listing image].Your choice of one of the following accumulator tanks:5 Litre* - (33cm height, 20cm diameter).8 Litre* - (39cm height, 22cm diameter).Your choice of one of the following feed/inlet fittings:1/2" insert* - Shares normal cold water line to most mixer taps.3/4" insert* - Shares normal cold water line to most dishwasher.Your choice of one of the following waste drain clamp fittings:40mm* solid clamp.50mm adjustable clamp.An all chrome modern style faucet as pictured in the listing images.An approved 350kpa pressure reducing valve as required by Australian standards.A housing spanner to open and close water filter housings.An installation kit including a roll of tubing, a roll of thread tape, spare fittings.An installation and maintenance guide.* NB: You will need to let us know when checking out if you have specific requirements regarding a 12v or 12v booster pump, tank size, inlet connector size and waste clamp size and if we don't receive any specific requests WITH your sale, we will send according to stock levels and the onus is on you to let us know of any specific requirements as we can't change order once an item has been despatched and we generally dispatch within a day so sending requested hours after you've checked will most likely mean your order will have already been sentIf you want a 12 Litre - (39cm height, 26cm diameter) reverse osmosis buffer tank it's $ 30 extra and you'll need to let us know when checking out that you need the 12 litre tank and we'll send you an invoice for the extra $ 30.NOTE: UV sterilisers produce a small amount of heat when operating. If left to sit for an extended period of time the water inside the UV steriliser can warm up, this may mean that the first glass of water out of the system is warm. If this is an issue we offer silver based antibacterial filters that can be used in place of the UV steriliser.
