PRODUCT CODE: RON6-GU

DOMESTIC SYSTEM WITH ULTRA-VIOLET STERILISER AND INSTALL KIT

• Our locally assembled reverse osmosis units are designed to provide the purest possible drinking water at a reasonable price.
• All of our locally assembled units are leak tested overnight under pressure and checked to ensure that they are operating optimally and producing water of a standard that meets our quality guidelines.
• Reverse osmosis technology is known for its ability to produce pure water of a consistent quality, typically reducing the total contaminant in the feed water by +/- 96% on average.
• Our systems are effective in removing/reducing various contaminants from your drinking water, including fluoride, chlorine, cysts, bacteria and heavy metals among many other contaminants as indicated in the table below.

All of the parts that come into contact with the water in our systems are manufactured from BPA free food grade plastics. All of the filters and parts that we use when assembling your system have NSF INTERNATIONAL (National Sanitation Foundation), WQA (Water Quality Association) or FDA (Food and Drug Administration) quality standard certification.

• Minimum feed pressure: 45psi / 300kpa
• Recommended feed pressure: 60-80psi / 400-550kpa
• Minimum operating temperature: 5°C / 40°F
• Maximum operating temperature: 45°C / 110°F
• Minimum feed water pH: pH 3
• Maximum feed water pH: pH 11
• Maximum feed water TDS: 1000ppm*
• Production rate: 50GPD / 190LPD

*Where the feed water TDS reading is high, the minimum operating pressure of the unit may be affected. If your feed water TDS is in excess of 400ppm we recommend that you consult us before you purchase. Generally these systems are suited to most town mains water supplies, however if you are intending to use the unit on tank or bore water we recommend testing the feed pressure and water quality first.

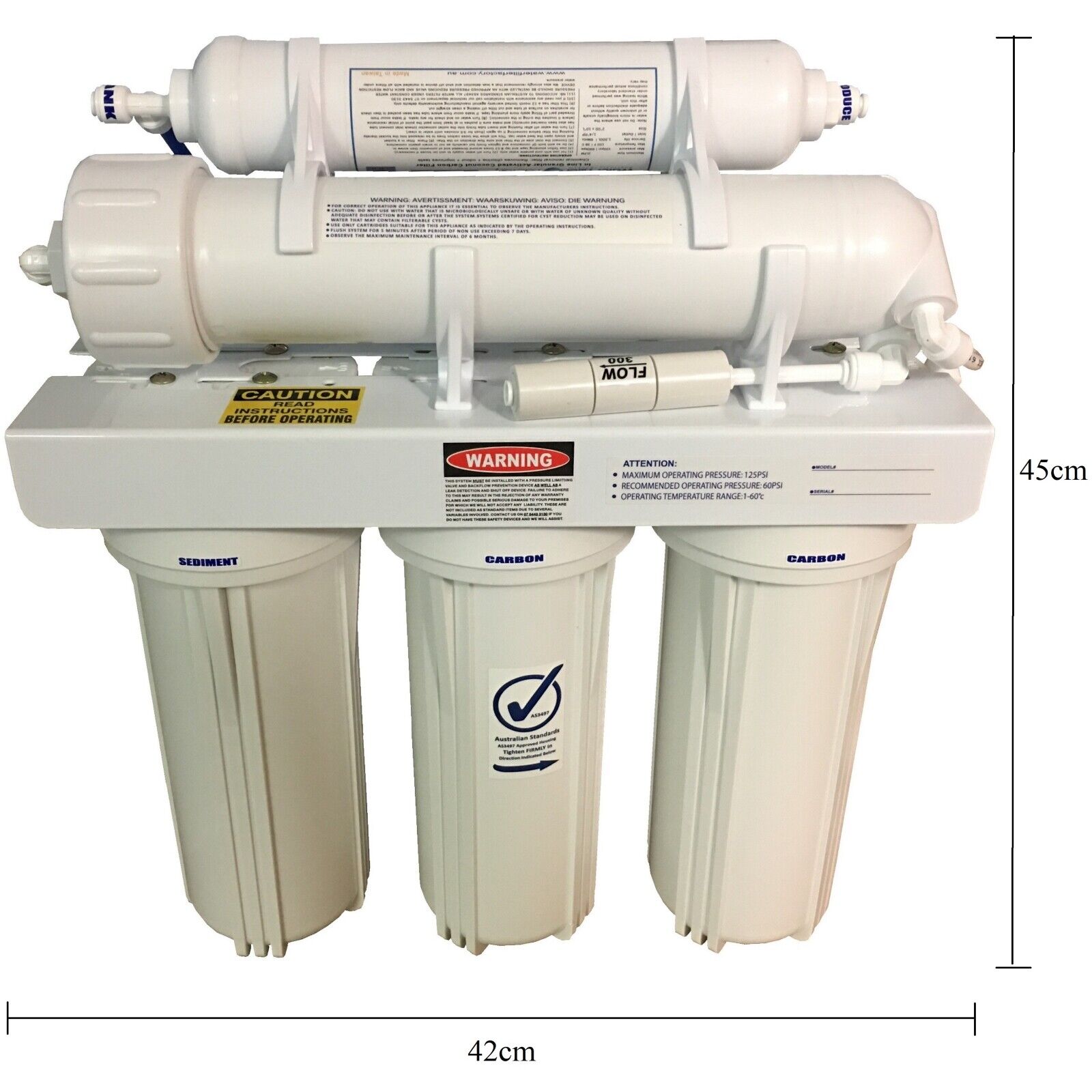

• Multi stage reverse osmosis unit: AS3497 tested and compliant 10"x2.5" pre-filter housings.

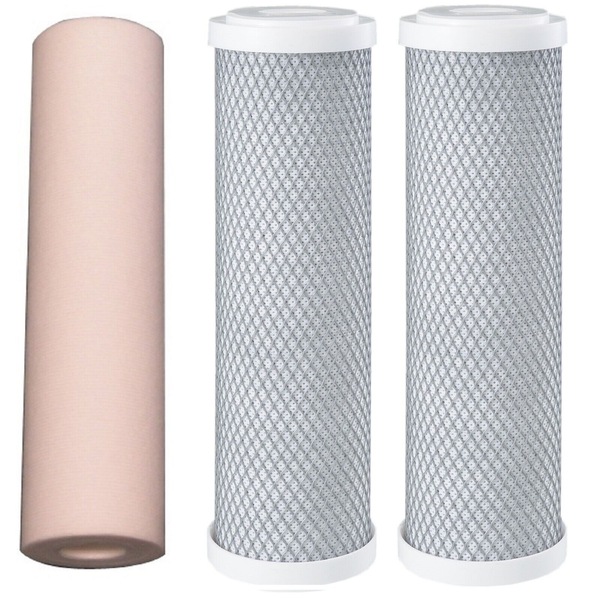

• One 10"x2.5" 1 micron spun sediment pre-filter.
• Two 10"x2.5" 5 micron coconut carbon block pre-filter.

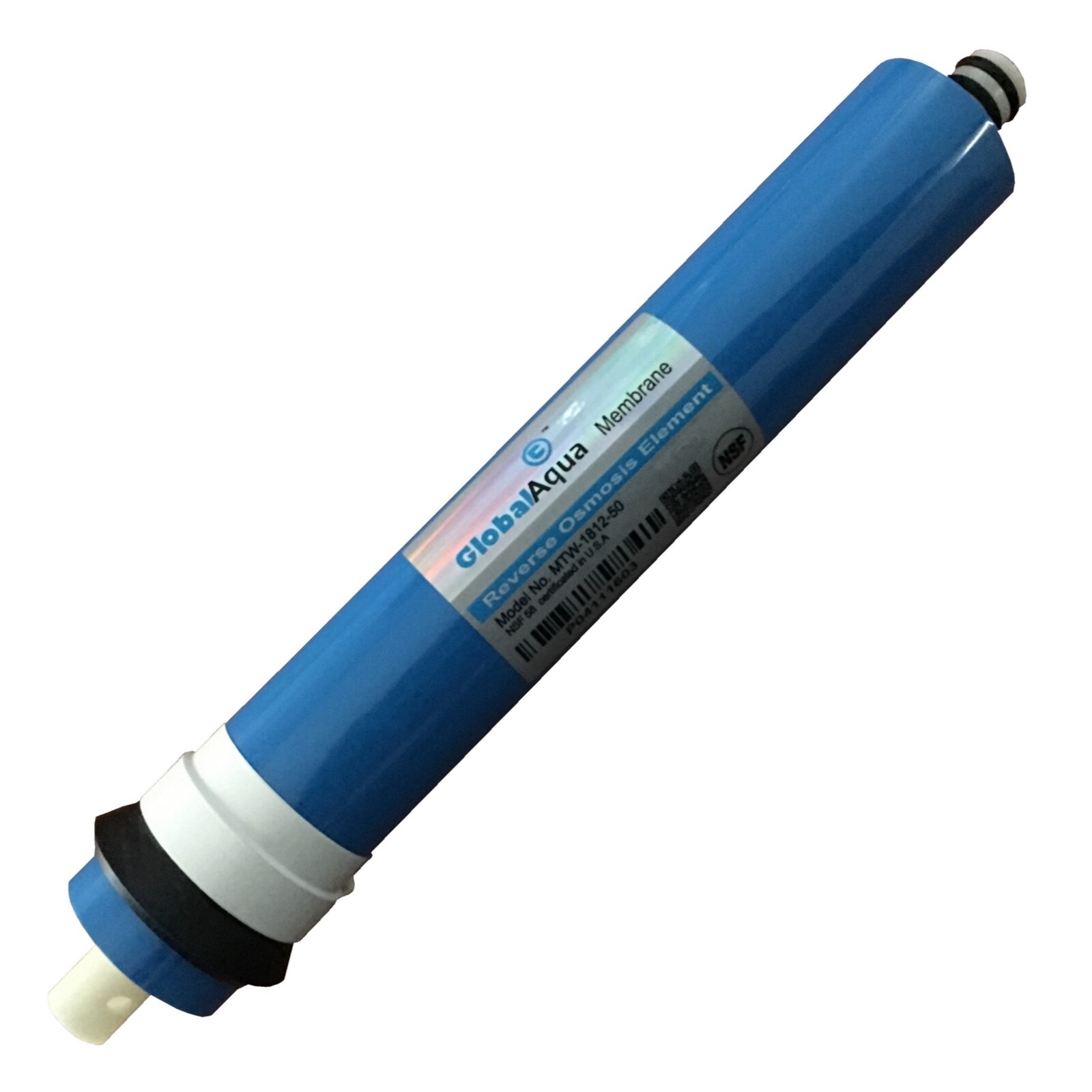

• One 50GPD NSF compliant TFC membrane.

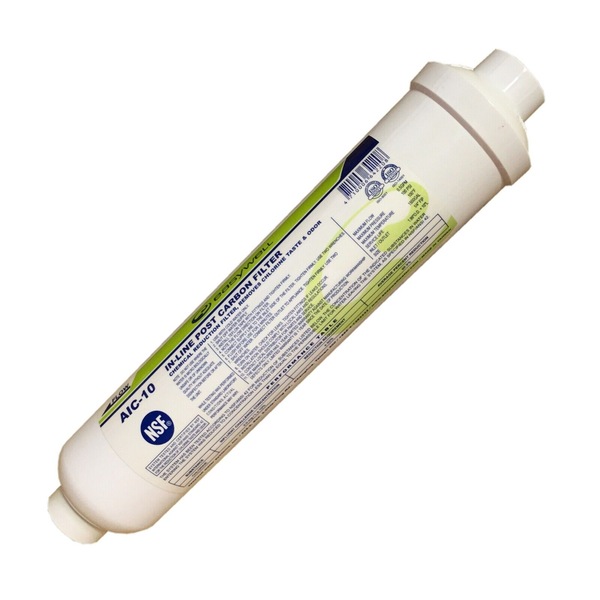

• One in line post membrane coconut carbon water filter.

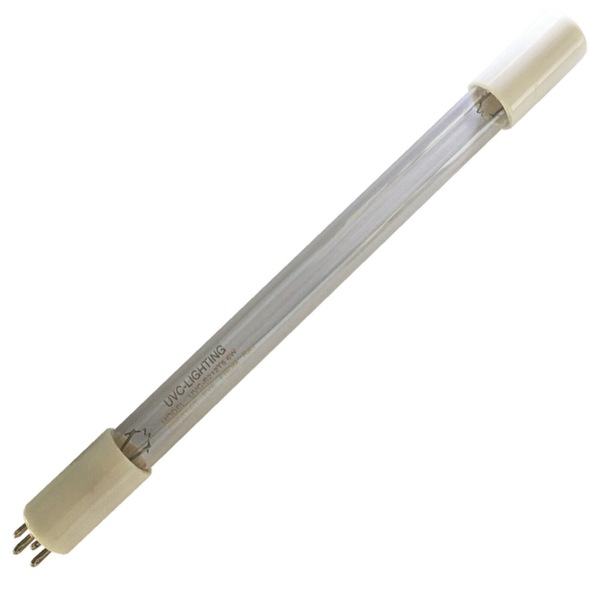

• One 6w ultra violet UV water sterilising unit with ballast
• Your choice of one of the following accumulator tanks:
  • 5 Litre - [Per picture 10 = 33cm height x 20cm diameter].

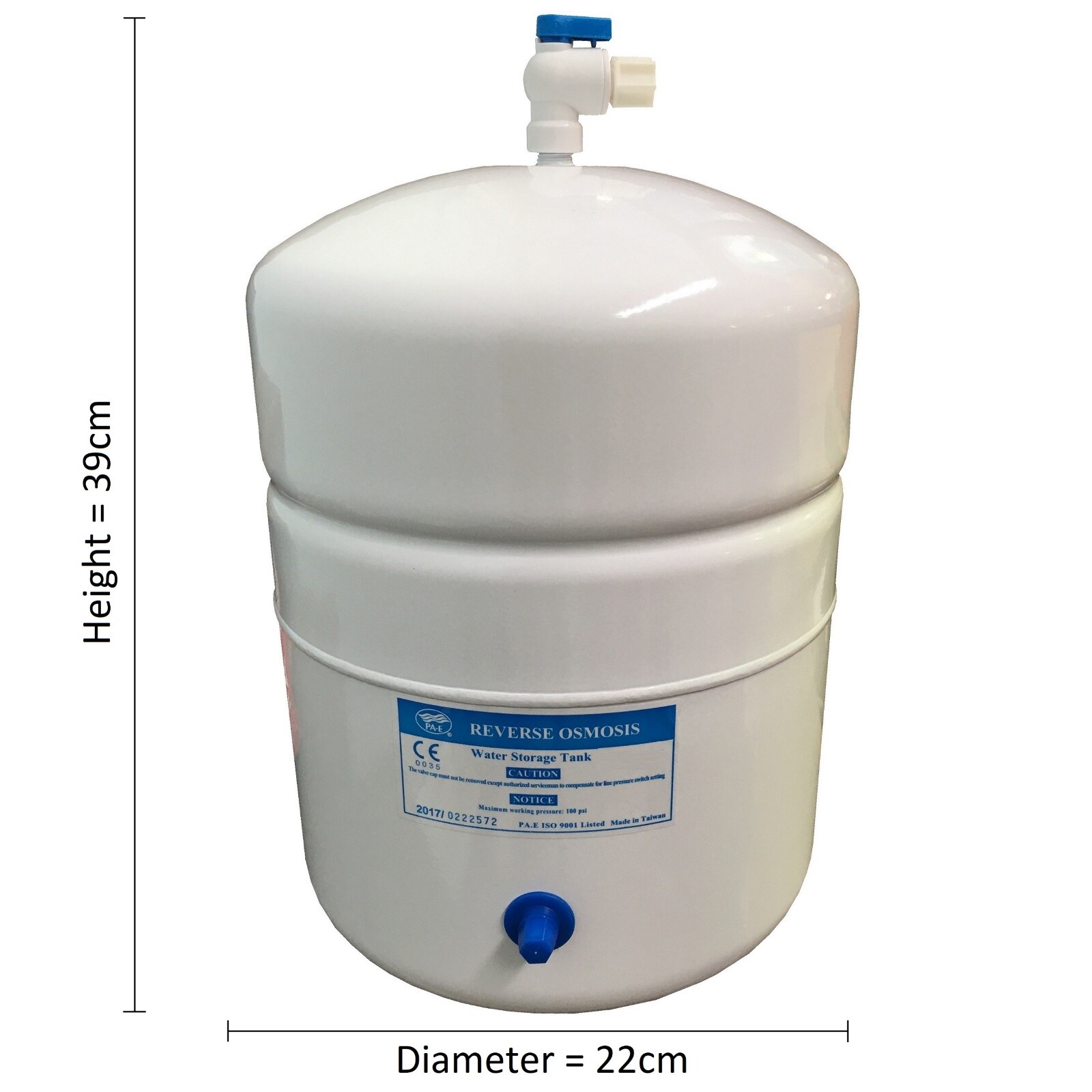

  • 8 Litre - [Per picture 11 = 39cm height x 22cm diameter].
• Your choice of one of the following feed/inlet fittings:
  • 1/2" insert - Shares normal cold water line to most mixer taps.
  • 3/4" insert - Shares normal cold water line to most dishwasher.
• Your choice of one of the following waste drain clamp fittings:
  • 40mm solid clamp [left item in picture 8].
  • 50mm adjustable clamp [right item in picture 8].

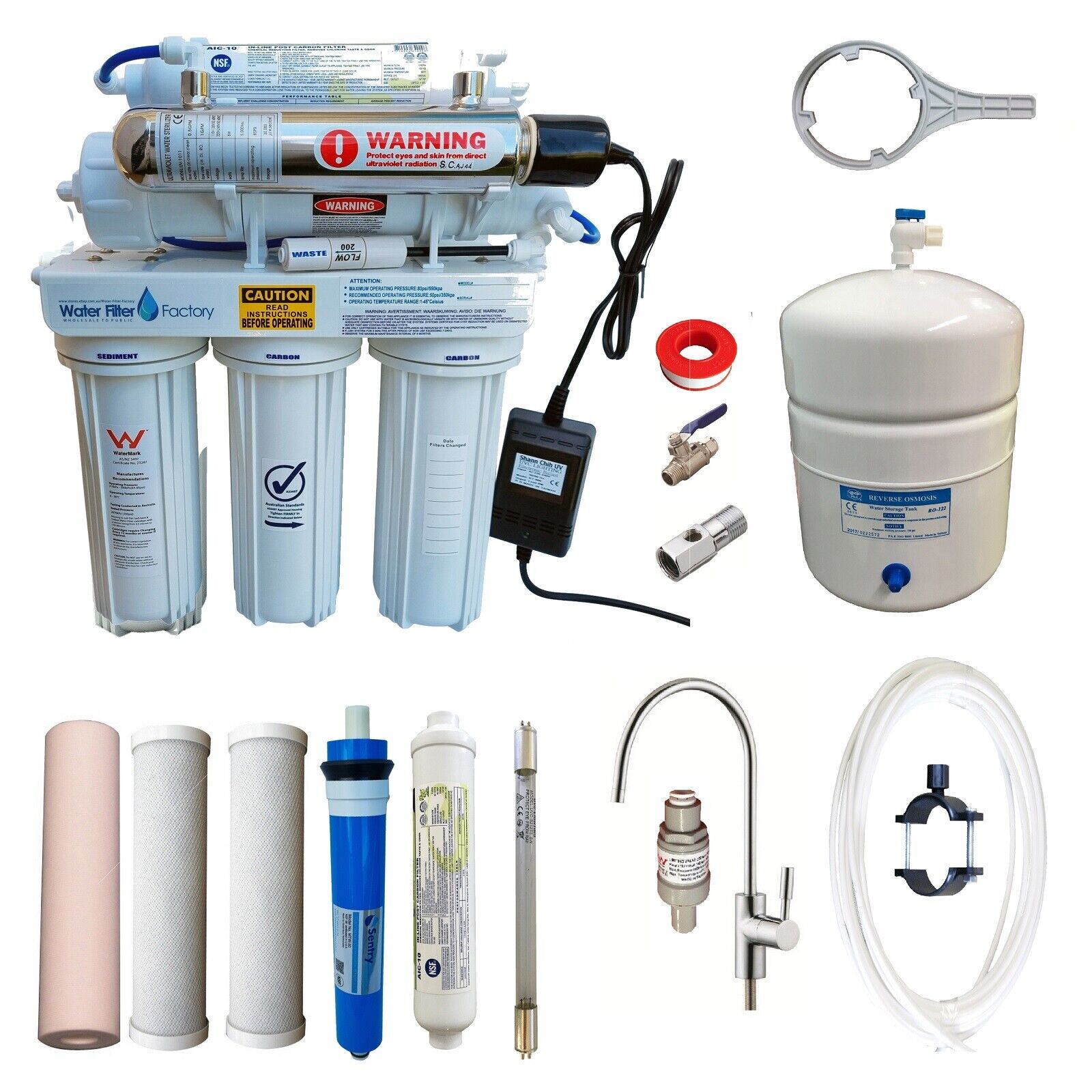

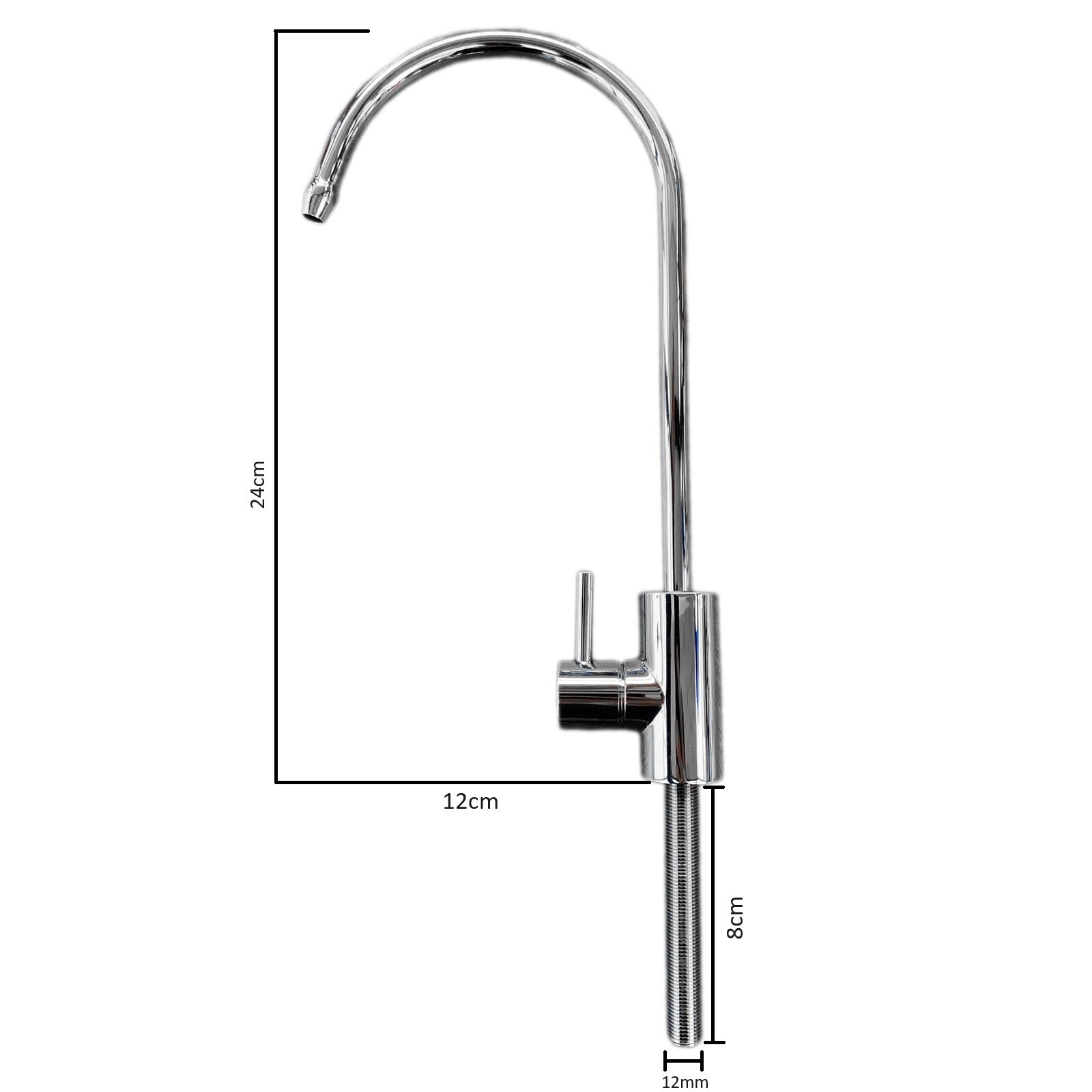

• An all chrome modern style faucet as pictured in the listing images.
• One approved pressure reducing valve [required by Australian Standards AS3497].
• A housing spanner to open and close water filter housings.
• An installation kit including a roll of tubing, a roll of thread tape, spare fittings.
• An installation and maintenance guide.

NOTE: UV sterilisers produce a small amount of heat when operating. If left to sit for an extended period of time the water inside the UV steriliser can warm up, this may mean that the first glass of water out of the system is warm. If this is an issue we offer silver based antibacterial filters that can be used in place of the UV steriliser.
