WIRELESS DC 12V-32V REVERSING CAMERA & MONITOR SYSTEM
Seamless Parking & Reversing for Your Caravan and RV

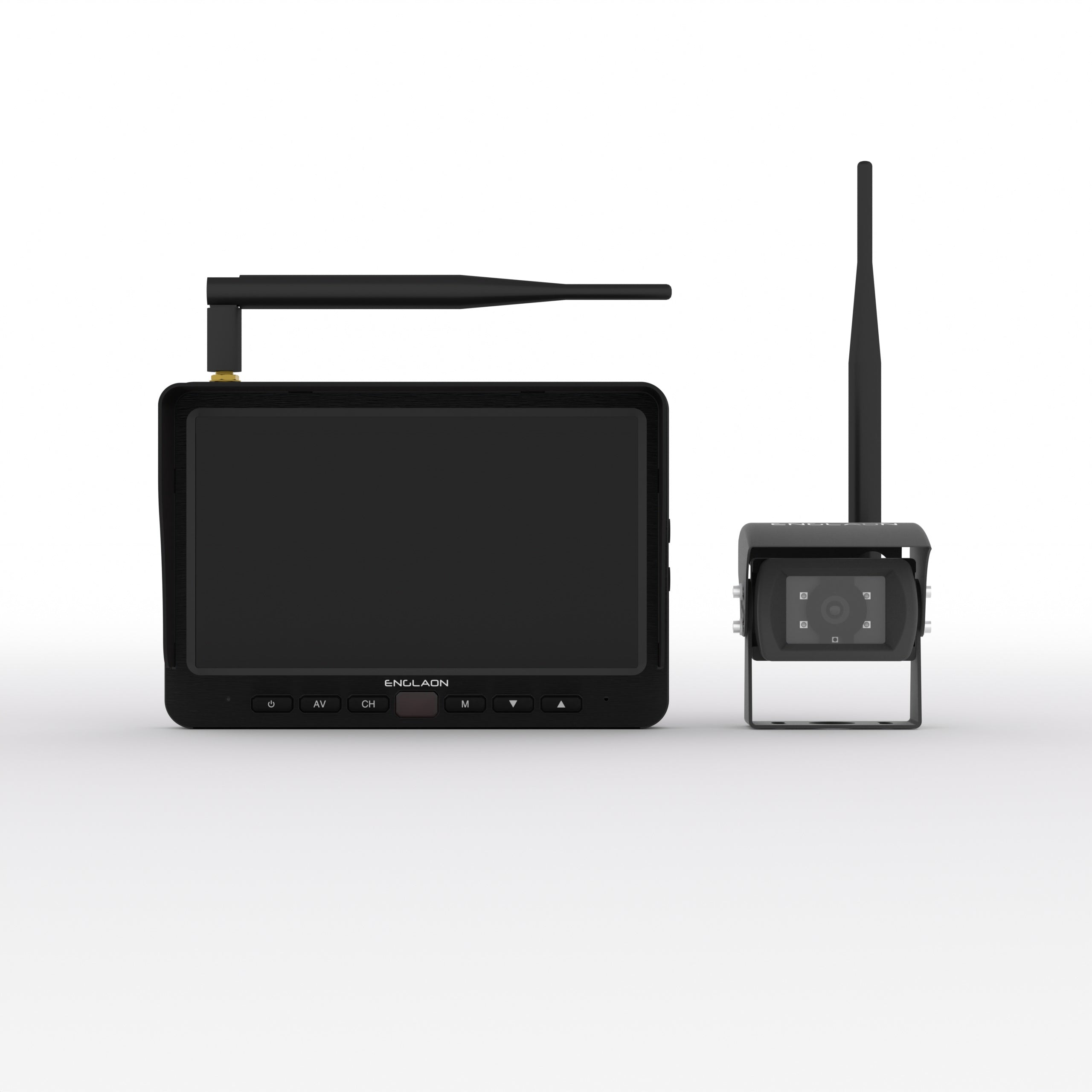

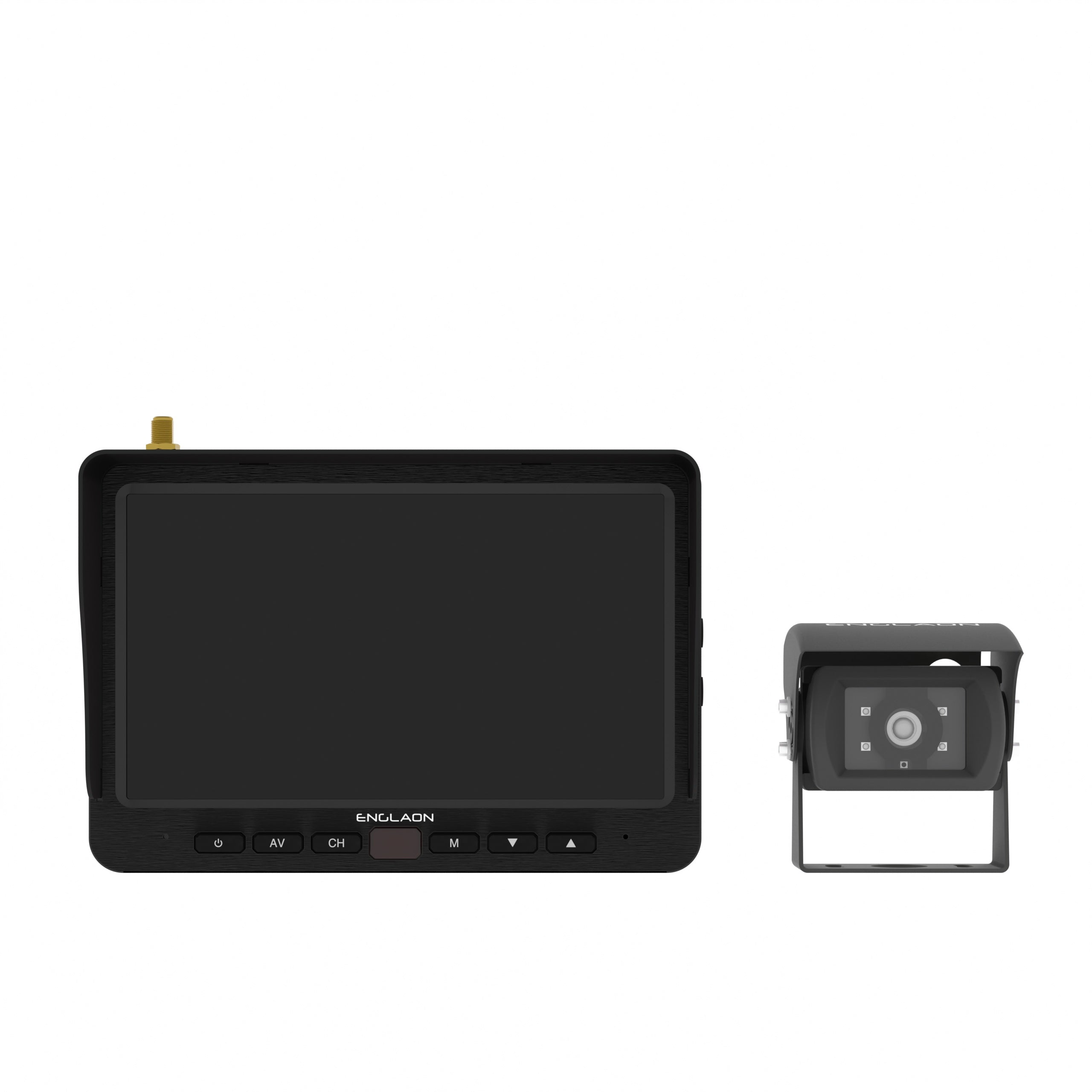

Enhance your driving safety with our state-of-the-art ENGLAON X Series Wireless DC 12V-32V Reversing Camera & Monitor System. Designed for caravans, motorhomes, and RVs, this system provides crystal-clear visuals and a reliable wireless connection, ensuring smooth parking and reversing even in challenging conditions.

High-Resolution Screen for Maximum Visibility
Our 7-inch display with a 1024 × 600 RGB resolution delivers sharp and vibrant images. With a 450cd/m² brightness, 500:1 contrast ratio, and wide viewing angles (U: 50° / D: 70°, R/L: 70°), you get optimal visibility from various perspectives, enhancing your reversing and parking experience.

Stable and Lag-Free Connectivity
Powered by an advanced RF transmit chip, this system ensures a transmission range of up to 500 meters in open space and up to 120 meters in real-world conditions. With a 120ms low latency, -89 dBm receiving sensitivity, and frequency hopping technology, enjoy a seamless and interference-free video feed.

120° Field of View & LED-Enhanced Night Vision
The reversing camera offers a 120° wide-angle field of view, ensuring comprehensive coverage of your surroundings to minimize blind spots. Built to withstand harsh environments, it is waterproof, dustproof, and shockproof, making it ideal for all-weather use. Additionally, the camera is equipped with 4 high-intensity LED lights, enhancing night vision capability for safer reversing in low-light conditions.

Capture and Store Footage for Enhanced Security
This system supports video recording with SD card storage up to 128GB, allowing you to review and store important footage. (SD card not included in this kit.)

Supports Up to 4 Cameras with Simultaneous Viewing
Expand your visibility with support for up to 4 cameras, allowing you to monitor multiple angles at the same time. (This kit comes with one camera.) This multi-channel capability enhances your awareness of your surroundings, making reversing and manoeuvring easier and safer.

• Display: 7-inch TFT LCD

• Resolution: 1024 × (RGB) × 600

• Brightness: 450cd/m²

• Contrast Ratio: 500:1

• Viewing Angle: U: 50° / D: 70°, R/L: 70°

• Aspect Ratio: 16:9

• Video Format: PAL/NTSC

• Operating Frequency Range: 2412-2484MHz

• Antenna Input Impedance: 500Ω

• Output Standing Wave Ratio: 2:1

• Transmitting Power: 19dBm

• RF Transmission Rate: 11Mbps

• Modulation Mode: CCK/QPSK/BPSK/OFDM (802.11g/n/ax)

• Spread Spectrum Mode: Frequency Hopping

• Transmission Distance: Up to 50m in open space

• Transmitting Distance: Up to 20m

• Receiving Sensitivity: -89 dBm

• Decompression Form: MPE4

• Time Delay: 120ms

• Channel: 4 Channels

• SD Card: Max 128GB (SD card not included in this kit)

• Power Consumption: Max 6W

• Loudspeaker: 1.5W/8Ω

• Voltage: DC12V~32V

• Operating Temperature: -20°C to +70°C, RH85% MAX

• Storage Temperature: -30°C to +80°C, RH85% MAX

• Recording Capability: Yes

• Camera LEDs: 4 high-intensity LED lights for night vision

• Camera Lens Field of View (FOV): 120°

Upgrade your caravan experience today with the Wireless DC 12V-32V Reversing Camera & Monitor System, designed for seamless integration with 12V Smart TVs and caravan entertainment systems.
