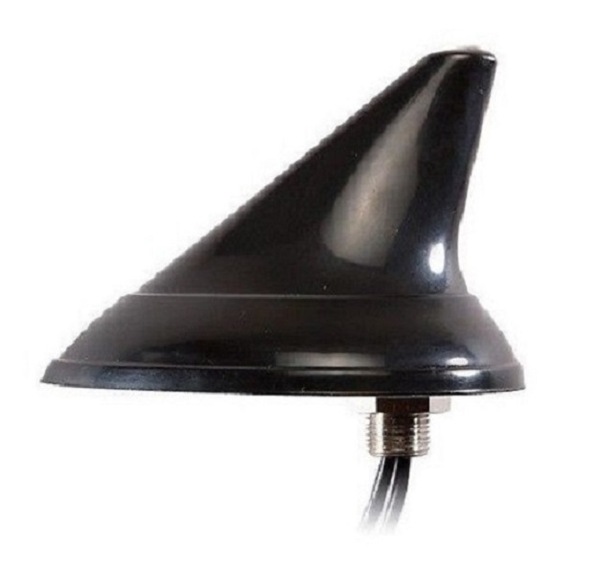

RF Outlet 3 Combo GPS, 4G LTE, FM Antenna SMA Screw Mount for Mobile Signal Reception

Hurry! 5 items left!

$42

Collect 42 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by RF Outlet

Secure ways to pay at checkout

ITEM ID:AN_GPS_GSM_FM_070

GPS+GSM/3G/4G+FM Combination Antenna

GPS part

Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP

LNA / Filter
LNA Gain(Without cable) 28±2 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA

GSM Part

Frequency 824~960MHz/1710~2170MHz

V.S.W.R 2.0:1

Impendence 50 ohm

Typical Gain 2dBi

FM part

Frequency 88~108MHz
V.S.W.R(5m) 2.0 : 1
Impendence 50 ohm

Typical Gain 2dBi

Mechanical

Cable RG174 (3m)

Connector SMA Male for GPS and GSM

Plug for FM

Housing Black

Environmental

Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
Waterproof IP67

Size 91x62x62mm

Mounting type Screw

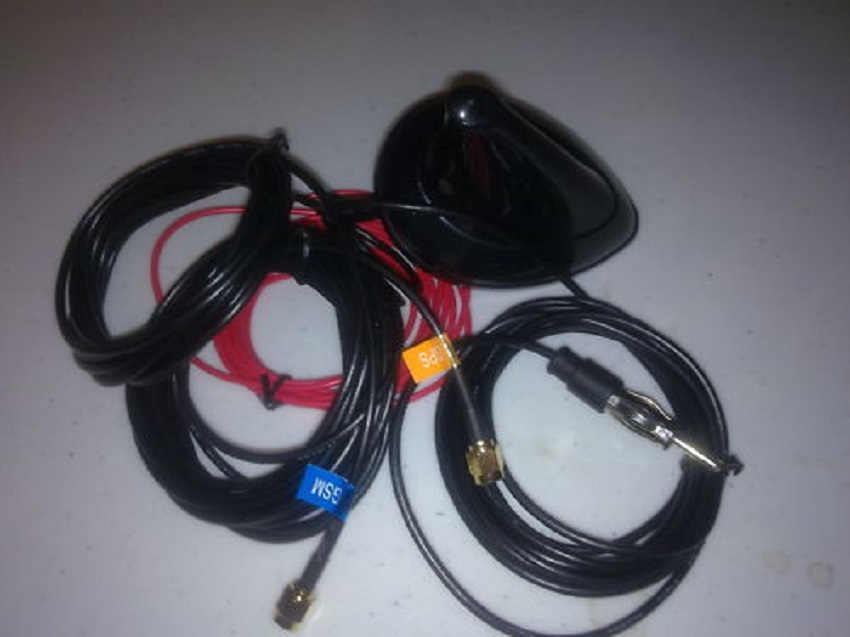

Three pieces of 3m cable assembled: one for GSM, the GPS and the rest for FM.

Red Cable is used as the input voltage/current of the active FM antenna. 12V DC and 15mA current is required for the red cable.

GTIN: 747356052160
