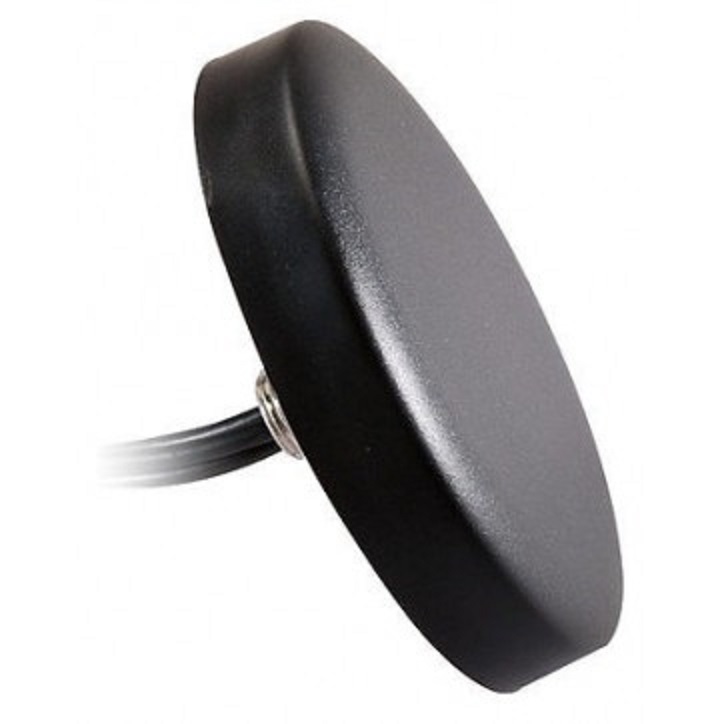

RF Outlet 3 Combo GPS, 4G LTE, WIFI Antenna circular shape Screw SMA male

Hurry! 5 items left!

$42

Collect 42 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by RF Outlet

Secure ways to pay at checkout

ITEM ID:AN_GPS_GSM_WF_046

GPS+GSM/3G/4G+WiFi Combination Antenna

Ideal for room or car

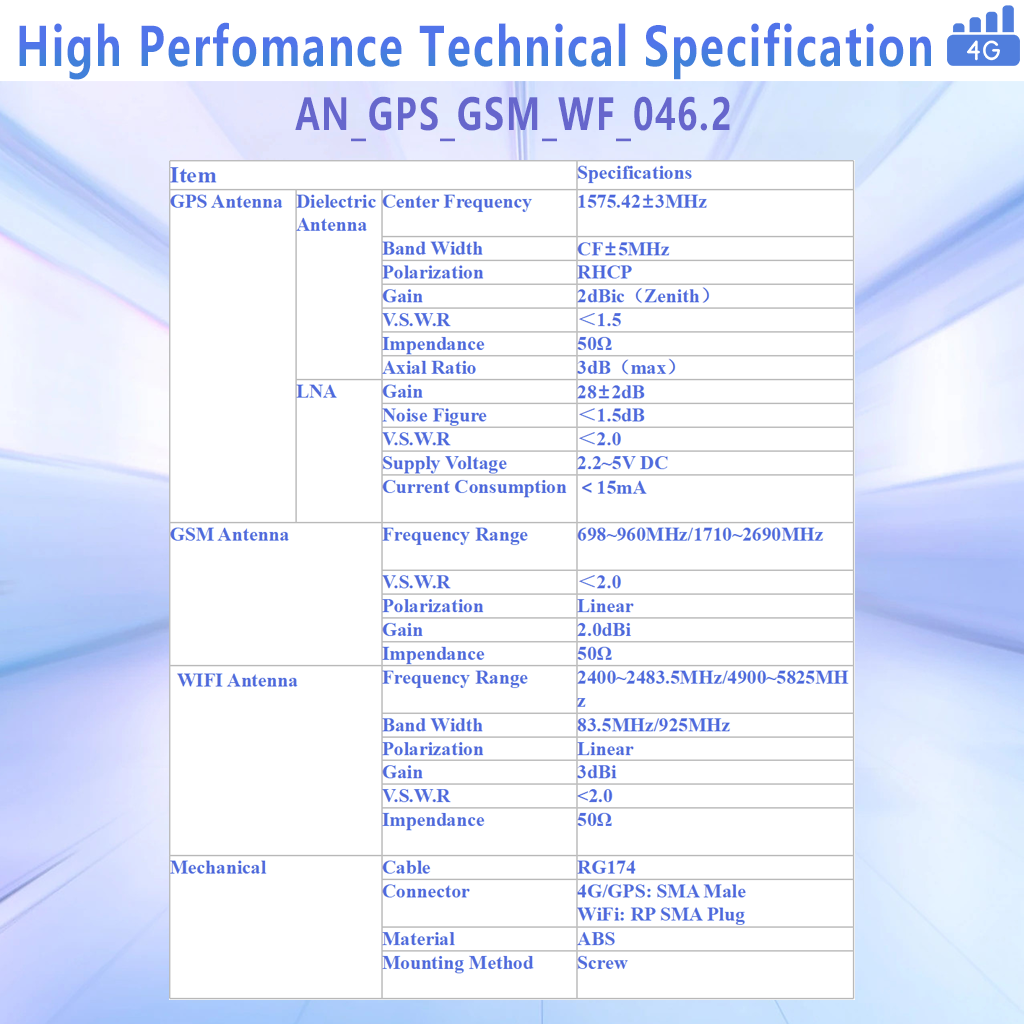

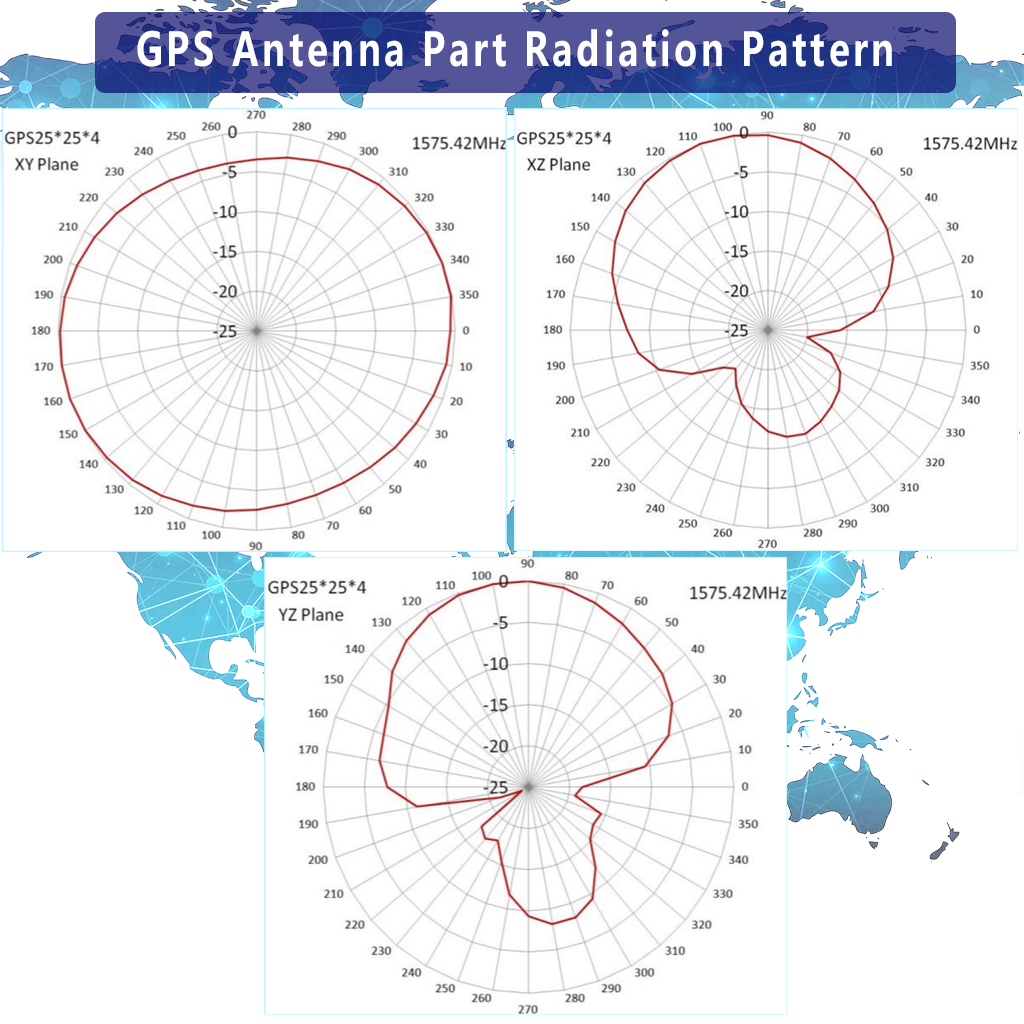

GPS part

Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP

LNA / Filter
LNA Gain(Without cable) 28±2 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA

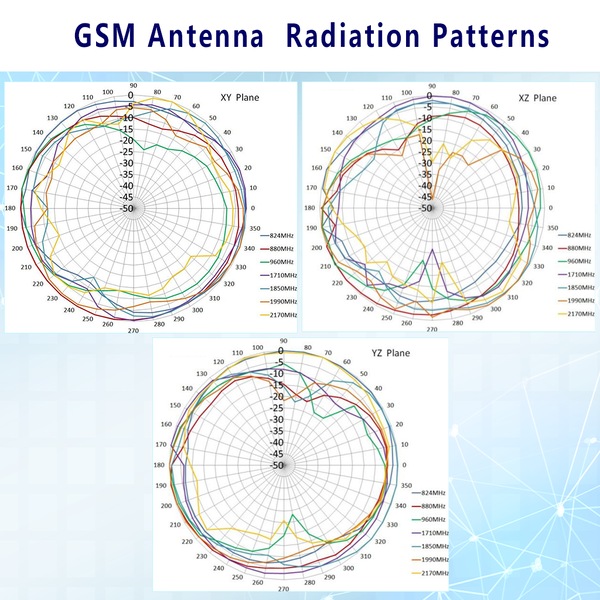

GSM Part

Frequency 824~894MHz/1710~1990MHz

880~960MHz/1710~1990MHz

1920~2170MHz

V.S.W.R 2.0:1

Impendence 50 ohm

Typical Gain 2dBi

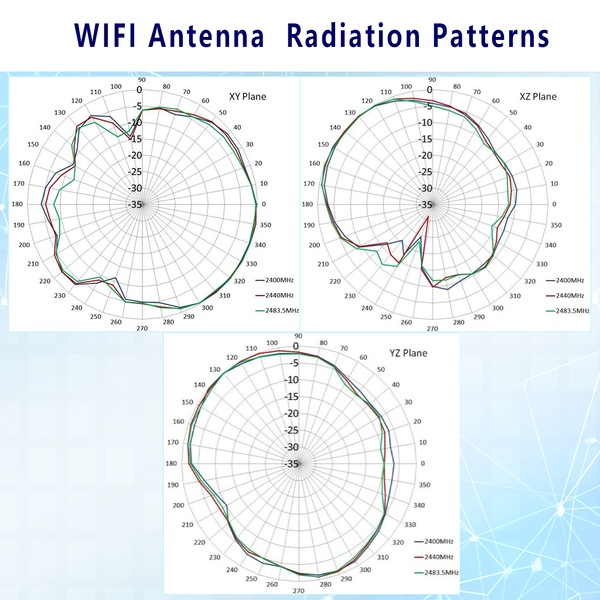

WIFI part

Frequency 2400~2500 MHz

V.S.W.R(5m) 2.0 : 1
Impendence 50 ohm

Typical Gain 2dBi

Mechanical

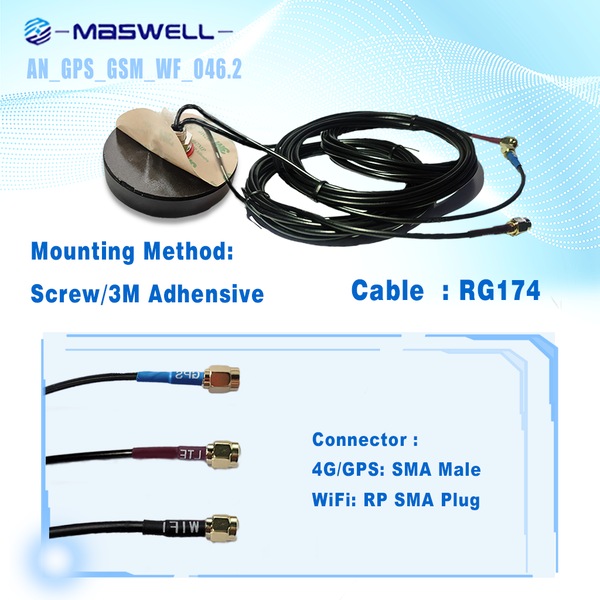

Cable RG174 (3m)

Connector SMA Male

Housing Black

Environmental

Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH

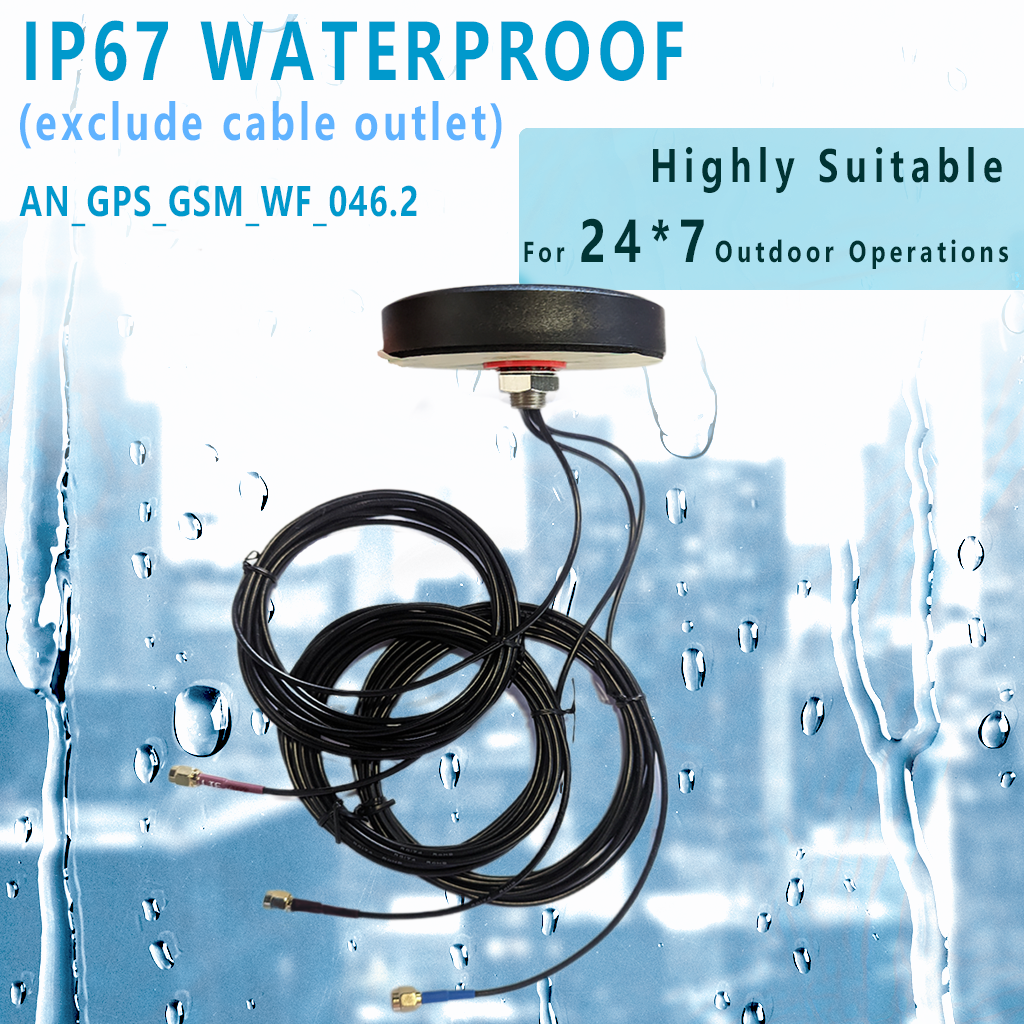

Waterproof IP67

Size D80×50mm

Mounting type Screw

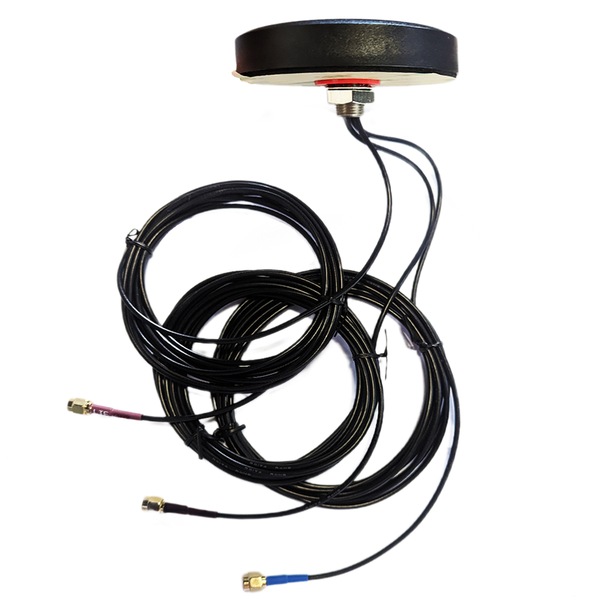

Three pieces of 3m cable assembled: one for GSM, the GPS and WiFi.
