RF Outlet GNSS Helix drone Antenna UAV 7 band 4 satellites screw SMA ultralight weight

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Hurry! 5 items left!
$199

Collect 199 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

ITEM ID:AN_GPS_A301

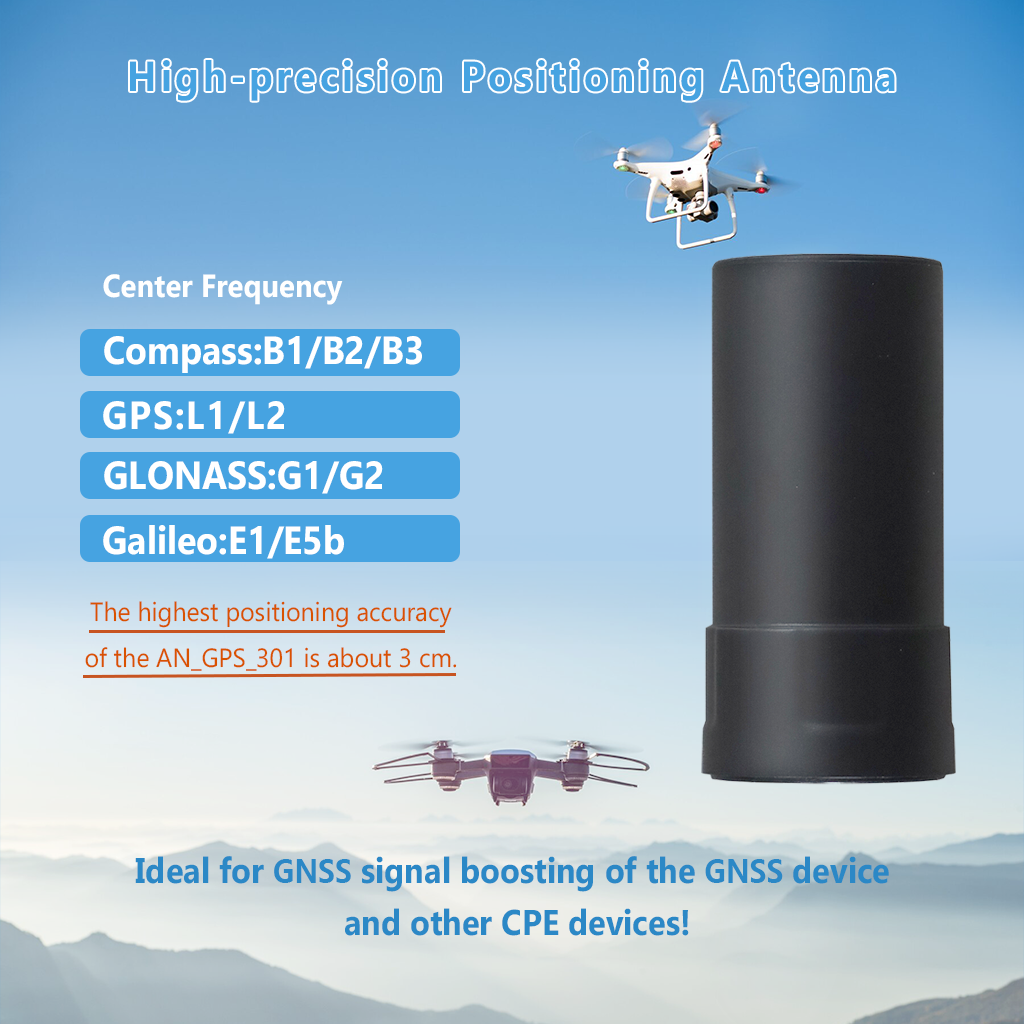

GNSS Helix Antenna for almost all the navigation satellites are supported with this antenna!

Only 18 Grams weight, super compatible with UAV, Drone applications!

Ideal for All the Navigation signals reception for all the UAV, Drones etc.

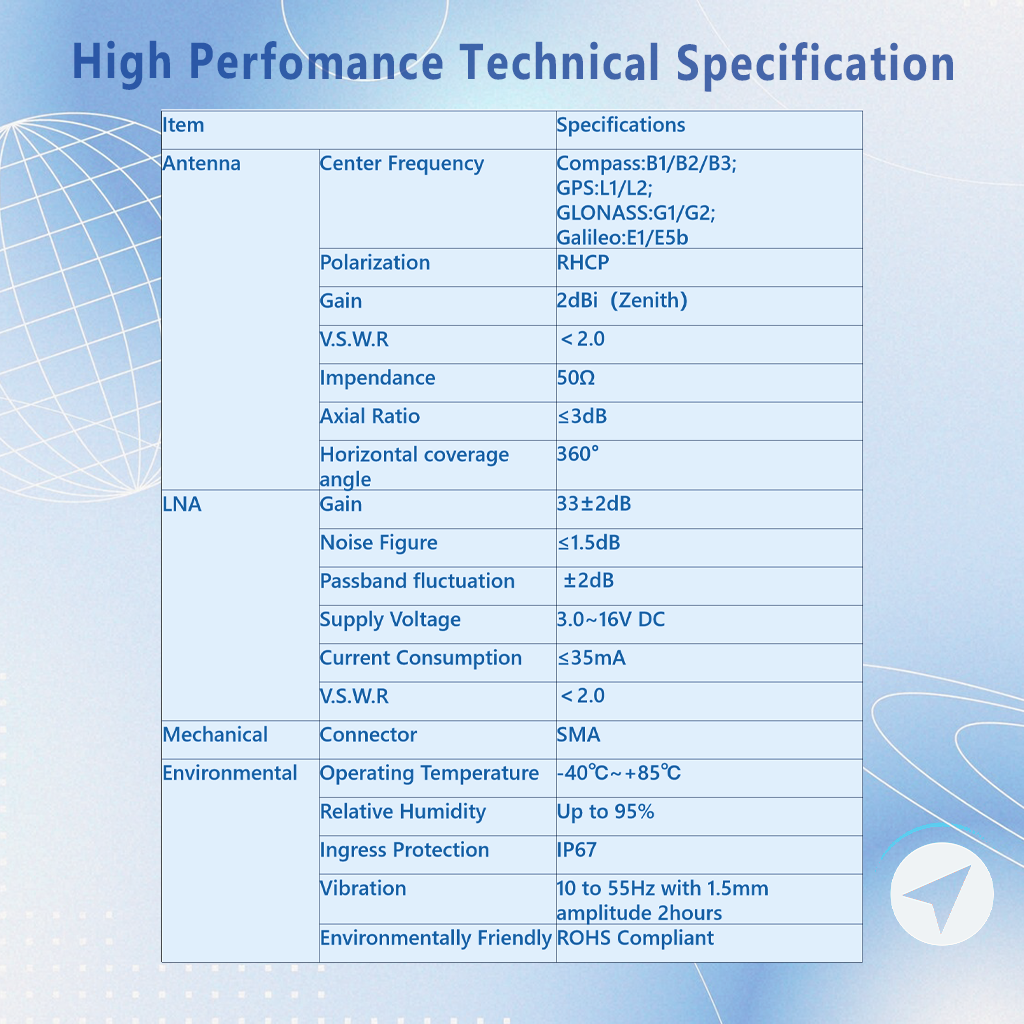

Specifications:

Specifications:

Frequency Range Compass��B1/B2/B3��
GPS��L1/L2��
GLONASS��G1/G2��
Galileo��El/E5b

V.S.W.R(5m) 2.0 : 1

Band Width ±5MHz
Impendence 50 ohm

Polarization Type RHCP

Horizontal coverage angle: 360 degrees

Gain 2dBi (Zenrith)

Axial Ratio 3dB

LNA/Filter

LNA Gain(Without cable) 33±2 dB Typical

Noise Figure 1.5dB

DC Voltage 3~16V

DC current <35 mA

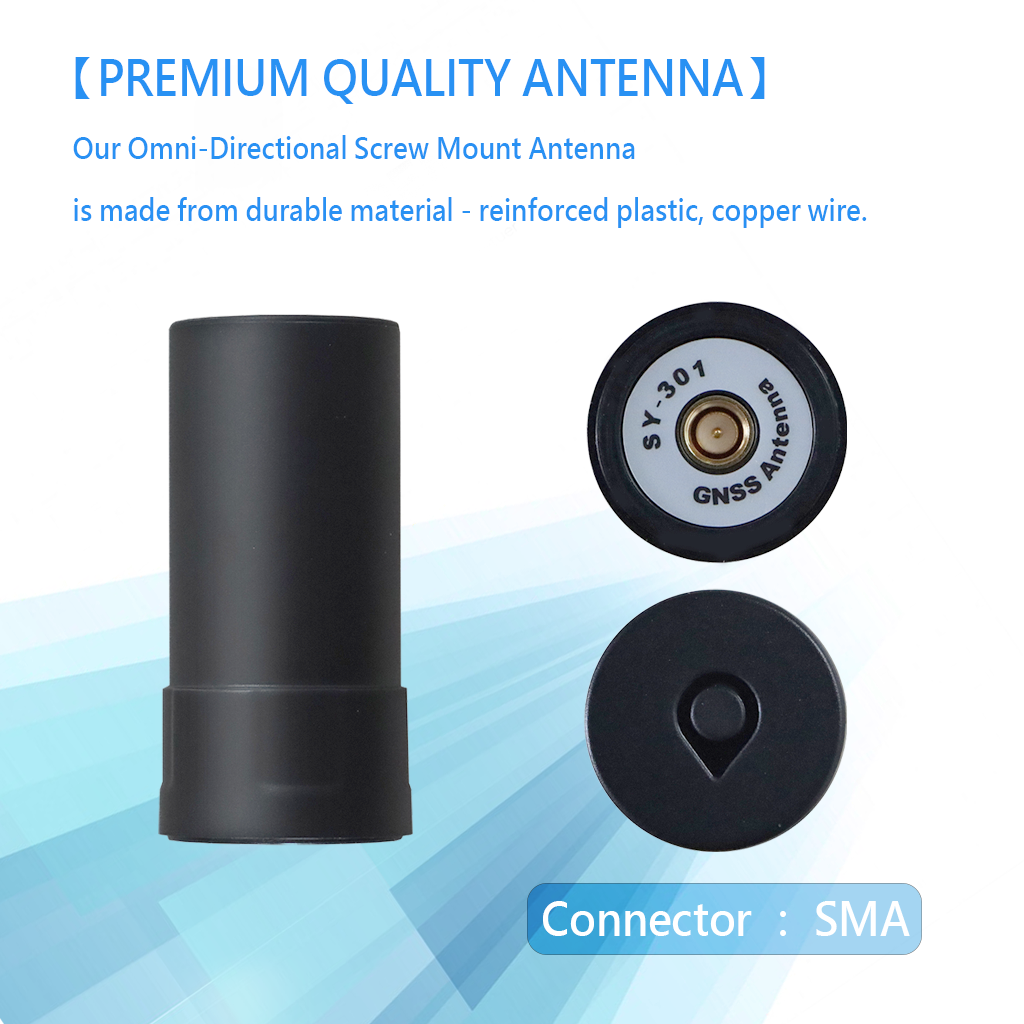

Connector SMA

Housing Black

Working Temp -40Degrees Celsius~+85Degrees Celsius

Relative Humidity 95%RH

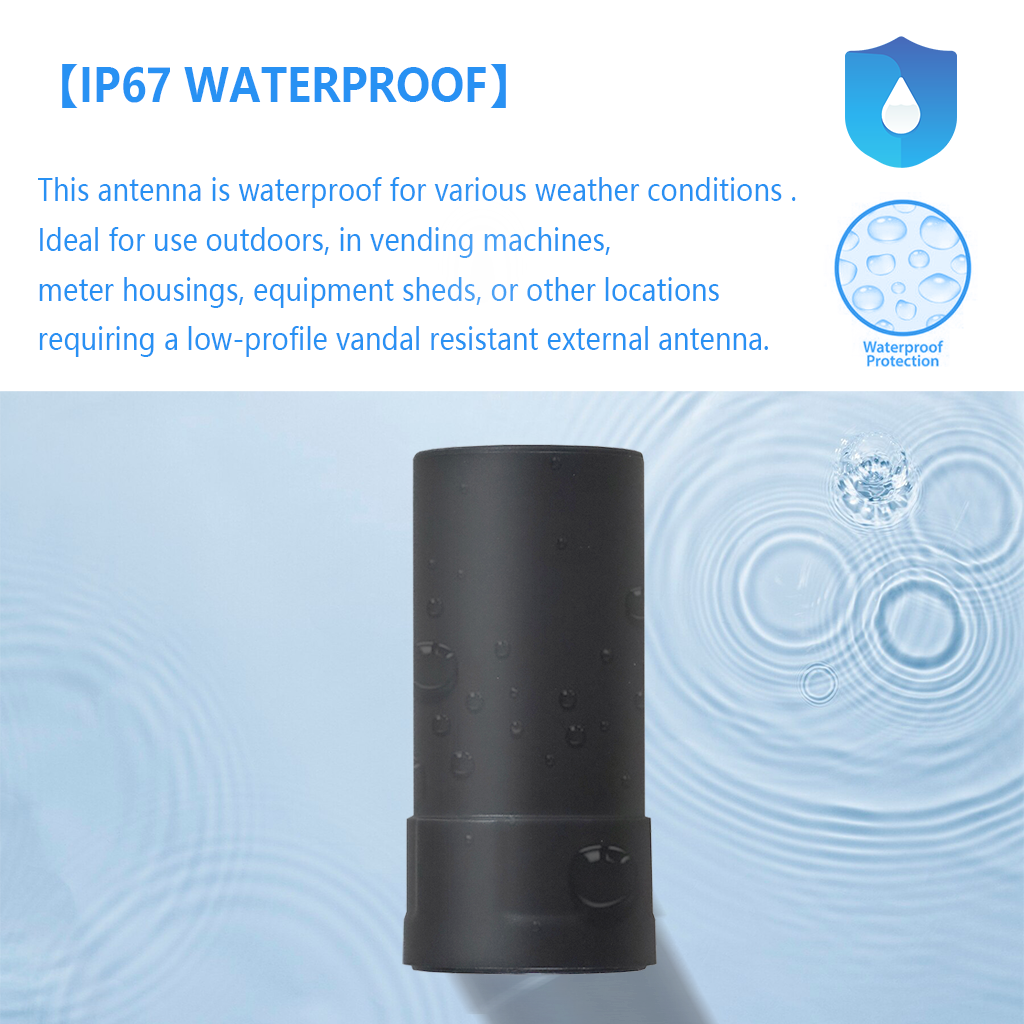

Water proof IP67

Size: D27.5*55.6mm

Mounting type: screw

Weight 18 grams only

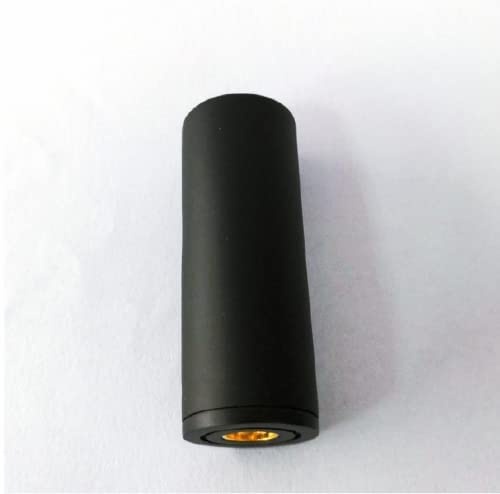

Cylinder shape with Screw mount.

GTIN: 658848812370
