RF Outlet GPS and 4G LTE Combo Antenna Circular Shape Magnet Support GPS and GSM/3G/4G

Hurry! 5 items left!

$32

Collect 32 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by RF Outlet

Secure ways to pay at checkout

ITEM ID:AN_GPS_GSM_008 SMA

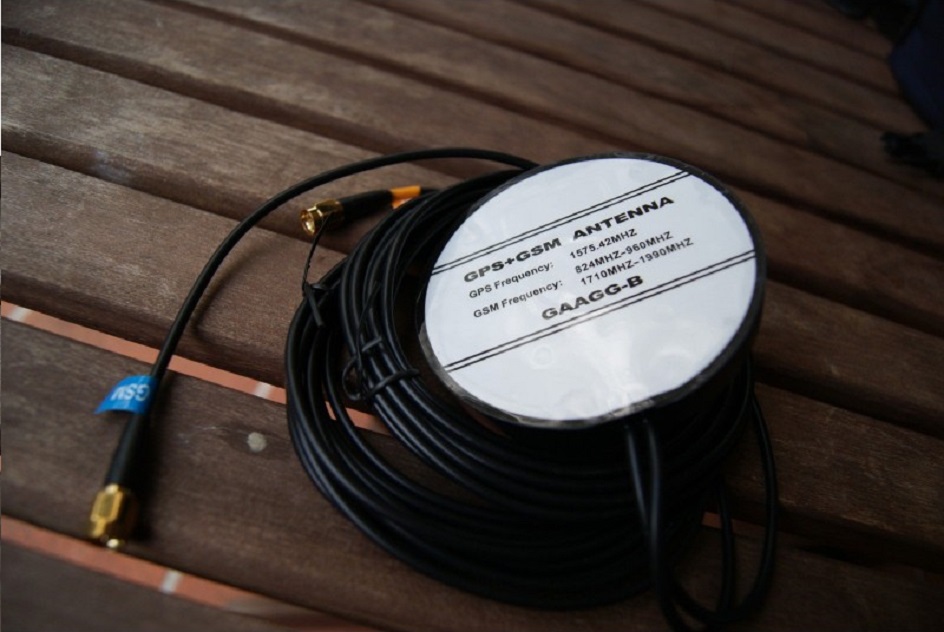

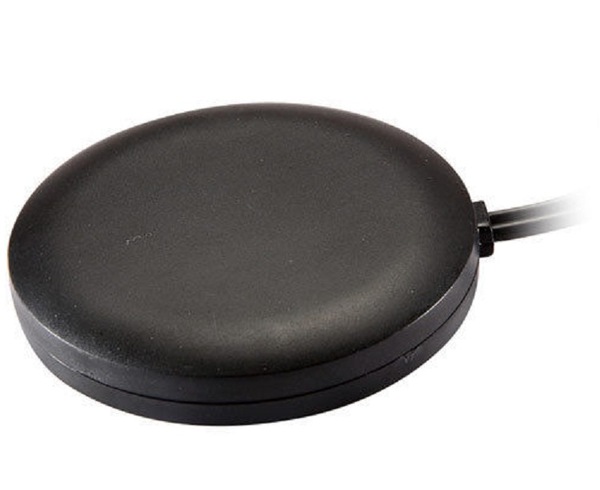

GPS+GSM/3G/4G/LTE Combination Antenna

Ideal for room or car roof top assembly to receive both 4G/3G/GSM and GPS signal.

GPS Part

Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP

LNA / Filter
LNA Gain(Without cable) 30 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA

GSM Part

Frequency 824~894MHz/1710~1990MHz

880~960MHz/1710~1990MHz

V.S.W.R 2.0:1

Impendence 50 ohm

Typical Gain 2dBi

Cable RG174 (3m)

Connector SMA (male)

Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
Waterproof IP67

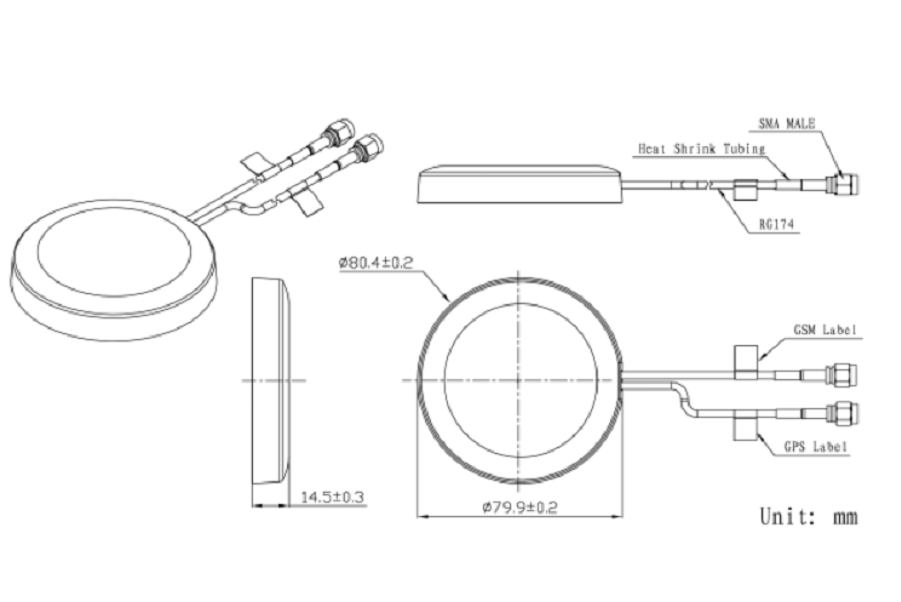

Size D71*14mm

Mounting type Magnet

Two pieces of 3m cable assembled: one for 4G/3G/GSM, the other for GPS.
