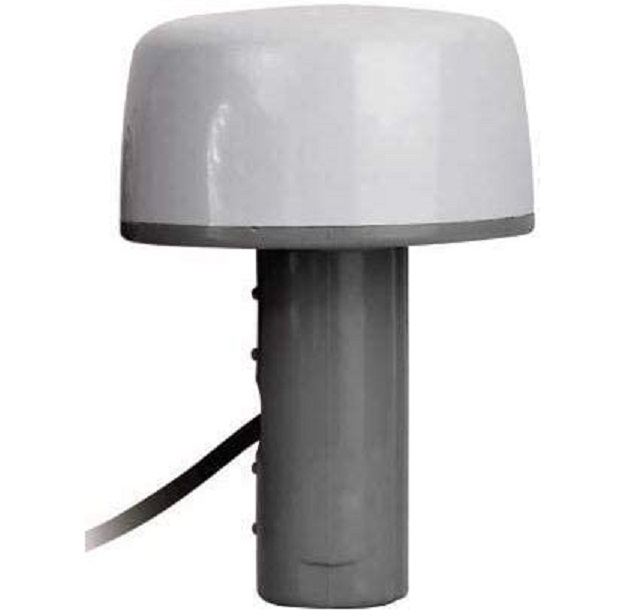

RF Outlet GPS and 4G LTE Combo Antenna with 700MHz band Combo Antenna SMA Screw mount for Marine

Hurry! 5 items left!

$49.99

Collect 49 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by RF Outlet

Secure ways to pay at checkout

ITEM ID:AN_GPS_GSM_005LM

GPS+GSM/3G/4G/LTE Combination Antenna for Marine and Vehicular applications.

700MHz band included for reginoal areas 4G/LTE reception!

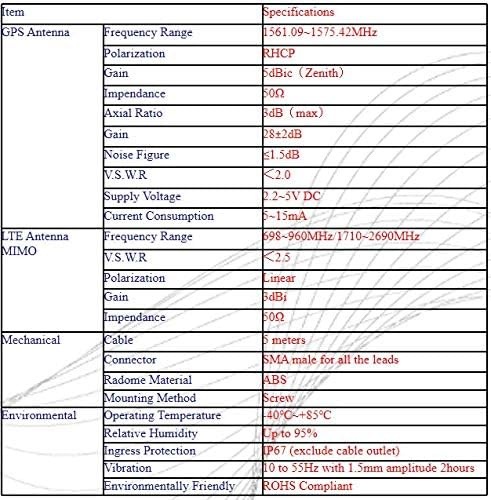

GPS part:

Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP with 5dBi gain

LNA / Filter
LNA Gain(Without cable) 30 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA

GSM Part

Frequency 698~960MHz/1710~2690MHz

V.S.W.R 2.0:1

Impendence 50 ohm

Typical Gain 3dBi

Cable RG174 (3m)

Connector SMA (male)

Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
Waterproof IP67

Size D93.5*133.3mm

Mounting type Screw M26

GTIN: 747356052306
