ITEM ID:AN_GPS_GSM_062

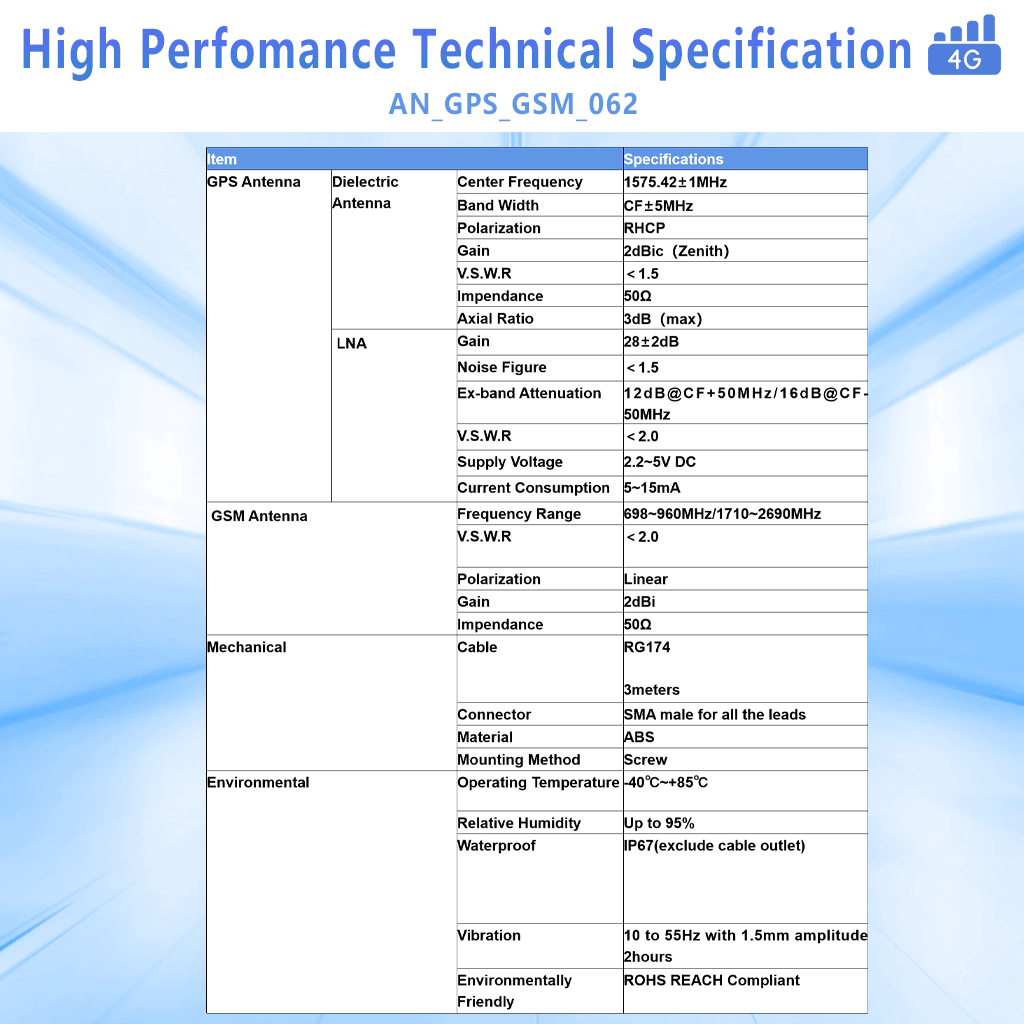

GPS+GSM/3G/4G Combination Antenna

Ideal for equipment wireless upgrade or car roof top assembly to receive both GSM and GPS signal.

GPS Part

Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP

LNA / Filter
LNA Gain(Without cable) 30 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA

4G Part

Frequency 824~894MHz/1710~1990MHz

880~960MHz/1710~1990MHz

1920~2170 MHz

V.S.W.R 2.0:1

Impendence 50 ohm

Typical Gain 2dBi

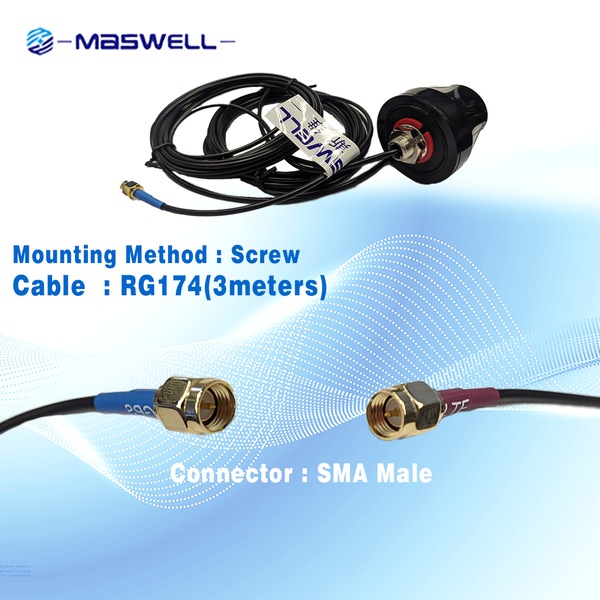

Cable 2 leads with RG174 (3m)

Connectors SMA (male)

Working Temp-40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
Waterproof IP67

Size D50x48mm

Mounting type screw

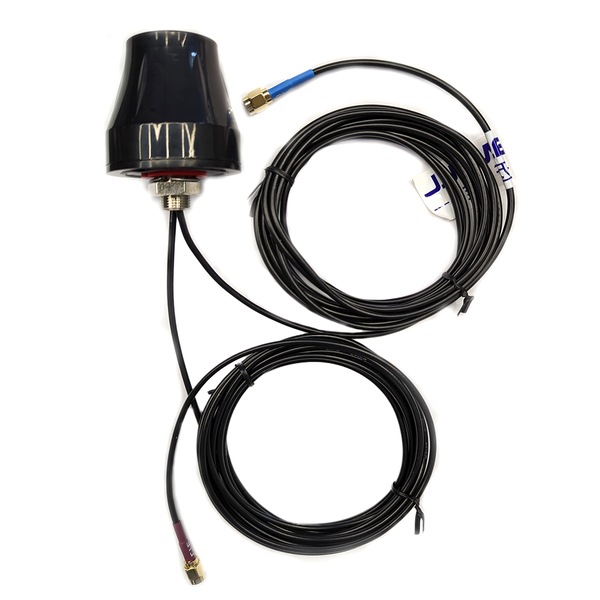

Two pieces of 3m cable assembled: one for GSM, the other for GPS.
