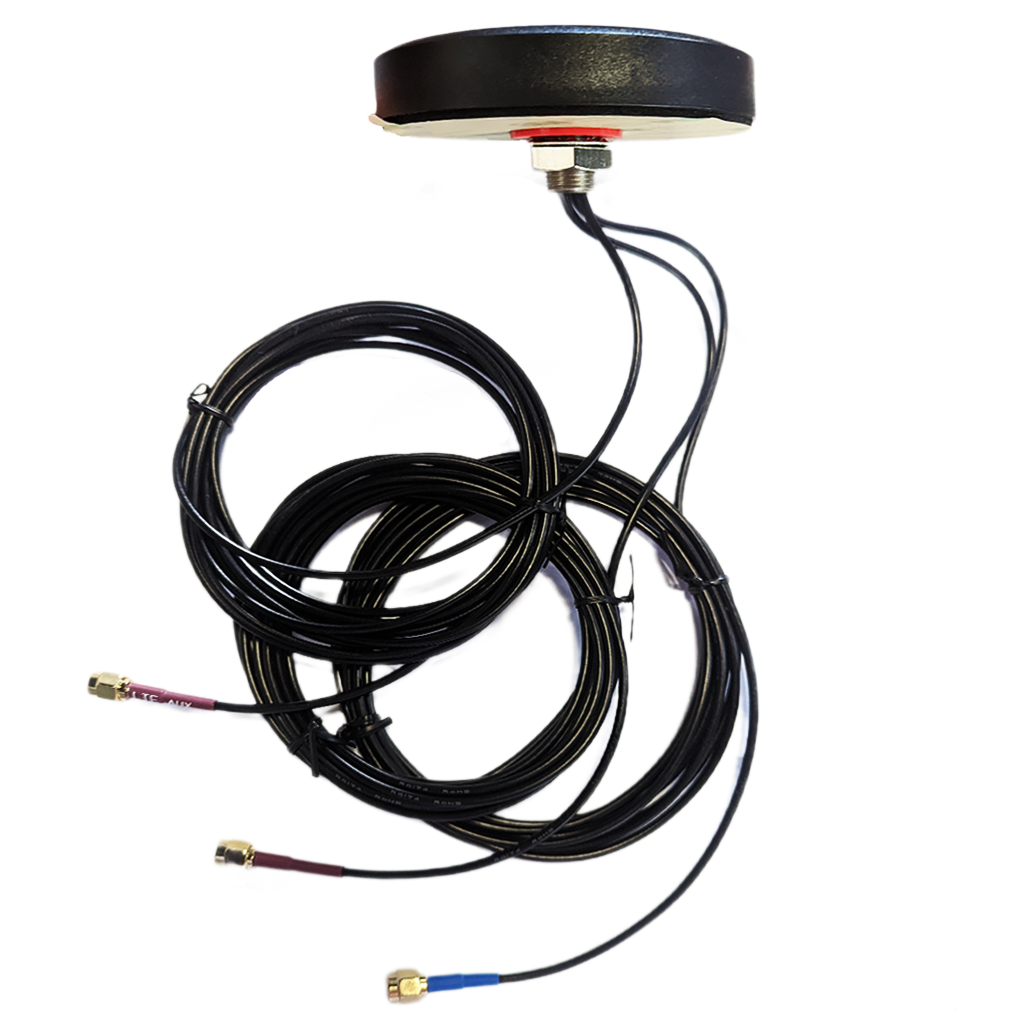

RF Outlet GPS and 4G LTE MIMO Combo Antenna circular shape Screw SMA male 700MHz included
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 49 Everyday Rewards points
Collect 49 Everyday Rewards points
ITEM ID:AN_GPS_LTE_MIMO_046

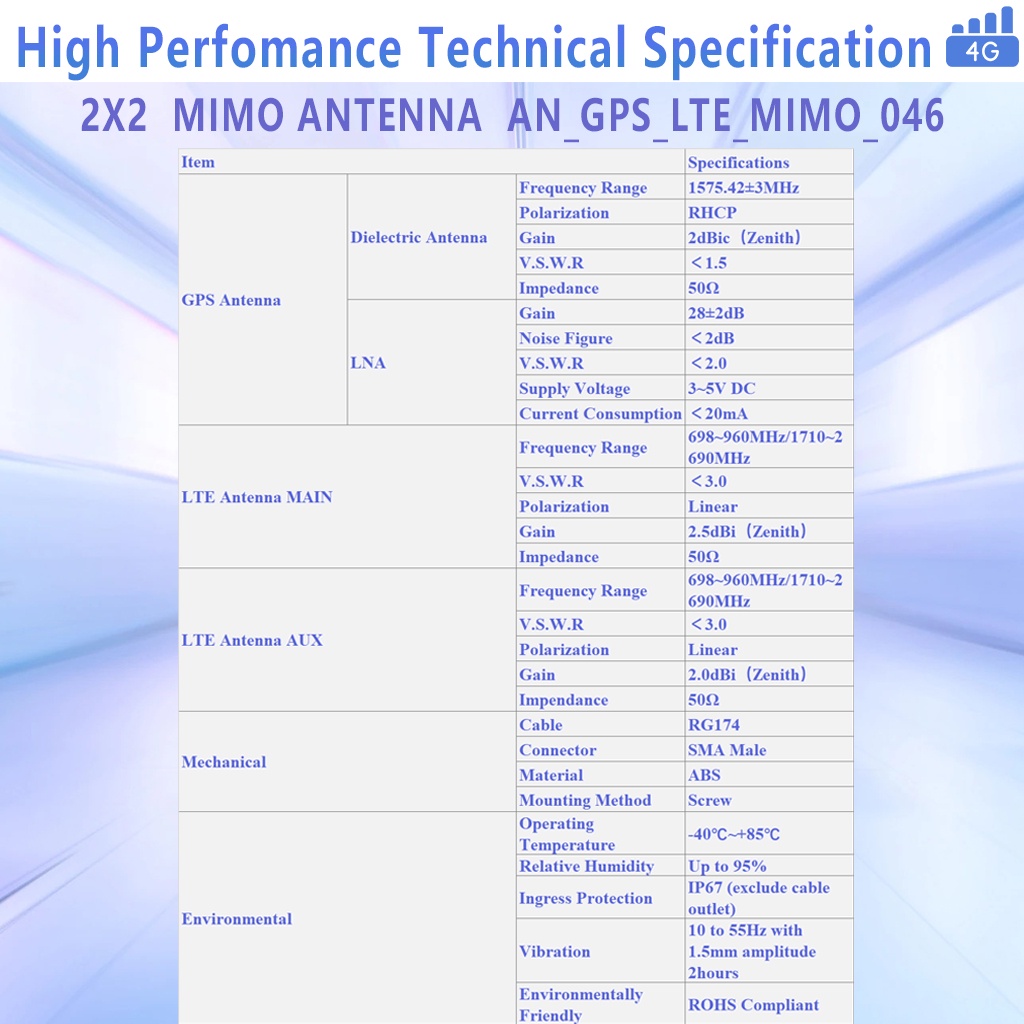

GPS+GSM/3G/4G*2 MIMO Combination Antenna 2*2 MIMO

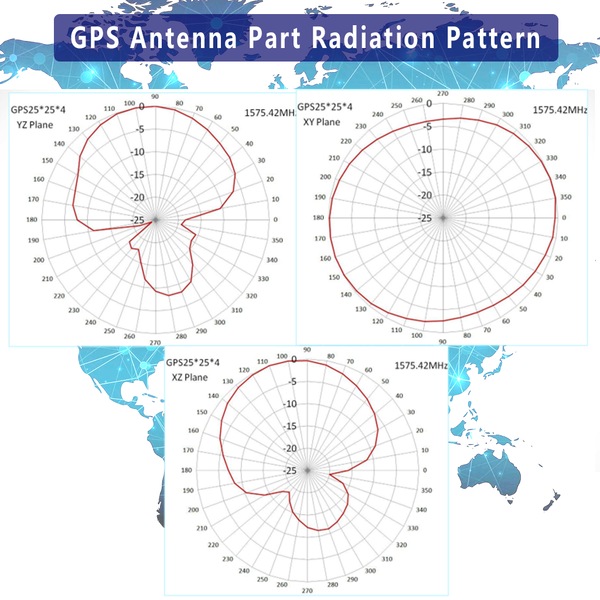

GPS part
Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohmÂ
Polarization Type RHCP
LNA / Filter
LNA Gain(Without cable) 28±2 dB TypicalÂ
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA

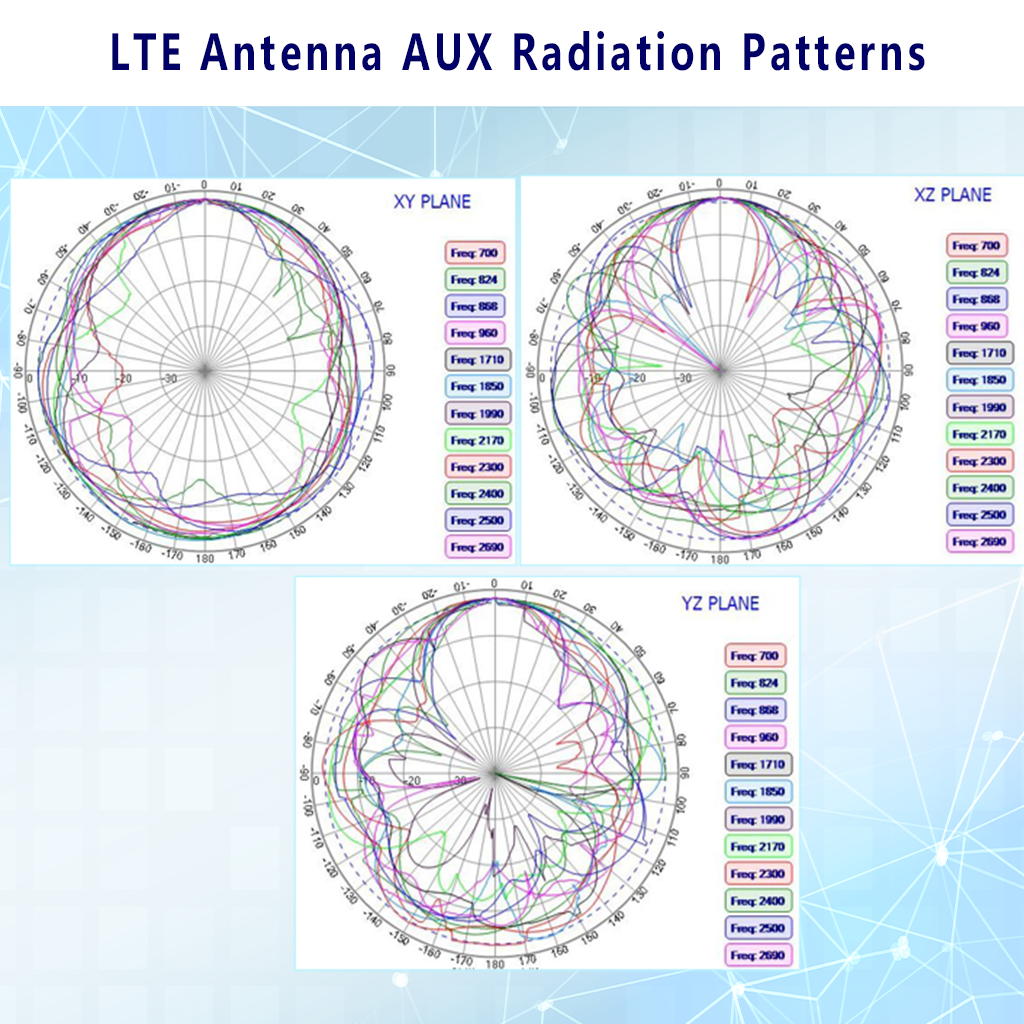

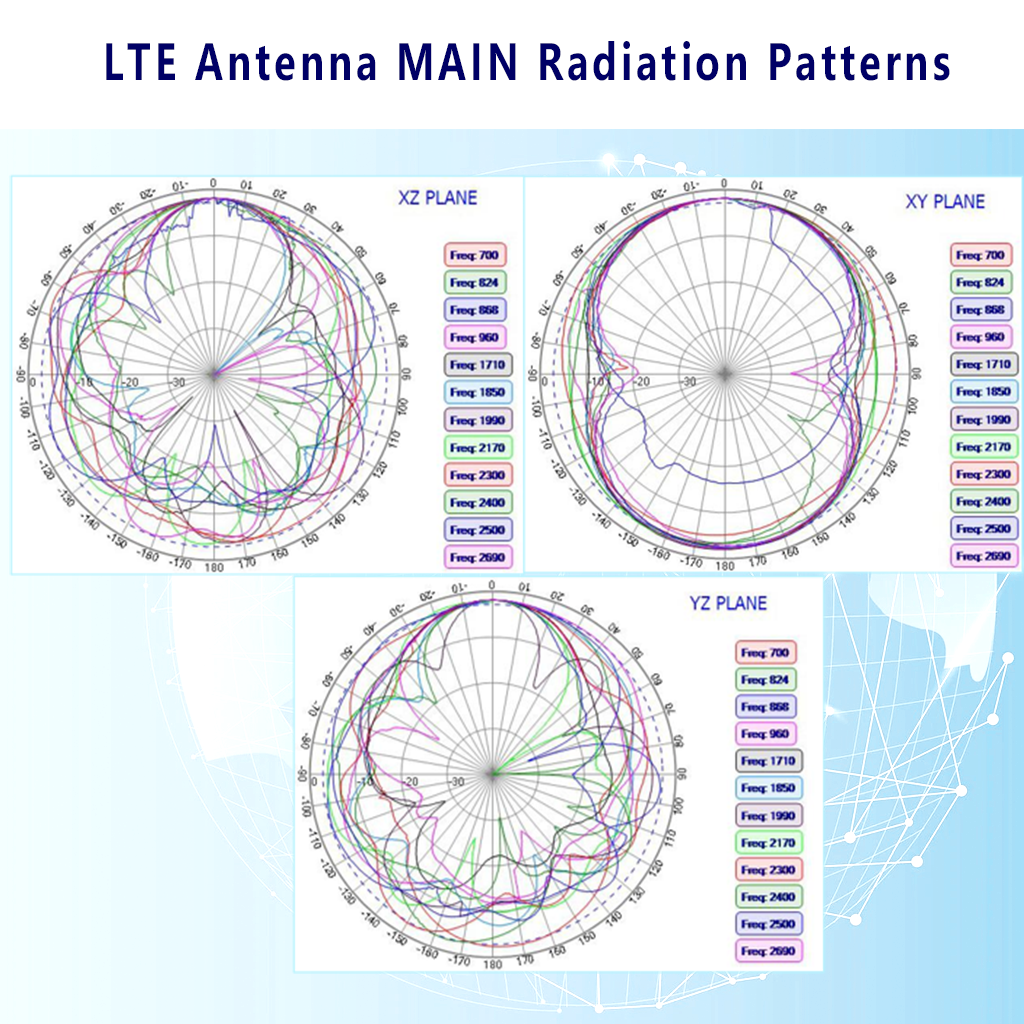

4G MIMO Part 2*2 MIMO
Frequency 700-2690MHz
V.S.W.R 2.0:1
Impendence 50Â ohm
Typical Gain 2dBi
Mechanical

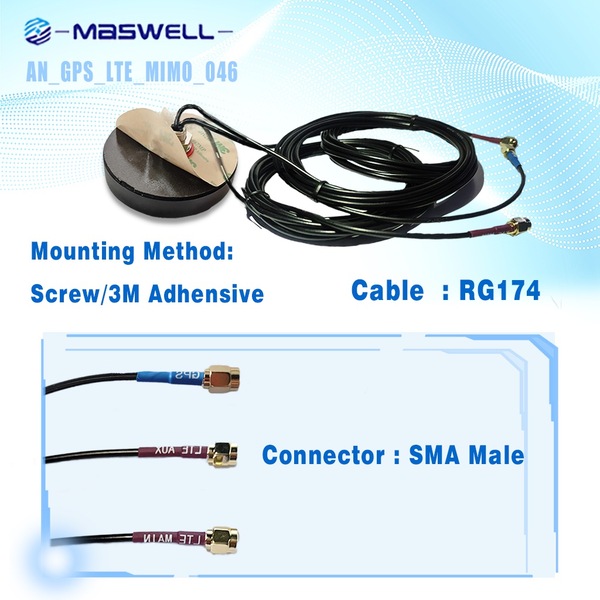

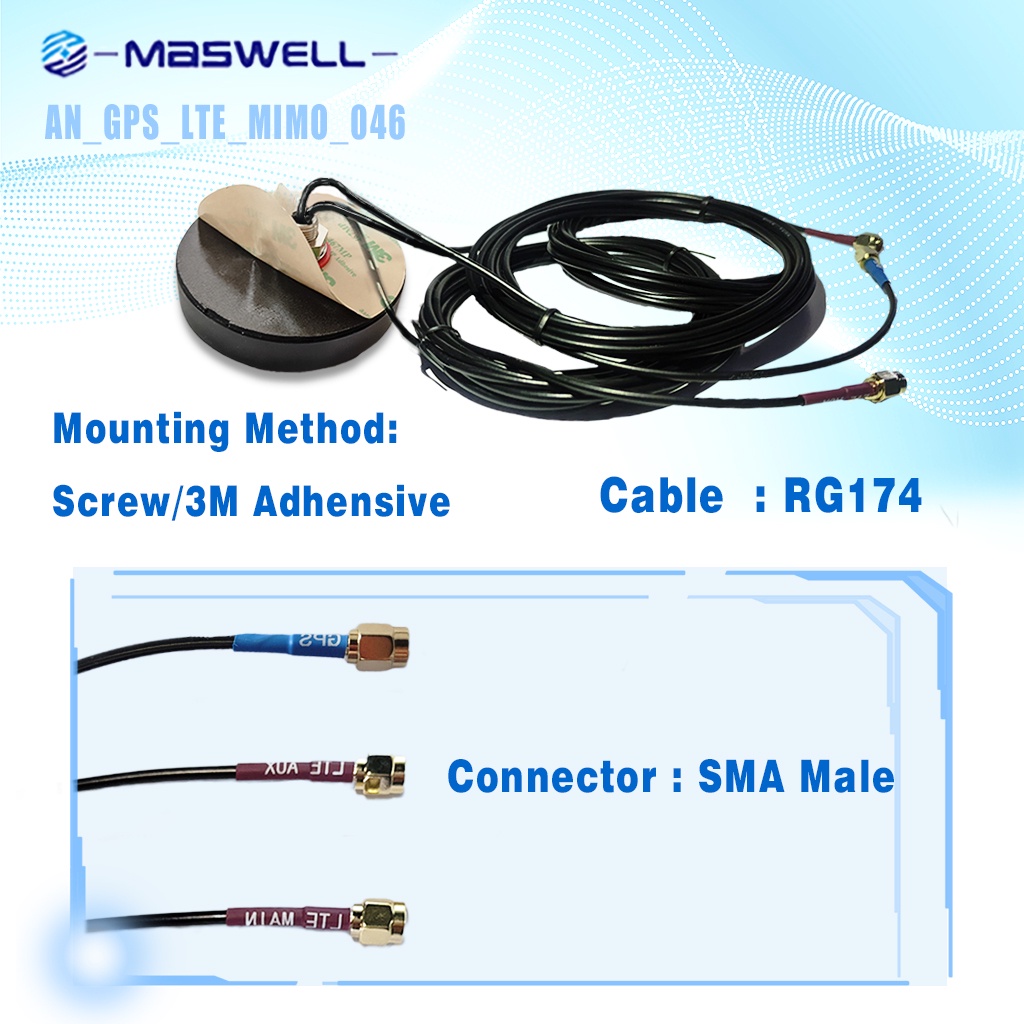

Cable RG174 (3m)
Connector SMA Male for both GPS and 4G main ,4G Aux
Housing Black
Environmental
Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH

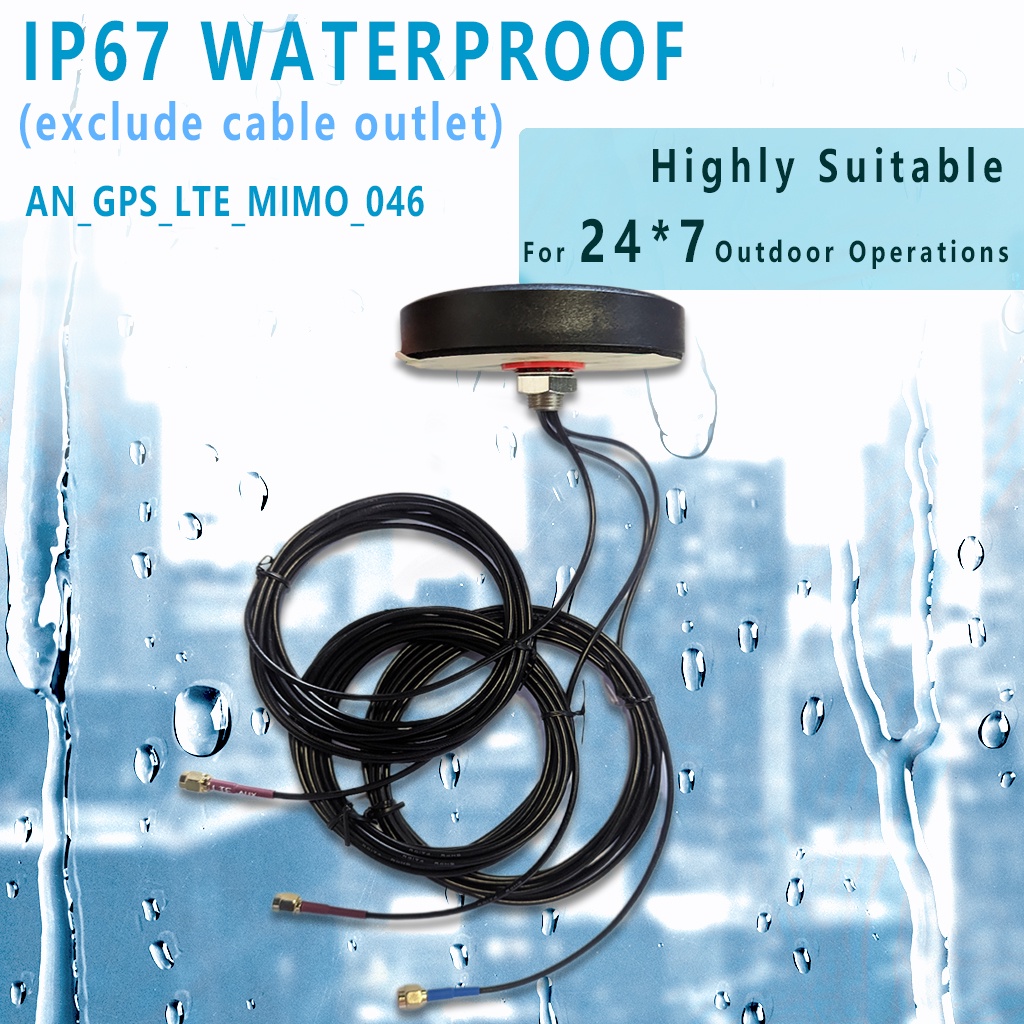

Waterproof IP66
Size D80×
GTIN: 658848812387
Estimated Delivery Time Frame:15
