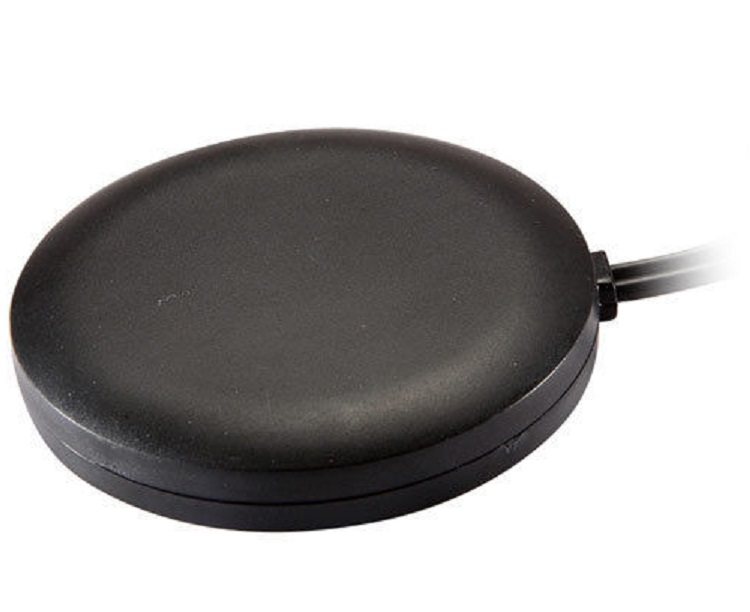

RF Outlet GPS/GLONASS and 4G LTE Combo Antenna Circular Shape Magnet Version for GPS and LONASS Combination Antenna

Image 1
Image 2
Image 3
Hurry! 5 items left!
$35

Collect 35 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

ITEM ID:AN_GPS_GSM_008 GLONASS

GPS/GLONASS+GSM/3G/4G Combination Antenna

The combo antenna has two leads. One lead support various GSM/3G/4G signal and the other lead support GPS for your tracking and navigation service!


Specifications:


 GPS Part

Center Frequency 1575.42 MHz±3 MHz

V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP

LNA / Filter
LNA Gain(Without cable) 30 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA

GSM Part

Frequency 824~894MHz/1710~2190MHz

880~960MHz/1710~2190MHz

V.S.W.R 2.0:1

Impendence 50 ohm

Typical Gain 2dBi

Cable 2 leads with RG174 (3m)

Connectors SMA (male)

Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
Waterproof IP67

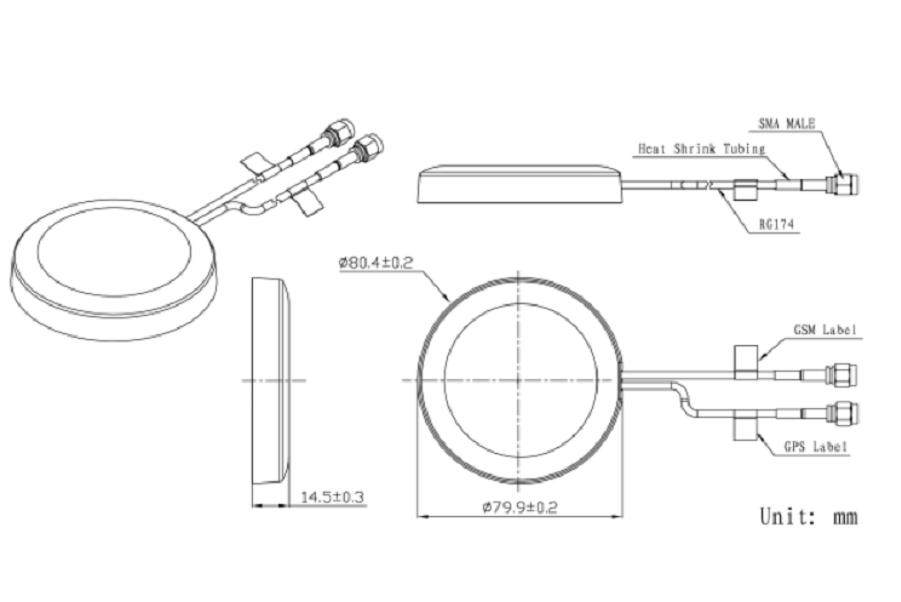

Size D80x15mm

Mounting type magnet

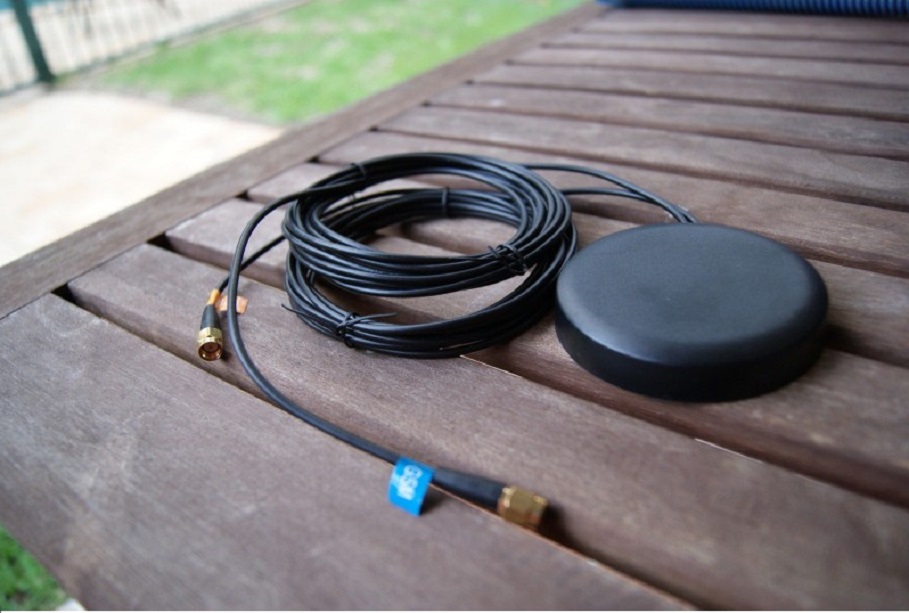

Two pieces of 3m cable assembled: one for GSM/3G/4G, the other for GPS

GTIN: 747356052320

Estimated Delivery Time Frame:15
