RF Outlet Heavy duty GPS active antenna Screw mount for Marine Vehicular rooftop oz stock

Hurry! 5 items left!

$39.99

Collect 39 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by RF Outlet

Secure ways to pay at checkout

ITEM ID:AN_GPS_A005

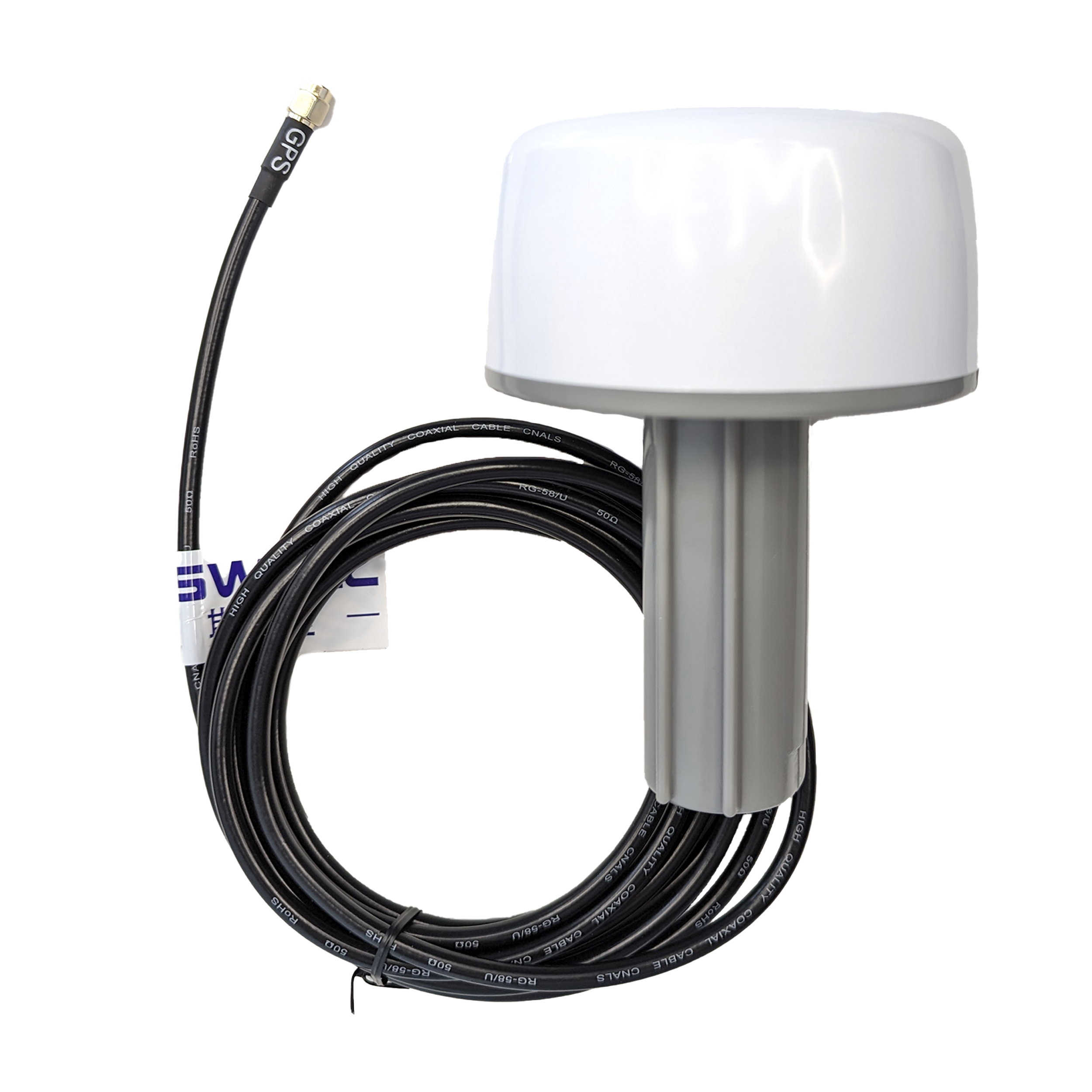

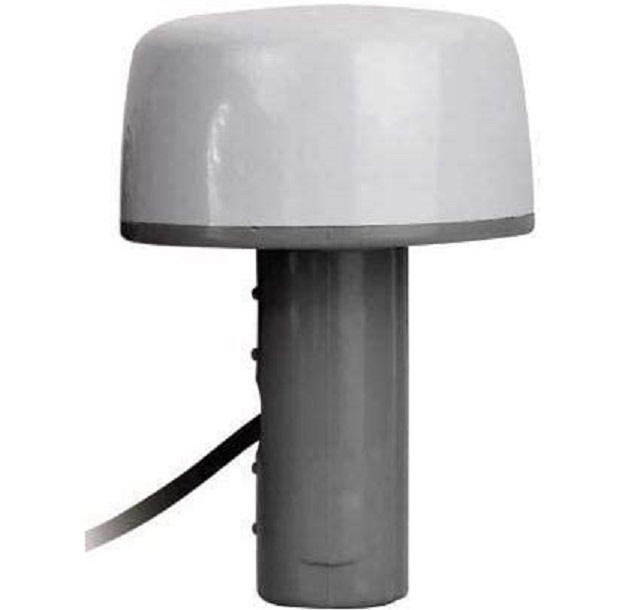

GPS heavy duty Antenna for Marine and Vehicular applications.

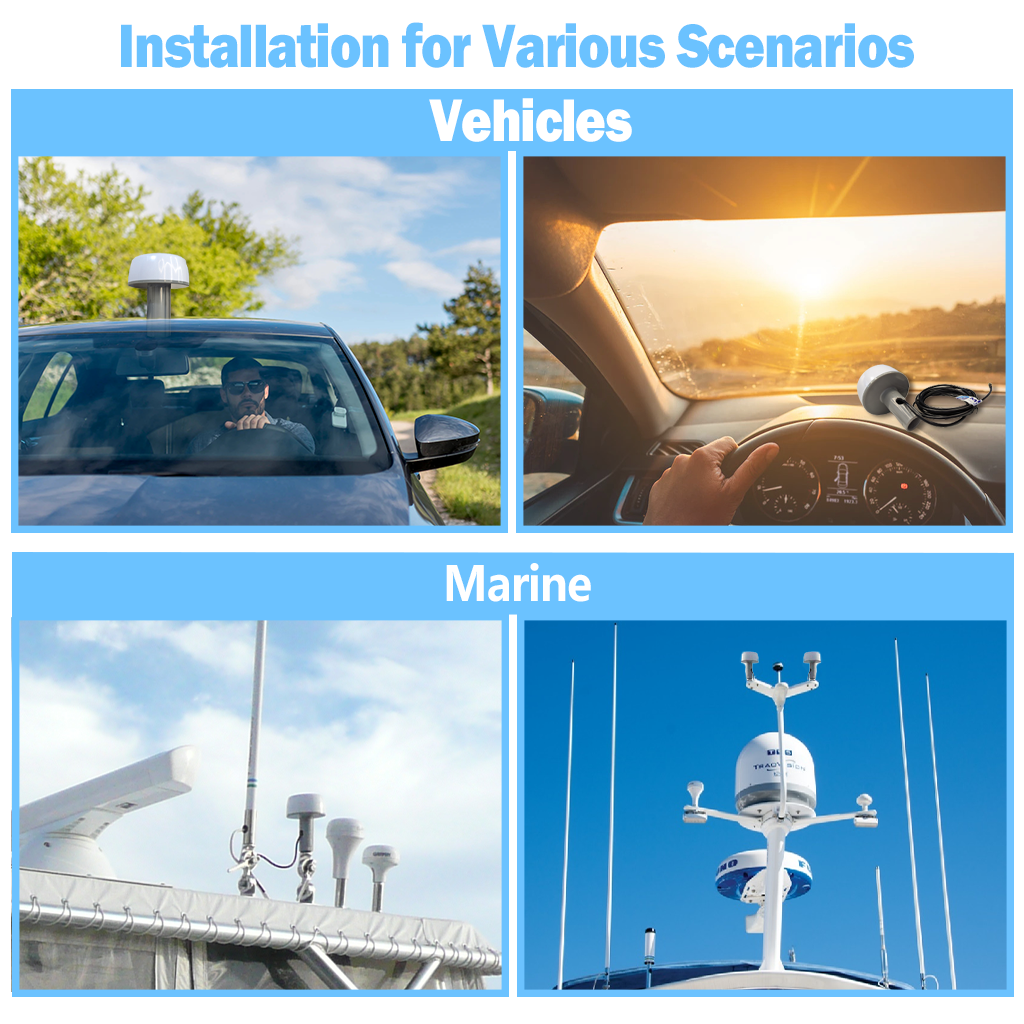

Ideal for Marine or Vehicular roof top assembly to receive both GPS signal.

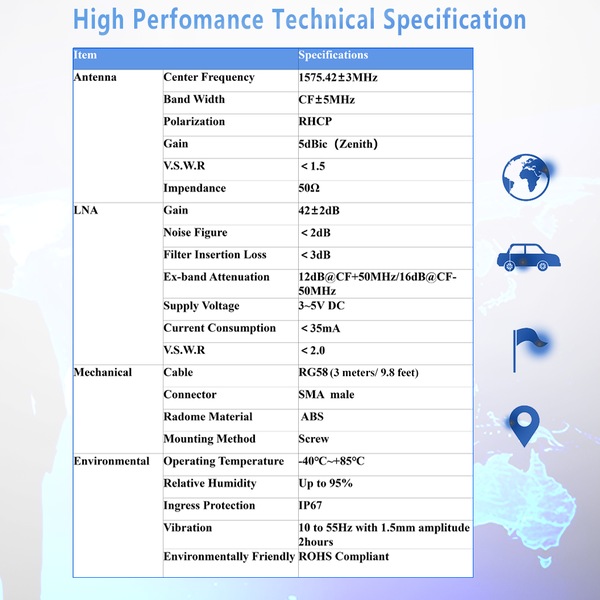

Specification:

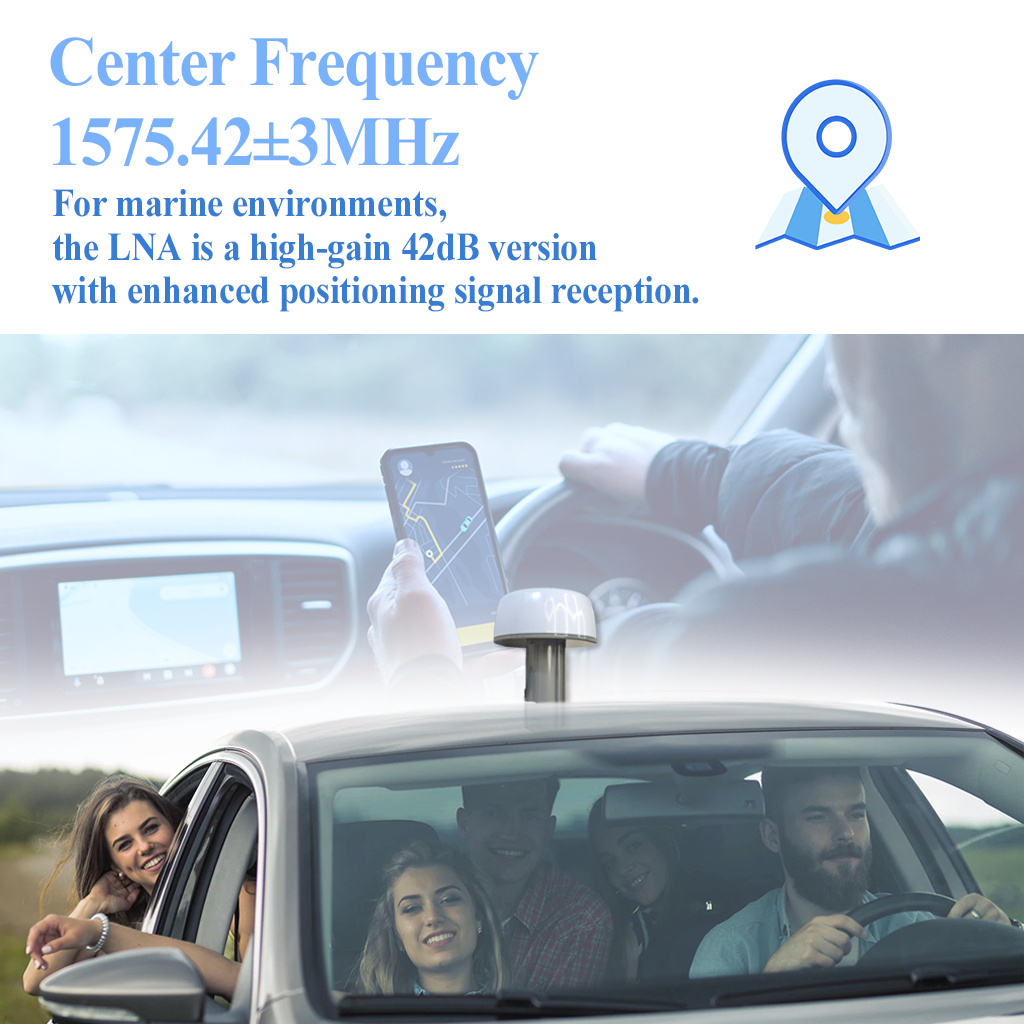

Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP with 5dBi gain

LNA / Filter
LNA Gain(Without cable) 42 dB±2dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 18~35 mA

Noise Figure <1.5dB

Filter insertion loss <3dB

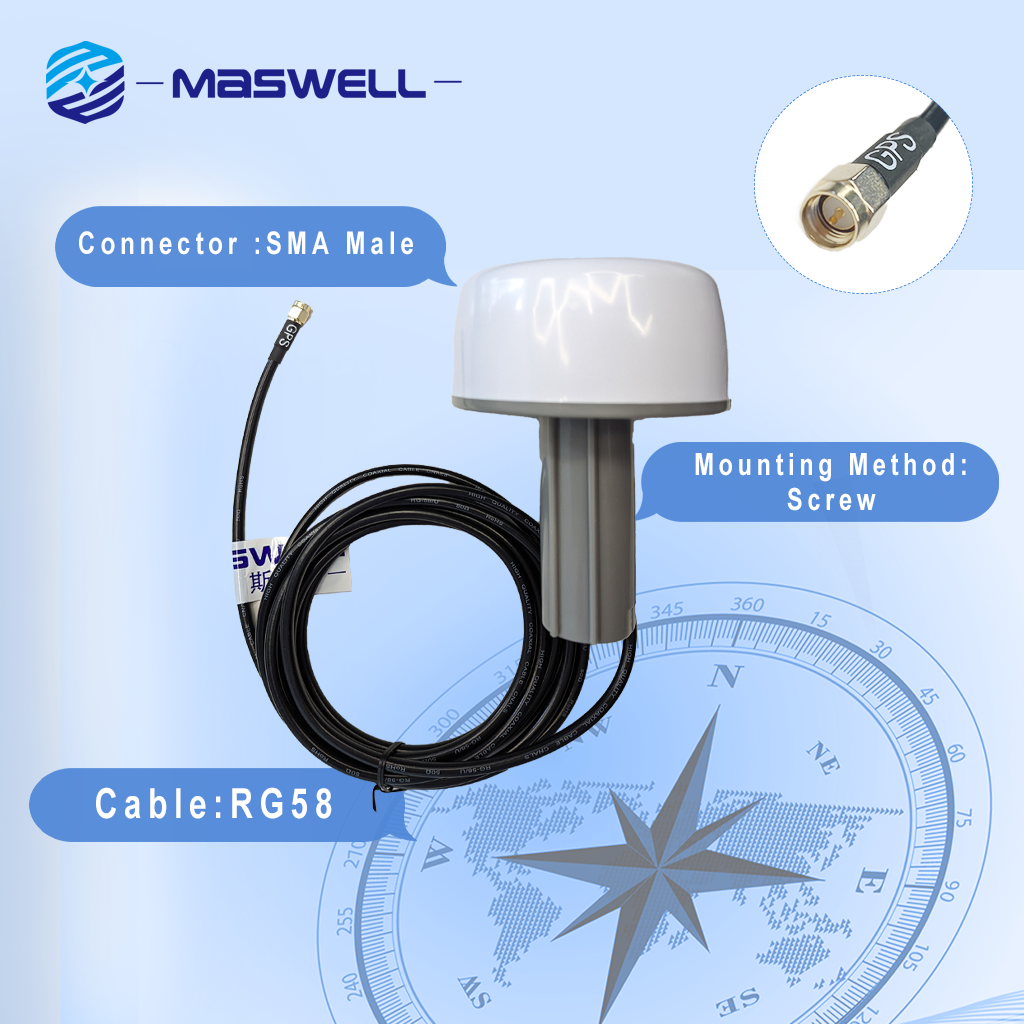

Cable RG58 (3m)

Connector SMA (male)

Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH

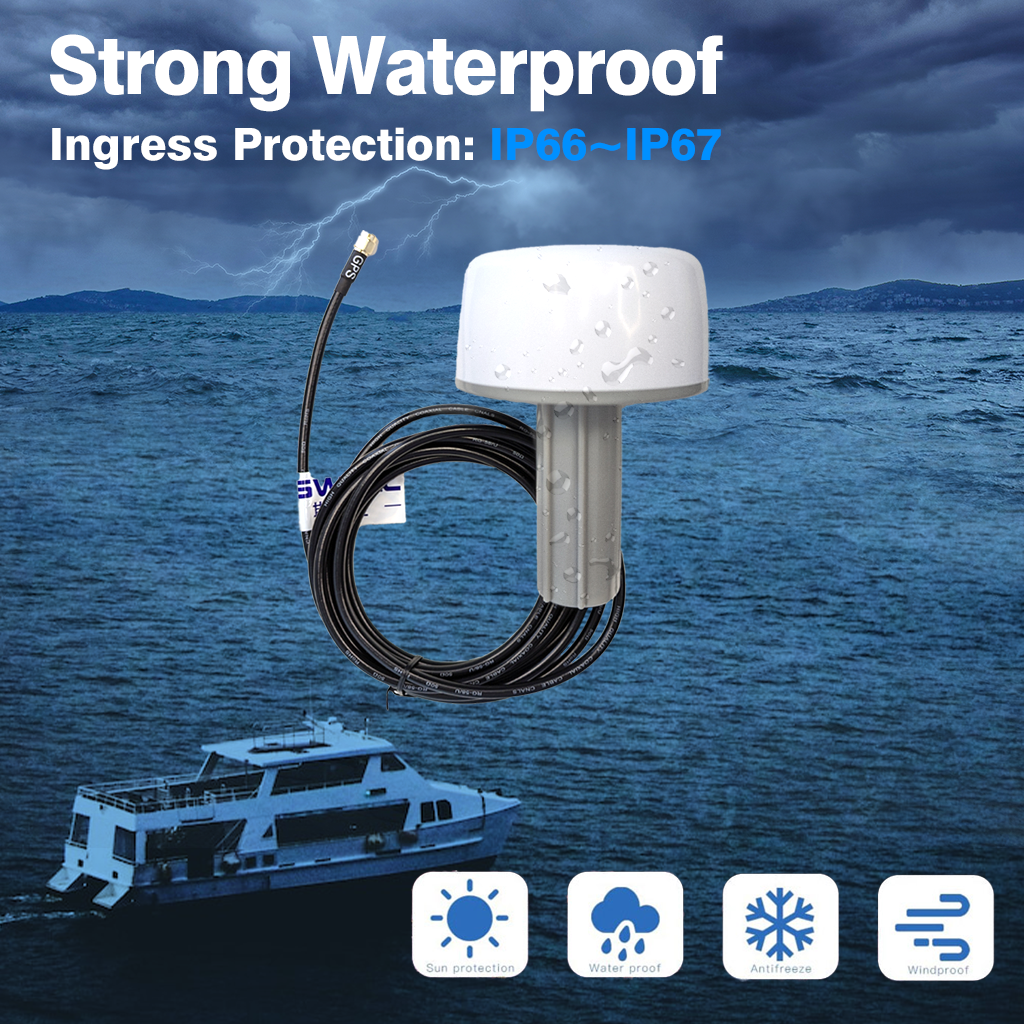

Waterproof IP67

Size D93.5*133.3mm

Mounting type Screw M26

GTIN: 747356052313
