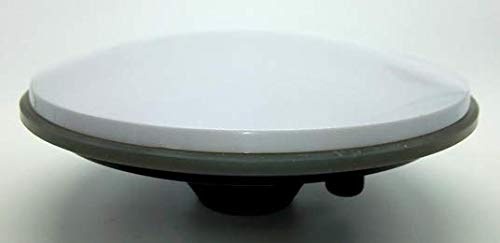

RF Outlet Precise GNSS survey antenna GPS GLONASS Compass Galileo 228B entry level

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Hurry! 2 items left!
$186

Collect 186 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

ITEM ID:AN_GPS_A228B

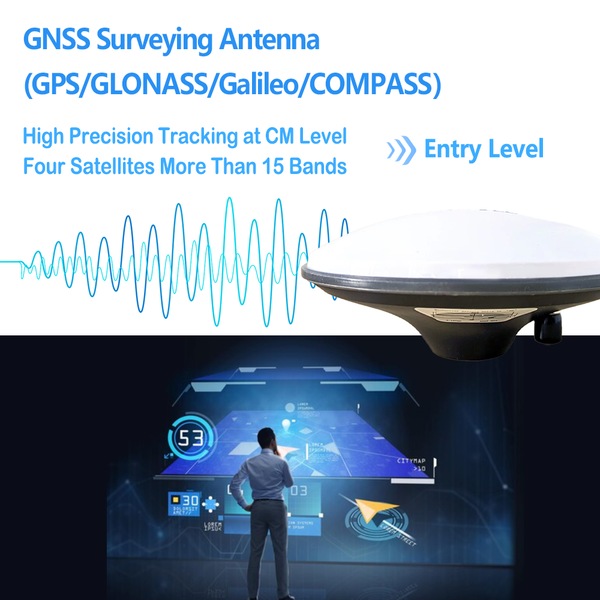

Precise GNSS survey Antenna all bands and Satellite included.

GPS,GLONASS,Galileo and Compass.

Centimeter level Accuracy.

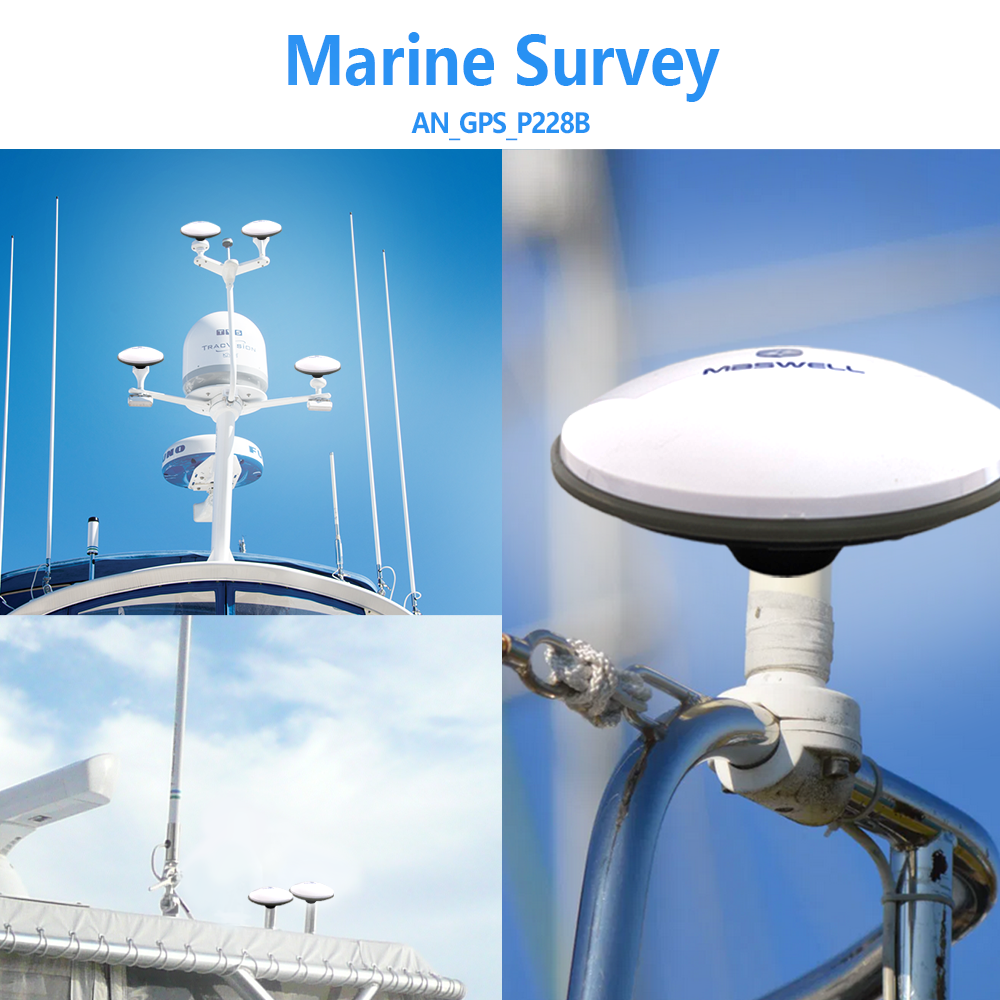

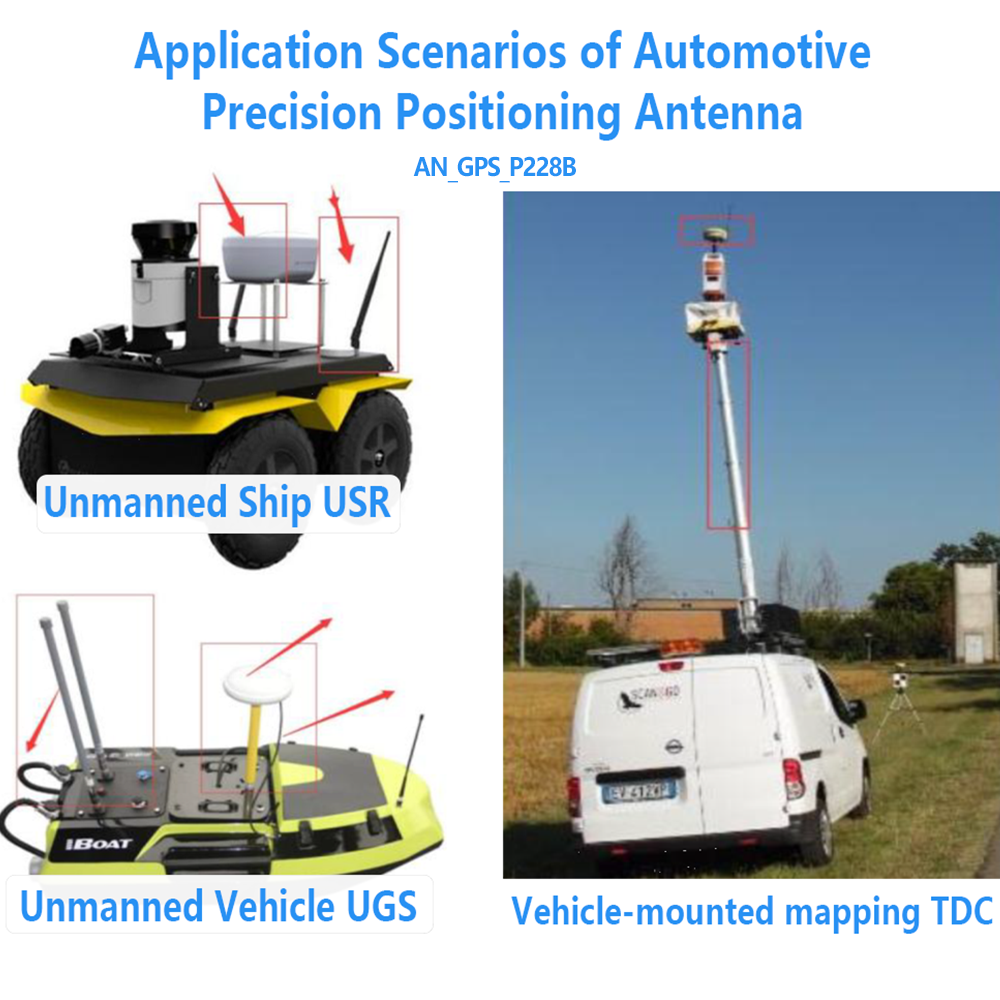

Ideal for GNSS survey, UAV etc. for high precise location survey!

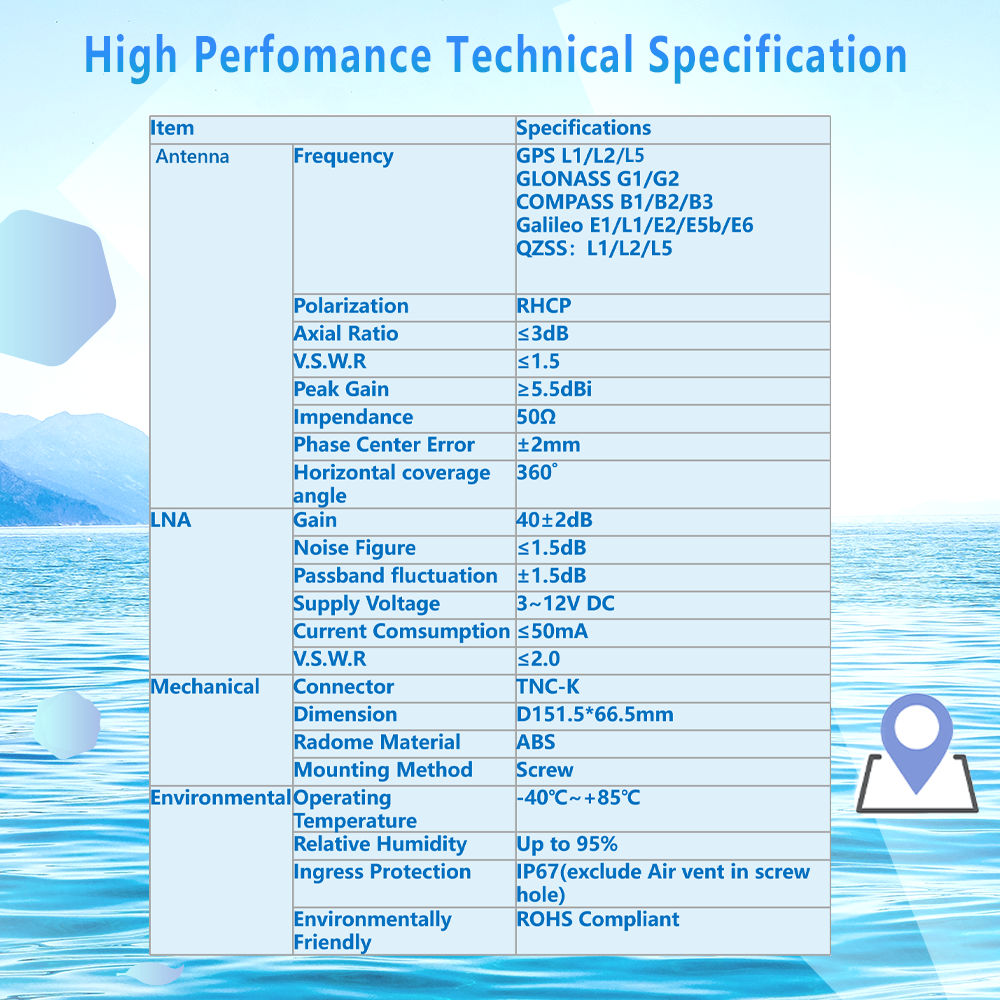

Specifications:

Specifications

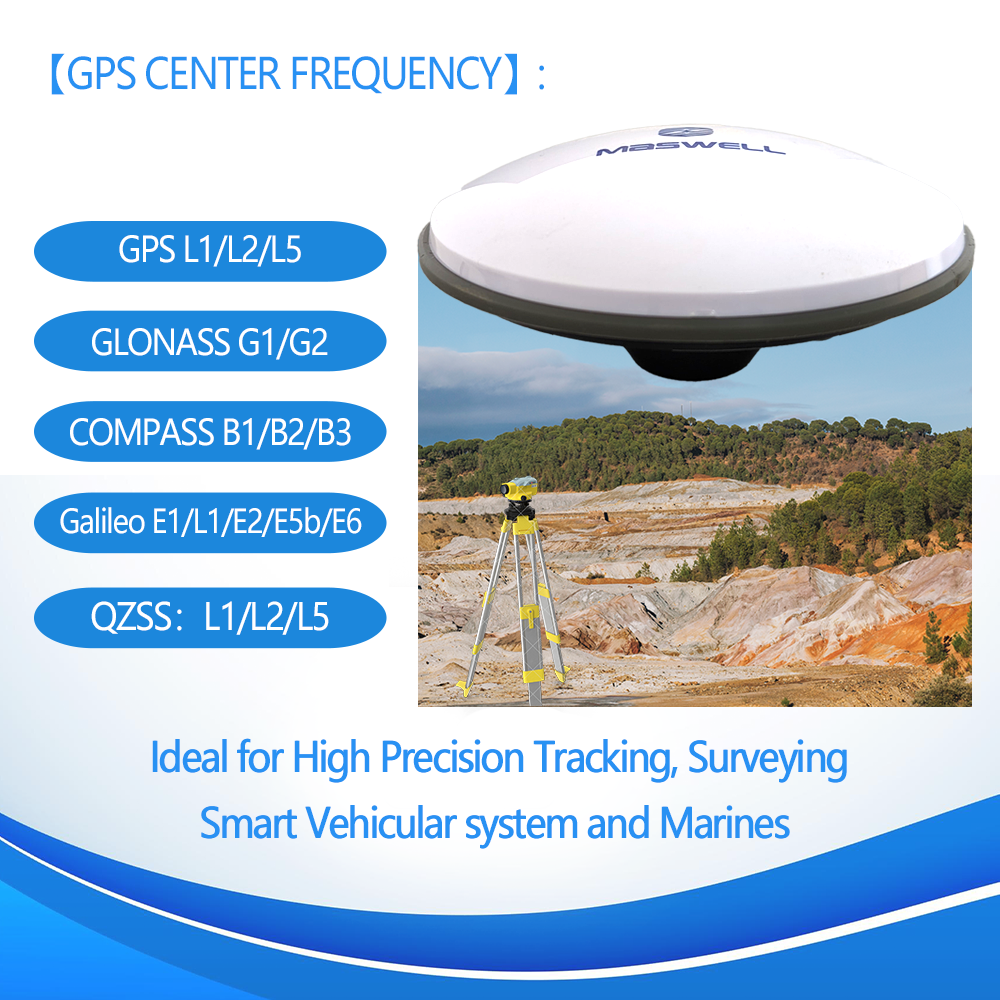

Center Frequency: GPS L1/L2
GLONASS G1/G2
COMPASS B1/B2/B3
Galileo E1/L1/E2/E5b/E6
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP with 5.5dBi gain

Phase center error ±2 mm

Horizontal coverage angle 360°

LNA / Filter
LNA Gain(Without cable) 40 dB±2dB Typical
Noise Figure 1.5 dB
DC Voltage 3~12 V
DC Current < 50mA

 Noise Figure <1.5dB

Filter insertion loss <3dB

Cable N/A

Connector TNC

Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH

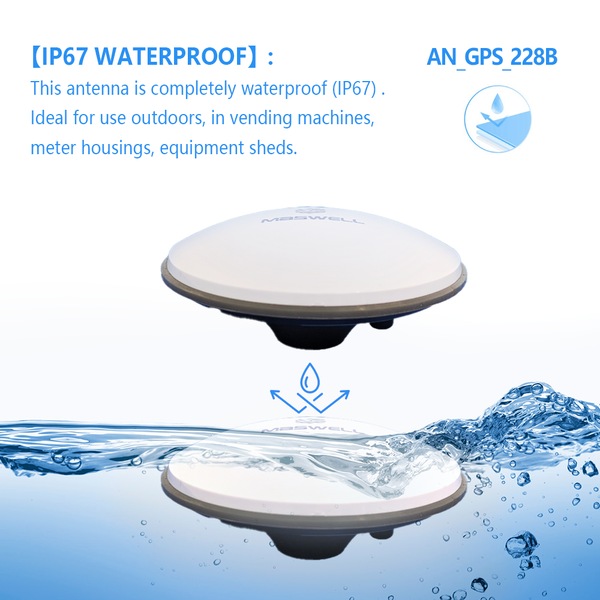

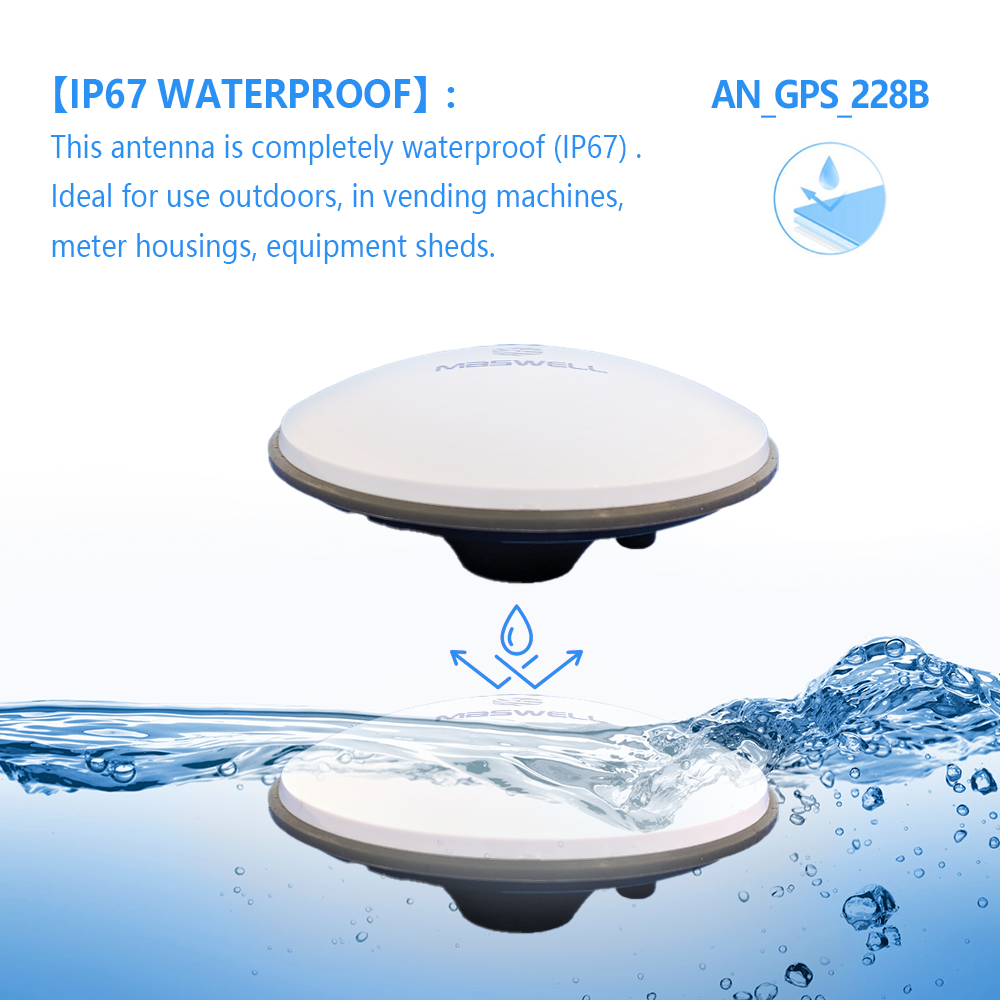

Waterproof IP67

Size D151.5*66.5mm

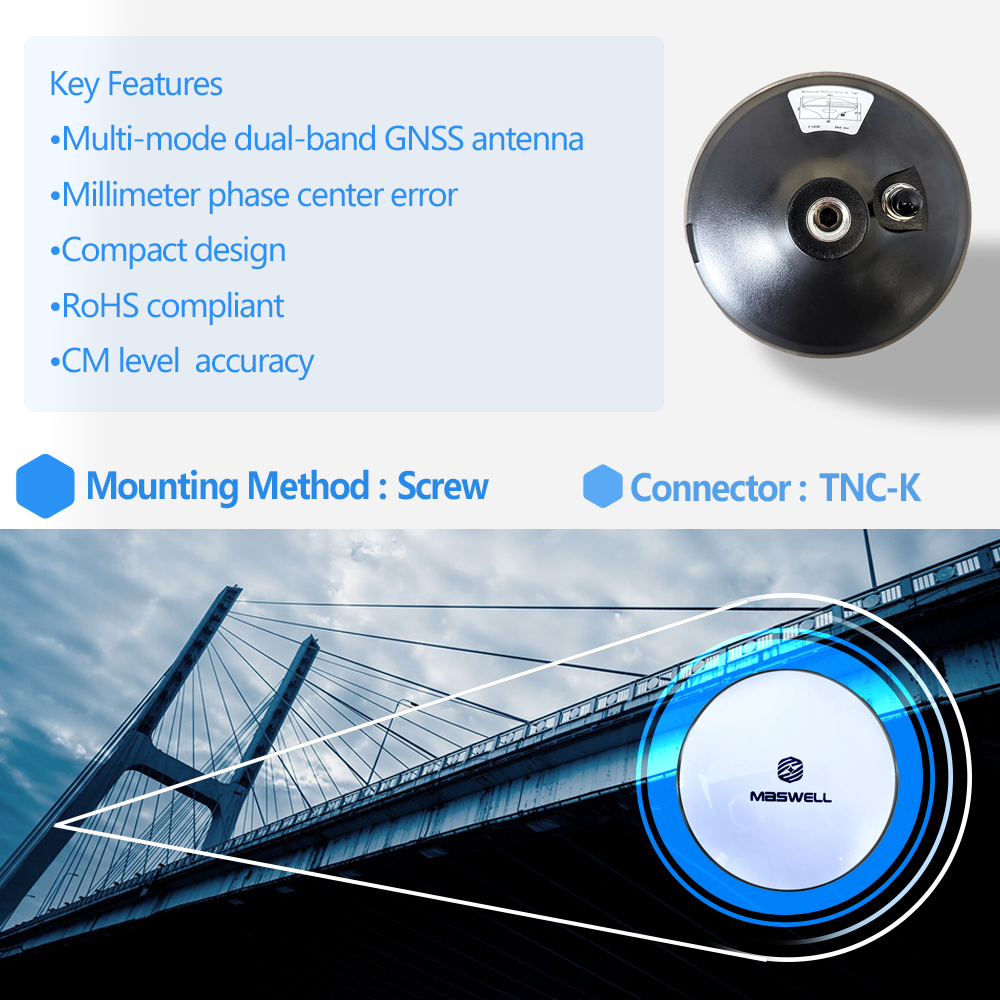

Mounting type Screw

GTIN: 658848812363

Estimated Delivery Time Frame:15
